高清小间距P1.667LED全彩显示屏
●适用于商场，酒吧，舞台背景，展览馆，规划展厅等
●正面维护，灵活，轻便，易于安装和维护
●160度可视角度，全面展现流线型外观，无缝拼接
●高灰度，高刷新，更高清画面
-
规格
| 项 |
参数值 Value |
| 间距Pixel Pitch |
H&S-XJ1.667 |
| 灯LED Type |
3-in-SMD1010 |

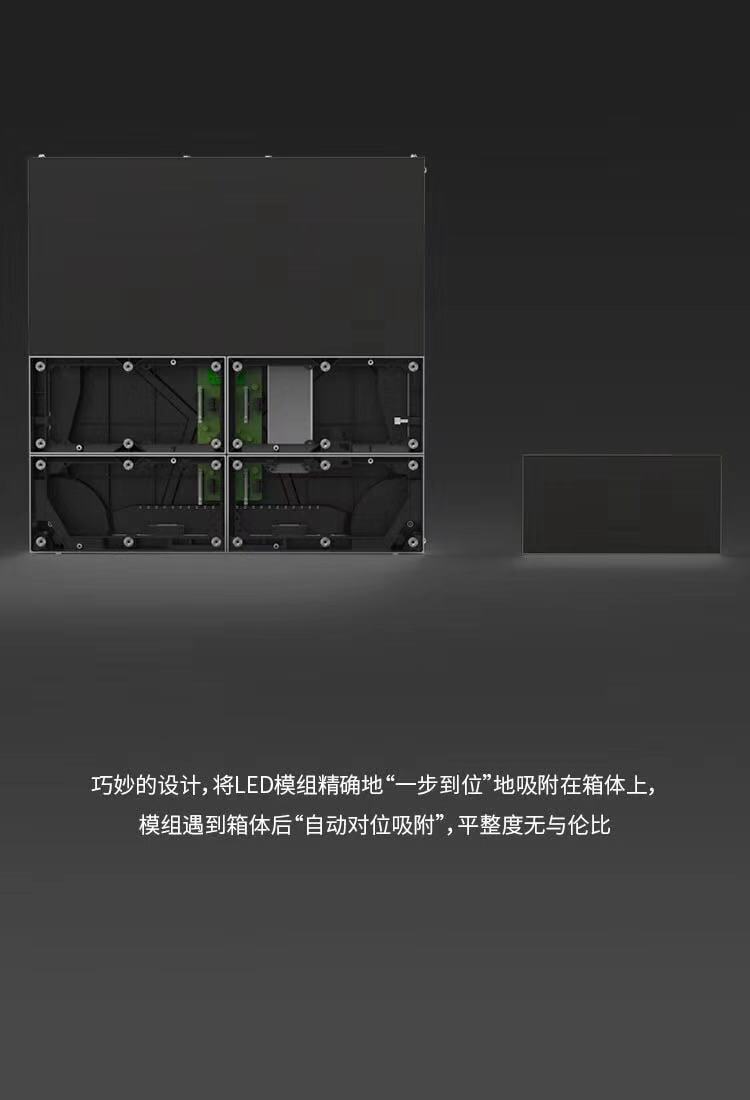

| 模组尺寸Module Size |
200MM*150MM |

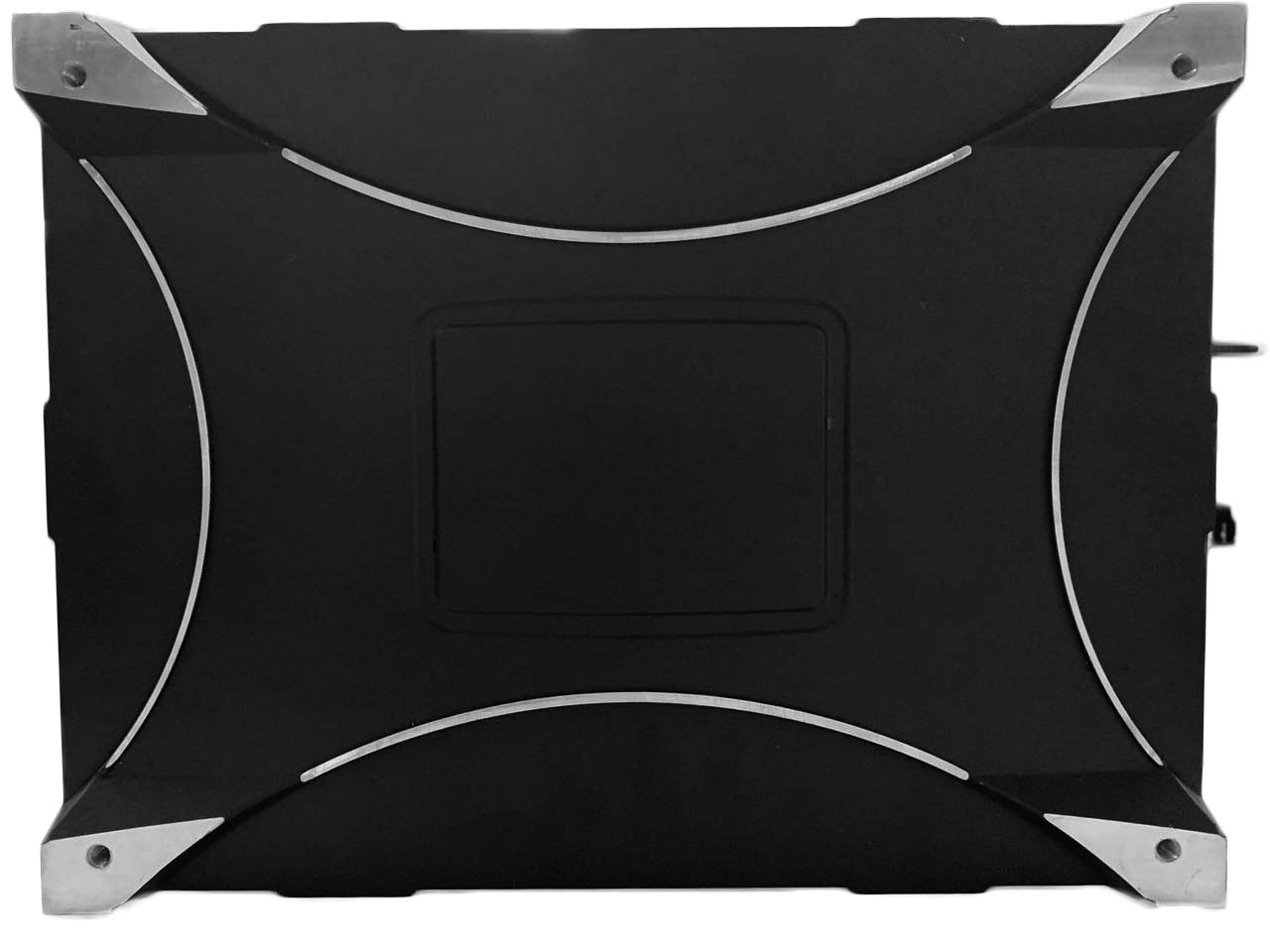

| 箱体尺寸Cabinet Size |
400MM*300MM |
| 重量Weight |
4KG/panel |
| 亮度Brightness |
≥600cd/㎡ |
| 分辨率Pixel Density |
360000pixels/㎡ |
| 峰值Input Power <Max> |
450W/panel |
| 功耗Input Power <Typical> |
120W/panel |
| 扫描Driving Method |
1/32Constant Current Drive |
| 最大视角Viewing angle |
左右120/垂直120 Vertical Viewing Angle120°/ Horizontal Viewing Angle120°
|
| 对比度Contrast Ratio |
5000:1 |
| 工作温度Operating Temperature/Humidity |
-30℃~+45℃/10~80%RH |
| 扫描方式Driving Method |
1/32Constant Current Drive |
| 刷新Refresh Rate |
3840Hz |
| 输入电压Input Voltage |
DC5V40A/60A 100~220VAC |
| 防护等级Ingress Protection |
IP31 |
| 信号输入Input Signal |
DVI/HDMI/VGA/SDI/DP/AV/S-Video, etc |
| 传输距离Transmission distance |
100M网线控制，5KM单模 Network Cable ( L≤100m ); multi-mode fiber single mode fiber ( L≤15km ) |
| 寿命LED Life Time |
≥100,000 Hours |
