H&S-SNSMD series indoor fixed screen:

 ◆ H&S-GZ2/ ◆ H&S-GZ2.5/ ◆ H&S-GZ3/ ◆ H&S-GZ4/ ◆ H&S-GZ5

  • Summary
  • Product Atlas
  • Specification table

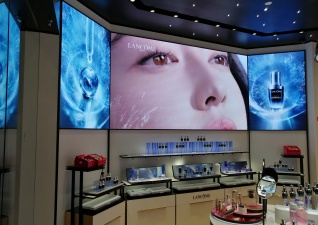

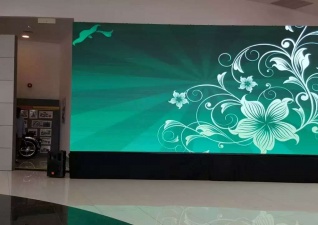

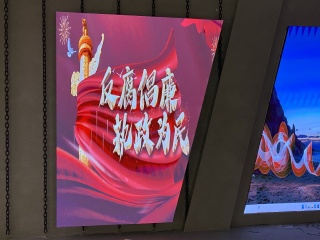

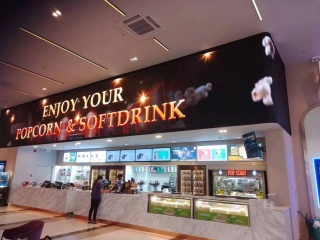

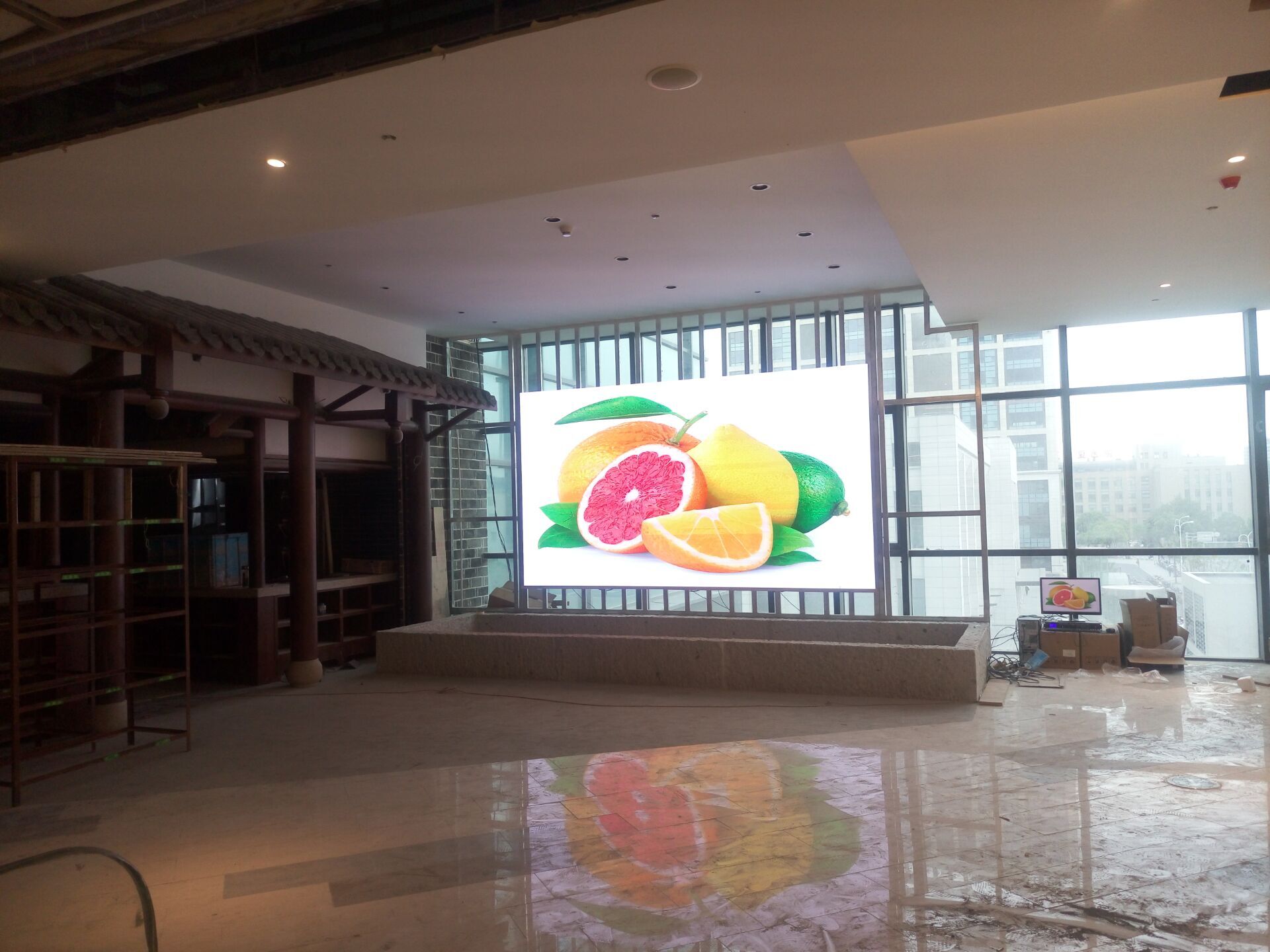

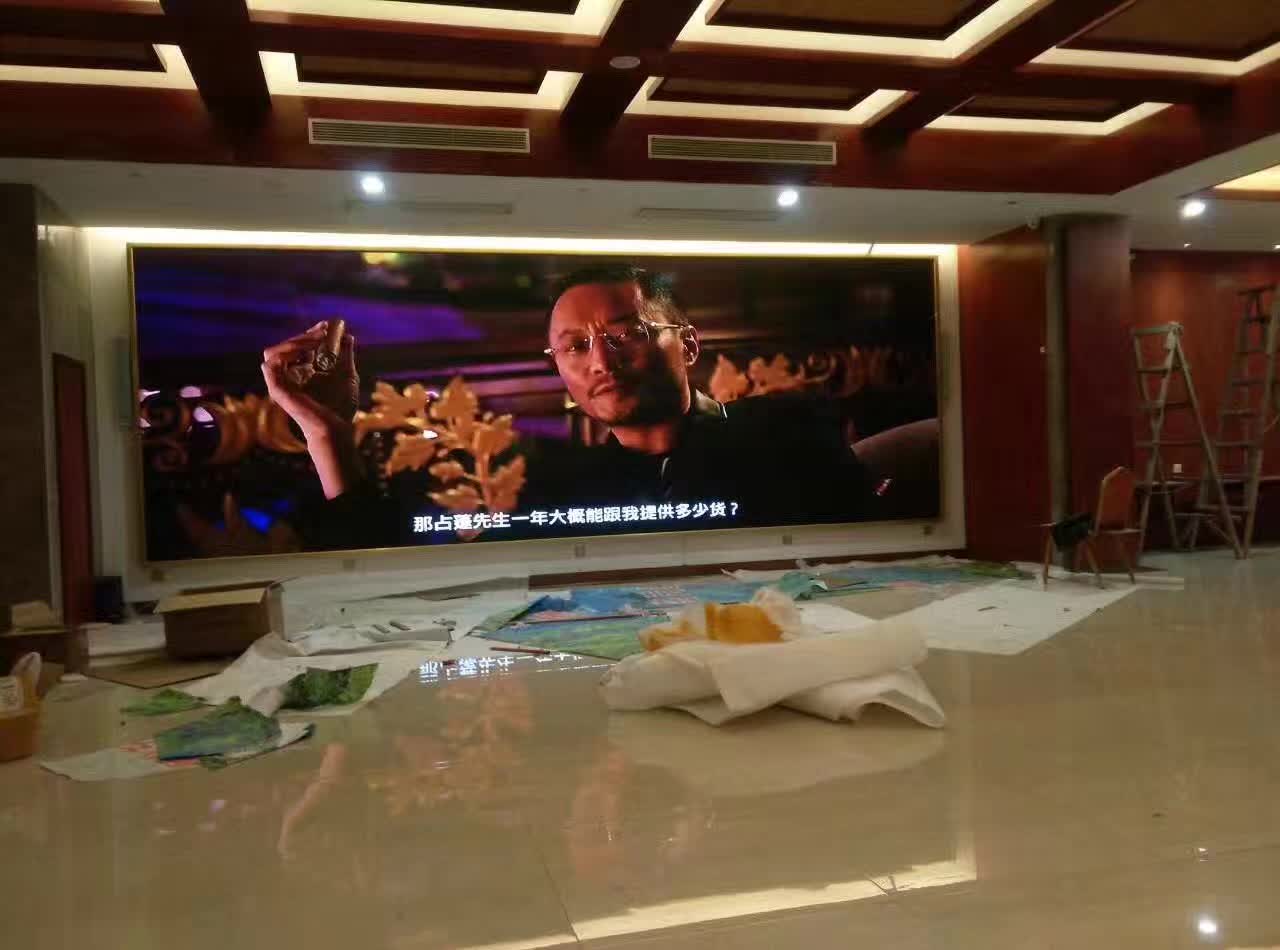

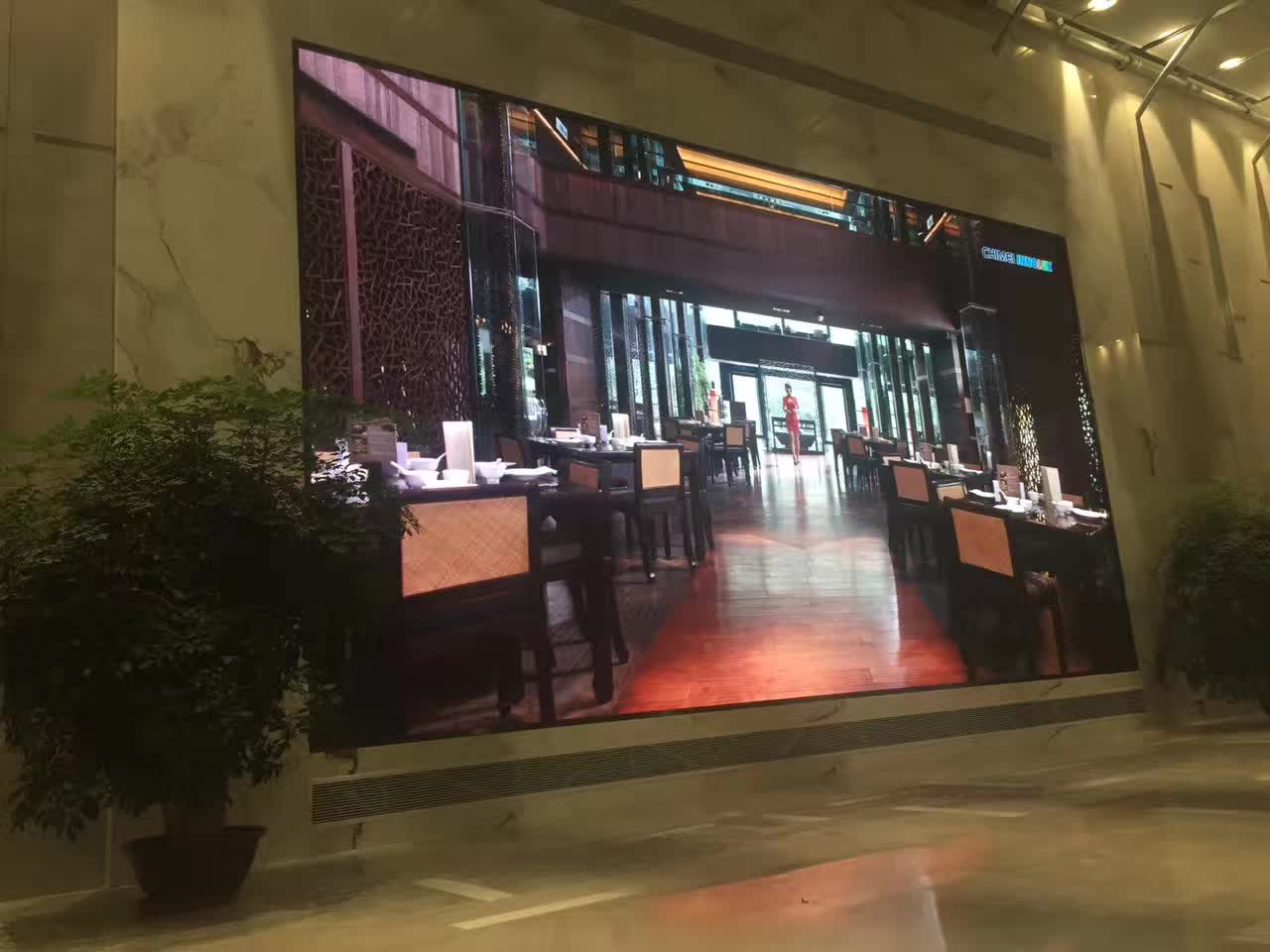

  • Case
  • Summary

    SMD three-in-one technology, which makes the screen have an ultra-wide viewing angle and better surface flatness and stability.

    RGB deep grayscale processing, rich colors, high quality HD

    Support point-by-point correction function to ensure the consistency of color and brightness during use

    Precise, fast and flexible positioning installation, which can effectively cope with different installation environments

    The inside of the screen body is fixed with reinforcing ribs, which are tensile and shockproof, self-heating, and have a life span of ten years.

    Large-scale production, mature technology, high-quality raw materials, stable and reliable quality

    The series is complete and can be customized to meet the different needs of customers.

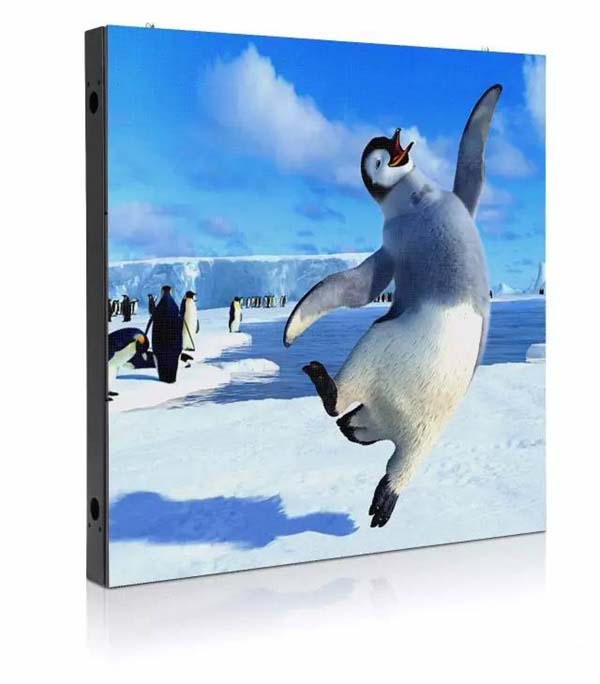

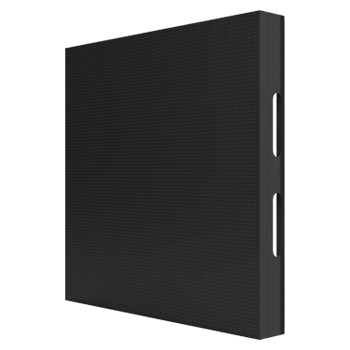

  • Product Atlas
  • Specification table
    H&S-SNSMD Panel Specification
    Environmental  INDOOR
    Part Number   H&S-GZSMD2 H&S-GZSMD2.5 H&S-GZSMD3 H&S-GZSMD4 H&S-GZSMD5
    Pixel Pitch 2mm 2.5mm 3mm 4mm 5mm
    LED Configuration  SMD1515 SMD2020 SMD2020 SMD2020 SMD2020
    Pixel Density  250000dot/m2 160000dot/m2 111111dot/m2 62500dot/m2 40000dot/m2
    Module size 256X128mm 160X160mm 192X192mm 256X128mm 320X160mm
    Module Resolution  128X64dot 64X64dot 64X64dot 64X32dot 64X32dot
    Cabinet Size 512X512mm 640X640mm 768X768mm 1024X1024mm 960X960mm
    Cabinet Resolution  256X256dot 256X256dot 256X256dot 256X256dot 192X192dot
    Cabinet Weight  7.5kg / PCS 12kg / PCS 17kg / PCS 30kg / PCS 27kg / PCS
    IP Rating (front/back) IP40 IP40 IP40 IP40 IP40
    Scanning Mode 64S 32S 32S 16S 16S
    Brightness Intensity  ≥800CD/m2  ≥900CD/m2  ≥900CD/m2  ≥900CD/m2  ≥1800CD/m2
    Viewing Angle  120° 120° 120° 120° 120°
    View Distance 2m-15m 2.5m-15m 3m-15m 4m-31m 5m-38m
    Gray Scale 14bit 14bit 14bit 14bit 14bit
    Display Scale 16.7M 16.7M 16.7M 16.7M 16.7M
    Max.Power Consumption  1000 W/m² 950 W/m² 700 W/m² 700 W/m² 700 W/m²
    Ave.Power Consumption 330W/m² 315W/m² 230 W/m² 230 W/m² 230 W/m²
    Refresh Frequency ≥2880HZ ≥2880HZ ≥2880HZ ≥2880HZ ≥2880HZ
    Brightness Adjustment 0 - 100 levels adjustable
    Control Mode Synchronous display with control PC by DVI
    Support Input Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
    Operation Power AC100/240 50/60HZ
    Operating Temperature  - 20℃~+50℃
    Operating Humidity 10~90% RH
    Operating Life 100,000hours
