JY-I 系列参数 Panel Specification |
||
|
使用环境Environmental |

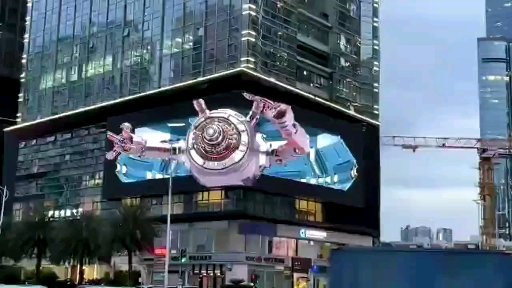

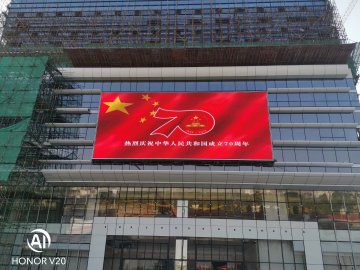

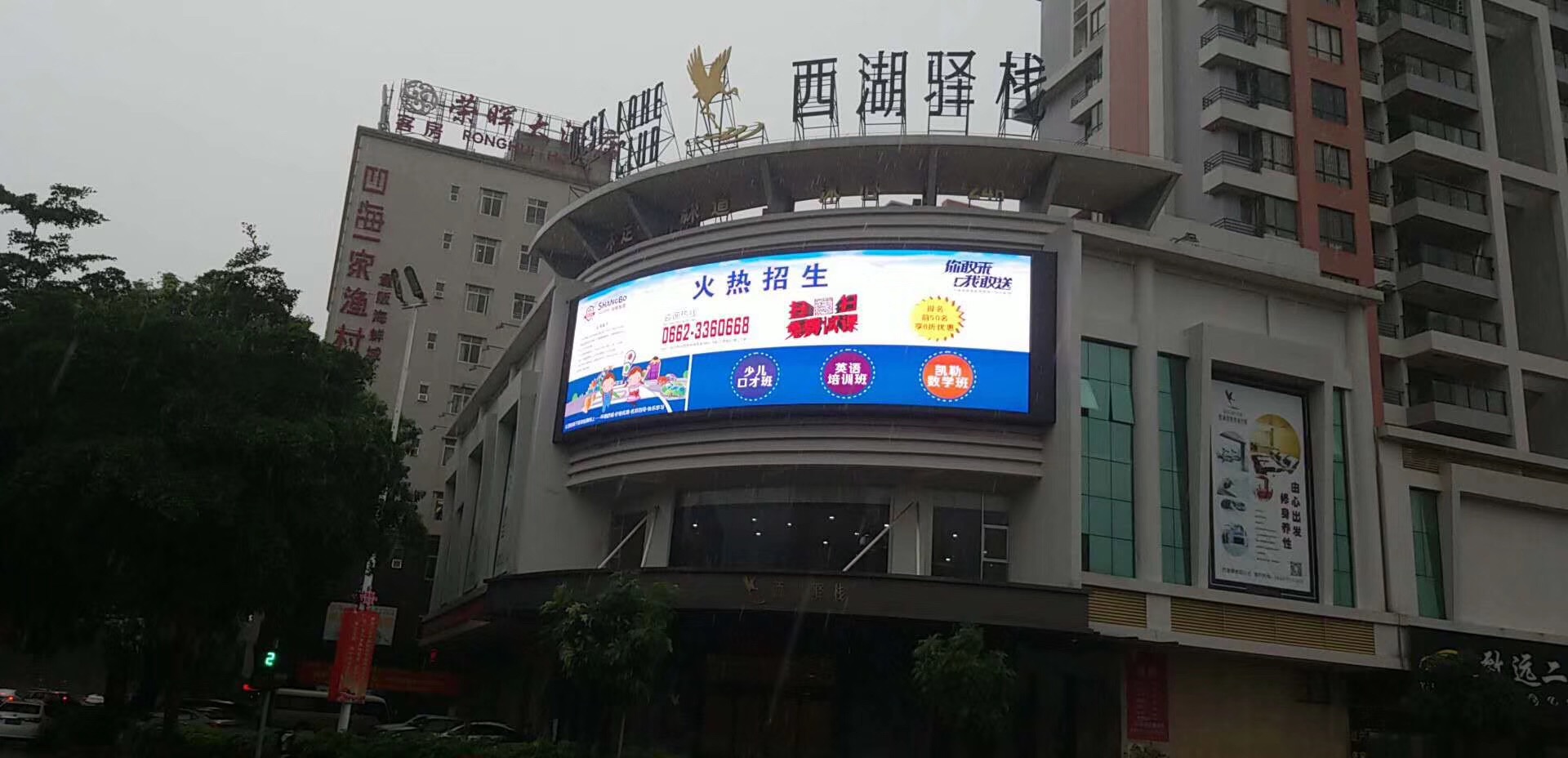

OUTDOOR |
|
|
产品型号Model |
JY-I10 |
JY-I16 |
|
像素间距Pixel Pitch |
10mm |
16mm |
|

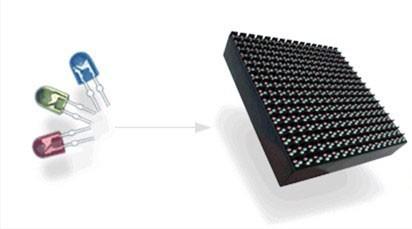

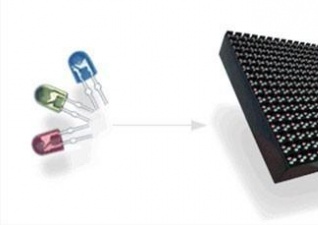

像素构成LED Configuration |

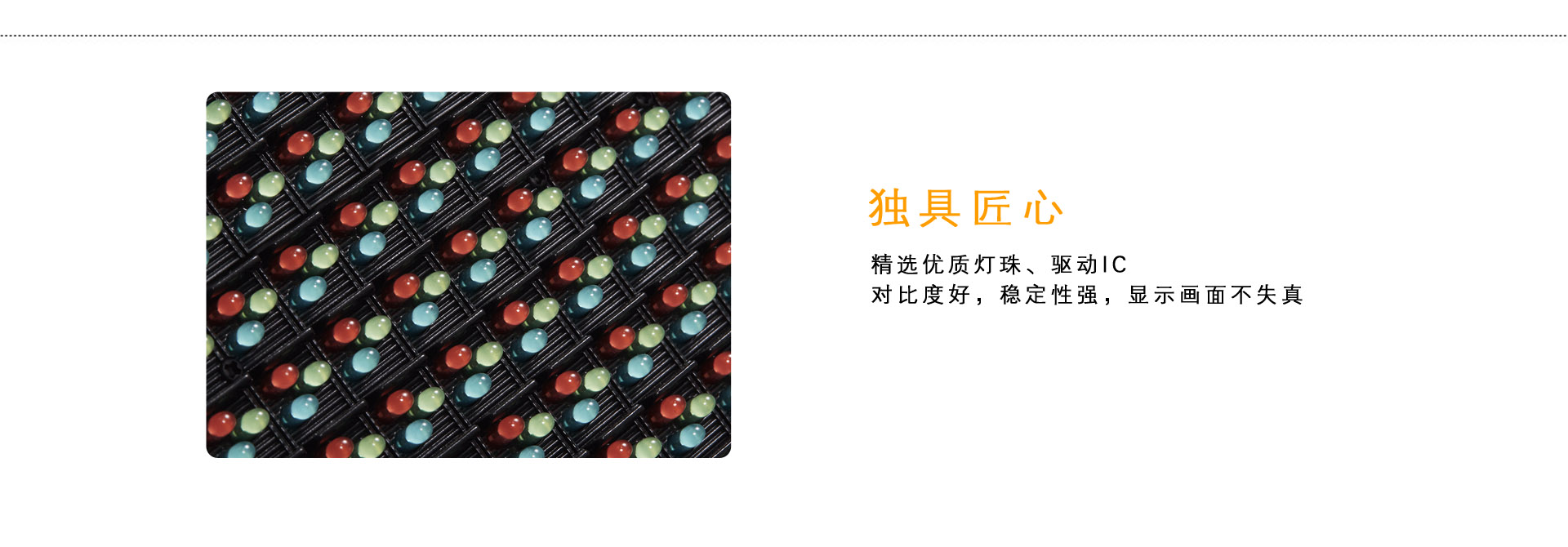

1R1G1B DIP346 |
1R1G1B DIP346 |
|
像素密度Pixel Density |
10000dot/㎡ |
3906dot/ ㎡ |
|

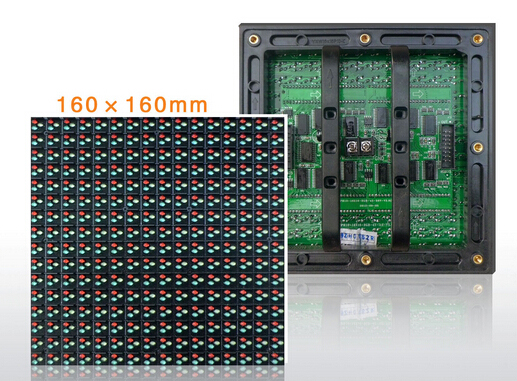

模组尺寸Module size |
160x160mm |
256x256mm |
|
模组分辨率Module Resolution |
16x16dot |
16x16dot |
|
箱体尺寸Cabinet Size |
960x960mm |
1024x1024mm |
|
箱体分辨率Cabinet Resolution |
96x96dot |
64x64dot |
|
重量Cabinet Weight |
51kg |
55kg |
|
防水等级 IP Rating ( front/back) |
IP65/43 |
IP65/43 |
|
扫描方式Scanning Mode |
4s |
Static |
|
亮度水平Brightness Intensity |
>8500CD/ ㎡ |
>7000CD/ ㎡ |
|
可视角度Viewing Angle |
110/55° |
110/55° |
|
观看距离View Distance |
>10m |
>16m |
|
灰度等级Gray Scale |
14bit |
14bit |
|
色彩种类Display Scale |
16.7M |
16.7M |
|
最大功率Max.Power Consumption |
300W/ ㎡ |
720 W/ ㎡ |
|
平均功率 Ave.Power Consumption |
90W/ ㎡ |
240W/ ㎡ |
|
刷新率 Refresh Frequency |
>1920HZ |
>1920HZ |
|
亮度调节Brightness Adjustment |
0-100 levels adjustable |
|
|
控制方式Control Mode |
Synchronous display with control PC by DVI |
|
|
支持信号输入类型Support Input |
Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI |
|
|
输入电源 Input Power |
AC100/240V 50/60HZ |
|
|
工作温度Operating Temperature |
-20°C~+50°C |
|
|
工作湿度Operating Humidity |
10-90% RH |
|
|
工作寿命Operating Life |
100,000hours |
|
