Indoor/oudoor Live Events Led Display

Quick Details

Application:: Indoor/oudoor Live Events Led Display

Color:: Full Color

Panel Size:: Customized

Pixel Pitch:: Customized

Place of Origin:: Guangdong, China

Model Number:: JY-D2.6;JY-D2.9;JY-D3.91;JY-D4.8

Brand Name:: H&S

Product name:: Led Video Display

Lamp:: Nation Star

LED chip:: Epistar

Brightness:: 1500nits-4500nits

Cabinet size:: 500x500mm/500x1000mm

Cabinet material:: Diecasting Aluminum

Warranty:: 2 Years

Summary
Product Atlas
Specification table

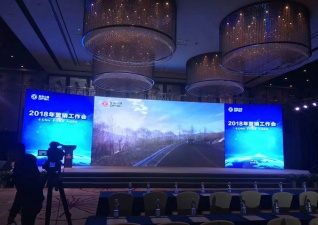

Case

Summary

indoor/Outdoor concert stage led screen panel for dj facade booth

1.Product Type：we have indoor fixed installation /rental/small pixel pitch/outdoor advertising/front service /soft/transparent led display,etc.

2.Type:we can customize the product according to customers' needs, you just need to provide the requirements details and also specify the lamp bead brand, ic brand.

3.Installation：diversified installation and high protection level .in addition ,we have processional technicalengineer provide remote assistance

4.Quality Assurance:

▲using Nationstar, Nichia, Cree,Kinglight gold and Copper Wire,big size rgb chips, long service life, low failure rate;

▲original pvc plastic and even aluminum material, good toughness, high and low temperature resistance, V0 grade flame retardant,

UVresistant

5.Application:shopping mall, large building glass wall, stage background led display, casino, carnival, concert, exhibition, chain shops and clothes shop, even in bnak window, etc.

* We Can Make The OEM And ODM,Customize The Shape,Size And Lamp Bead Brand, IC Brand,Please Contact With Us.

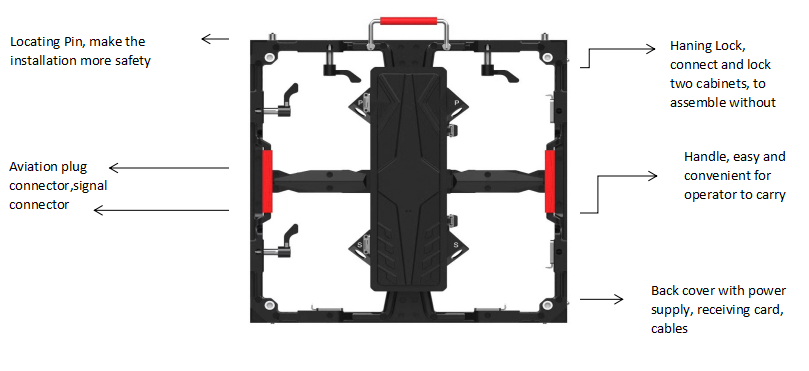

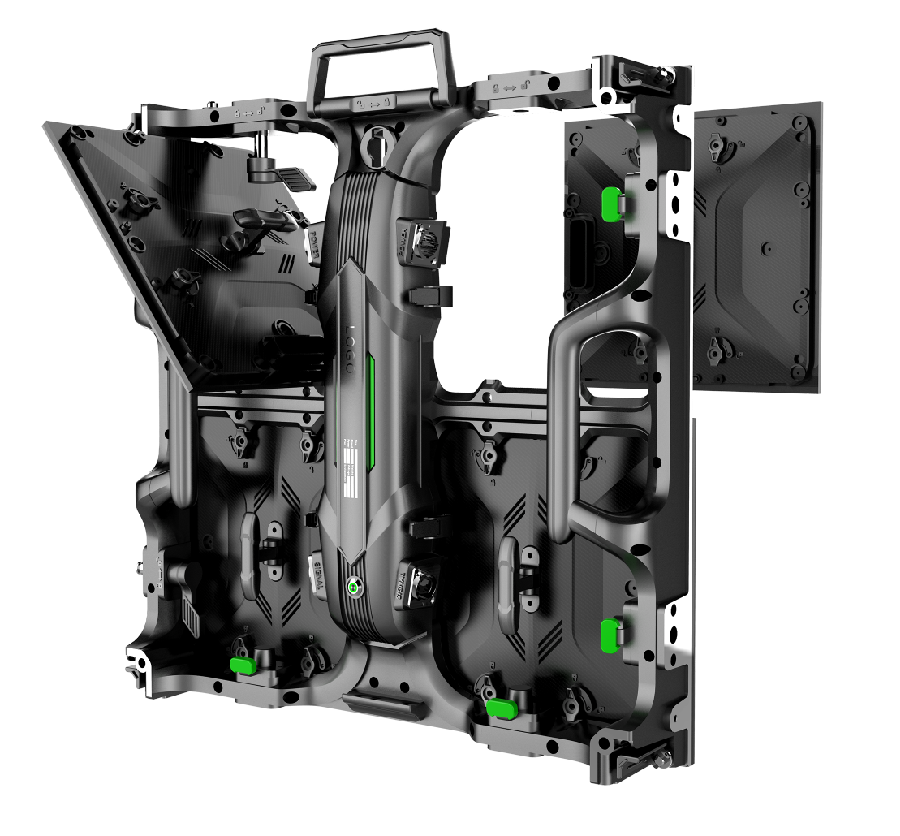

Product Atlas

Specification table

JY500 系列参数 Panel Specification
使用环境 Environmental	INDOOR	INDOOR/OUTDOOR
产品型号 Model	JY-D2.6	JY-D2.9	JY-D3.9	JY-D4.8
像素间距 Pixel Pitch	2.604 mm	2.97 mm	3.91 mm	4.81 mm
像素构成 LED Configuration	SMD1515	SMD2121	SMD2121/1921	SMD2121/1921
像素密度 Pixel Density	147470dot/m2	113367dot/m2	65536dot/m2	43264dot/m2
模组尺寸 Module size	250x250mm	250x250mm	250x250mm	250x250mm
模组分辨率 Module Resolution	96x96dot	84x84dot	64x64dot	52x52dot
箱体尺寸 Cabinet Size	500x500mm	500x500mm	500x500mm	500x500mm
箱体分辨率 Cabinet Resolution	192x192dot	168x168dot	128x128dot	104x104dot
重量 Cabinet Weight	10.5kg/pcs	10.5kg/pcs	10.5kg/pcs	10.5kg/pcs
防水等级 IP Rating (front/back)	IP43	IP43	IP65/43	IP65/43
扫描方式 Scanning Mode	16S	13S	16S	13S
亮度水平 Brightness Intensity	1000CD/ ㎡	1000CD/ ㎡	1800/3500CD/ ㎡	1800/4000CD/ ㎡
可视角度 Viewing Angle	120°	120°	120°	120°
观看距离 View Distance	>2.5m	>3m	>4m	>5m
灰度等级 Gray Scale	14bit	14bit	14bit	14bit
色彩种类 Display Scale	16.7M	16.7M	16.7M	16.7M
最大功率 Max.Power Consumption	800W/m2	800W/m2	800W/m2	800W/m2
平均功率 Ave.Power Consumption	265W/m2	265W/m2	265W/m2	265W/m2
刷新率 Refresh Frequency	>2880HZ	>2880HZ	>2880HZ	>2880HZ
亮度调节 Brightness Adjustment	0-100levels adjustable
控制方式 Control Mode	Synchronous display with control PC by DVI
支持信号输入类型 Support Input	Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
输入电源 Input Power	AC110/AC220 50/60HZ
工作温度 Operating Temperature	20°C~+60°C
工作湿度 Operating Humidity	10-90% RH
工作寿命 Operating Life	100,000hours
