Outdoor advertising LED display Market Background:
The outdoor advertising landscape in Malaysia, particularly along the high-traffic corridors leading to Kuala Lumpur International Airport (KLIA), is undergoing a rapid digital transformation. As one of Southeast Asia’s busiest air gateways, the Kuala Lumpur Airport Expressway serves as a critical commercial artery, handling millions of commuters, tourists, and business travelers annually. With Malaysia's Out-of-Home (OOH) advertising market projected to grow significantly, driven by urbanization and increasing vehicle ownership, traditional static billboards are being phased out in favor of dynamic LED digital signage. Advertisers in the region demand high-impact, large-format displays that can capture the attention of drivers moving at high speeds, operate continuously in a tropical climate, and offer the flexibility to rotate multiple high-value campaigns (such as telecom, automotive, and airline promotions) instantly. The market requires robust, high-brightness, and cost-efficient LED solutions that can deliver clear messaging day and night on these high-visibility expressways.
Customer Pain Points:
The project developer and media owner faced several critical challenges prior to commissioning this massive 810 square meter LED billboard:
1,Extreme Environmental Exposure: The expressway location is fully exposed to Malaysia’s harsh tropical weather, including heavy monsoon rains, high humidity, and intense year-round UV radiation.So the customer requires us to provide outdoor advertising LED display that can adapt to the outdoor environment, with high protection level LED display screen.
2,High Brightness vs. Power Consumption: To be visible in direct tropical sunlight, the screen requires extremely high brightness. However, with an area of 810 sqm, power consumption and heat generation become massive operational hurdles. The client needed a solution that balanced ultra-high brightness (over 6500 nits) with energy efficiency to keep electricity costs manageable.
3,Structural and Wind Load Safety and Maintenance Accessibility
4,Viewing Distance and Clarity: On an expressway, viewers are at a distance of 10 to 100+ meters and moving quickly. The pixel pitch had to be optimized to ensure text and logos are sharp and readable at speed, without the unnecessary cost of a finer pitch.
HSCXLED- Outdoor advertising LED display Solution:
Shenzhen H&S Innovation Technology Co., Ltd. provided a comprehensive, turnkey large-format LED display solution tailored for the Malaysian expressway environment.
We supplied the P10 Outdoor LED Display modules, engineered with industrial-grade components to withstand the local climate. The solution included:
Energy saving LED display design: Considering the large area of the LED display in this project, it is necessary to fully consider the issues of electricity and long-term energy consumption. After understanding the customer's requirements and pain points, our sales team designed our energy-saving outdoor LED display series products for the customer. This product adopts outdoor energy-saving common cathode technology, which ensures high brightness of the outdoor adversting LED display while consuming only one-third of the energy of ordinary SMD displays, saving costs for the customer's regular use.
Custom Steel Structure Engineering: We collaborated with local structural engineers to design and manufacture a heavy-duty galvanized steel support structure. The design accounted for dynamic wind loads, seismic factors, and the weight distribution of the 810 sqm LED panels, ensuring full compliance with Malaysian safety codes.
IP65 Rated Cabinetry: We utilized robust, die-cast aluminum or steel cabinets with precision sealing (silicone gaskets and drainage channels) to achieve a front IP65 waterproof rating, preventing rainwater accumulation and protecting internal power supplies and PCBs from moisture.Advanced Thermal Management: To combat the heat generated by the high-brightness LEDs and the tropical ambient temperature, the rear of the cabinets was equipped with intelligent cooling systems, including industrial-grade axial fans and ventilated designs to ensure the internal temperature stayed within the -30℃ to 60℃ operational range.High-Performance Power & Control System: We implemented a distributed power supply system with redundant circuitry to ensure that a single point failure would not black out the entire screen. The NovaStar control system allowed for remote monitoring, auto-brightness adjustment via light sensors, and real-time content updates via 4G/5G or fiber optic internet.

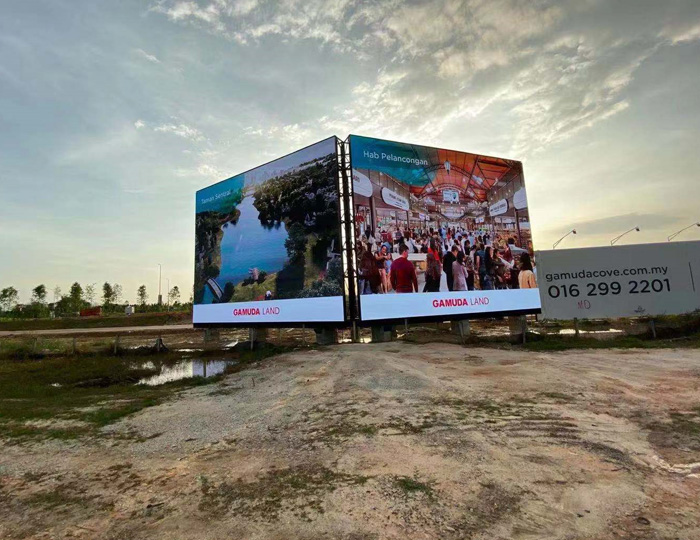

This project stands as a landmark installation on the Kuala Lumpur Airport Expressway, successfully deploying one of the largest P10 LED billboards in the region. The synergy between the robust P10 hardware and the custom-engineered infrastructure resulted in a reliable, high-revenue-generating advertising asset.
Installation location: Kuala Lumpur Airport Expressway, Malaysia
Area: 810 m2
P10 LED display Screen / Outdoor advertising LED display
Product Overview:
Model Number: P10 Outdoor LED Display
Installation Location: Kuala Lumpur Airport Expressway, Malaysia
Pixel Pitch: P10(10MM)
LED Configuration: DIP346 (1R1G1B)
Module: 160mm x160mm
Pixel Density: 10,000 dots/m²
Cabinet Size: 960mm x 960mm
Pixel Density: 10,000 dots/m²
Brightness: ≥ 7800 cd/m² (Nits)
Refresh Rate: ≥ 1920 Hz
Gray Scale:14-bit / 16-bit (256 levels per color)
IP Rating:IP65
Working Voltage:AC 220V/110V ± 15%, 50/60Hz
Operating Temperature:-30℃ to 60℃
Avg. Power Consumption:Approx. 70 W/m² (Max 300W/m²)
Control Method: Synchronous control via PC / Remote Cloud Control
Usage & Display Functions:
Type: Outdoor LED display screen,Energy saving LED display screen,Outdoor IP65 LED display screen,Outdoor waterproof LED display screen
Usage: Outdoor advertising video wall
Product name: Outdoor Led Display
Display Function: Video/Text/Picture/Time/3D Text/Office/SWF
P10 Outdoor LED Display Product Highlights:
P10 Outdoor Full Color LED Display was identified as the optimal solution, offering the perfect balance of scale, visibility, and economic efficiency for highway billboard applications.
Optimized Pixel Pitch (P10): A 10mm pixel pitch is the industry standard for large-scale outdoor billboards viewed from 10 to 120 meters away. It provides sufficient resolution for crisp text and vivid video while maintaining a lower total cost of ownership compared to finer pitches (like P8 or P6) on an 810 sqm canvas.
Ultra-High Brightness(7800 nits led screen): Equipped with high-quality DIP346 LEDs, the screen delivers a brightness of ≥7800 nits (cd/m²), ensuring the content remains vividly visible even under the blazing midday tropical sun.
Superior Weatherproofing (IP65 led display screen): The front of the cabinets features an IP65 rating, meaning they are completely dust-tight and protected against low-pressure water jets from all directions. Coupled with anti-corrosion treatments, this ensures longevity in humid, rainy environments.
High Refresh Rate: With a refresh rate of ≥1920Hz, the display guarantees flicker-free video playback, which is crucial not only for viewer comfort but also for high-quality camera recording.
Wide Viewing Angle: Offering a horizontal viewing angle of 120° to 140°, the advertisement remains consistent and clear to drivers in all lanes of the expressway.
Operational Context: The screen operates 24/7. During the day, it relies on auto-brightness adjustment to combat sunlight; at night, it dims to appropriate levels to avoid glare for drivers while maintaining advertising impact. It functions as a synchronous display, controlled remotely from a media operations center to switch campaigns based on flight schedules or peak travel times.
Function: Serving as a high-impact Outdoor Advertising LED Display and digital billboard. It is used to broadcast rotating commercial advertisements (typically 15-30 second spots) for international airlines, luxury car brands, telecommunications, banking, and government tourism campaigns.
Customer Feedback
The feedback from the client and the media operating group has been highly positive since the screen went live.
The operations manager noted that the IP65 weatherproofing has performed flawlessly through several heavy monsoon seasons, with zero instances of water ingress or corrosion-related pixel failures, significantly reducing their maintenance dispatch calls. They highlighted that the high brightness capability has been a major selling point to advertisers, as brands are assured their colorful creatives will not wash out under the Malaysian noon sun.
Furthermore, the client praised the energy efficiency relative to the screen's massive size; the intelligent brightness dimming saves substantial power costs during cloudy periods and nighttime. The remote control system was also cited as a critical advantage, allowing the media team to preview, schedule, and launch new airline or tourism campaigns for the airport corridor within minutes, without needing to be on-site. The structural stability of the installation has given them full confidence during high-wind weather alerts, and the overall visual impact of the 810 sqm digital canvas has successfully attracted premium advertising contracts from top-tier international brands.
The successful completion of the 810 sqm P10 Outdoor LED Display on the Kuala Lumpur Airport Expressway demonstrates HSCXLED's capability to deliver large-scale, mission-critical outdoor advertising solutions in challenging tropical environments. By addressing the core pain points of weather resistance, structural safety, high-speed visibility, and operational efficiency, we provided a digital billboard that not only meets the technical demands of a highway application but also serves as a high-value commercial asset for the client.
For any outdoor advertising project requiring massive coverage—whether on expressways, building facades, or stadium perimeters—the P10 Outdoor LED Display remains a proven, cost-effective, and high-impact choice. This project in Malaysia reinforces our commitment to quality, durability, and visual excellence in the global LED display market.
