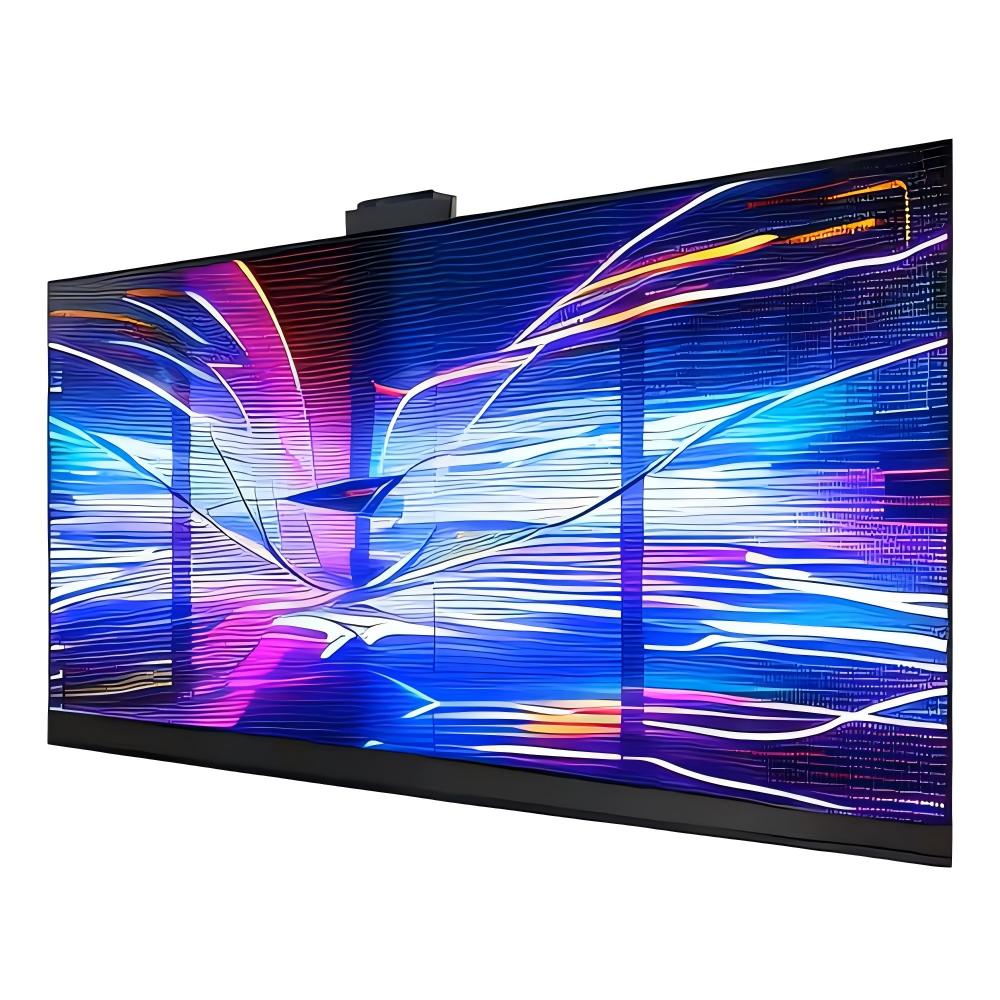

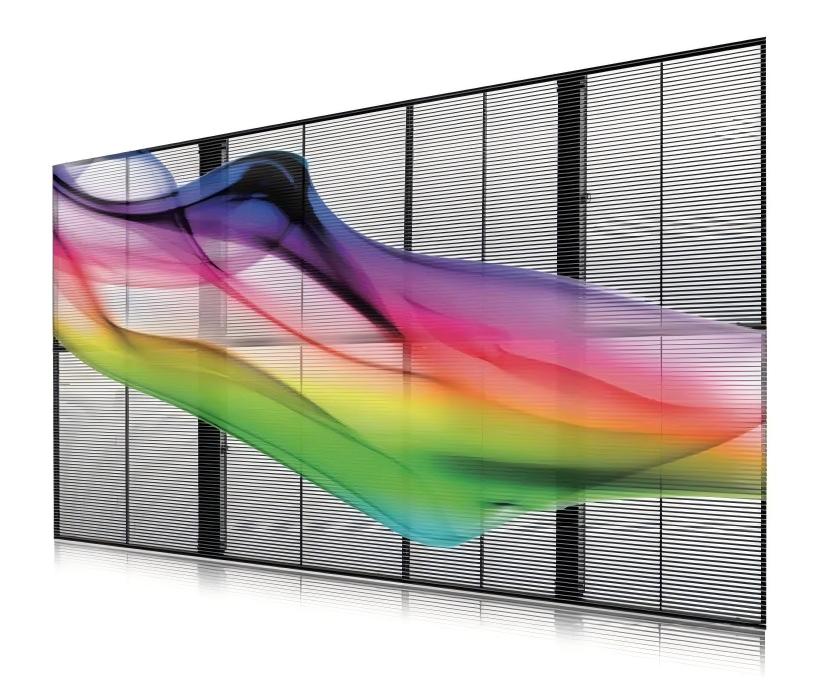

Outdoor Transparent LED Screen/Transparent led video wall
Pixel：P3.91-7.82/P5.2-P10.4/P10.4
Friendly design：500×1000mm and 1000×1000mm standard cabinet design
High Brightness：5500nits～6000nits
Weatherproof：IP65 Waterproof Ability
High transparent rate：Transparency Rate up to 85%; Refresh Rate up to 3840Hz
Die Casting Aluminum cabinet：slim, strong and seamless assembling
Easy maintenance: fast replaced module, support front and rear service.

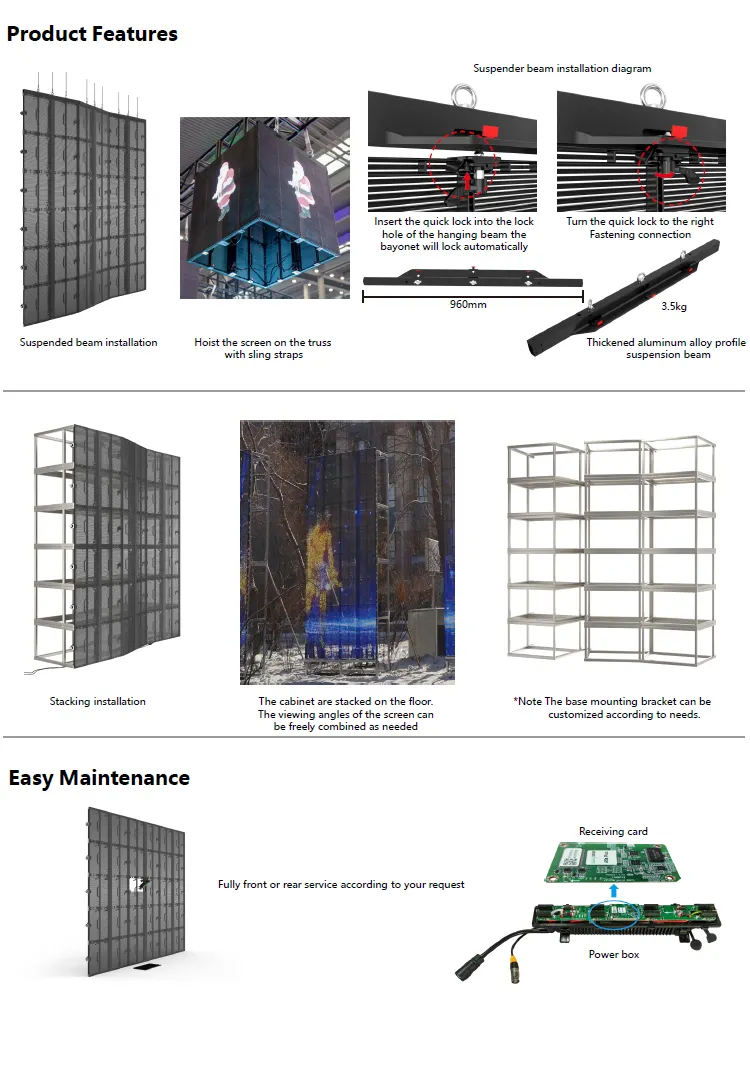

Multiple Installation Methods: Stacking, hanging and fixed installation are supported.
Environmental Projection: no need air-conditioner; Winds can go through the screen, low wind drag
Certificate: KC FCC CCC CA ROHS CE-LVD CE-EMC ISO9001

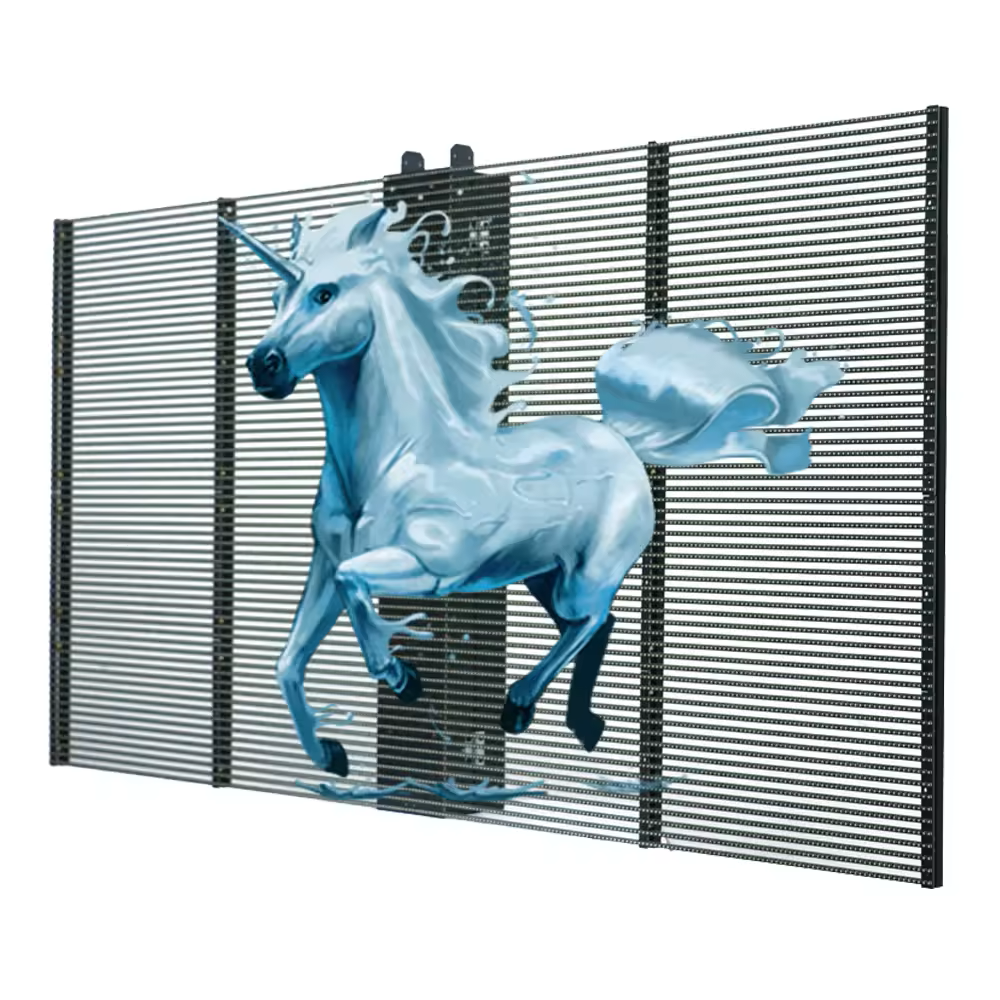

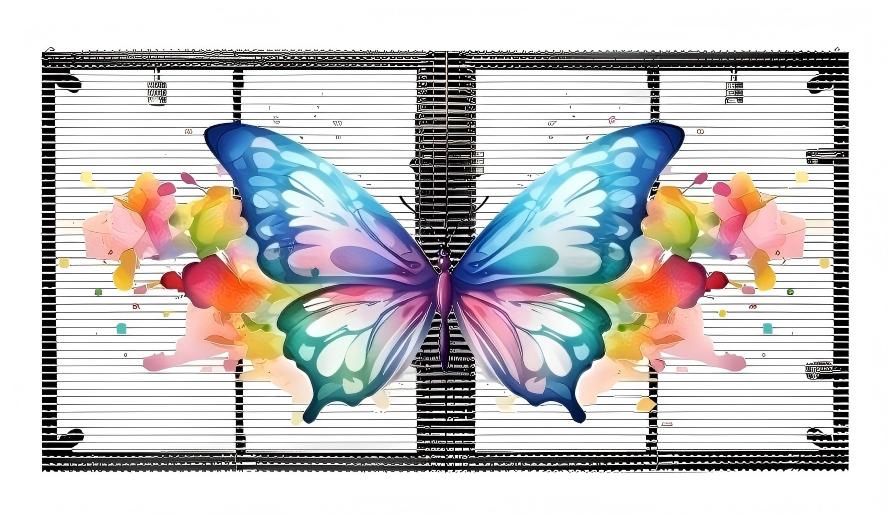

 | Outdoor transparent LED display-High Transparency The transparent led screen is 85% transparency with unique see-through technology.Transparent led video wall makes a neat and clear appearance with high transparent led display. |

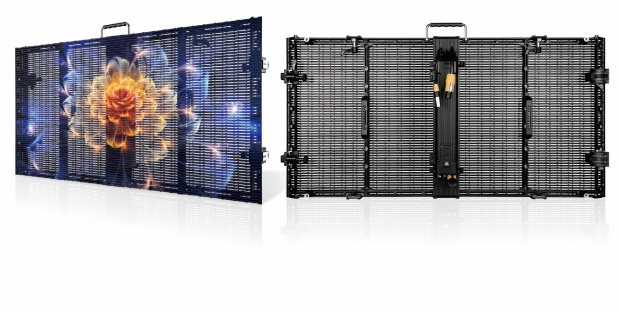

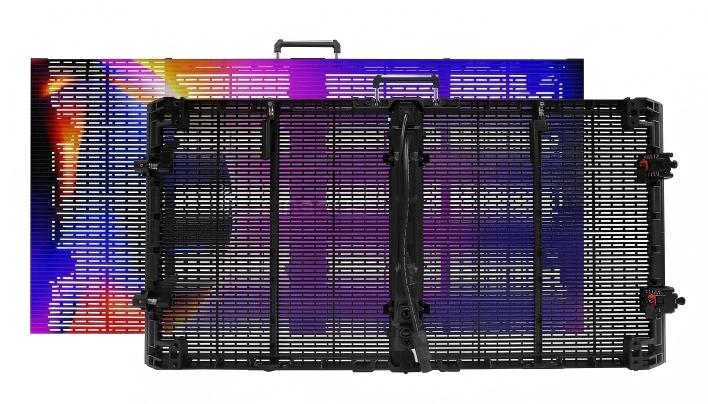

Thin and Light Cabinet outdoortransparent LED screen is a highly portable and easy-to-install led display for outdoor applications.die-cast aluminum cabinet,The cabinet is slim and lightweight, measuring 500*500mm/1000*500mm. |  |

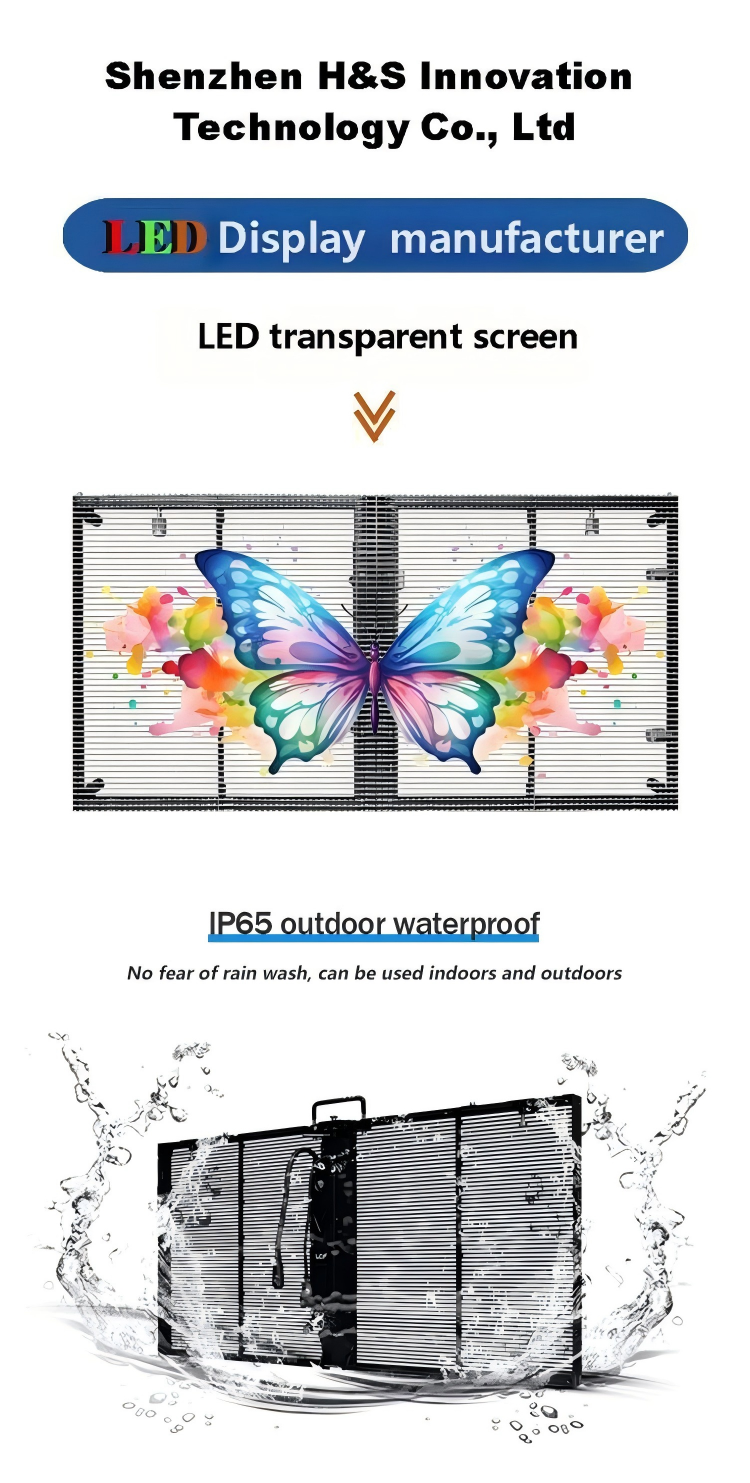

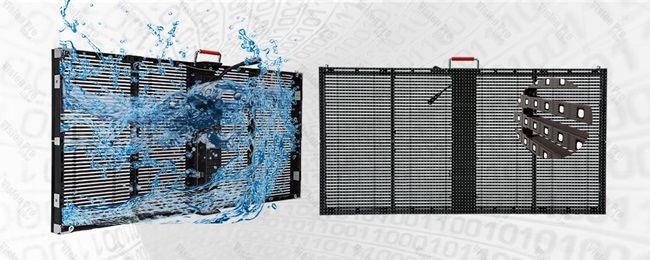

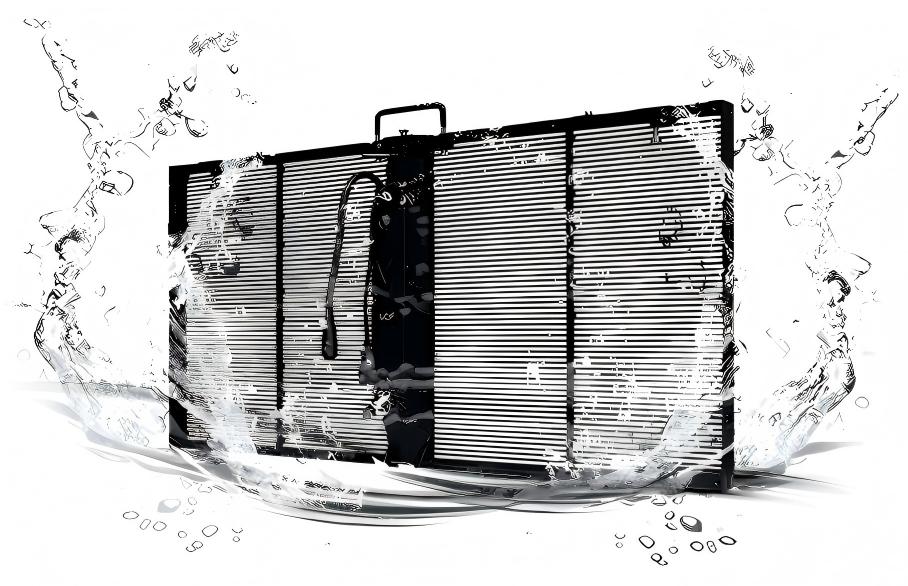

 | High brightness, high refresh rate, waterproof rating IP65 Waterproof and Impact-Resistant with Sealed Glue Protection Up to 5,000 cd/㎡ for clear visibility in daylight. |

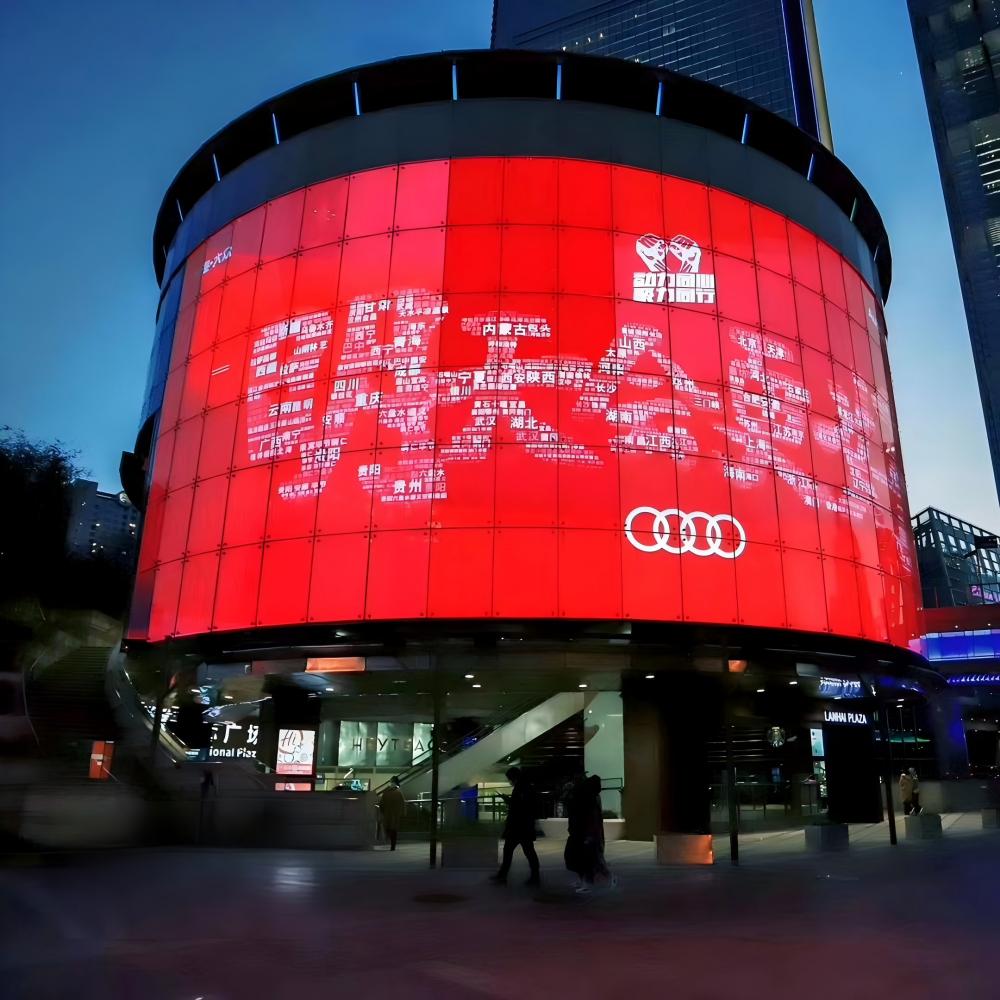

Seamless Splicing Curved locks enable arc, square, or cylindrical installations. |  |

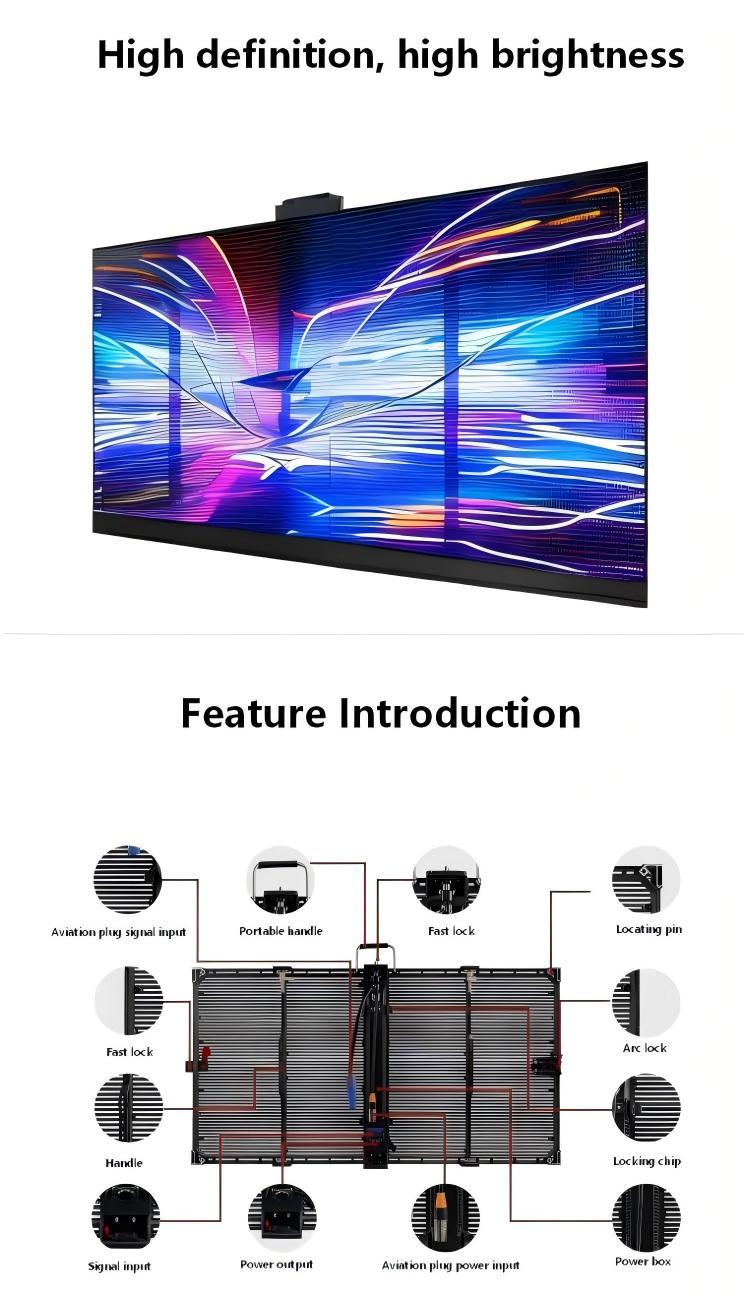

 | Perfect Structure outdoor transparent LED screen features perfect structure to enable high-quality visual effects and stable running: ① Top/Bottom Lock; ② Left/Right Lock; ③ Signal Input; ④ Power Input; ⑤ Power Output; ⑥ Signal Output; ⑦ Power Box Latch; ⑧ Indicator Light ⑨ Power Supply Box; ⑩ Module ⑪ Handle; ⑫ Curved Lock |

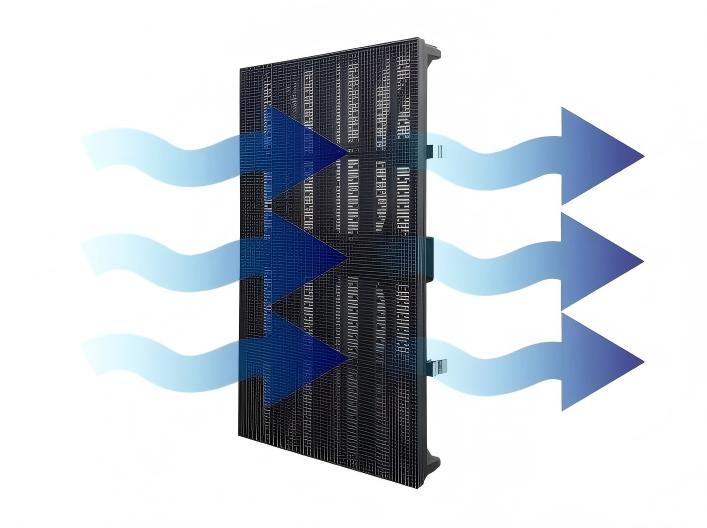

Excellent Heat Dissipation 1)Die-casting aluminum cabinet is more durable and highly stable and the heat dissipation of aluminum is much better than others in the market. 2) The cabinet is used with wind-pass design. As a result, even without fans and air conditioners, the screen can still work properly in the high temperature of below 60 degree. |  |

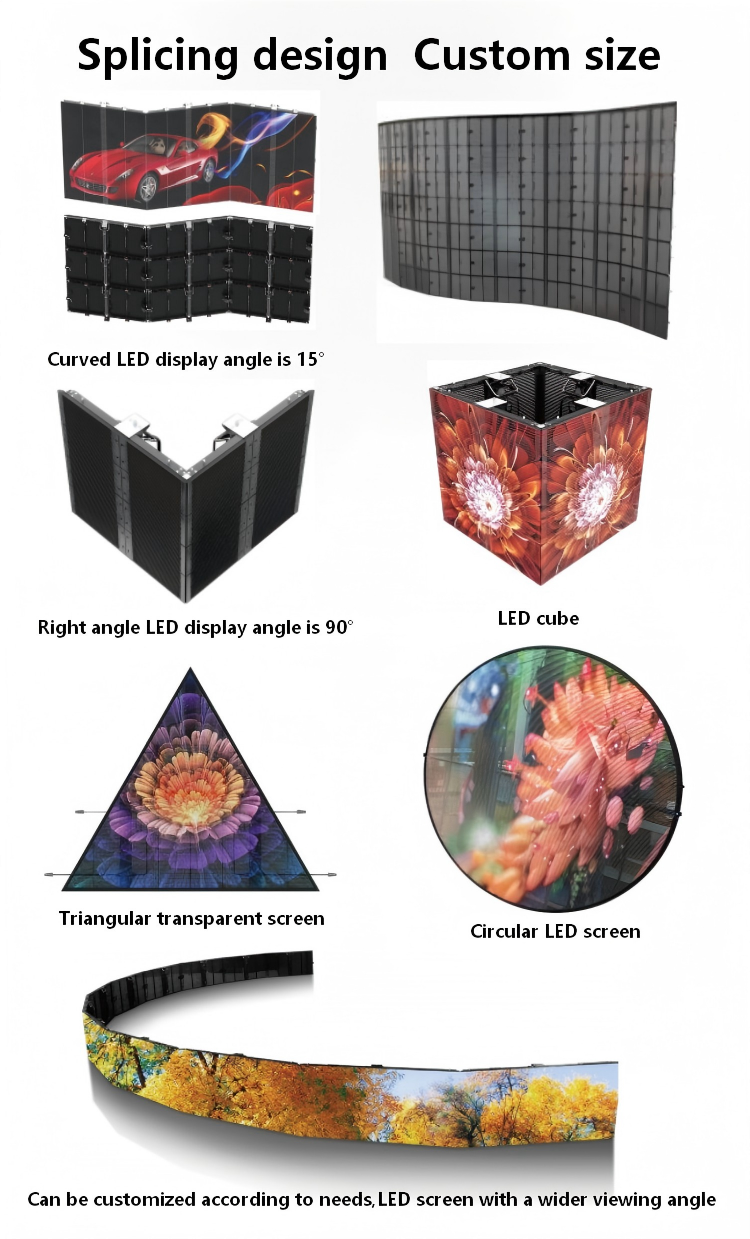

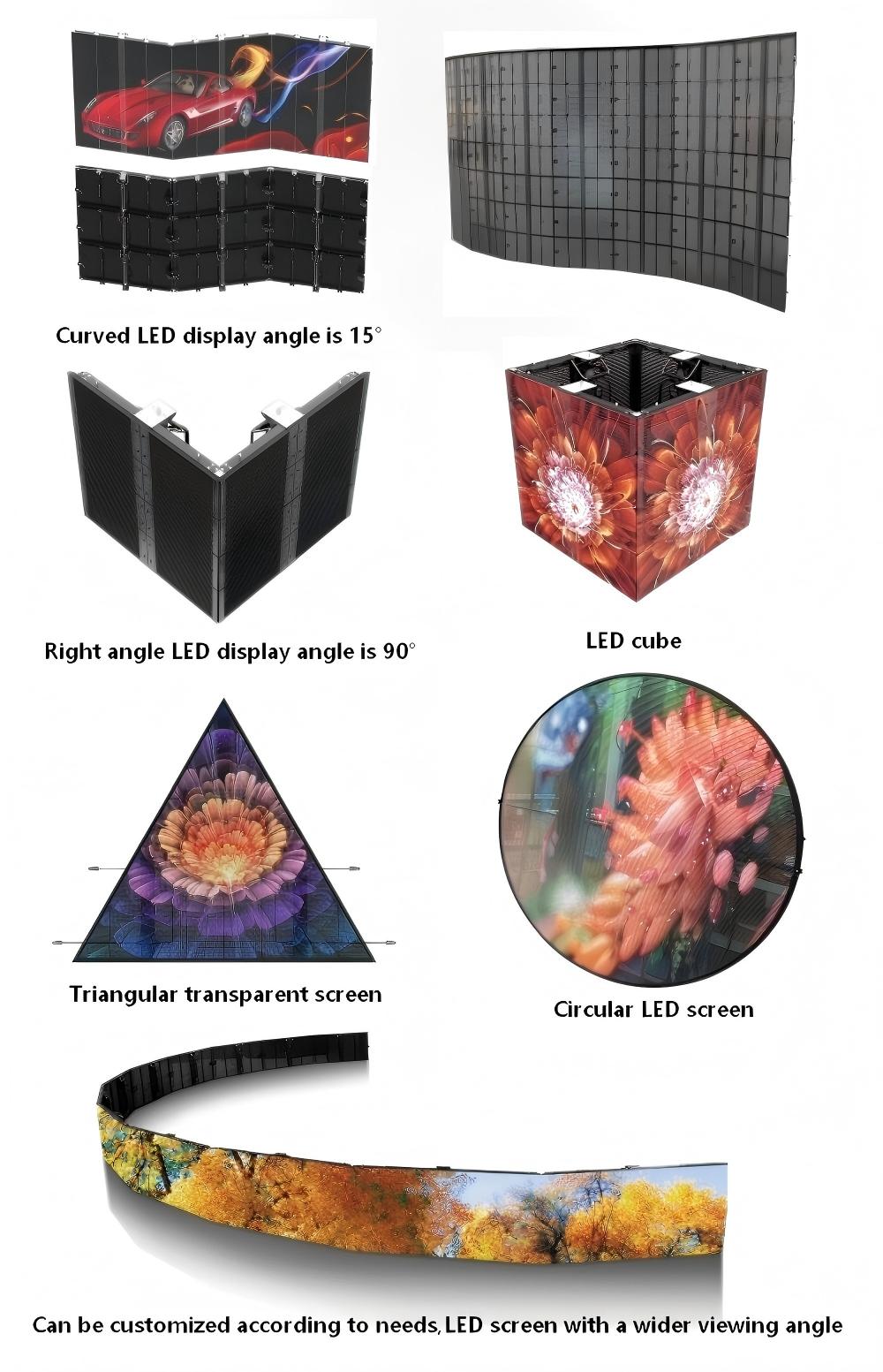

 | Customized Design & Solution The rental die-casting box is designed with a 45 ° oblique angle, and can be displayed in both right and curved shapes with a curved lock. The fixed profile box can be flexibly designed into different shapes; supports custom made shapes and solutions for transparent led screen, such as cylinder, cube and irregular shapes etc. |
HSCXLED Outdoor transparent led display Paramenters:
| Outdoor LED transparent screen | |||
| Item | P3.9-P7.8 | P5.2-P10.4 | P10.4 |
| Pixel (mm） | 3.9mm(h) / 7.8mm(v) | 5.2mm(h) / 10.4mm(v) | 10.4mm |
| Density | 32768 dot/m2 | 18,432dots/㎡ | 9,216dots/㎡ |
| LED | SMD1921 | SMD2727 | SMD2727 |
| Minimum Viewing Distance | ≥4m | ≥7m | ≥10m |
| scan mode | 1/8S | 1/4S | 1/2S |
| Module size | 500mm × 250mm | ||
| Cabinet Size | 500*1000mm/1000*1000mm | ||
| Brightness | 5000-6000 Nits | ||
| Refresh Rate | ≥3840Hz | ||
| IP Rating | IP65 | ||
| Transparency | 85% | ||
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | ||
| Gray Level | 12-14Bit | ||

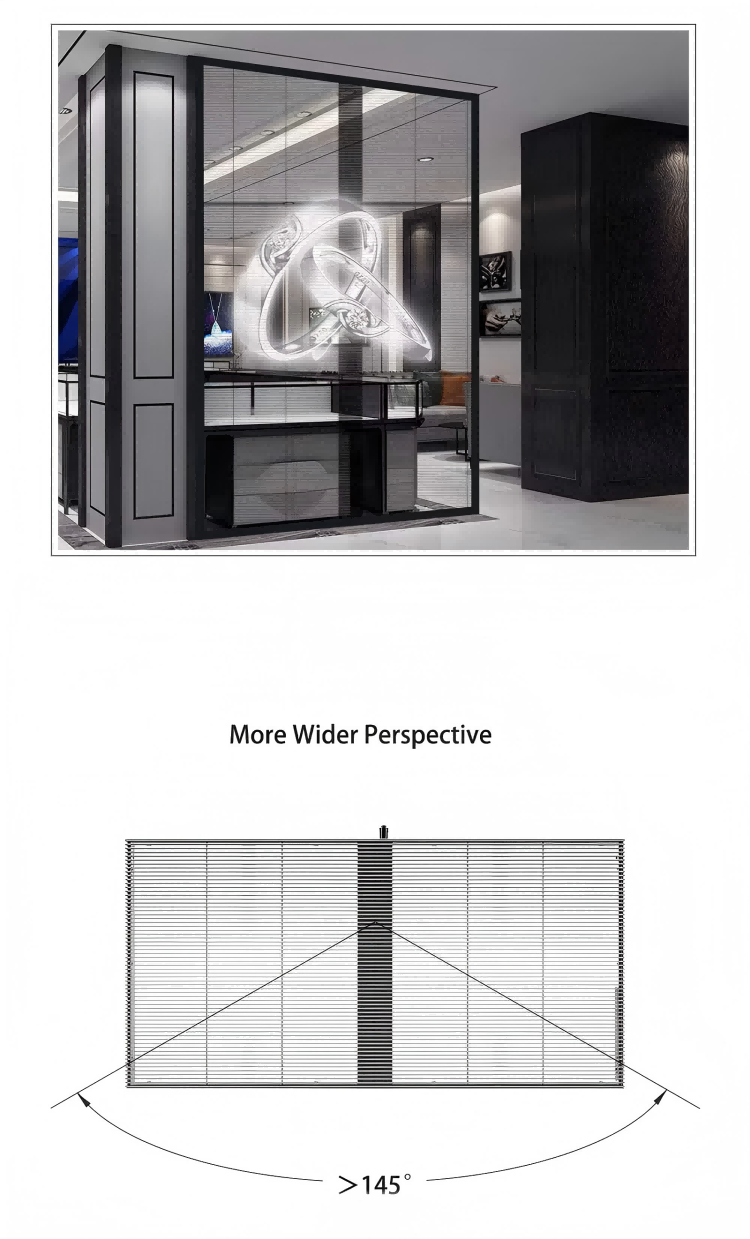

| angle of view | 160° / 160°(H/V) | ||
| Color temperature | 7000K (1000K～9500K) | ||
| Max Power Dissipation | 800W/m2 | ||
| Average Power | 260W/m2 | ||
| Power supply | AC90～132V / AC186～264V，47-63(Hz) | ||
| Signal mode | WIFI、VGA、DVI、HDMI、DP、SUB、SDI、RJ45、Network cable, network remote control, fiber optic cable | ||
| Audio and video formats | AVI、WMV、MPG、MP4、FLV、3GP、WAV/MID、 CD-ROM | ||
| Working temperature/humidity | -20℃–50℃ / 10%-65%RH | ||
| installation | Support fixed installation/lifting | ||
| Life | 100000 hrs | ||

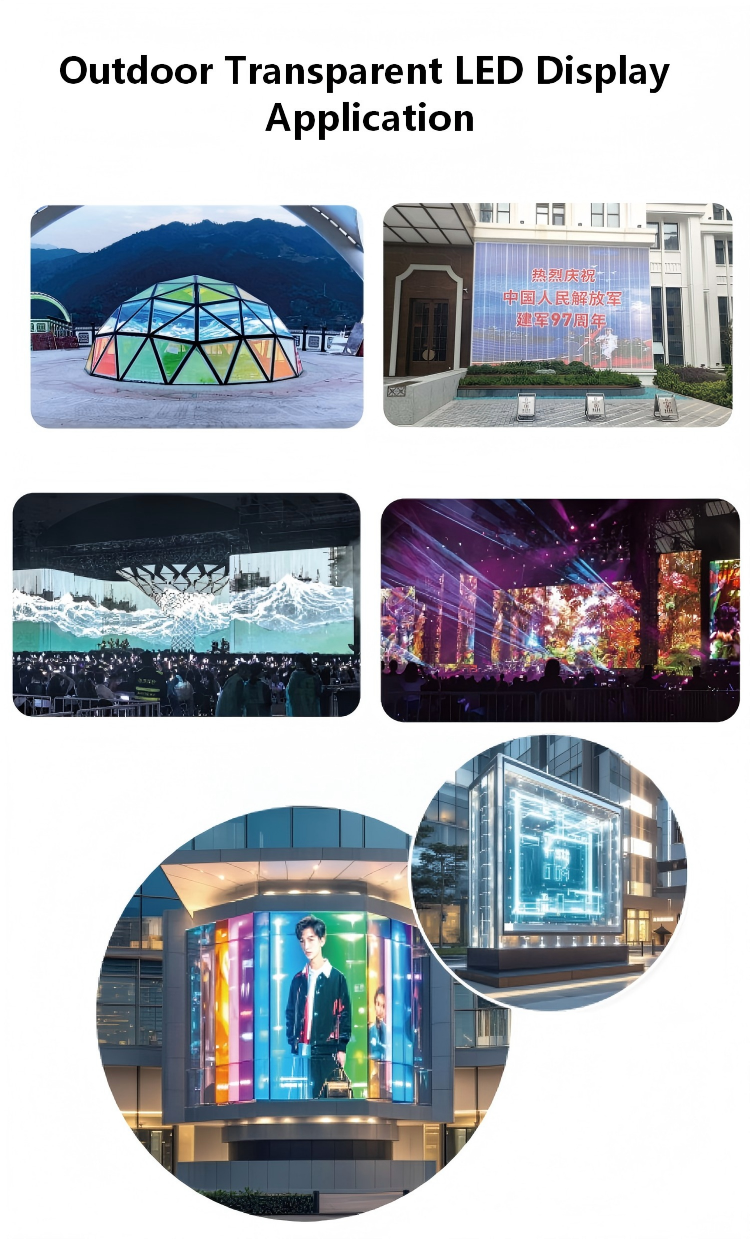

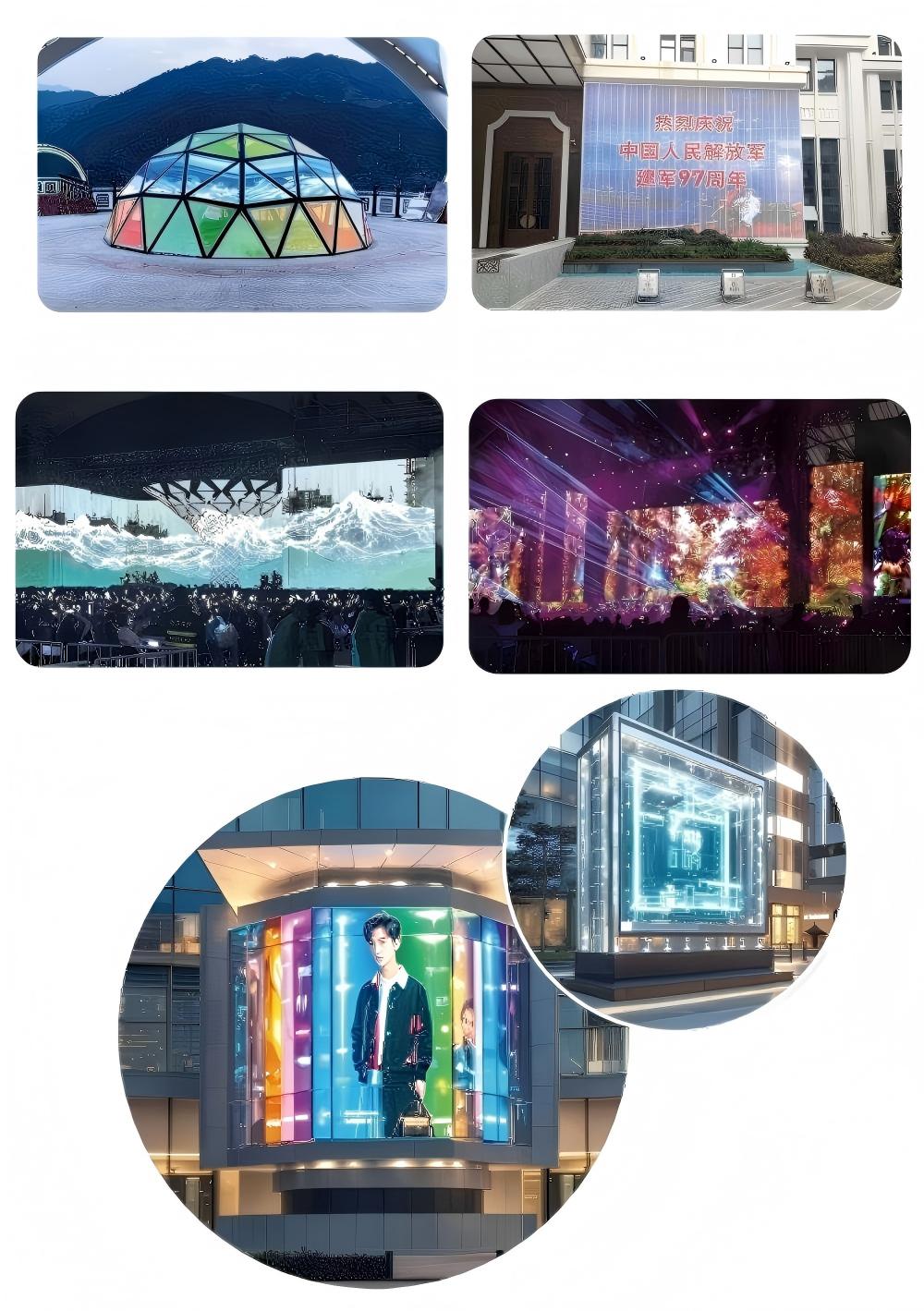

Outdoor LED display Application:

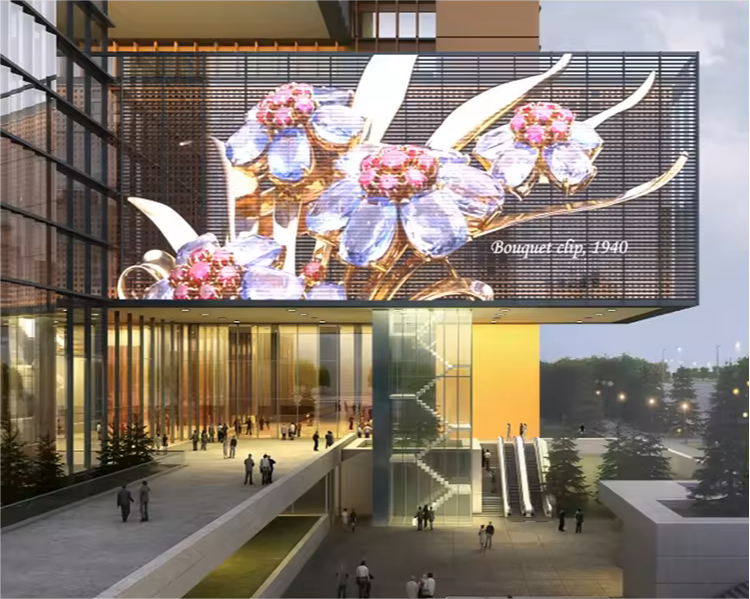

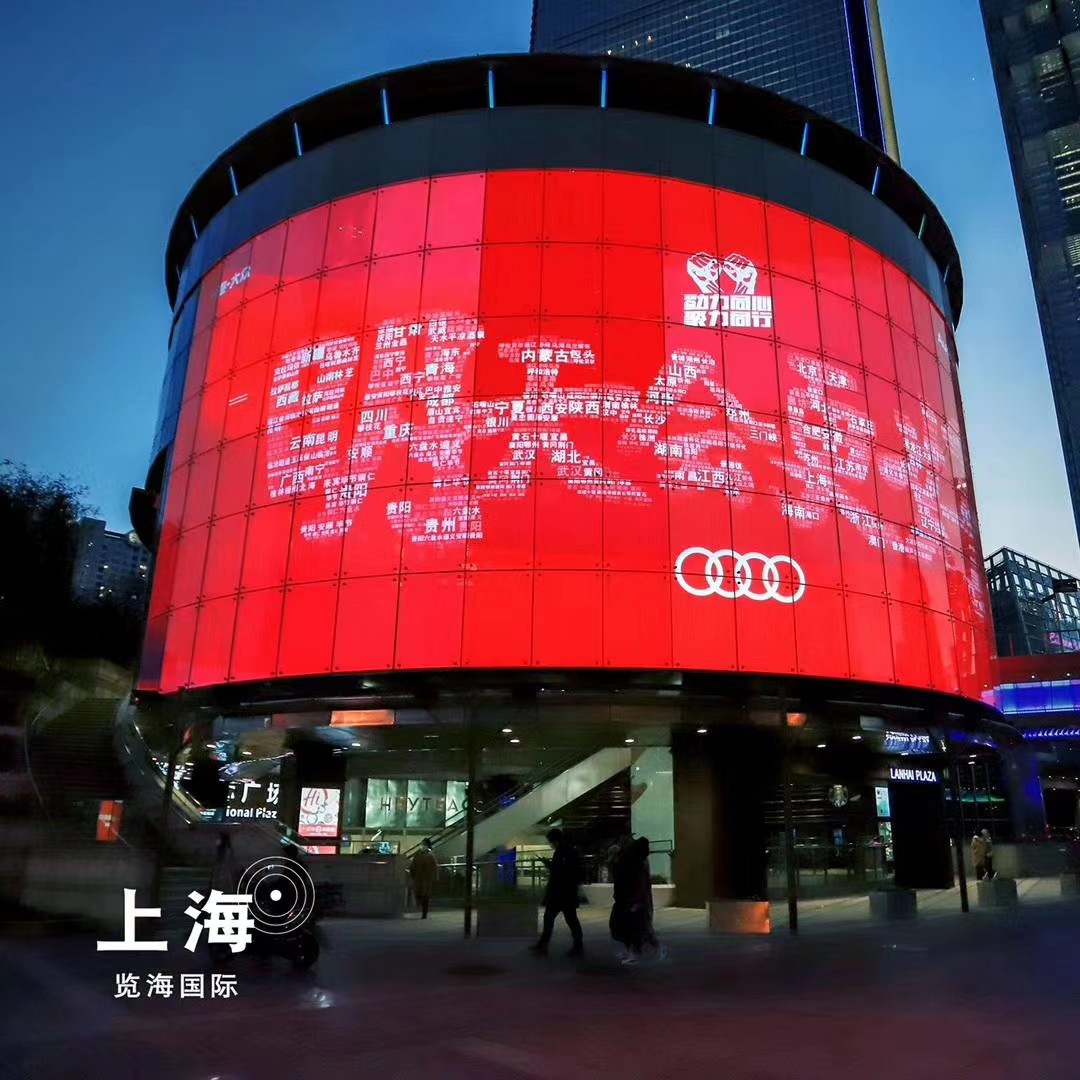

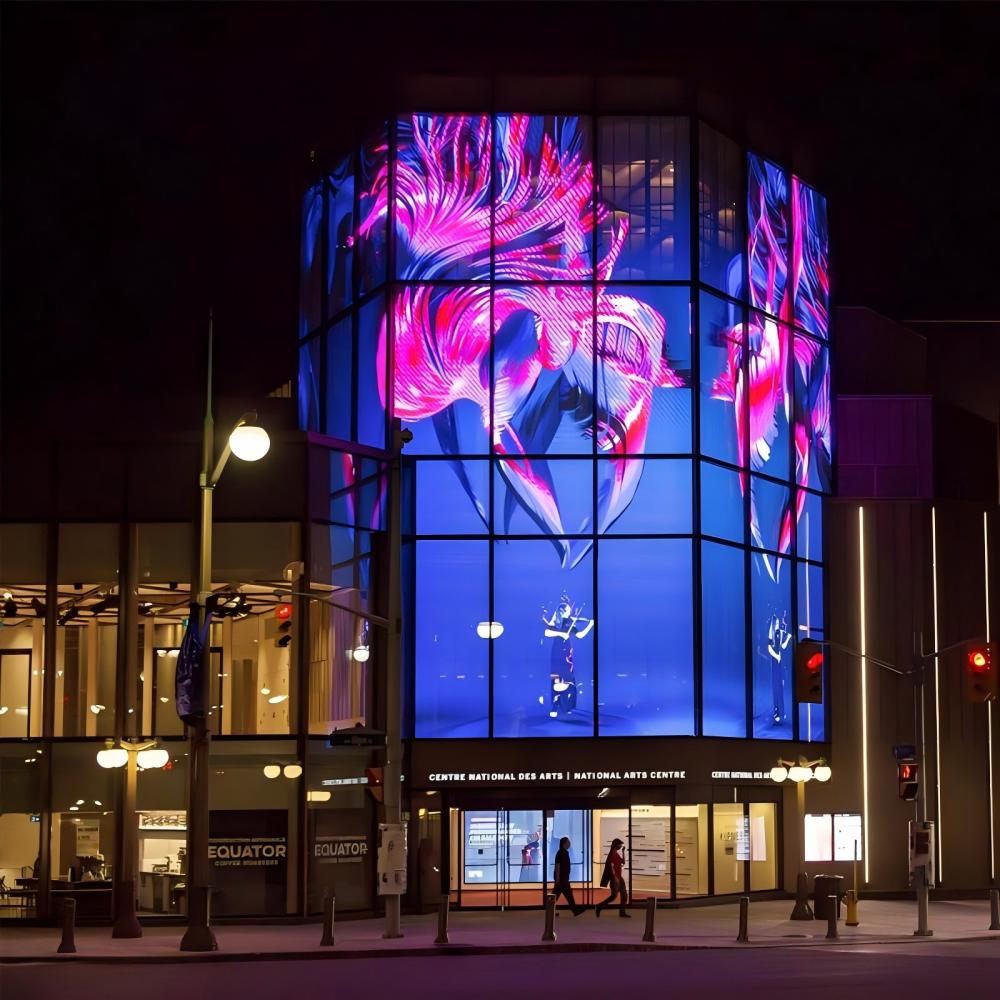

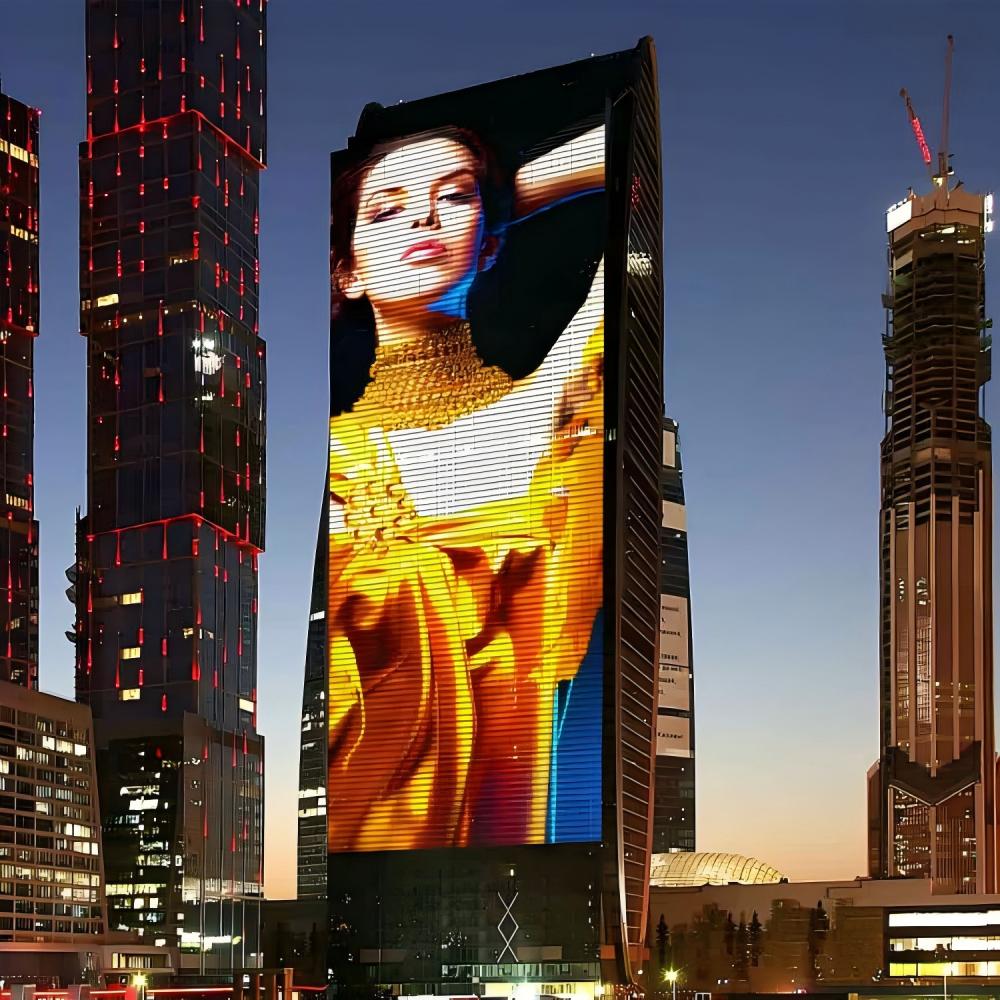

1. Urban Landscape and Cultural Tourism Design
LED outdoor transparent screens can add unique landscape elements to cities
At night, dazzling lights and dynamic images can decorate the city's landmark buildings even more brilliantly. Play videos of natural scenery and create artistic works that echo the surrounding environment, creating a romantic and charming urban night view.
2. Live concert venue
The LED outdoor transparent screen injects infinite vitality and charm into the concert venue.
As the lights gradually dimmed, the huge transparent screen looked like a window to a fantasy world. It blends seamlessly with lighting, sound effects, and stage with an ultimate sense of transparency, seemingly non-existent, yet carrying countless brilliance and shock. It is the perfect combination of music and technology, the intersection of dreams and reality. Let us witness the miracle of music together on this transparent stage and experience the unparalleled audio-visual feast.

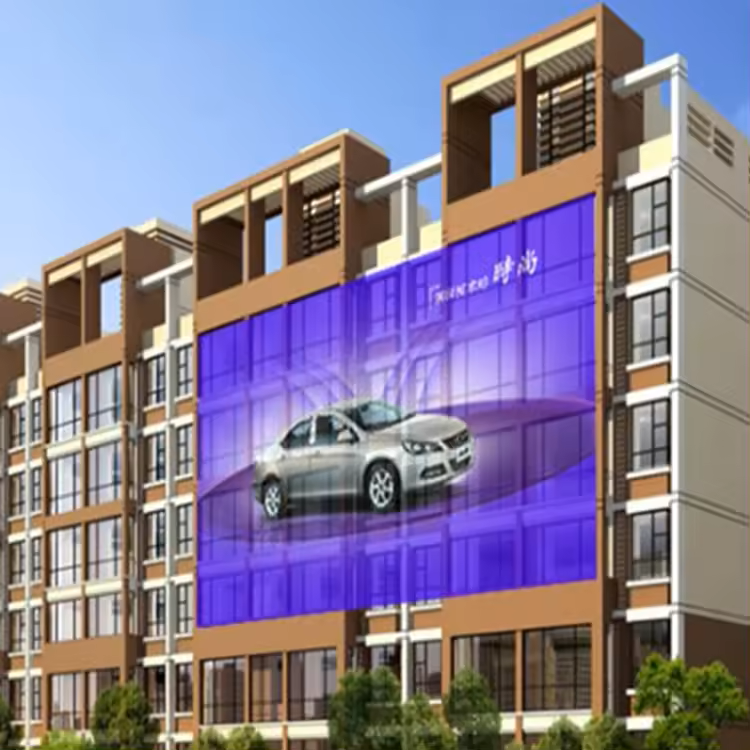

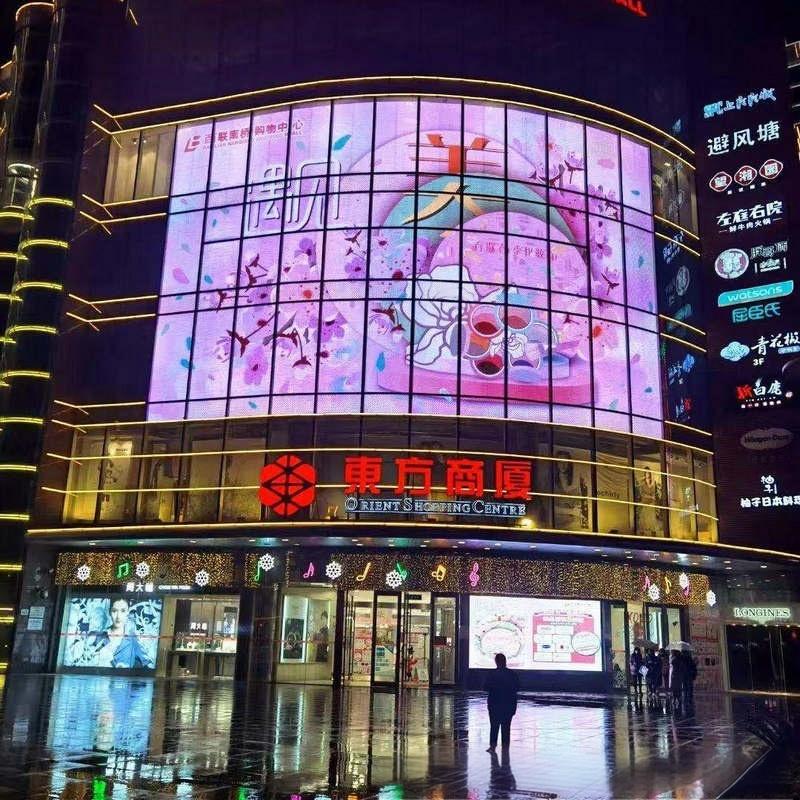

3. Commercial Advertising and Promotion
In urban commercial centers, commercial streets, and other areas, LED outdoor transparent screens can serve as highly attractive advertising display platforms. With their high transparency, they bring significant promotional effects to businesses without affecting the appearance and lighting of buildings.
4. Smart City Construction
With the development of smart cities, LED outdoor transparent screens can be combined with technologies such as the Internet of Things and big data to become a platform for information display and interaction in smart cities.
