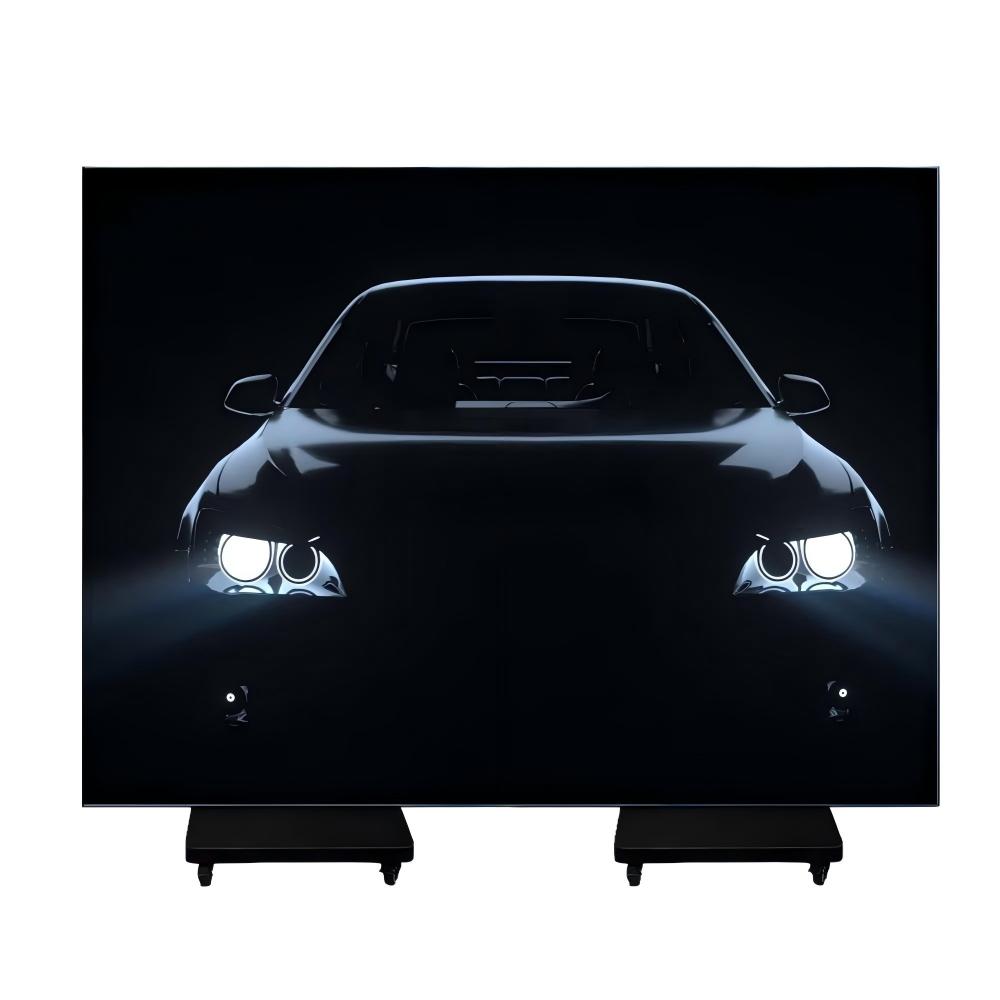

Tri Fold Poster Led display/Foldable led Screen/Double Sided led dispaly
Flexible & Dual-Sided:Unfoldlarge screen to dual-sided display, maximizing message reach.
Pixel Pitch:P1.25 P1.53 P1.86 P2 P2.5 Floor Standing Foldable Led Poster Screen
Product size:1280*1920mm(Trifold Led Poster Screen/ Double Sided led display)
Flexible & Dual-Sided:Unfoldlarge screen to dual-sided display, maximizing message reach.
Portable & Plug-and-Play:Lightweight with casters for easy movement; instant setup.
Easy Content Management:Update promotions quickly via app, USB, WiFi, or optional 4G.
Brilliant & Durable:GOB process, moisture-proof, waterproof, and anti- collision，long-lasting performance.
Multi-Screen Splicing：Supports single screen;can be assembled into a large LED screen
Certificate: KC FCC CCC CA ROHS CE-LVD CE-EMC ISO9001

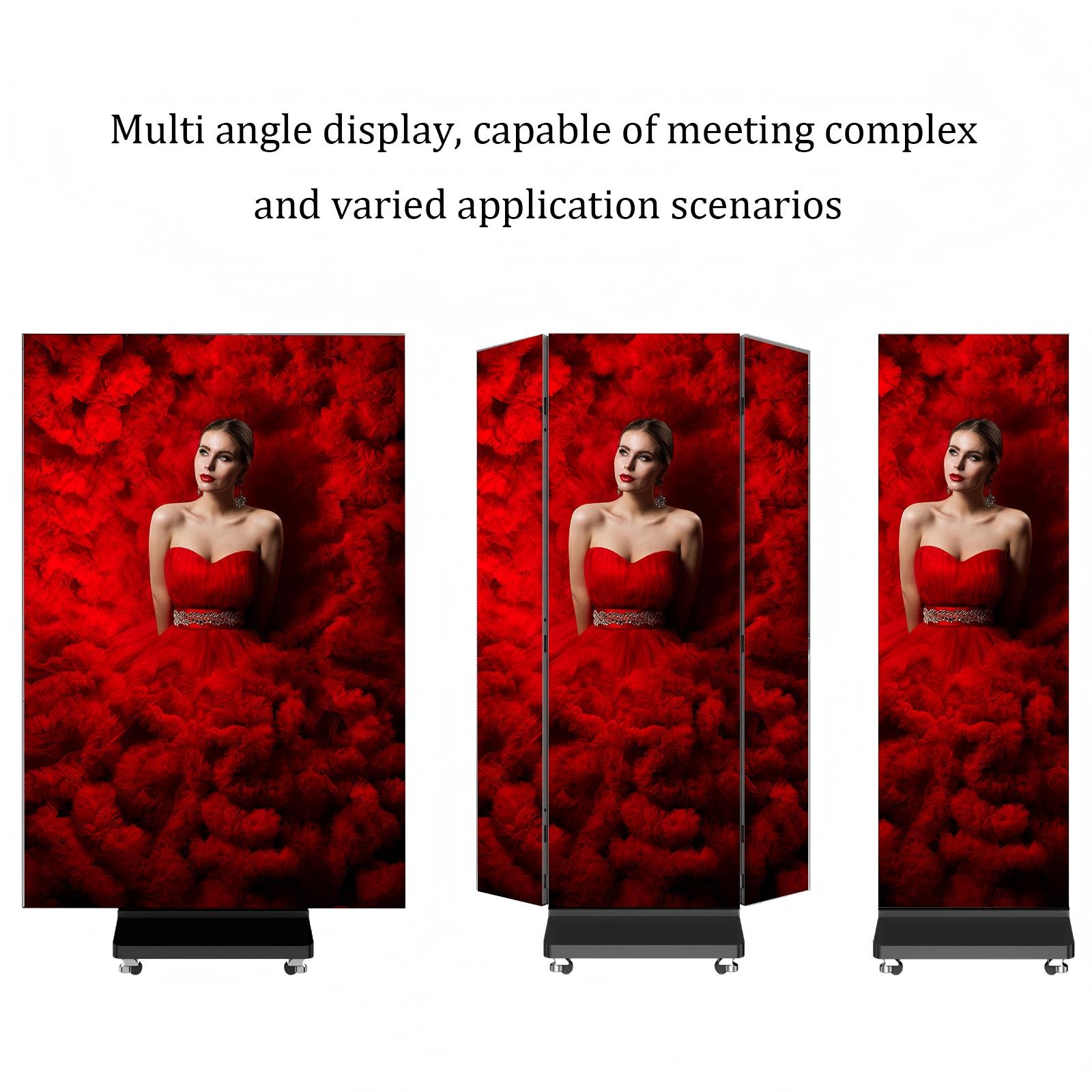

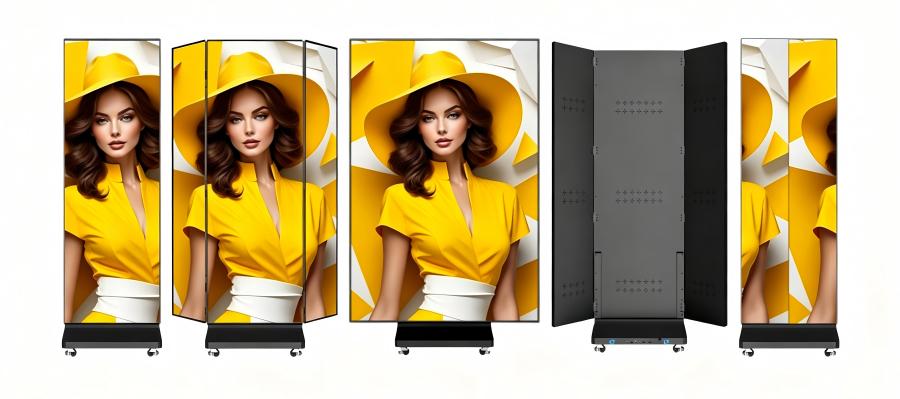

 | Tri-fold Digital LED Poster Flexible Design: Switch between a large single screen and a compact dual-sided display. Portability: Ultra-thin with wheels for easy movement and quick setup. Stunning Visuals: HD quality with high refresh rate, vibrant colors, and wide viewing angles. |

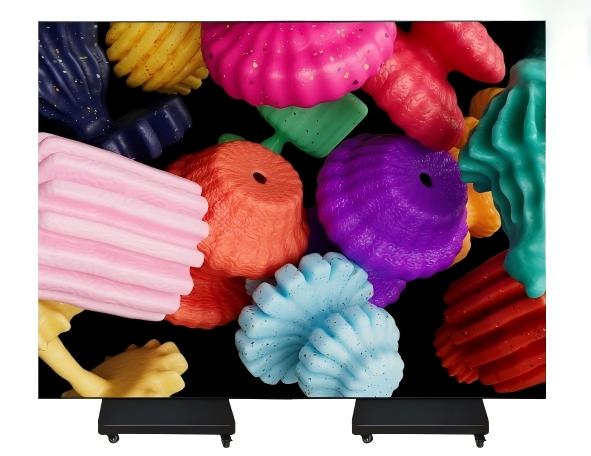

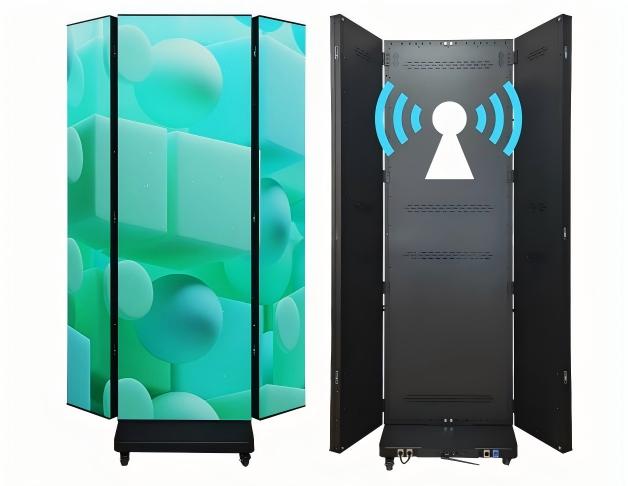

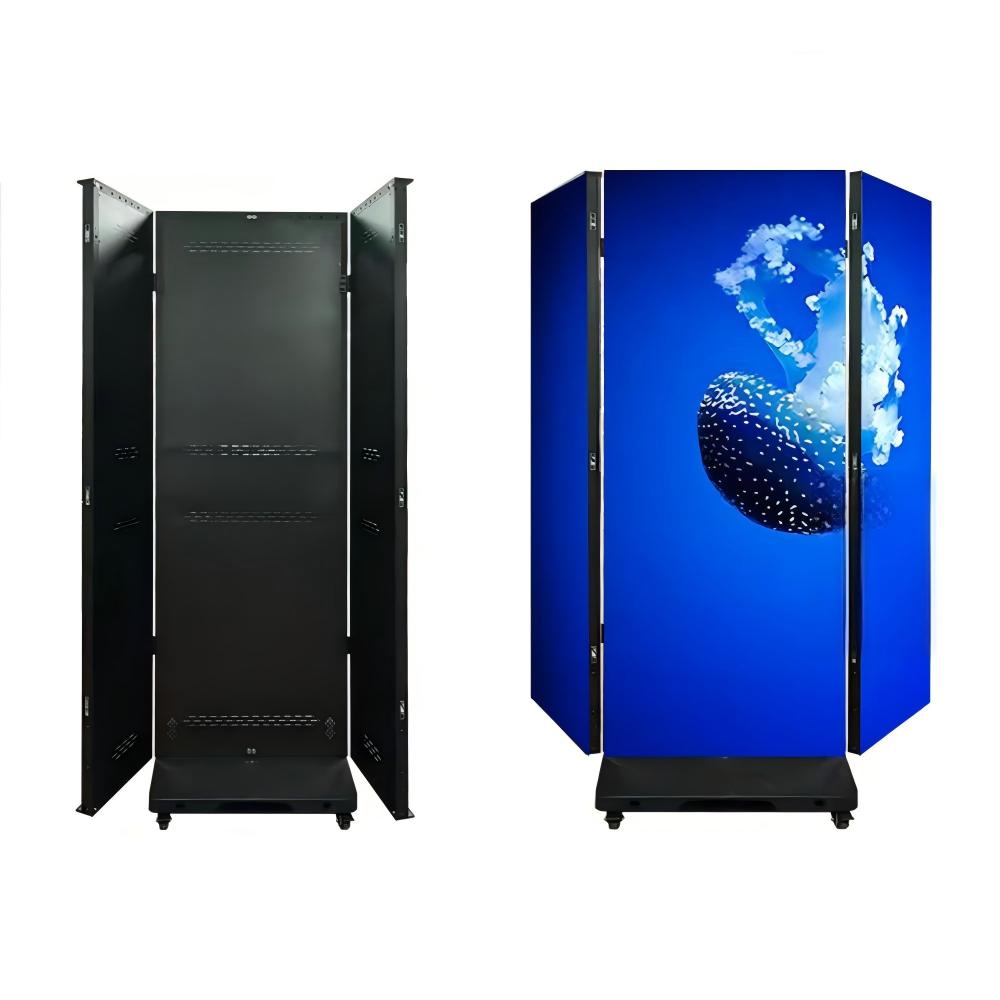

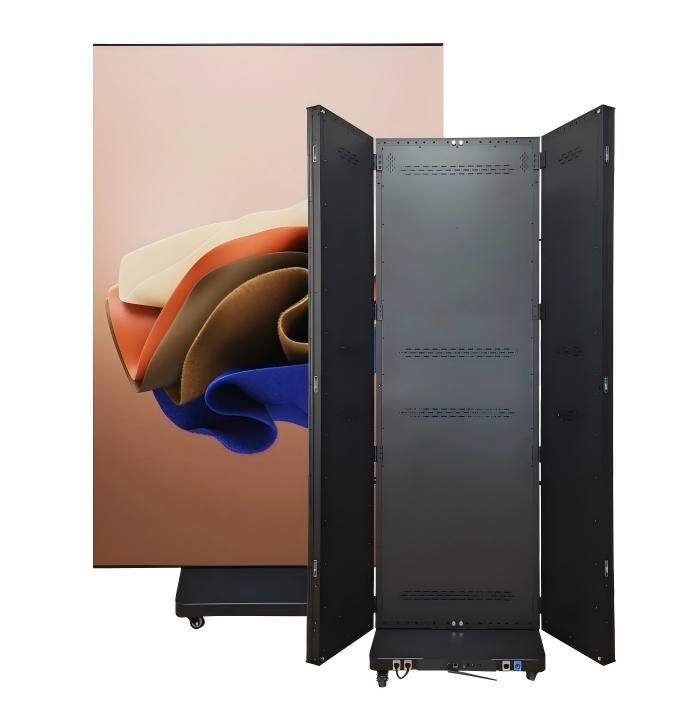

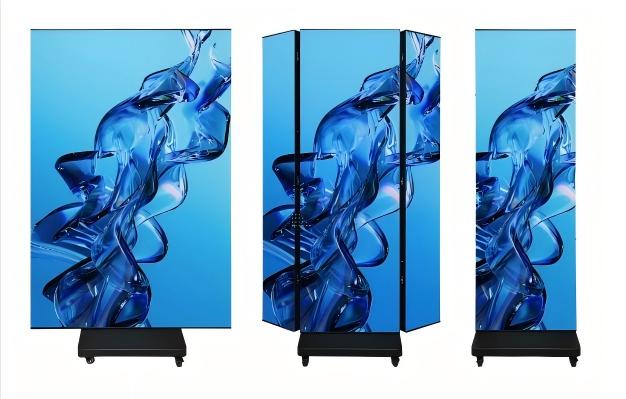

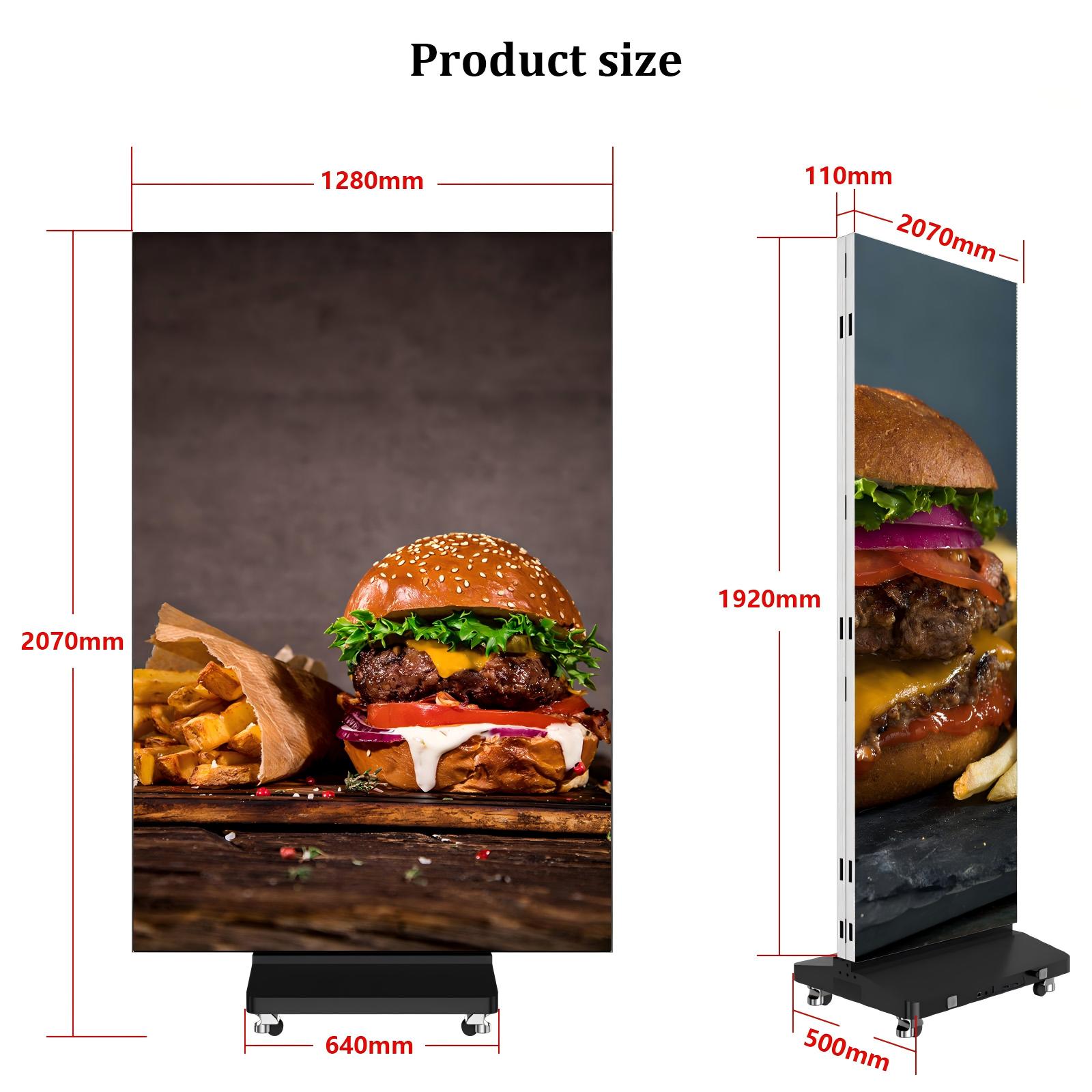

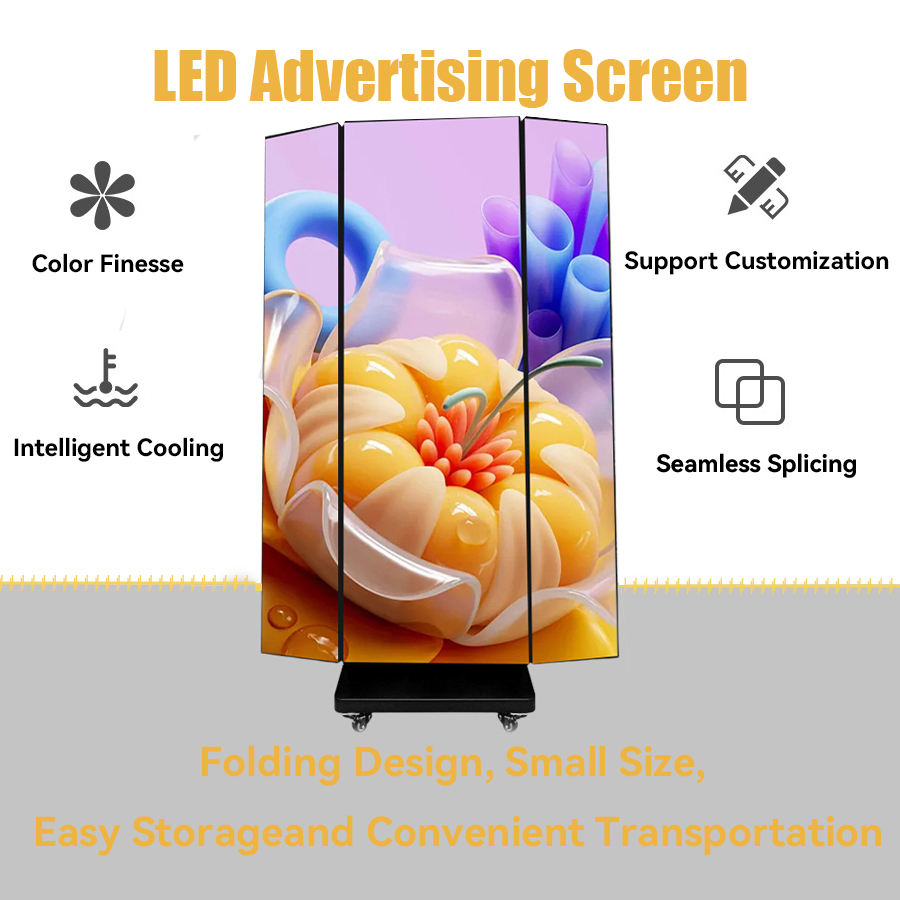

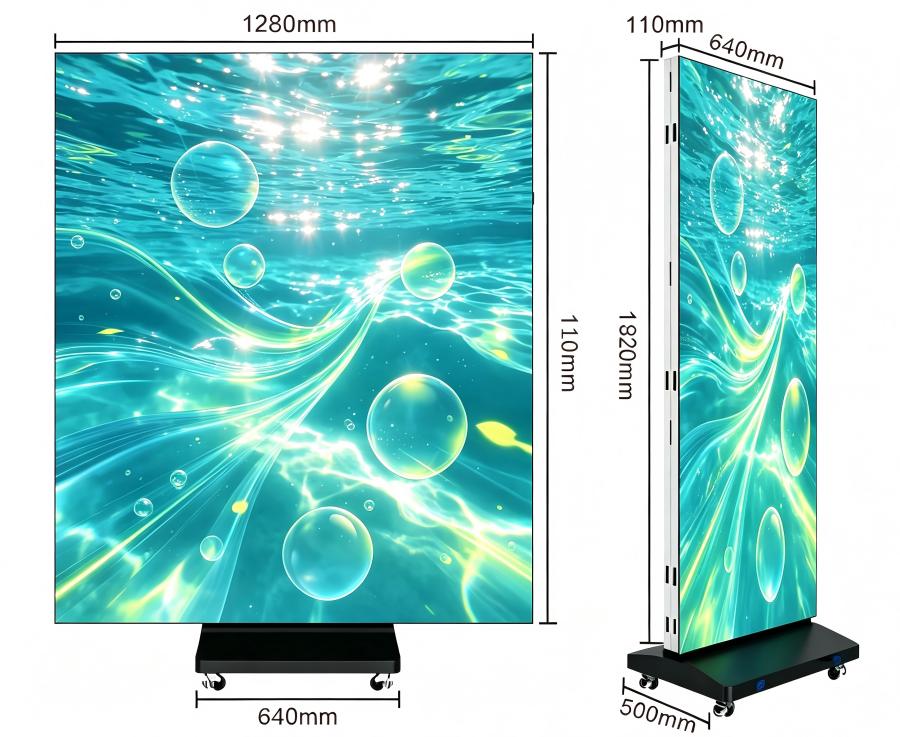

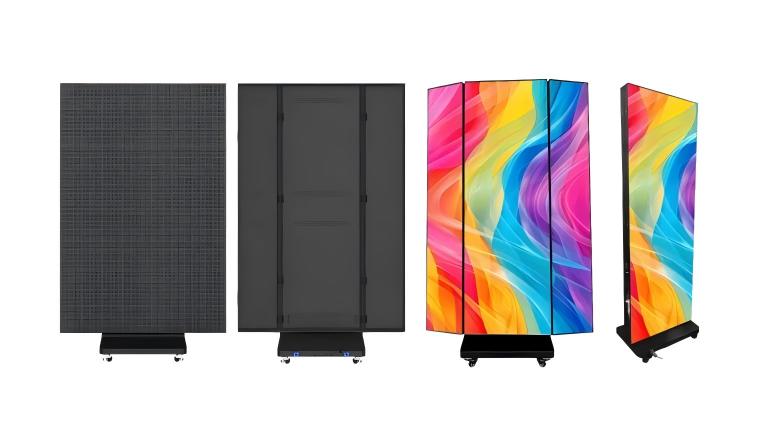

All-in-One Tri-fold LED Poster Design The led poster features a left–right opening tri-fold dual-sided design, making it lighter and slimmer than traditional advertising screens. It offers a product size of 1280 × 2060 × 449mm and a display area of 1280 × 1920mm. This all-in-one LED poster weighs 76-79kg and supports mobility. Simply plug it in to start using—easy to transport, install, and operate. |  |

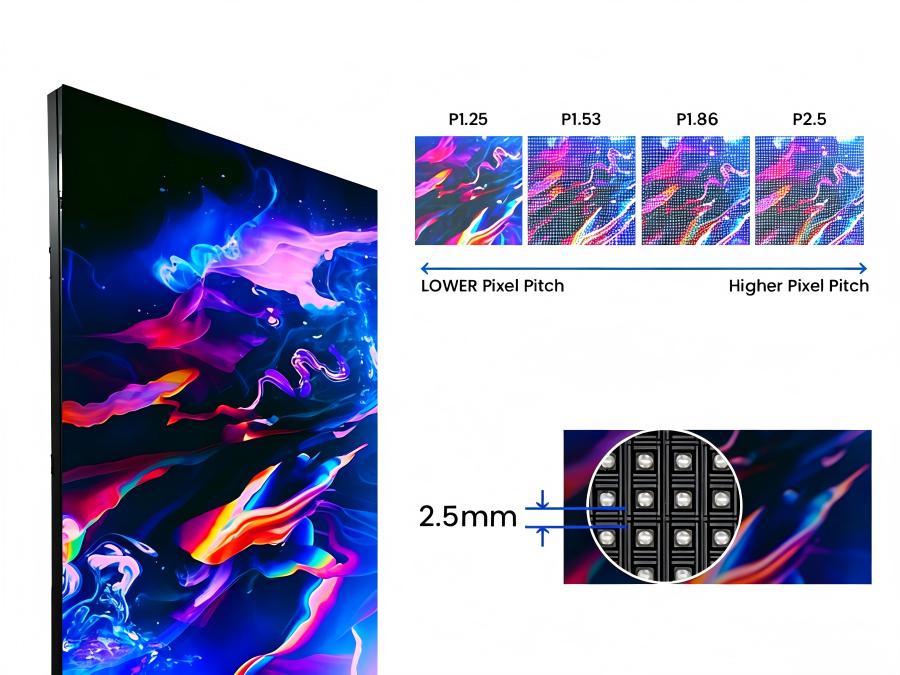

 | Optimal Pixel Pitch Options Tri-fold Digital LED Poster Choose from P1.25, P1.53, P1.86, and P2.5 pixel pitches to match your viewing distance (effective from 3 to 20 meters) ，this smart led poster, with 48 modules (320x160mm size) creating the stunning display. |

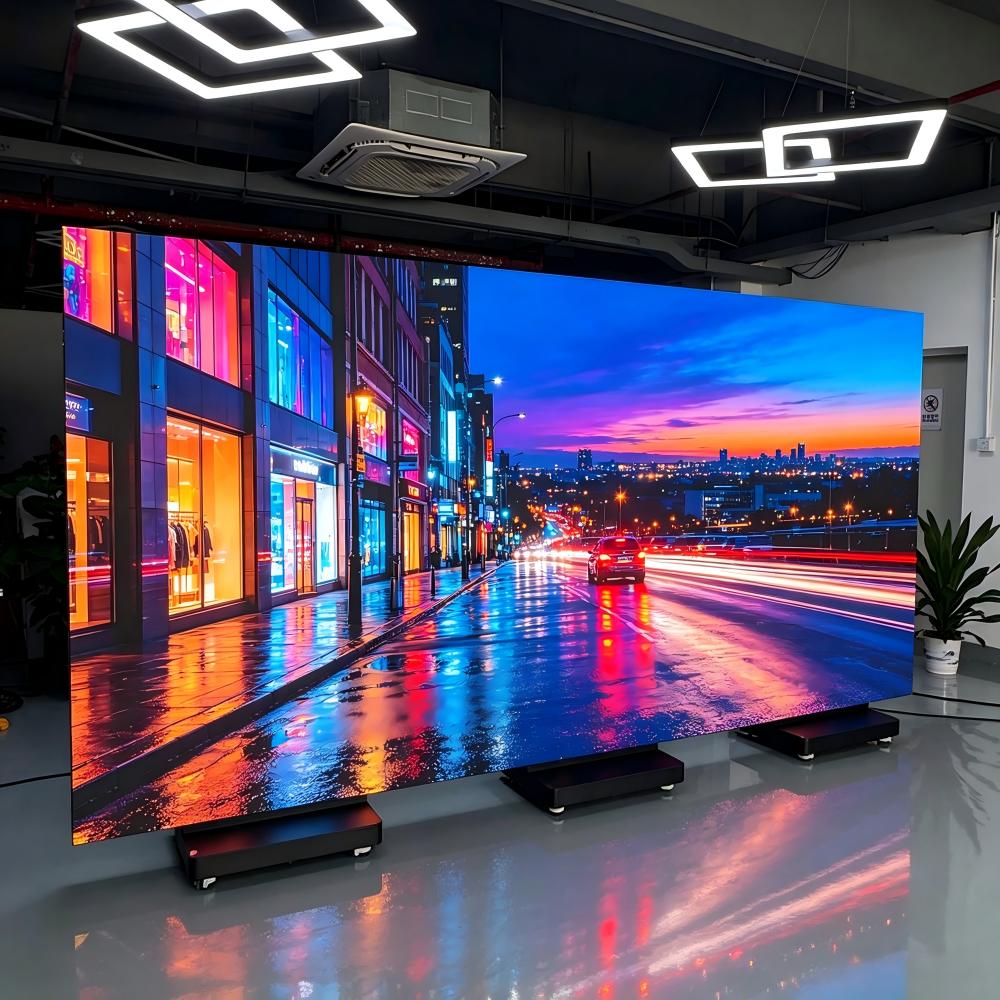

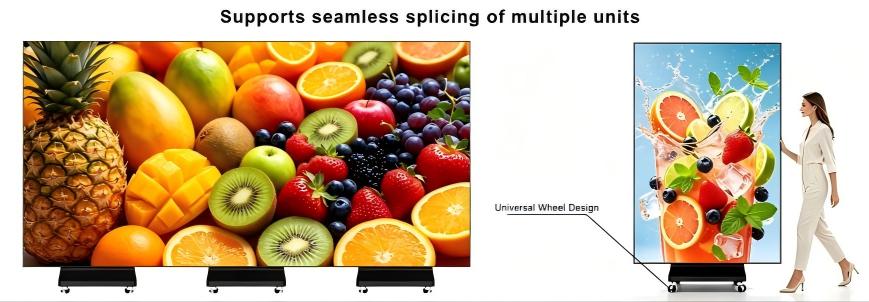

Multi-Screen Splicing: Easily Scale Your Vision The Tri-Fold LED Poster Display supports seamless splicing. Easily connect multiple units using quick-lock mechanisms to form a larger, unified led wall poster. This allows for stunning, expansive visual backdrops or super-wide advertising displays. Arrange units horizontally or vertically to suit your creative vision and venue requirements. |  |

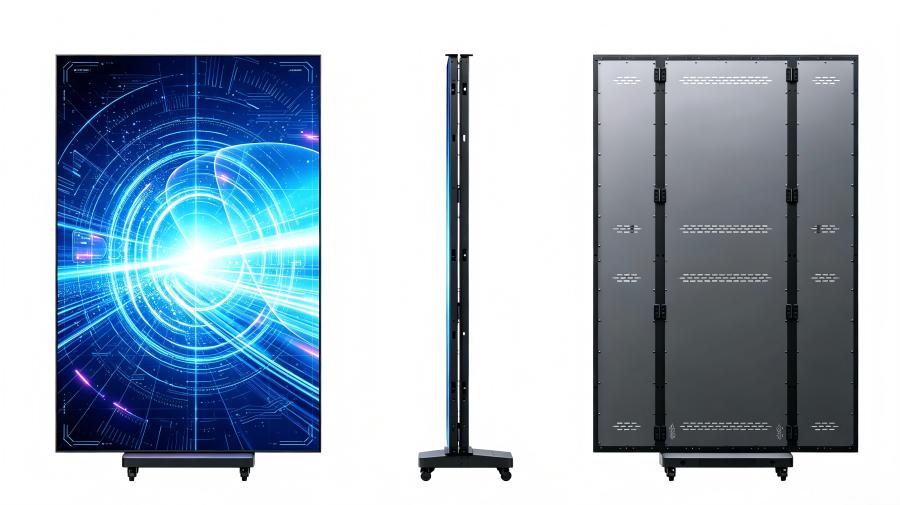

| Ultra-Thin & Portable Constructed from advanced aviation-grade aluminum for the perfect balance of durability and lightweight performance. At just 78kg with a 50mm profile (110mm when folded), it’s remarkably portable. Lightweight design for easy transport and installation. Folds to half size for compact storage and shipping — one person can handle the entire setup. |

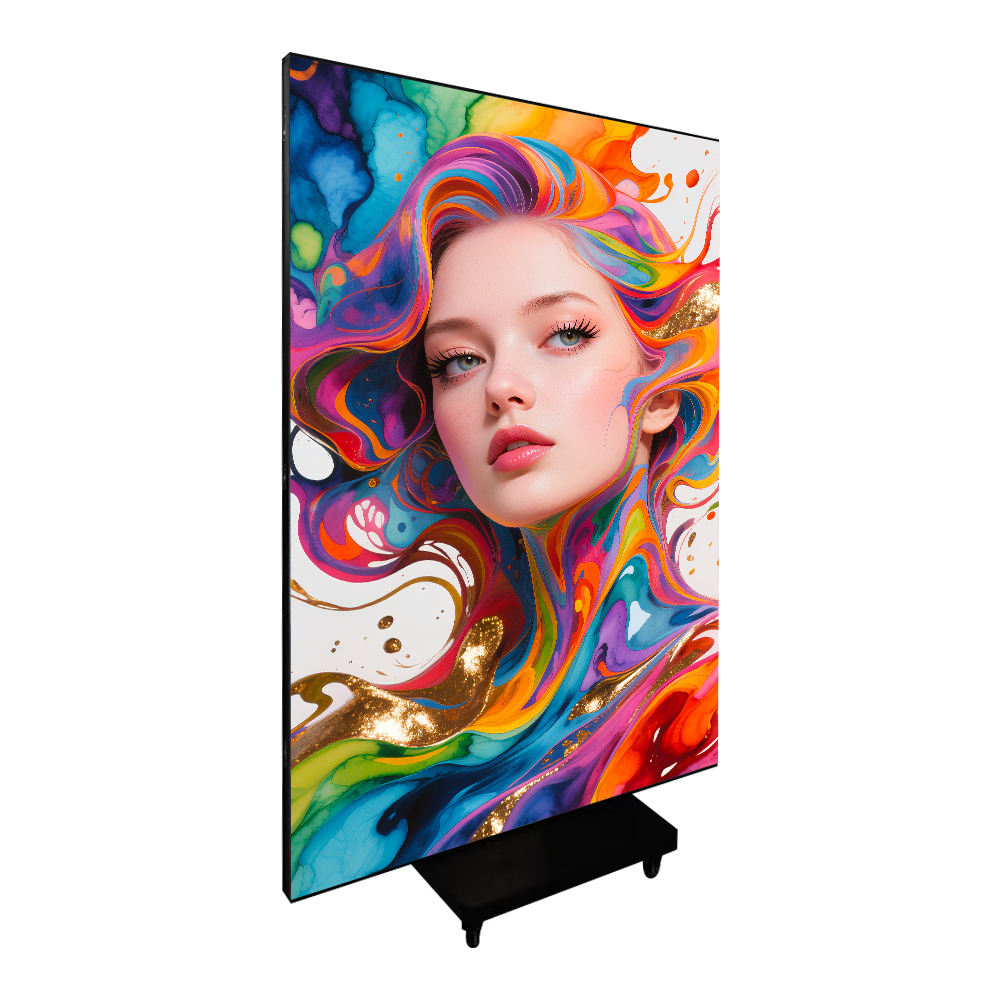

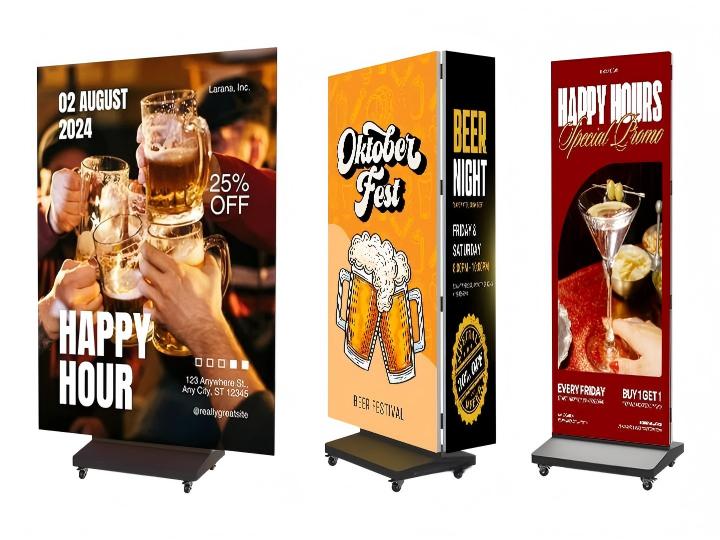

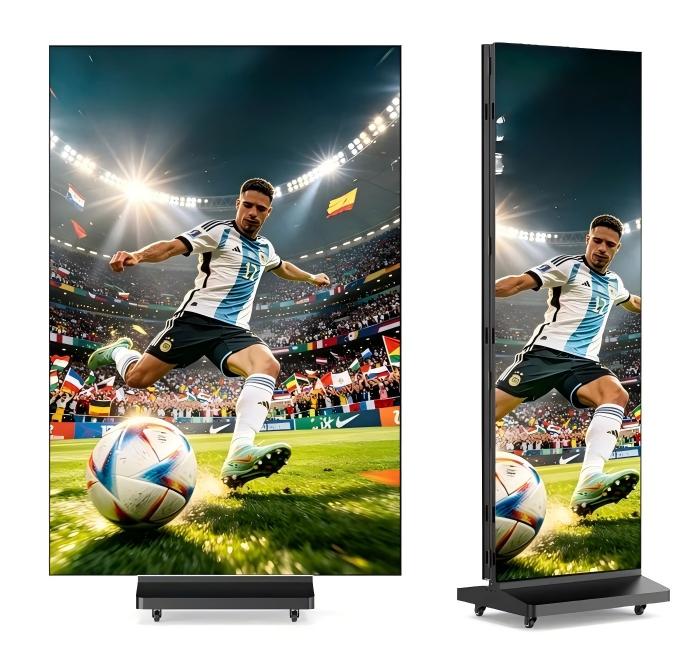

High-Definition LED Display Featuring advanced LED technology, this Tri-fold LED Poster Display delivers sharp resolution and vivid colors, perfect for showcasing dynamic videos or static images. Ideal for malls, exhibitions, and conferences, poster led display helps promote brands, highlight products, and support event marketing effectively. |  |
| High refresh rate LED poster screen Our Tri-fold LED Poster Display With a refresh rate of 3840Hz/7680Hz, you get exceptionally smooth video playback, free from flicker or motion blur. This is crucial for dynamic content and ensures a comfortable viewing experience. |

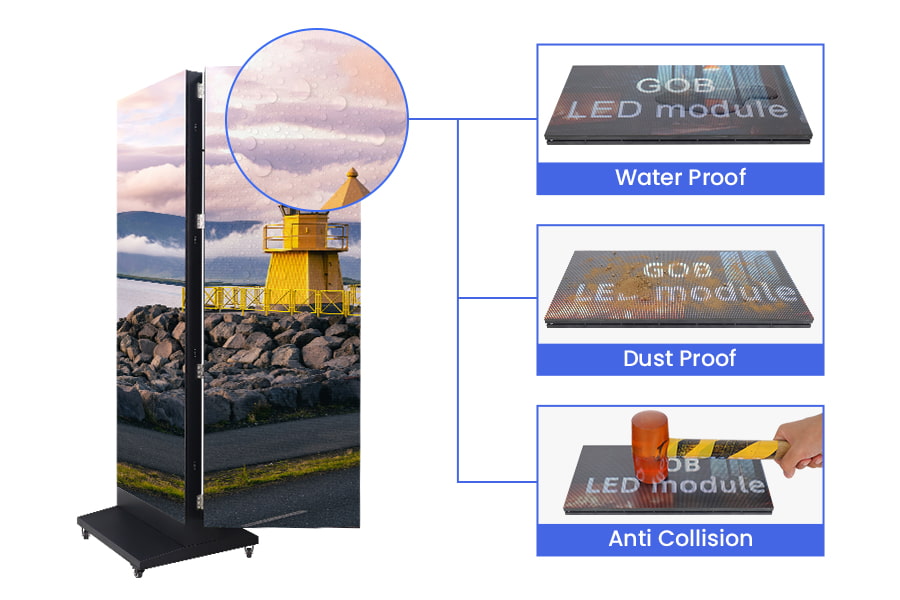

GOB Tech. protect the SMD LED GOB technology is adopted, which makes the screen body waterproof, dustproof, moisture-proof, and impact resistant, extending the service life of the display screen. |
|
| Multi-Screen Splicing&Quick-Lock Our Tri-fold LED Poster Display with rapid locking design supports quick assembly and seamless multi-screen tiling for an instant large-format display. The Tri-Fold LED Poster Display supports seamless splicing. Easily connect multiple units to a larger, unified led wall poster. This allows for stunning, expansive visual backdrops or super-wide advertising displays。 |

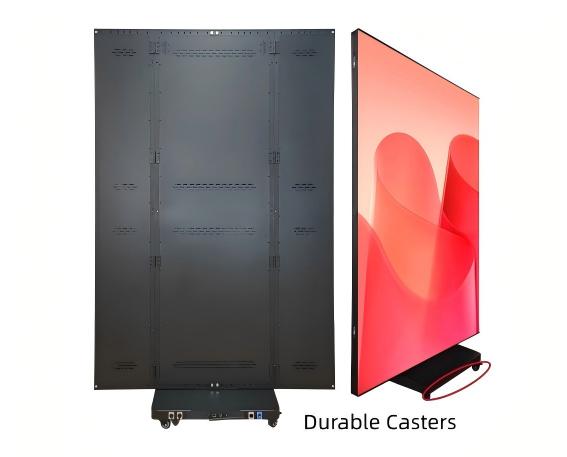

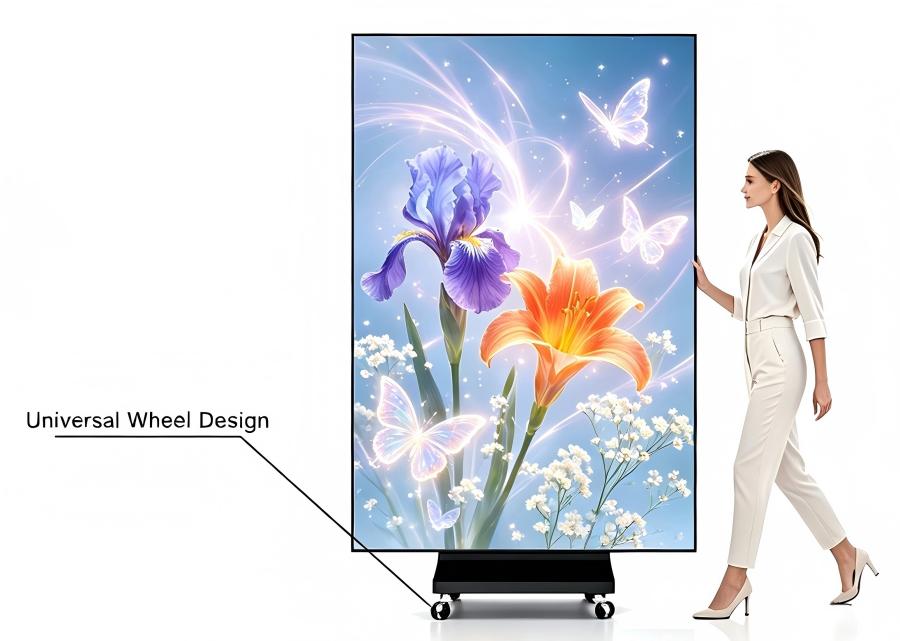

Roll into Action Our poster led displays equipped with four discreet, heavy-duty universal wheels, you can glide the display to your desired location with minimal effort. One person can easily maneuver it. |  |

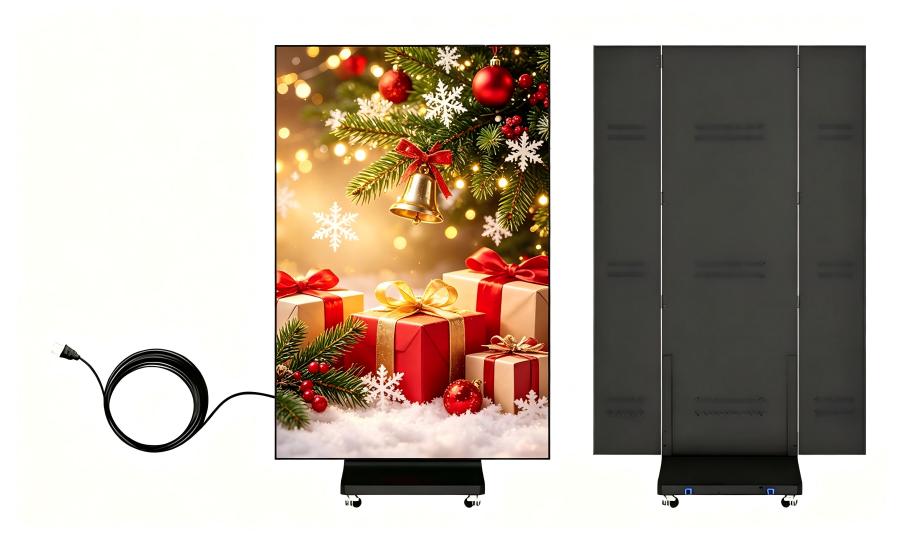

| User Friendly, Plug and Play Our Tri-Fold LED Poster Displays arrive as a finished product. Simply plug it in, and it’s ready to use. This significantly cuts down on setup time and costs, making it perfect for events and temporary installations. |

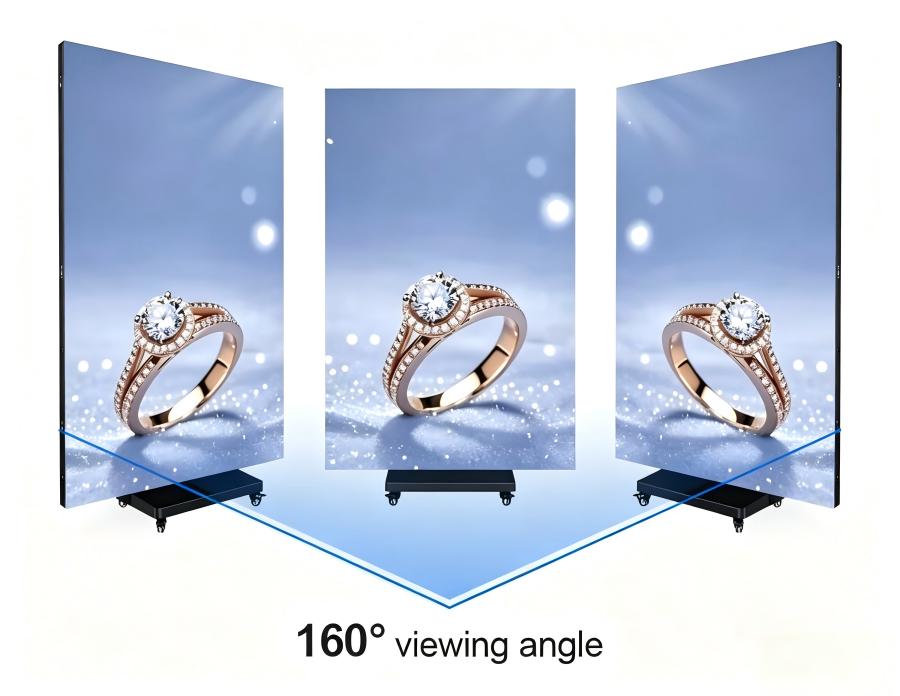

Wide Viewing Angles A 160° horizontal and vertical viewing angle means your content looks great from almost any perspective, ensuring everyone in the room gets a clear view. |  |

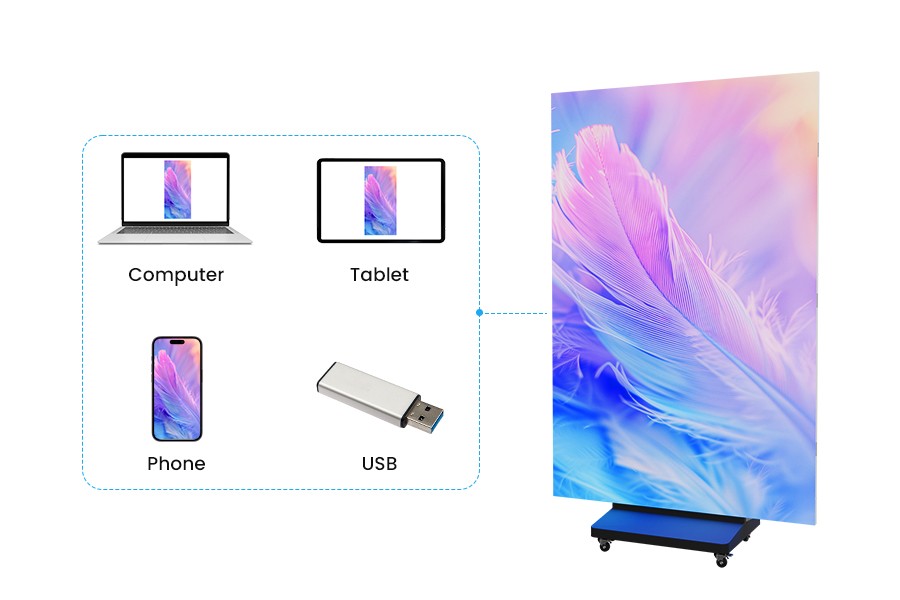

 | Smart Cloud Control Management Manage multiple displays remotely through a centralized platform. Easily customize content, windows, and playback modes. Built-in fold-sensing system automatically switches between single- and double-sided display. Tri-fold LED Poster Display supports WIFI, 4G/5G, RJ45, USB, HDMI, and content can be published from PC, smartphone, tablet, or USB drive. |

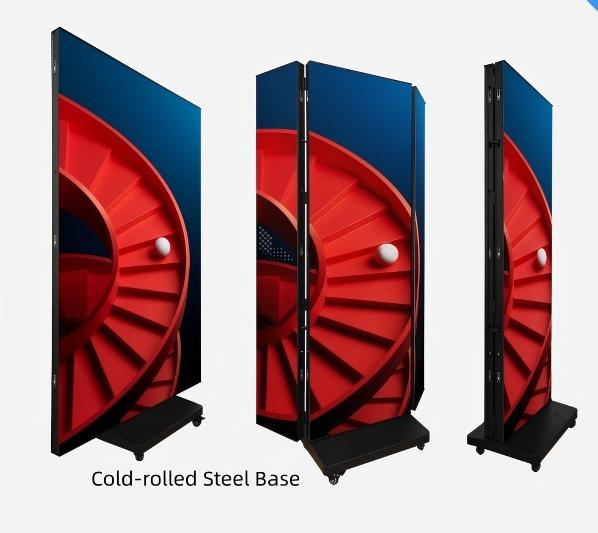

Stable Structure & Strong Performance The Tri-fold LED Poster Display adopts a durable aluminum cabinet with a cold-rolled steel base, ensuring a strong and stable structure that resists deformation while keeping the display surface flat and reliable. Equipped with an industrial-grade motherboard and a quad-core processor, it supports H.265 4K@60Hz decoding, delivering smooth, secure, and high-quality visual performance for professional applications. |  |

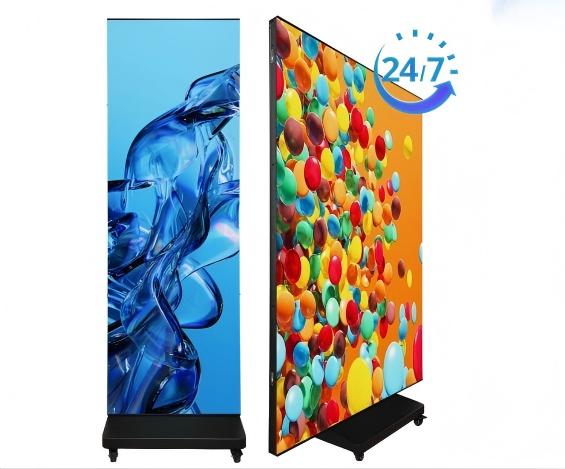

 | Energy-Efficient LED Display Designed for low power consumption and reduced emissions, poster led display ensures eco-friendly operation while maintaining high performance. The Tri-fold LED Poster Display supports continuous 24/7 operation with stable temperature control, preventing overheating or screen damage, giving users peace of mind. |
Optional Stereo Audio Support The poster led display supports high-quality stereo audio with dual speakers, delivering synchronized sound and visuals for a more engaging advertising experience. Optional feature: requires installation of active speakers to enjoy full stereo effect, enhancing both video and audio impact. |  |

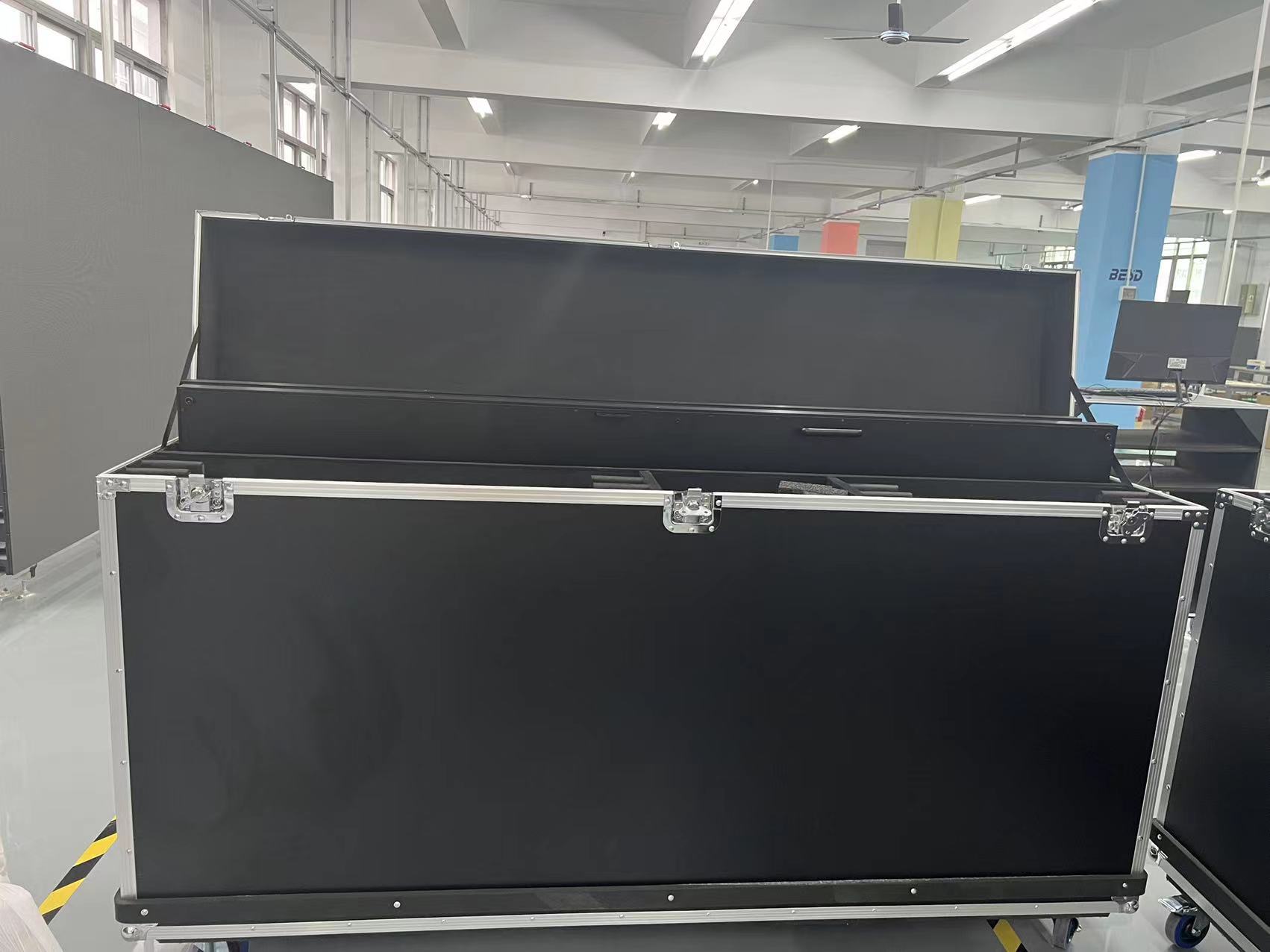

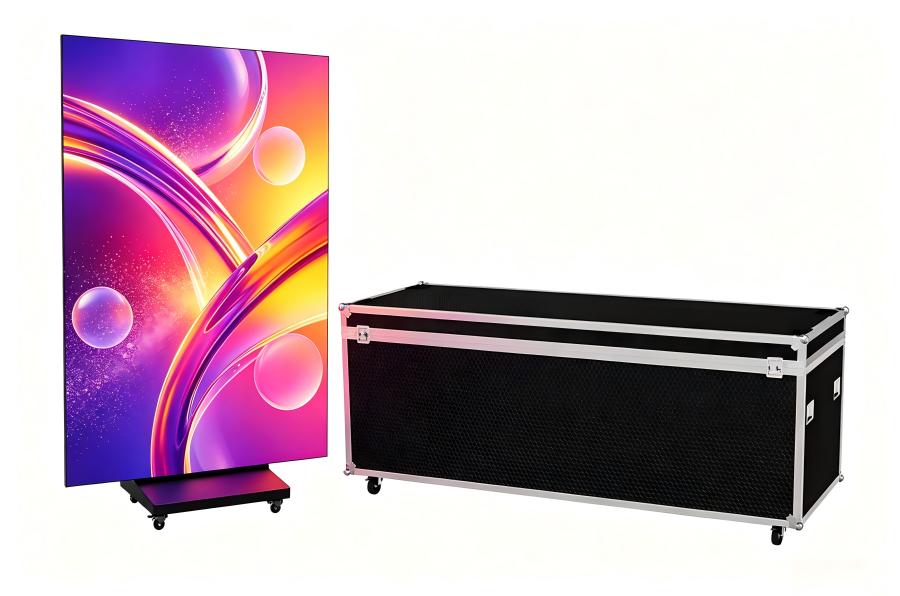

| Easy Mobility and Transport The LED poster display is equipped with high-quality universal wheels, each capable of bearing over 50kg. The sturdy and stable design, combined with built-in leveling support feet, allows easy movement and quick height adjustment during multi-screen splicing. Comes with a standard ramp-equipped flight case for safe transport and rental applications. The lightweight, ergonomic design makes assembly, disassembly, and handling effortless—even for female users. |
Tri Fold Poster Led display Paramenters:
| HSCXLED-Trifold LED Poster Display | |||||
| Model | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| Pixel pitch | 1.25mm GOB | 1.53mm GOB | 1.86mm GOB | 2mm GOB | 2.5mm GOB |
| LED configuration | SMD 1010 | SMD 1212 | SMD 1515 | SMD 1515 | SMD 2020 |
| Pixel density | 640000(dots/sqm) | 422500(dots/sqm) | 288888(dots/sqm) | 250000(dots/sqm) | 160000(dots/sqm) |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Scan mode | 1/64 scan | 1/52 scan | 1/43 scan | 1/40 scan | 1/32 scan |
| Pixel matrix per Module | 256*128 dots | 208*104 dots | 172*86 dots | 160*80 dots | 128*64 dots |
| Screen size | 1280mm*1920mm | ||||
| Cabinet Resolution | 1024*1536 dots | 832*1248 dots | 688*1032 dots | 640*960 dots | 512*768dots |
| Cabinet Weight | 76kg/set | ||||
| Cabinet Size | Unfolding:W1280*H1920mm(lncludes feet:W646*H2060mm*L550mm) | ||||
| Material | Aluminum Frame + Steel Back Cover | ||||
| Refresh rate | 3840-7680hz | ||||
| Brightness | 650-800nit | ||||
| Ingress Protection | IP40 | ||||
| Viewing Angle | 160°/160° | ||||
| AC Input Voltage | AC 110V/220V±10%,50Hz/60Hz | ||||
| Gray Level | 14-16bit | ||||
| Working Temperature | -40 -50(℃) | ||||
| Operating Humidity | 10%~95% non-condensing | ||||
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats | ||||
| Display Function | Video/Text/Picture/Time/3D Text/Office/SWF | ||||
| Controllnterface | Wifi/4G/USB HDMI*2,USB2.0*2,AUX*1 | ||||
| Operating Equipment | Phone, iPad, PC, Internet | ||||
| Installation Method | Floor-standing Base / Splicing Installation | ||||
| Life Time | ≥ 100000(Hours) | ||||
| Control System | Novastar,Colorlight, HuiDu | ||||
Highlight: Indoor Foldable LED Display, Freestanding Digital Signage Poster,
All-in-One Portable LED poster,Dual-Sided Foldable LED Standing Signage

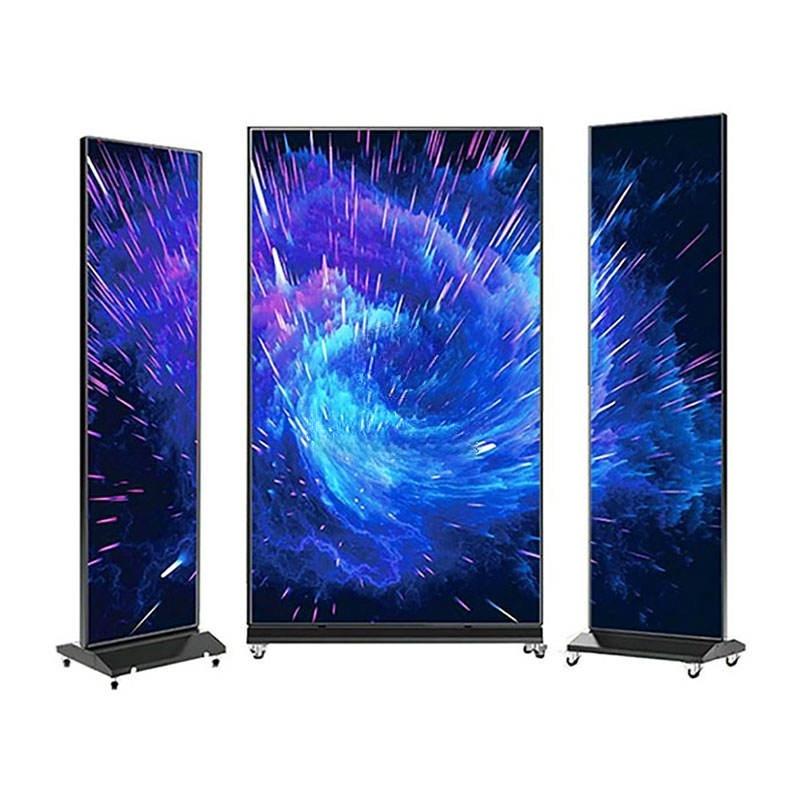

The Tri-fold LED Poster Display is an all-in-one, plug-and-play foldable LED standing signage solution designed to replace traditional static posters. Featuring a left–right tri-fold dual-sided structure, a 1280×1920mm display area, and a durable aluminum cabinet with cold-rolled steel base, this portable LED poster screen unfolds into a seamless widescreen or folds into a double-sided advertising kiosk—maximizing visibility from multiple angles.
Built for commercial environments, the LED Poster Display freestanding digital signage poster is equipped with an industrial-grade quad-core processor, supports smart cloud control platform for remote content management across multiple screens.
Q: How easy is it to move the Tri-Fold LED Poster Display?
A:It’s incredibly easy! Thanks to its relatively lightweight and built-in universal wheels, a single person can comfortably move it across flat surfaces. Its slim, foldable design also makes it convenient for transport between locations.
Q: Can I show different content on each side when the display is folded?
A:Yes! In its folded, dual-sided mode, you can display different content on each screen simultaneously, or the same content if preferred.
Q: What pixel pitch options are available?
A:We offer four pixel pitch options to suit different viewing distances and budgets: P1.25, P1.53, P1.86, and P2.5.
Q: What is the expected lifespan of the LED poster display?
A:The Tri-Fold LED Poster Display is designed for a long operational life of up to 50,000 hours.
Q: What are the standard and optional connectivity interfaces?
A:Standard interfaces include USB, WiFi, and a network port. Optional add-ons include HDMI input (for direct connection to sources like laptops) and a 4G remote publishing module.
Q: Do I need professional technicians for installation?
A:No, one of the key benefits is its “plug and play” design. It ships as a complete unit. You just need to unbox it, position it, plug it into a power source, and it’s ready to go.
