Light Pole LED Display---HSCXLED
Pixel Pitch:P2/P2.5/P3.076/P4/P3.33/P3.84
Street light pole led display is designed for outdoor street light pole advertising.
It's unique, novel and beautiful cabinet design.
Street light pole led display can be integrated with lamp post,
Light Pole LED Display is an important element for smart city advertising led display.
It can be single or double sides with custom sizes.
With 4G controller, all light pole led screens could be controlled via cloud platform remotely.
street pole LED display -cutting-edge smart city solution. Single/double sided led advertising display; Professional outdoor waterproof and heat dissipation design; Equipped with sensor of bright & humidity; Communication USB/LAN/WI-FI/Cloud Control; Used to install city street, highway, gas station or airport etc. |
|
 | High Brightness Lamp pole led display offers high brightness, ensuring excellent visibility even in bright daylight, making it ideal for street advertising applications. Equipped with a high-brightness LED module, this pole mounted LED screen delivers up to 5500 nits of brightness, ensuring clear visibility even under direct sunlight. Whether for street advertising or roadside guidance, this high brightness LED pole display guarantees vivid colors and sharp image quality, making your content stand out in any lighting condition and maximizing brand exposure. |
IP65 Waterproof Rating With an IP65 waterproof rating, this LED screen is designed to withstand various weather conditions, providing reliable performance outdoors without being affected by rain or dust. Designed for outdoor conditions, the LED pole display is rated IP56 waterproof and dustproof, providing stable operation in rain, wind, and harsh environments. This outdoor LED screen ensures long service life and consistent advertising performance for street pole displays and smart pole LED signage. |  |
 | Customized Single side/double sides for option,GPS orientation,camera to real-time monitor ,brightness and temperature auto-adjustment. led display Size:Modular design for the screen,any size if you need. |
Pole-Mounted Design Specifically designed for street pole advertising, this LED screen can be easily mounted on poles along roads, maximizing visibility and exposure to passing pedestrians and vehicles. |  |
 | Crisp Display Quality: The LED screen delivers crisp and clear visuals, allowing for vibrant and eye-catching content display to effectively capture the attention of the target audience. |
Automatic Brightness Adjustment The street pole LED display brightness automatically adjusts as the brightness of the outside changes |  |
 | Energy -saving Technology One of the main concerns of the world is energy consumption, especially in the main smart city. Therefore,The street Pole Led Display consciously use energy to avoid the destructive effects of excessive consumption of non -renewable energy.In this case, you will find that most street light rod LEDs use renewable energy such as wind and solar energy. These energy sources are cleaner and safer to the environment. If their access is limited, intelligent technology surveillance and control of unable renewable resources can be used to achieve the same goals. |
Netwok Remote Control Support 3G/4G/WIFI/LAN connection,remote cluster control is available,you can update the program any time any place via phone/pad/PC. Sending card Synchronous and asynchronous system,Receiving card Data receiving and processing Function card Brightness adjustment and environment detection. Connection way :LAN/3G/4G/WIFI/USB/SD Brand :Nova/LINSN/Colorlight/XIXUN |  |
 | 140-degree Wide Viewing Angle The pole led display screen vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. street pole LED display provides you with clear and natural images in all directions. |
Unique Cabinet Design – Easy to Install & Transport Side-open and back-open maintenance allow it more optional installation positions The assembly module, power supply, receiving card, send card and other accessories feature a comprehensive set of components including easy installation hardware, automatic brightness adjustment, power delivery, SIM card support, optimal cabinet configuration, cooling, robust power supply, dust protection, circuit protection, lightning surge protection, and power control – all designed to enable reliable, high-performance operation. |  |
 | Street Pole LED Display Multiple Installation Methods Street light pole LED display provides a variety of flexible installation methods, including side installation, mid -set installation, roof installation, wall -mounted installation, etc. Each installation method is simple to design, which saves time and cost, so that the smart light rod screen can easily adapt to various scenarios and provide users with greater flexibility. |
Customized LED Screen Size and Pixel Pitch are customized The Street Pole LED Display Cabinet Size 800x1600mm/480*960mm/640*1280mm/960*1600mm or customized design needs. Module Size: 200*200mm, 320*160mm Color Is Customized The Street Pole LED Display frame’s color is optional.meets different occasions to keep the same as the original environment design. |  |
Street Pole LED Display Paramenters:
| IP65 Street light Pole LED Display | ||||||
| Pixel Pitch(mm) | P2mm | P2.5mm | P3.076mm | P4mm | P3.33mm | P3.84mm |
| LEDs | SMD 1415 | SMD1415 | SMD1415 | SMD1921 | SMD1415 | SMD1921 |
| Module size | 320*160(mm) | 200*200(mm) | ||||
| Driving Method | 1/20 scan | 1/16 scan | 1/13 scan | 1/10 scan | 1/13 scan | 1/12 scan |
| Display size | 480*960mm/640*1280mm/customized | 400*800mm/600*1200mm /800*1600mm | ||||
| Cabinet | Optional: Sealed waterproof iron cabinet/aluminum profile/Die -Casting aluminum cabinet Single or double sided/Customized | |||||
| Brightness | 5000-7000cd/m² ( brightness sensor) | |||||
| IP grade | IP65 | |||||
| View Angle | H: 160°/ V: 160° | |||||
| Grayscale | 14-16 bit | |||||
| Refresh Rate | 3840Hz/7680Hz | |||||
| Power consumption | Max.: 830W/m2, Average: <400W/m2 | |||||
| Working Temperature | -40 -50(℃) | |||||
| Operating Humidity | 10%~95% non-condensing | |||||
| Working voltage | Input: AC100-240V 50/60HZ, Output: DC 5V | |||||
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats | |||||
| Control Method | 4G/wired connection | |||||
| Display Function | Video/Text/Picture/Time/3D Text/Office/SWF | |||||
| Application | Outdoor Advertising Screen | |||||
| Control system | Xixun/Nova/Colorlight/Huidu | |||||
| Life time | Lifespan≥100000H,MTBF ≥50000H | |||||
Highlight: Street Pole Advertising Led Screen, Double-side Led Display Screen,
Outdoor Street Pole Advertising LED Screen

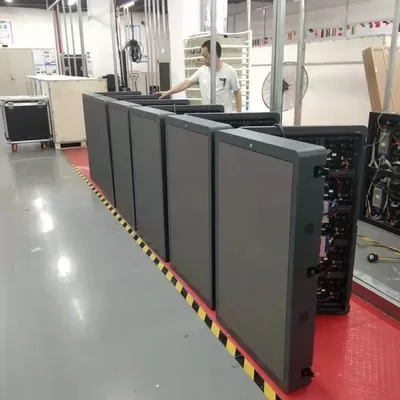

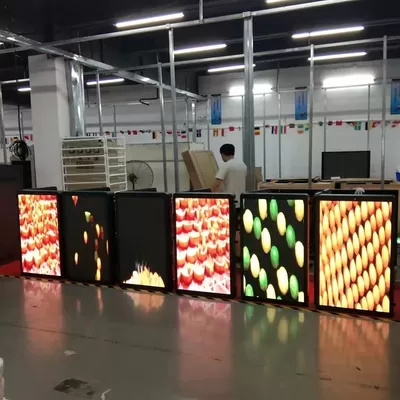

Outdoor Street Light Pole LED Display Screen Workshop production pictures
Street Pole LED Display Solution: Innovative Technology for Smarter Cities
The street light pole LED display system is a revolutionary technology transforming the way information is delivered and managed in urban environments. By integrating advanced WiFi, power line communication, and sensing capabilities, this smart LED solution is leading the charge in smart city infrastructure development.
The smart street light pole LED display solution integrates advanced WiFi, power line communication and sensor technology to lead the development of smart city infrastructure.
In urban development, street pole LED screen are emerging as a model that integrates information and communication technology with traditional urban public infrastructure, making them the most promising new public infrastructure in this domain.
There are many functions of smart LED pole such as smart lighting controlling system, weather station, broadcasting speaker, emergency call system, mini base station, wireless Wifi, cameras and surveillance system, and high-quality LED display!
Street Pole LED Display Cabinet
The street pole LED display cabinet is a versatile and innovative solution available in multiple configurations to meet various needs. With options for P2, ,P2.5,P3,P3.076,P3.33,P3.91, P4pixel pitches, this display can be configured as single-sided or double-sided, offering flexibility for different applications.
Cabinet Material: Made from aluminum or steel for durability and lightweight construction.
Customizable Size: Tailored to specific project requirements.
Remote Cluster Control: Manage multiple displays from a single, centralized platform.
High Brightness: Ensures visibility even in bright outdoor conditions.
Easy Installation: Designed for quick and hassle-free setup.
Optional Synchronous Stereo: Enhances multimedia experiences with synchronized audio.
Automatic Brightness Adjustment: Adapts to ambient light for optimal viewing and energy efficiency.
Remote Power Control (Optional): Conveniently turn displays on/off via remote access.
Multiple Control Options: Supports 3G, 4G, 5G, USB, Cloud, and WiFi for flexible and reliable content management.
Street Pole Led Display Use Scene
The street light pole LED display system offers a versatile and impactful solution for both traffic safety and community advertising:
LED smart light pole screens can be widely used in urban arterial roads, pedestrian streets, subway entrances, airports, stations, shopping malls, communities, scenic spots and other areas. All specifications can be customized.
Street Pole Led Display with a large information capacity, the displays can showcase rich, dynamic content on a flexible schedule – from real-time traffic instructions and emergency notifications, to commercial advertisements and community service announcements.
As a low-cost, environmentally-friendly option, Street Pole Led Displayare widely deployed on outdoor street light infrastructure, providing high visibility and reach to passing vehicles and pedestrians.
For traffic safety, the displays relay critical real-time information to drivers and pedestrians, helping to avoid congestion and accidents. The street Pole Led Display can also instantly broadcast emergency alerts, prompting appropriate safety measures.
In the advertising realm, street Pole Led Display enable targeted, time-based messaging – showcasing commercial ads, social communications, and community resources. This flexibility increases the exposure and impact of local businesses and services.
Overall, this comprehensive street light pole LED display system delivers a smart, cost-effective solution that enhances both public safety and community engagement.
