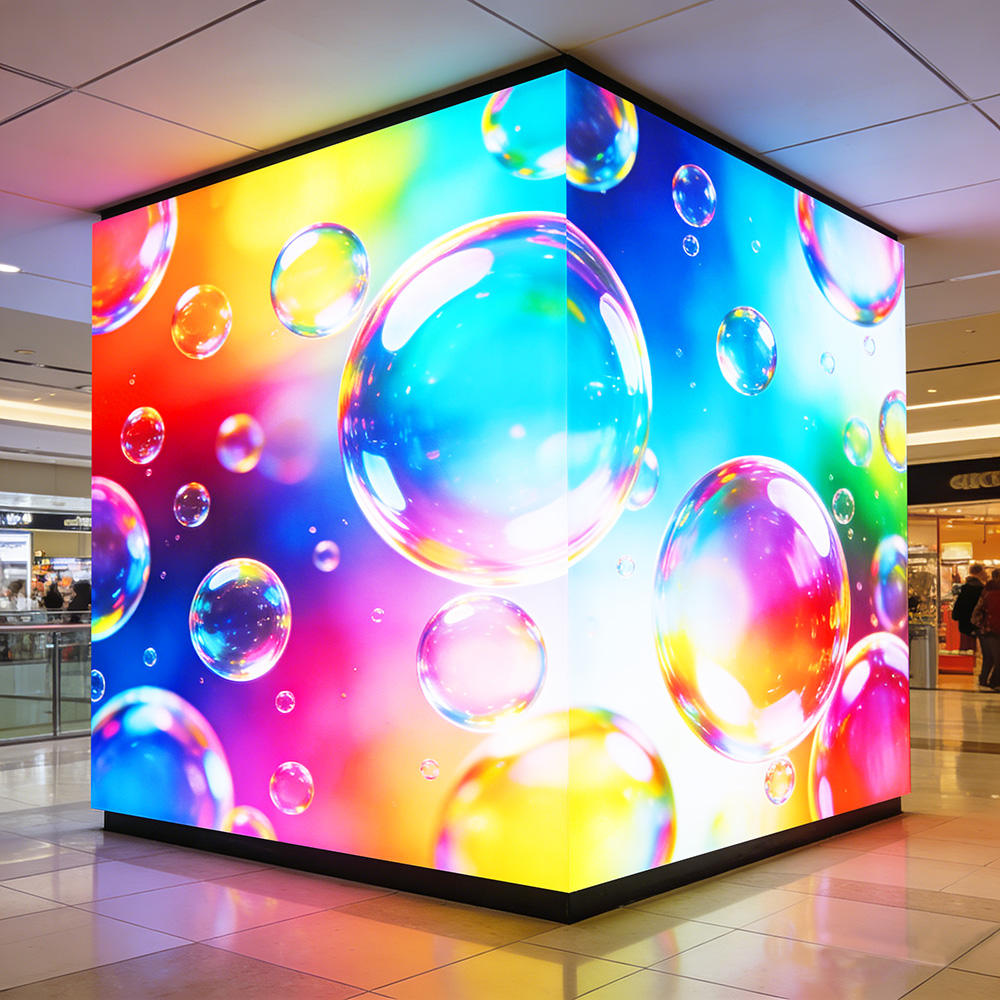

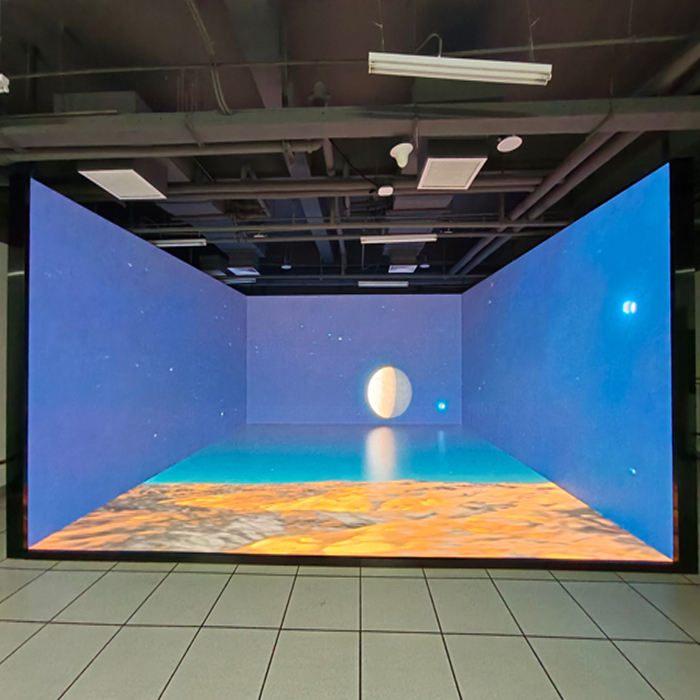

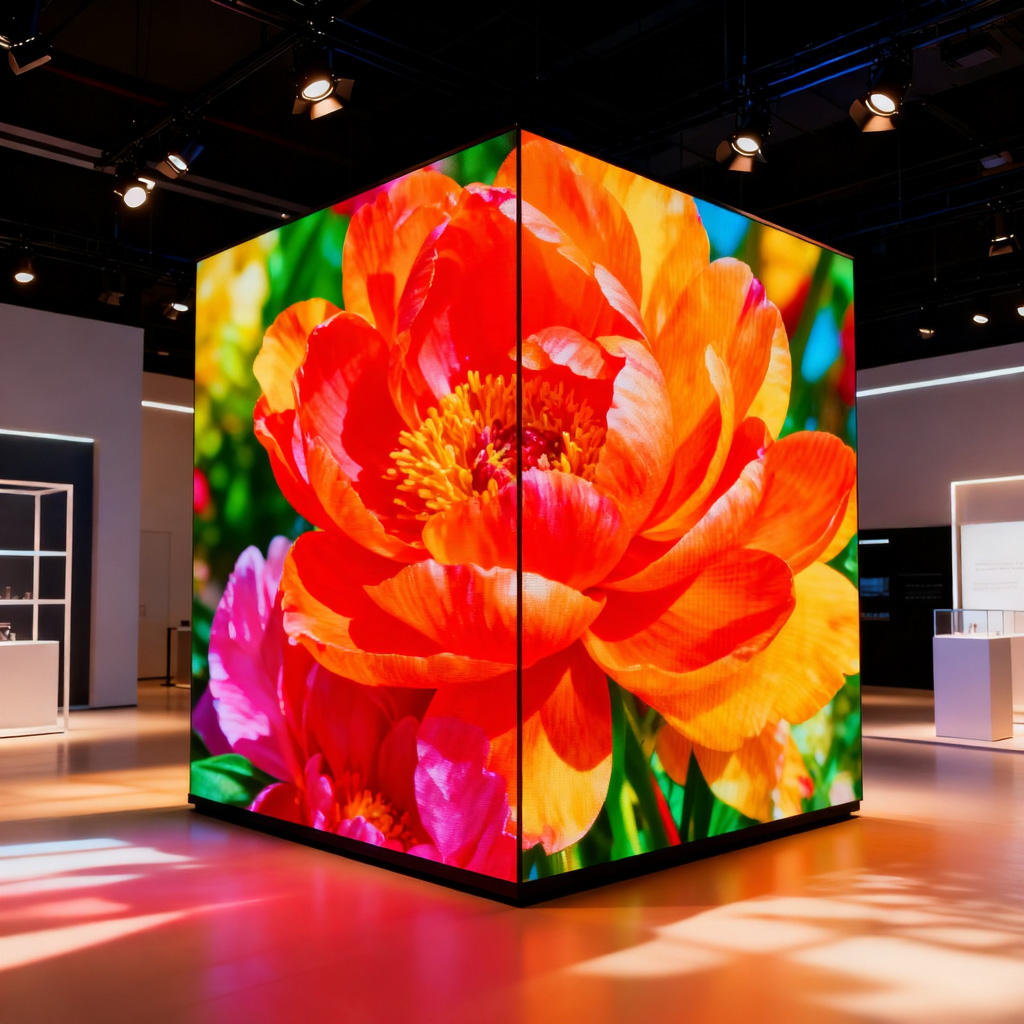

Indoor Small Pixel Pitch Led Screen / Indoor fixed led display
Model Number: P1.2/P1.5/P1.8/P2/P2.5
ultra-thin indoor LED display screen
Full Front Maintenance
Seamless connection:high degree of flatness and can be infinitely connected
SMD+GOB integrated packaging, high protection, high reliability, high environmental adaptability

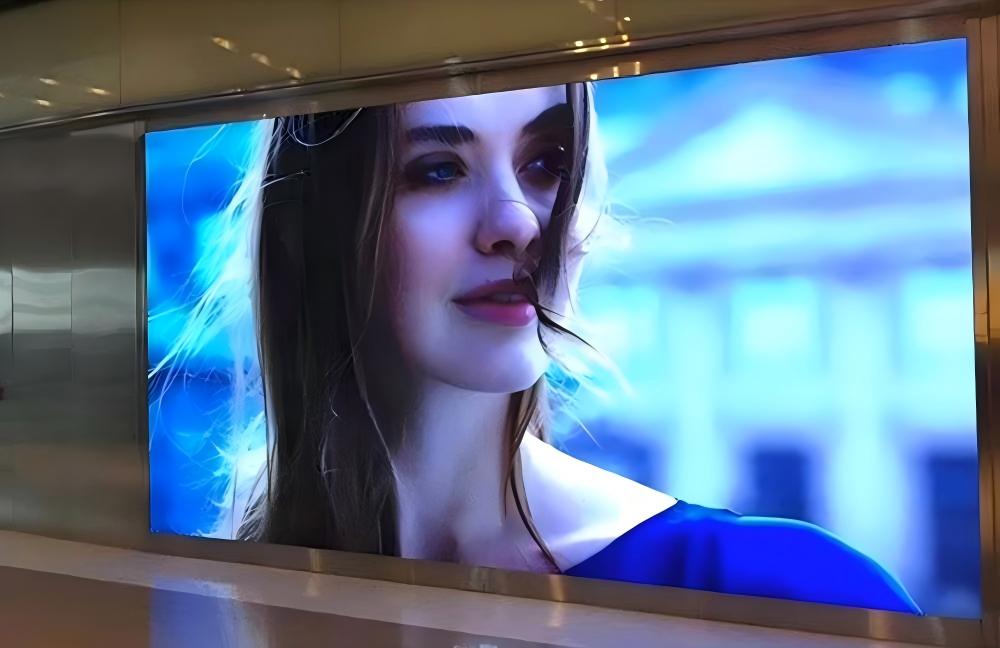

HSCXLED manufactures premium indoor fixed LED displays with pixel pitches ranging from P1.25 to P2.5 for conference rooms, corporate offices, retail stores, broadcast studios, control rooms, houses of worship, and other commercial environments. Designed for high image quality, seamless installation, and reliable 24/7 performance, our indoor LED display solutions deliver outstanding color accuracy, wide viewing angles, and easy front maintenance. |  |
 | ULTRA-HIGH RESOLUTION LED DISPLAY SMALL PIXE LPITCH LED DISPLAYS our indoor led displays has clear image guality,full colors,no lag,no flicke,Ultra Slim & Light weight Desigr Totally Cable-less Design Totally Front maintenance. |
HIGH DYNAMIC RANGE
Fine pixel LED display Kseries cabinet allows differentials to make screen resolution from 1080p to 4k.8k picture quality .Cabinet colors are available in black and silver.The16:9 /4:3 Visual Golden Ratio,Easypoint-to point splicing into1080P.2160P,3840P.7860P and gotherstandard resolution large screen,Any size can be customized. | |
HIGH CONTRAST
| |

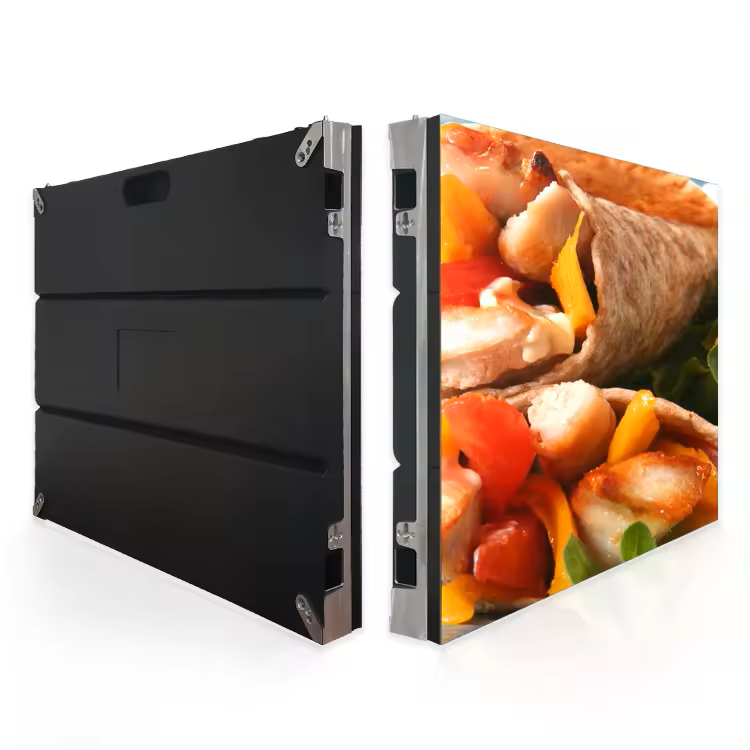

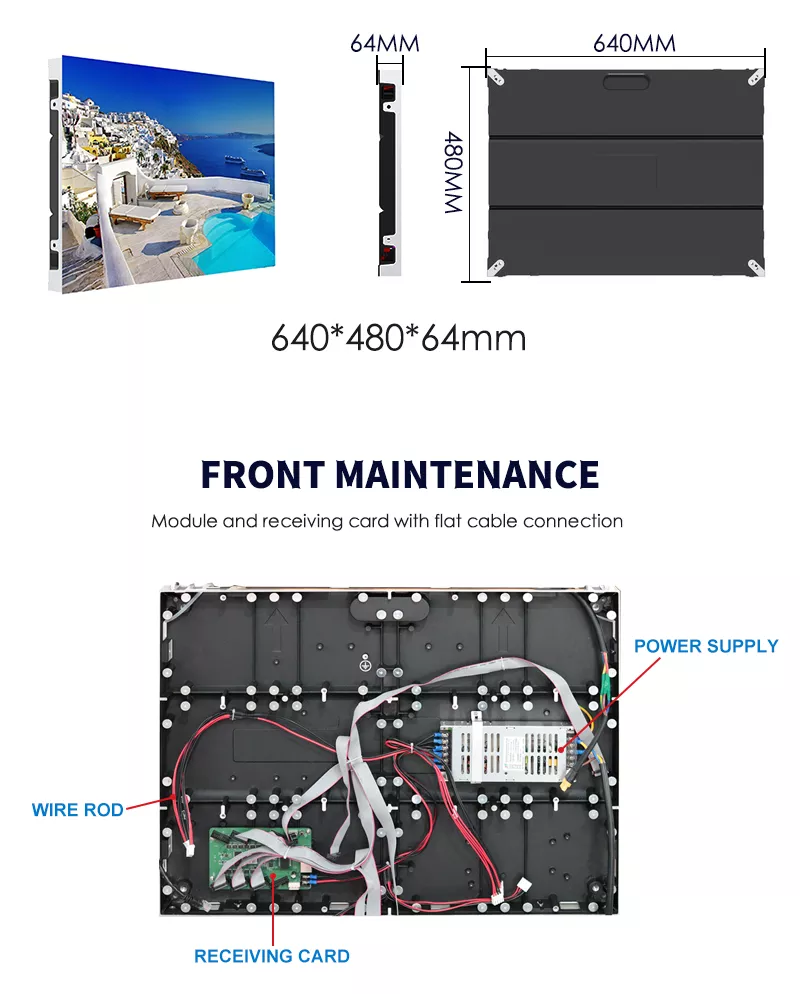

FRONT INSTALLATION AND SERVICE Fine Pixel Pitch LED display, HSCXLED indoor fixed installation LED display adopts magnet adsorption LED panel .Easy installation and front Maintenance LED display screen. | |
SMD+GOB TECH
The LED display adopts advanced GOB(Glue on Board) protection technology,ensuring superior durability. the LED surface is fully sealed to provide Water-proof,Scratch-proof, waterproof protection making it resistant to dust,water splashes,and impacts.This robust design prevents LED drops or damage during accidental collisions,ensuring long-lasting performance even in challenging environments. | |
WIDE VIEWING ANGLES
Full RGB color produce vivid pictures.178°super wide horizontal and vertical viewing allow for maximum audience engagement in short viewing distances.Wide 170° Viewing Angle,Clear and vivid from every direction.HSCXLED Indoor LED display maintains clear display quality from different viewing angles,ensuring that the audience can see the screen content clearly regardless of the angle from which they are viewing.
| |
 | INDOOR FIXED LED DISPLAY
Easy Installation with HSCXLED Customized Bracket,Say No to Local Structure. |
Keep your screen always cutting-edge
| |
| FLEXIBLE APPLICATION SCENARIOS

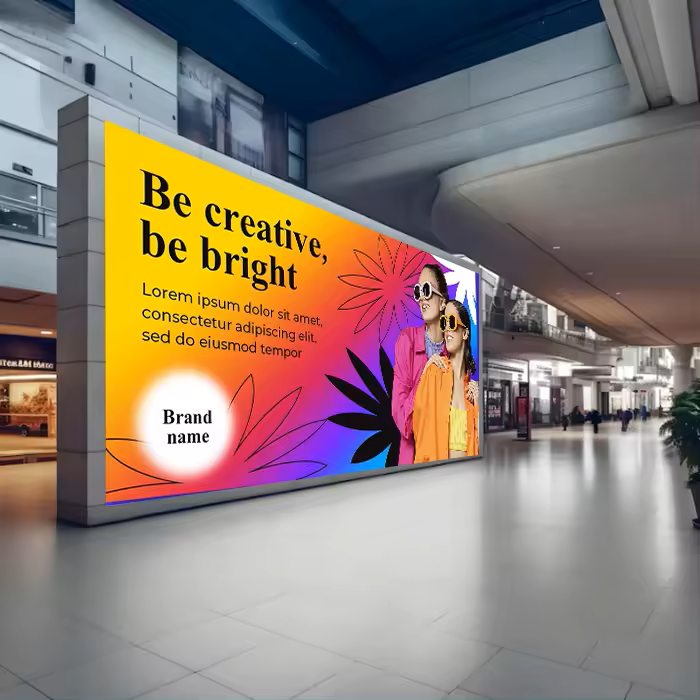

Whether it's used in conference rooms, exhibition halls, or retail stores, this indoor LED display can meet your diverse needs. It can display dynamic content, such as product promotions, event announcements, and real - time information, attracting the attention of your audience effectively. |
Indoor Small Pixel Pitch Led Screen Paramenters:
| HSCXLED-Indoor led display screen ---SMD LED Screen | |||||
| Environmental | INDOOR | ||||
| Model | PH1.25 | PH1.53 | PH1.86 | PH2 | PH2.5 |
| Pixel Pitch | 1.25mm | 1.53mm | 1.86mm | 2mm | 2.5mm |
| LED Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density | 640000 dot/ m2 | 422500dot/ ㎡ | 289050dot/㎡ | 250000dot/㎡ | 160000dot/㎡ |
| Module size | 320x160mm | ||||
| Module Resolution | 256x128dot | 208x104dot | 172x86dot | 160x80dot | 128x64dot |
| Maintenance | Front Access | ||||
| Scanning Mode | 64S | 52S | 43S | 40S | 32S |
| View Distance | >1.2m | >1.5m | >1.8m | >2m | >2.5m |
| Display Scale | 16.7M | 16.7M | 16.8M | 16.9M | 16.7M |
| Brightness Intensity | 600-800CD/ ㎡ | ||||
| Viewing Angle | 160° | ||||
| Gray Scale | 14bit | ||||
| Max.Power Consumption | 600W/m2 | ||||
| Ave.Power Consumption | 200W/m2 | ||||
| Refresh Frequency | 3840-7680HZ | ||||
| Input Power | AC100-240 50/60HZ | ||||
| Brightness Adjustment | 0-100 levels adjustable | ||||
| Control Mode | Synchronous display with control PC by DVI | ||||
| Support Input | Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI | ||||
| Display Function | Video/Text/Picture/Time/3D Text/Office/SWF | ||||
| Operating Temperature | -20°C~+50°C | ||||
| Operating Humidity | 10-90% RH | ||||
| Operating Life | 100,000hours | ||||
4K Meeting Room LED Video Wall / Indoor Led Display Screen.
Easy Installation 640x480mm LED Display / Indoor LED Screen
Indoor Advertising LED Display Screen /Full Color LED Indoor Display
Indoor Wall 4K/8K Full Color GOB LED Screen

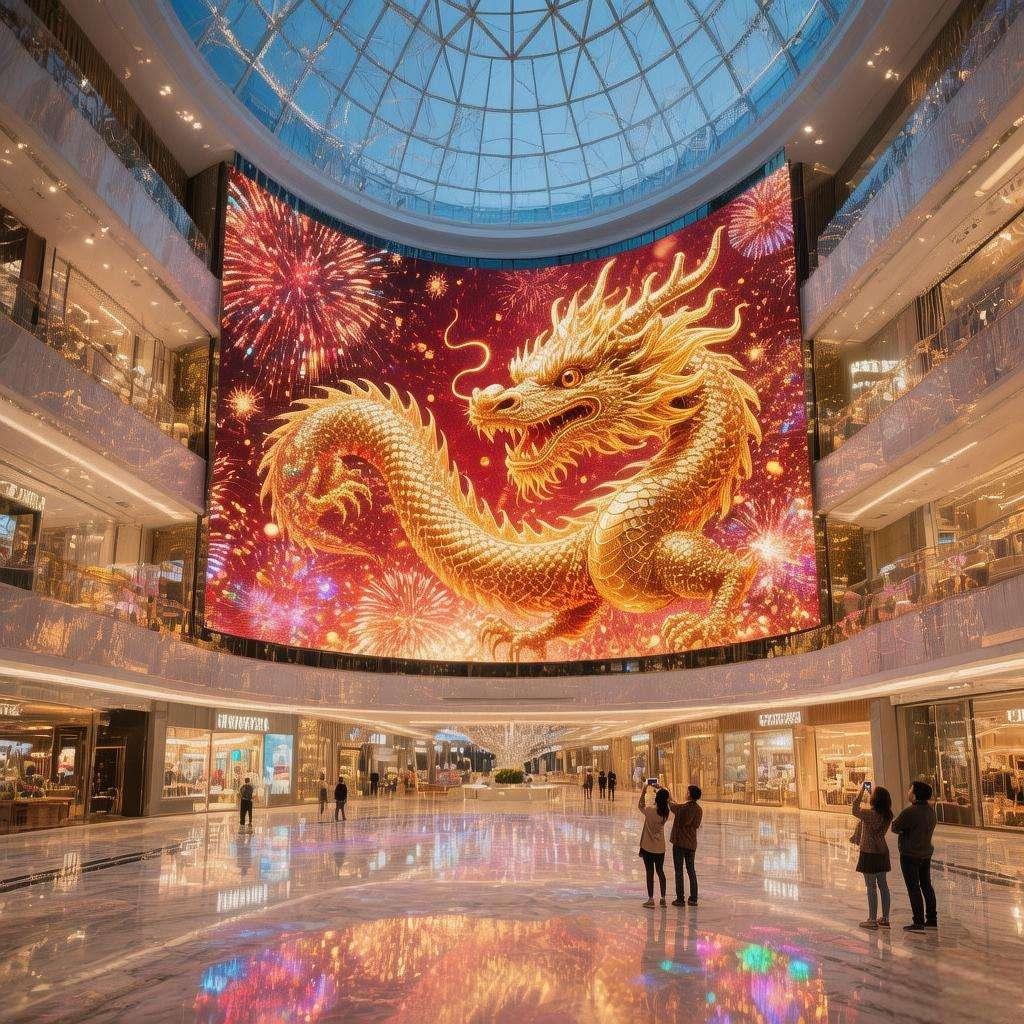

HSCXLED - Indoor LED display screen, high-definition display screen, easy to install, lightweight box design of LED display screen saves customers installation costs. widely used advertising publish, shopping mall, retail store, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, Education, medical treatment......
Company Products and Advantages Introduction:
Shenzhen H&S Innovation Technology Co., Ltd specializes in the manufacturing and supply of a diverse range of LED display screens that cater to various indoor and outdoor needs. Our products including Ultra-thin LED display screen,COB LEDdisplay,Round Led Display,Poster LED Display /LED Mirror Screens ,Outdoor Street Pole Led Screen,Outdoor 3D LED Display Screen, Indoor LED Display , LED Circular Screen, Creative LED Display Screen, LED Soft Screen, and LED Ball Screen.
Indoor led display screen -----Ultra-thin LED display screen
Double-sided LED Display Screen ,Screen thickness: 24mm (single-sided), 30mm (double-sided) , Refresh rate: 7680Hz Weight: 20kg/square meter , Installation methods: Ceiling mounting, side mounting, wall mounting ,Material: Aluminum profile cabinet, lightweight and thin ,The screen uses a rigid connection design, eliminating the need for wiring during module installation, making it convenient and quick! ,Cabinet sizes available: 500*500mm.
Outdoor advertising led display:
Outdoor 3D LED Display Screen are designed to provide an immersive and engaging visual experience outdoors. With their advanced 3D technology, they can display stunning graphics, videos, and animations that capture the attention of passersby. They are perfect for advertising, events, and entertainment venues.
LED Poster Display /LED Mirror Screen:
These screens combine the functionality of a traditional poster with the dynamic capabilities of an LED display. The LED poster screens can display digital posters, animations, and videos, while the LED mirror screens offer a reflective surface when turned off and can display content when turned on. They are ideal for retail stores, restaurants, and other commercial spaces.
LED Pole Screen:
The LED pole screens are designed to be mounted on poles or columns, making them perfect for displaying information or advertising in high-traffic areas. They can be used in streets, malls, and other public spaces to provide real-time updates, promotions, and announcements.
LED Circular Screens:
The LED circular screens are unique and eye-catching, making them perfect for creating a focal point in any space. They can be used for branding, advertising, and displaying information in a circular format.
Round Led Diaplay:
Our creative LED display screens offer endless possibilities for customization and creativity. They can be designed to fit any shape, size, and specification, making them perfect for unique and eye-catching displays. Whether you need a custom-shaped screen for a specific event or a unique design for your brand, we can help you bring your vision to life.
