Indoor Front Service LED Display
Indoor Front Service LED Display
Indoor Front Service LED Display
Indoor Front Service LED Display

Indoor Front Service LED Display

indoor small-pixel LED displays

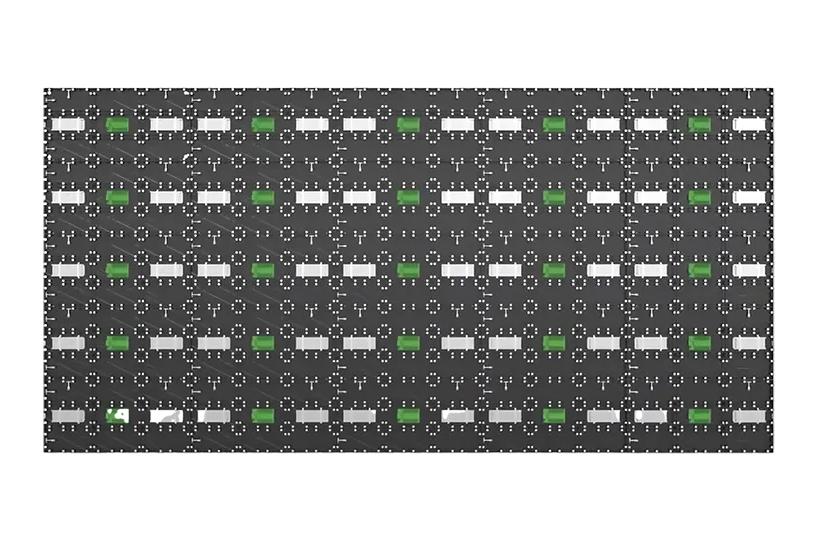

320×160mm module

Thin cabinet LED display, lightweight LED screen

Full front maintenance design

Specially designed for 4:3 and 16:9 large screens

Soft connection with Cable

Ultra-lightweight and space-saving

SMD, GOB available

P1.25, P1.53, P1.86, P2, P2.5 available


LED Display Introduction

Indoor Led Video Wall,Indoor Fixed LED Display


Indoor Small Pixel Fixed LED Display

Our Indoor Fixed LED Display is ideal for an indoor fixed front service LED display. Die Casting aluminum Cabinet design. Ultra-lightweight. Easy to assemble, multiple size 640*480mm, 640*640mm, 480*480mm, 320*480mm, 320*640mm available. GOB available.

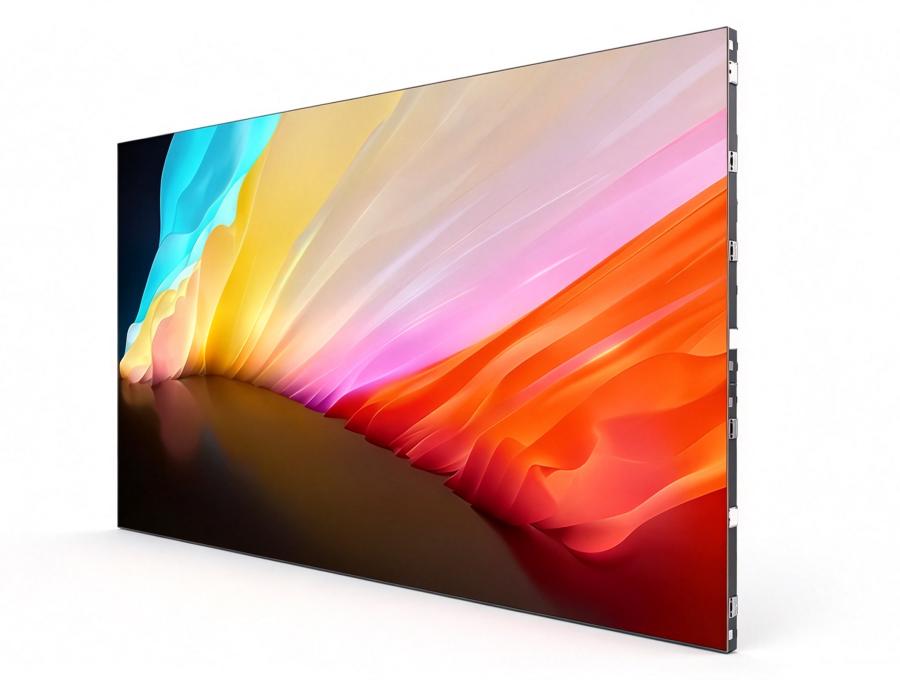

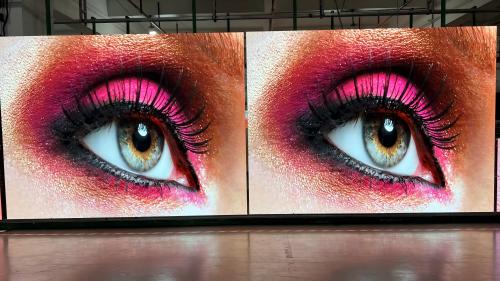

Superb Display Effect

With latest LED screen technology, high brightness, high refresh rate 3840Hz-7680Hz, and high contrast ratio, Our Indoor Fixed LED Display offers a vivid display effect and realistic color performance.

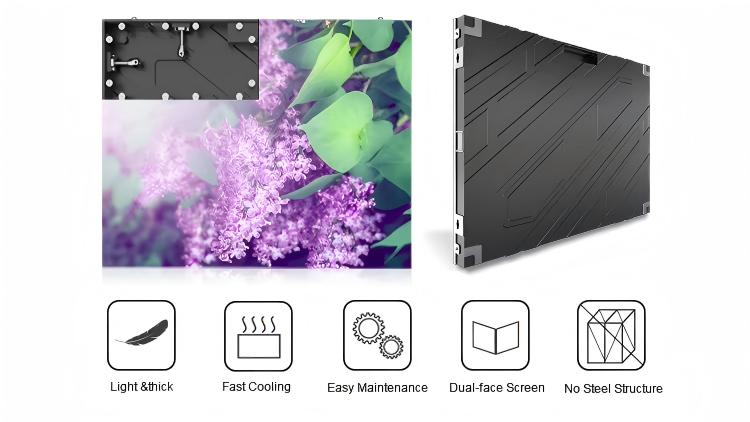

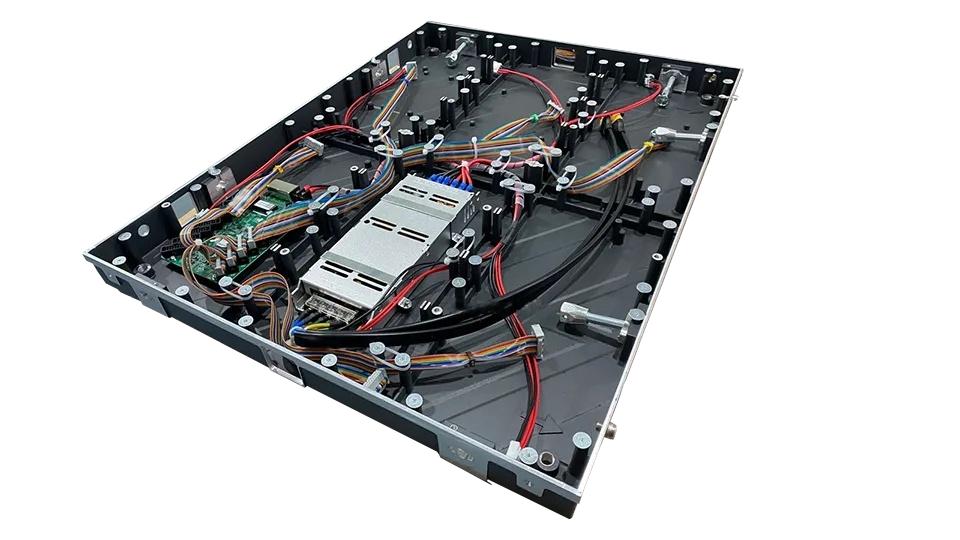

Excellent Cabinet Design

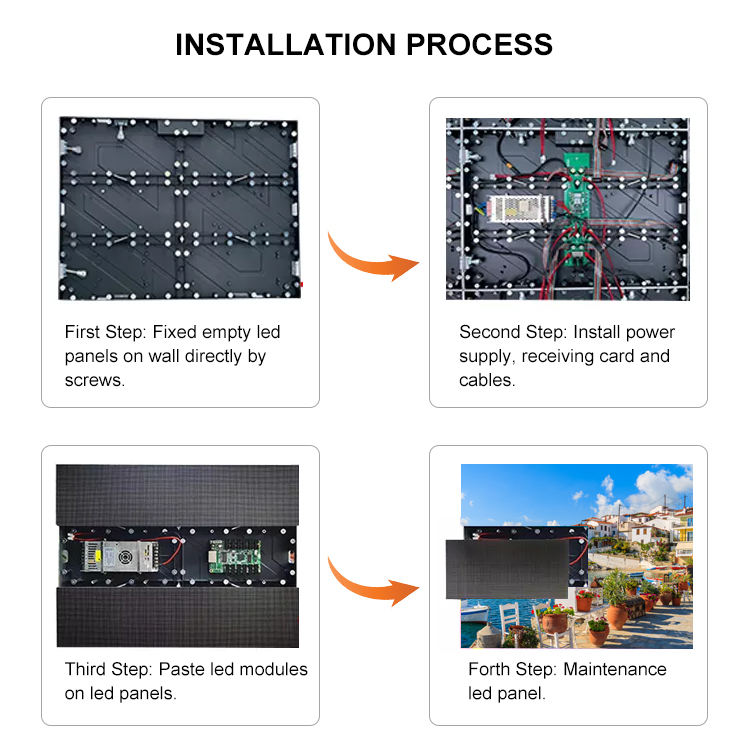

Designed with a high-precision die-cast aluminum cabinet with fast locks, locating beams, cable holes, magnetic modules, receiver cards, and power supplies, and cables. Easy installation.

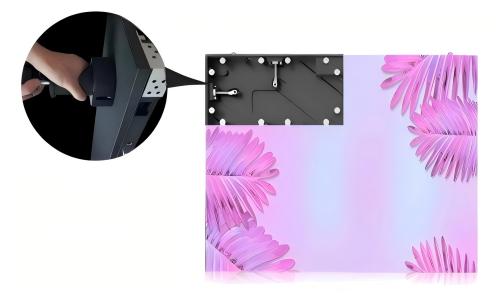

Front Service Design

Front service design for easy replacement with the adsorption magnet module. The modules can be taken out in a few seconds. easy to installaton and replacement.

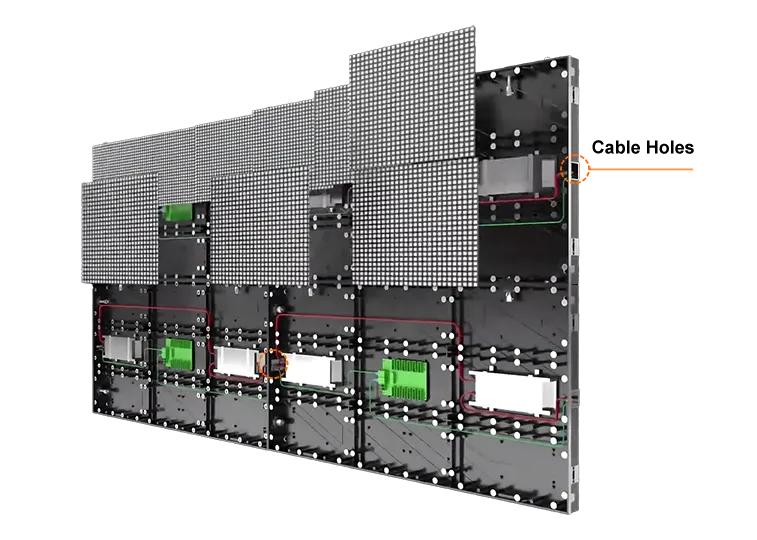

Simple Cable Connection

Each side of the box, including the left, right, top, and bottom edges, is thoughtfully equipped with cable holes, enabling streamlined and organized cable wiring to ensure a neat and efficient setup.

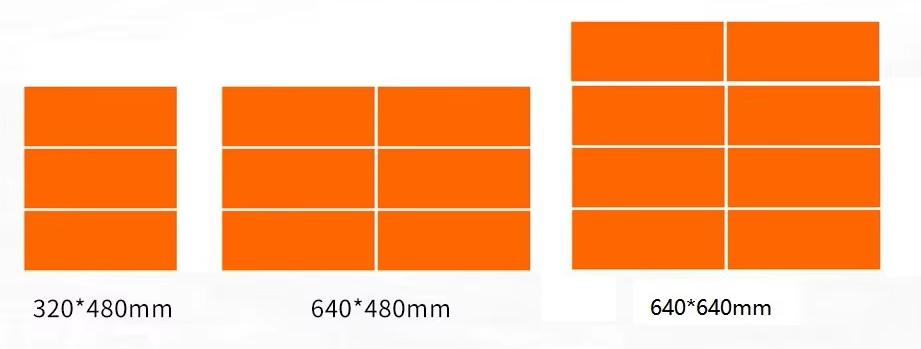

Multiple Size Available

HSCXLED indoor fixed LED Video wall offers multiple sizes designed to meet diffeent installation needs, 640*480mm, 640*640mm, 480*480mm, 320*480mm, 320*640mm available.

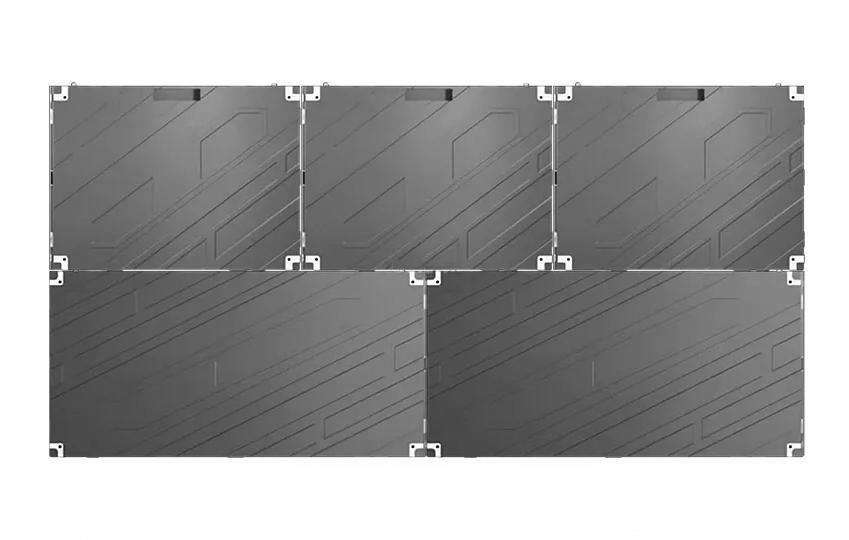

Support Mixed Installation

Each side of the box, including the left, right, top, and bottom edges, is thoughtfully equipped with cable holes, enabling streamlined and organized cable wiring to ensure a neat and efficient setup.

Lightweight Cabinet

Ultra lightweight with only 3.6kg for 640×480mm empty cabinet, 5.8 kg for 640×640mm empty cabinet. Portable transportation and easy installation.

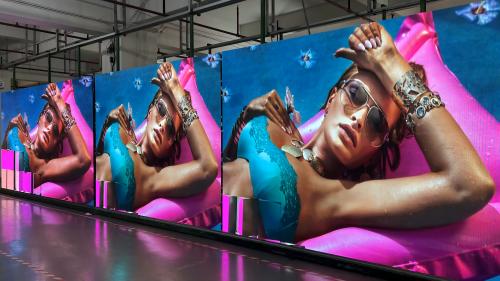

Seamless Splicing

Seamless splicing cabinet with high CNC technology die casting aluminum cabinet. Better flatness, offering a seamless display for immersive visual experiences

Pixel Pitch, Brightness and Refresh Rate

Brightness is 600 cd/m² on P1.25-P2.5, 700 cd/m² - 800 cd/m² can be support custom, with a 140° viewing angle, 14-16bit grayscale and at least 3,840 -7680Hz refresh .

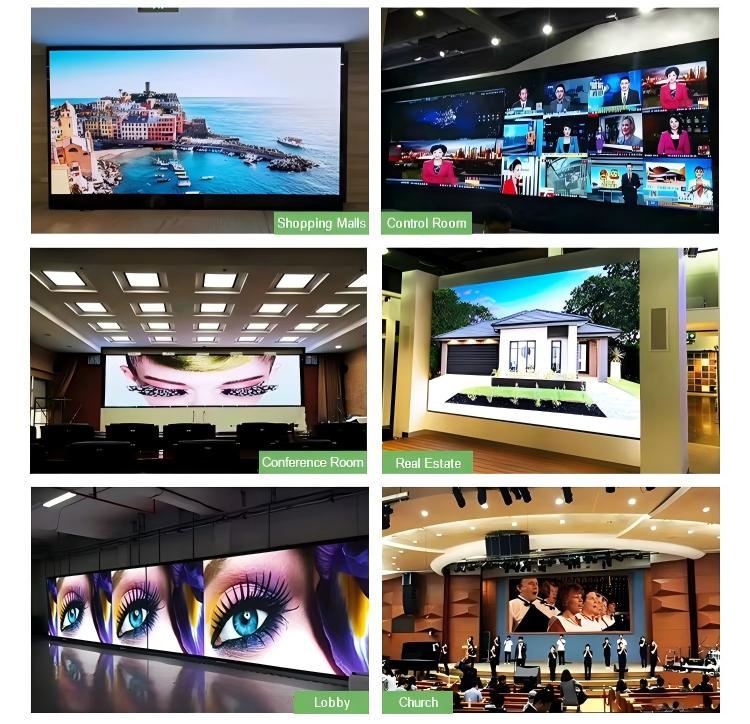

WIDELY APPLICABLE SCENARIOS

HSCXLED - Indoor LED display screen, high-definition display screen, easy to install, lightweight box design of LED display screen saves customers installation costs. widely used advertising publish, shopping mall, retail store, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, Education, medical treatment......


LED Display Paramenters

Indoor Fixed LED Display Paramenters:

HSCXLED-Indoor led display screen ---SMD LED Screen
EnvironmentalINDOOR
ModelPH1.25PH1.53PH1.86PH2PH2.5
Pixel Pitch1.25mm1.53mm1.86mm2mm2.5mm
LED ConfigurationSMD1010SMD1212SMD1515SMD1515SMD2020
Pixel Density640000 dot/ m2422500dot/ ㎡289050dot/㎡250000dot/㎡160000dot/㎡
Module size320x160mm
Module Resolution256x128dot208x104dot172x86dot160x80dot128x64dot
Cabinet Size640x480mm/640x640mm/320x640mm/320x480mm
Cabinet Resolution512x384dot416x312dot344x258dot320x240dot256x192dot
Scanning Mode64S52S43S40S32S
View Distance>1.2m>1.5m>1.8m>2m>2.5m
Display Scale16.7M16.7M16.8M16.9M16.7M
Cabinet Weight7kg/pcs(640*480mm)
Brightness Intensity600-800CD/ ㎡
Viewing Angle160°
Gray Scale14bit
Max.Power Consumption600W/m2
Ave.Power Consumption200W/m2
Refresh Frequency3840-7680HZ
MaintenanceFront Access
Input PowerAC100-240 50/60HZ
Brightness Adjustment0-100 levels adjustable
Control ModeSynchronous display with control PC by DVI
Support InputComposite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Display FunctionVideo/Text/Picture/Time/3D Text/Office/SWF
Operating Temperature-20°C~+50°C
Operating Humidity10-90% RH
Operating Life100,000hours

Highlight:Small Pitch HD LED Displays, Indoor GOB LED Display Screen, Indoor LED Video Wall Display




 Applications of Indoor LED Displays

Indoor LED displays serve as versatile, high-impact visual communication tools across diverse commercial, institutional and public scenarios, with applications tailored to different needs as follows:

  1. Retail & Commercial Spaces

    Deployed in shopping malls, brand stores and supermarkets, indoor display screens showcase dynamic product promotions, new launch trailers and interactive advertisements. The indoor led screen capture customer attention instantly, enhance in-store shopping experience and drive sales conversion by presenting vivid, eye-catching content.

  1. Corporate & Office Environments

    SMD led display used in lobbies, meeting rooms and executive offices, indoor LED display screen function as digital signage for corporate branding, real-time data visualization (such as sales dashboards, KPI tracking and market trends) and video conferencing backdrops. Indoor fixed LED Display elevate the professional image of enterprises and facilitate efficient internal communication and decision-making.

  1. Hospitality & Entertainment Venues

    LED displays for hotels, restaurants, bars and cinemas, the HD led displays deliver welcome messages, event notifications, menu boards and entertainment content (like live sports, music videos or movie trailers). The LED Advertising Display create a lively and immersive ambiance, improving guest satisfaction and engagement.

  1. Educational & Institutional Settings

     Indoor Led Video Wall Display Screen Applied in schools, universities, museums and government buildings, indoor LED display screens support interactive teaching, academic lectures, exhibition introductions and public information dissemination (such as announcements, emergency alerts and policy promotions). Indoor Adverting Display make knowledge delivery more intuitive and information transmission more efficient.

  1. Transportation Hubs

     Indoor LED Video Wall Display Installed in airports, railway stations, subway stations and bus terminals, the indoor screens provide real-time schedule updates, wayfinding guidance, weather forecasts and public service announcements. Indoor Small Pitch LED Display Screen help streamline passenger flow and ensure smooth, orderly operation of transportation hubs.


Company Products and Advantages Introduction:

Shenzhen H&S Innovation Technology Co., Ltd specializes in the manufacturing and supply of a diverse range of LED display screens that cater to various indoor and outdoor needs. Our products including Ultra-thin LED display screen,COB LEDdisplay,Round Led Display,Poster LED Display /LED Mirror Screens ,Outdoor Street Pole Led Screen,Outdoor 3D LED Display Screen, Indoor LED Display , LED Circular Screen, Creative LED Display Screen, LED Soft Screen, and LED Ball Screen.

Indoor led display screen -----Ultra-thin LED display screen

Double-sided LED Display Screen ,Screen thickness: 24mm (single-sided), 30mm (double-sided) , Refresh rate: 7680Hz Weight: 20kg/square meter , Installation methods: Ceiling mounting, side mounting, wall mounting ,Material: Aluminum profile cabinet, lightweight and thin ,The screen uses a rigid connection design, eliminating the need for wiring during module installation, making it convenient and quick! ,Cabinet sizes available: 500*500mm.

Outdoor advertising led display:

Outdoor 3D LED Display Screen are designed to provide an immersive and engaging visual experience outdoors. With their advanced 3D technology, they can display stunning graphics, videos, and animations that capture the attention of passersby. They are perfect for advertising, events, and entertainment venues.

LED Poster Display /LED Mirror Screen:

These screens combine the functionality of a traditional poster with the dynamic capabilities of an LED display. The LED poster screens can display digital posters, animations, and videos, while the LED mirror screens offer a reflective surface when turned off and can display content when turned on. They are ideal for retail stores, restaurants, and other commercial spaces.

LED Pole Screen:

The LED pole screens are designed to be mounted on poles or columns, making them perfect for displaying information or advertising in high-traffic areas. They can be used in streets, malls, and other public spaces to provide real-time updates, promotions, and announcements.

LED Circular Screens:

The LED circular screens are unique and eye-catching, making them perfect for creating a focal point in any space. They can be used for branding, advertising, and displaying information in a circular format.

Round Led Diaplay:

Our creative LED display screens offer endless possibilities for customization and creativity. They can be designed to fit any shape, size, and specification, making them perfect for unique and eye-catching displays. Whether you need a custom-shaped screen for a specific event or a unique design for your brand, we can help you bring your vision to life.
