Triple-Folding LED Poster Display:
Innovative Space-Saving Triple-Fold Design
Advanced GOB Anti-Collision & Water-Resistant Tech
Seamless Multi-Screen Cascading Support
Integrated Wheels for Rapid Mobility
Plug-and-Play Wireless Content Control
LED Poster Display Application Scenarios：
High-Traffic Trade Show & Exhibition Booths
Rental & Event Staging Pop-up Branding
Hotel Lobby & Conference Information
Corporate Product Launches
Shopping Mall & Public Square Ads
This Removable Foldable LED Poster Display Screen offers versatile advertising solutions . ≥95% luminance uniformity, and an 8000:1 contrast ratio, it ensures vibrant visuals. The die-casting aluminum build provides durability, while GOB protective technology enhances reliability. With multiple control methods including Wifi, Bluetooth, and USB, as well as IoT connectivity and remote content management, it delivers smart operation.Led poster screen is also called mirror LED display screen.It can be folded to a double sided LED display.

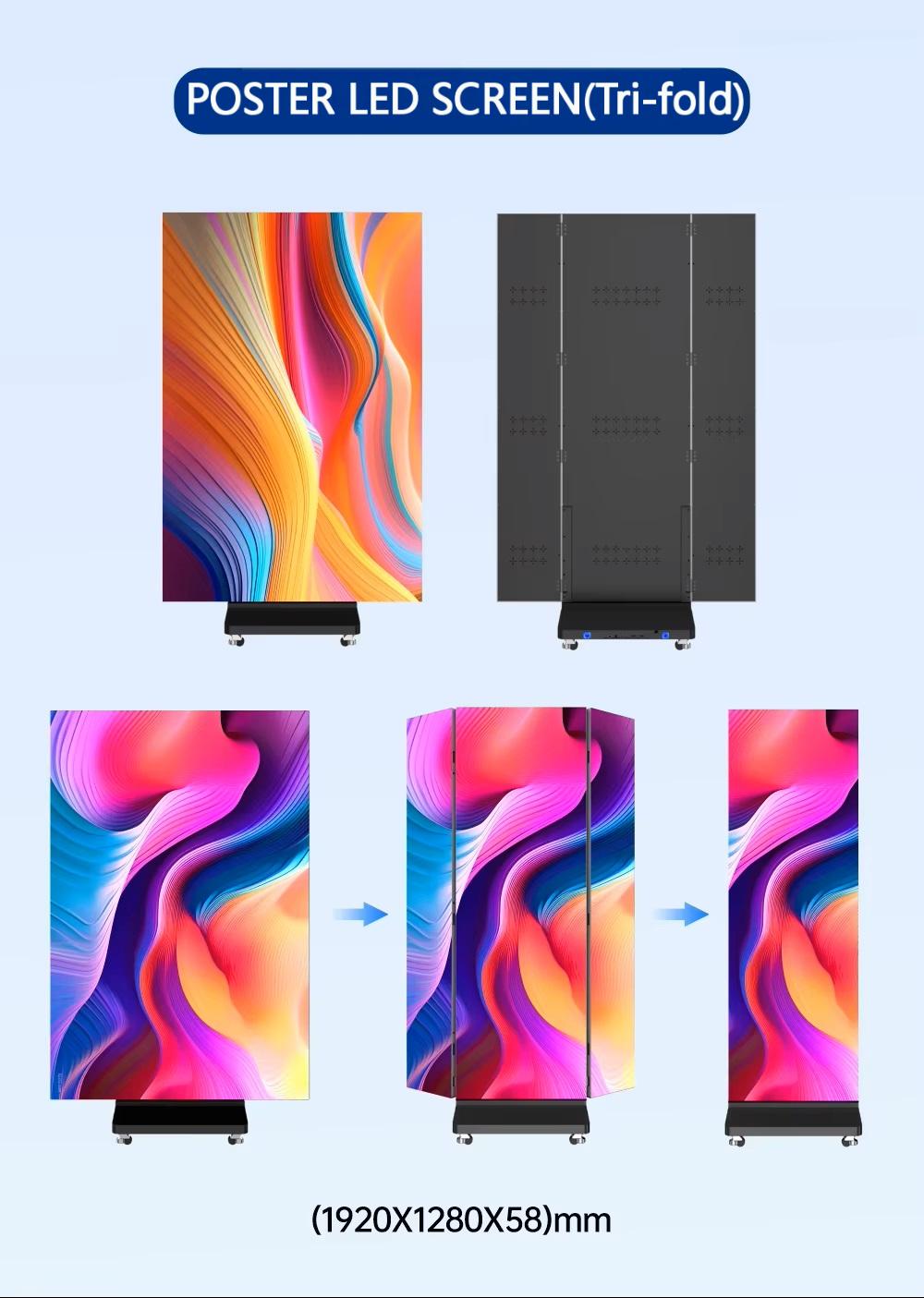

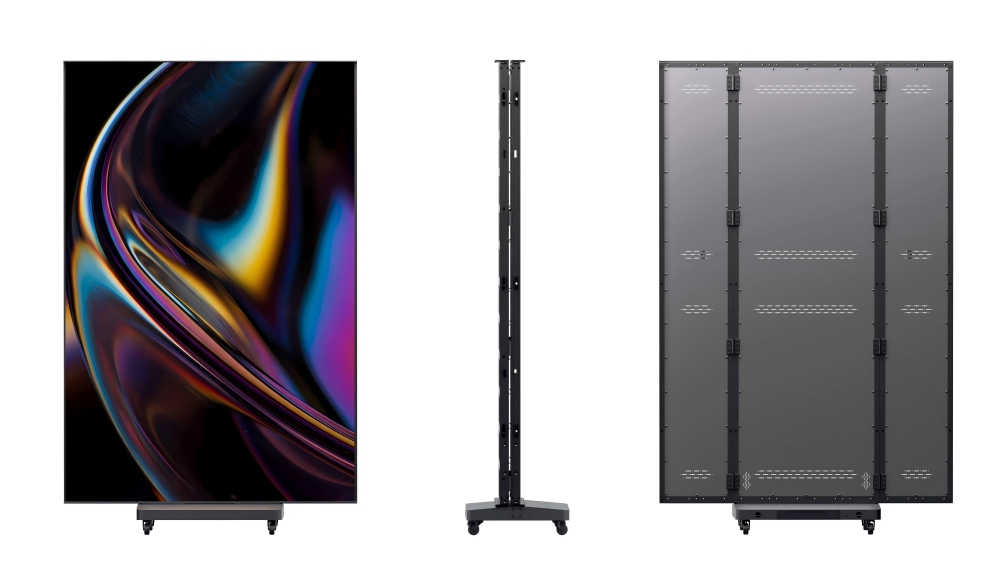

 | Three-fold (double-sided) LED poster screen display Unfold single-sided appearance size: 1280 * 2070 * 50mm(W*H*T) Folding double-sided appearance size: 640 * 2070 * 110mm(W*H*T) The three-fold mobile LED poster screen can be used for two purposes. When unfolded, it is a large screen 4.2ft by 6.3ft(1280mmx1920mm). After folding the two sides back, it becomes a double-sided poster screen with a single-sided display area of 640mmx1920mm. |
Three fold design (convenient for transportation, saving transportation costs), both single-sided and double- sided displays are very convenient; Provide plugs according to customer requirements, and they can be used immediately after being powered on; Content publishing can be done through mobile app/computer app/computer network cable/remote network control; Up to 6 units can be cascaded to splice the entire screen, with HDMI cable cascading for plug and play functionality; Supports synchronous and asynchronous operations, and can display videos/images/ppt/word, etc. GOB process, moisture-proof, waterproof, and anti- collision. |  |
Ultra Clear Picture Quality Three-folding poster led display, new design technology, fine picture quality, more natural,High brightness and high definition and realisticimaging. | |
Universal Wheel Design Comes with 4 swivel wheels, making it easier to move and place wherever you want,you can glide the display to your desired location with minimal effort. One person can easily maneuver it. | |
Reliability &Performance: Three-folding led poster display add GOB technology is adopted, which makes the screen body waterproof, dustproof, moisture-proof, and impact resistant, Dust-proof,Screen surface waterproof extending the service life of the display screen.Consistent color uniformity across folding sections.Robust construction maintains alignment through repeated folding cycles. | |
Flexible Control System Can be controlled by WiFi, mobile phone, USB,EHTERNET,HDMI etc., which is very convenient and fast.The system supports synchronous/asynchronous ,It also supports synchronous display for scenarios such as meetings and live broadcasts. | |

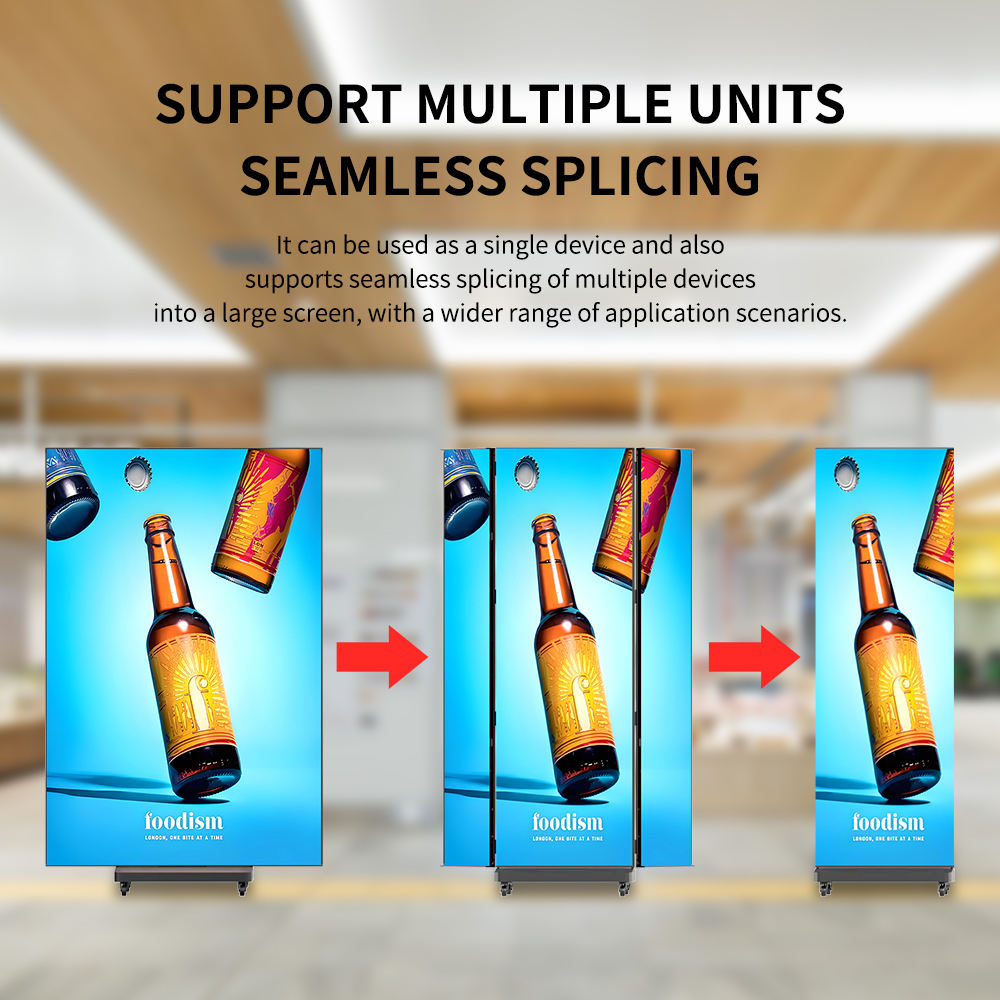

Rapid Multi-Screen Integration Quick-lock mechanism enables seamless splicing.Modular expansion for customized large-scale displays.Instant transformation from single unit to video wall configuration . | |
Integrated Audio-Visual System Built-in high-fidelity speakers synchronize sound with content.Enhanced audience engagement through immersive experiences.All-in-one solution eliminates external audio equipment needs . | |

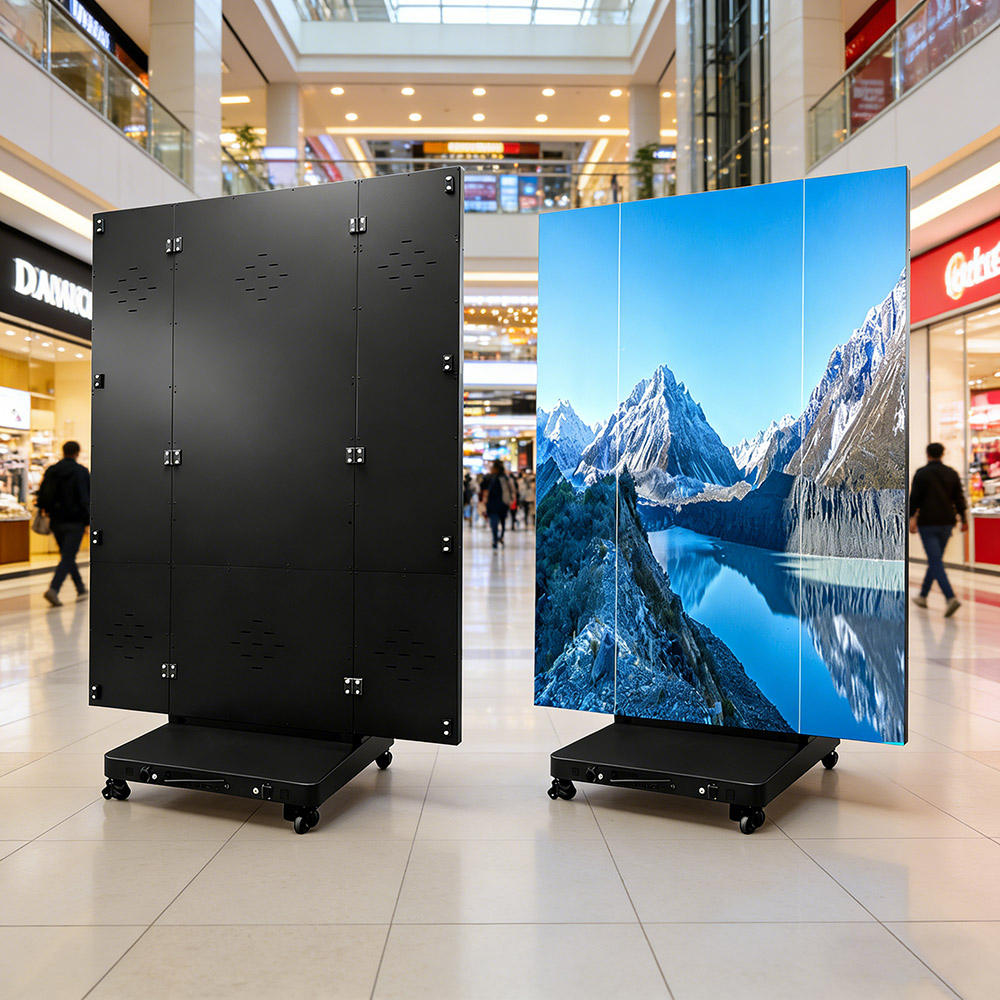

Effortless Front-Access Maintenance Led poster screen supports front maintenance,Fully front-serviceable modules enable quick replacement.Reduced downtime through tool-free maintenance access.Streamlined operational efficiency for continuous operation |
| HSCXLED-Tri fold LED Poster Display | |||||
| Model | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| Pixel pitch | 1.25mm GOB | 1.53mm GOB | 1.86mm GOB | 2mm GOB | 2.5mm GOB |
| LED configuration | SMD 1010 | SMD 1212 | SMD 1515 | SMD 1515 | SMD 2020 |
| Pixel density | 640000（dots/sqm） | 422500（dots/sqm） | 288888（dots/sqm） | 250000（dots/sqm） | 160000(dots/sqm) |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Scan mode | 1/64 scan | 1/52 scan | 1/43 scan | 1/40 scan | 1/32 scan |
| Pixel matrix per Module | 256*128 dots | 208*104 dots | 172*86 dots | 160*80 dots | 128*64 dots |
| Screen size | 1280mm*1920mm | ||||
| Cabinet Resolution | 1024*1536 dots | 832*1248 dots | 688*1032 dots | 640*960 dots | 512*768dots |
| Cabinet Weight | 76kg/set | ||||
| Cabinet Size | Unfolding:W1280*H1920mm(lncludes feet:W646*H2060mm*L550mm) | ||||
| Refresh rate | 3840-7680hz | ||||
| Brightness | 650-1000nit | ||||
| Ingress Protection | IP40 | ||||
| Viewing Angle | 160°/160° | ||||
| AC Input Voltage | AC 110V/220V±10%,50Hz/60Hz | ||||
| Gray Level | 14-16bit | ||||
| Working Temperature | -40 -50(℃) | ||||
| Operating Humidity | 10%~95% non-condensing | ||||
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats | ||||
| Display Function | Video/Text/Picture/Time/3D Text/Office/SWF | ||||
| Controllnterface | Wifi/4G/USB HDMI*2,USB2.0*2,AUX*1 | ||||
| Operating Equipment | Phone, iPad, PC, Internet | ||||
| Life Time | Lifespan≥100000H,MTBF ≥50000H | ||||
| Control System | Novastar,Colorlight, HuiDu | ||||
Highlight: Digital Poster Screen, Smart Advertising LED Screen, LED Poster Screen Display
Trifold Led Poster Screen/ Double Sided led display
Inovation Folding Design, Space-saving: Folds to reduce volume by 50%,optimizing storage and transport compared to traditional posters; when folded, it transforms into a double-sided screen, capable of displaying the same or different contents on each side;
Ready to use: No any installation needed, just unfold, then plug and play for instant operation;

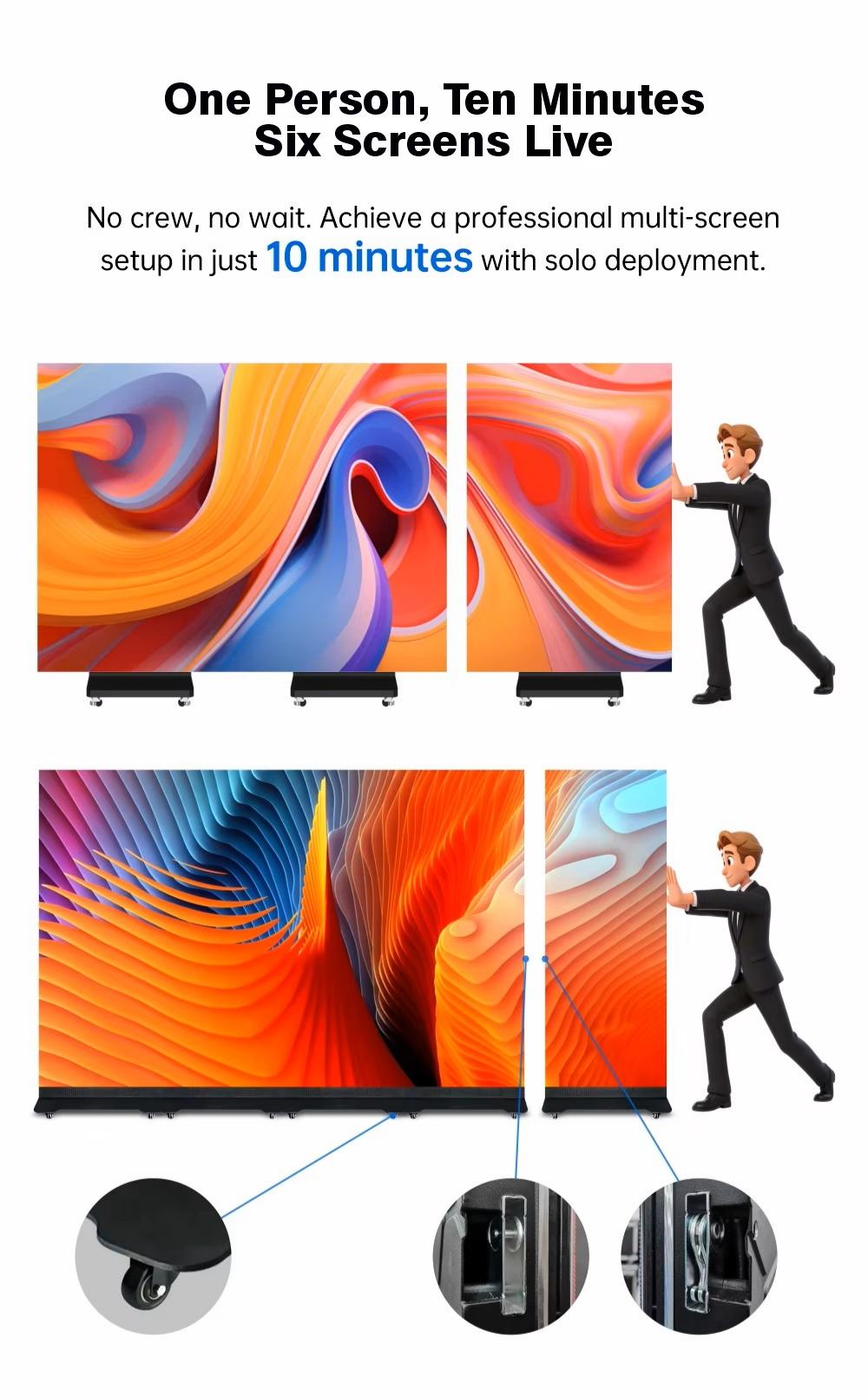

6 Units, 5-Minute Seamless Setup: With a flexible, magnetic detachable border and fast-lock splicing system, six units can be seamlessly connected in just 5 minutes-much faster and smoother than traditional poster installations;
Not Only Six Unit: The use of aviation plug data port can realize the splicing of multiple screens, infinite splicing, infinite possibilities.

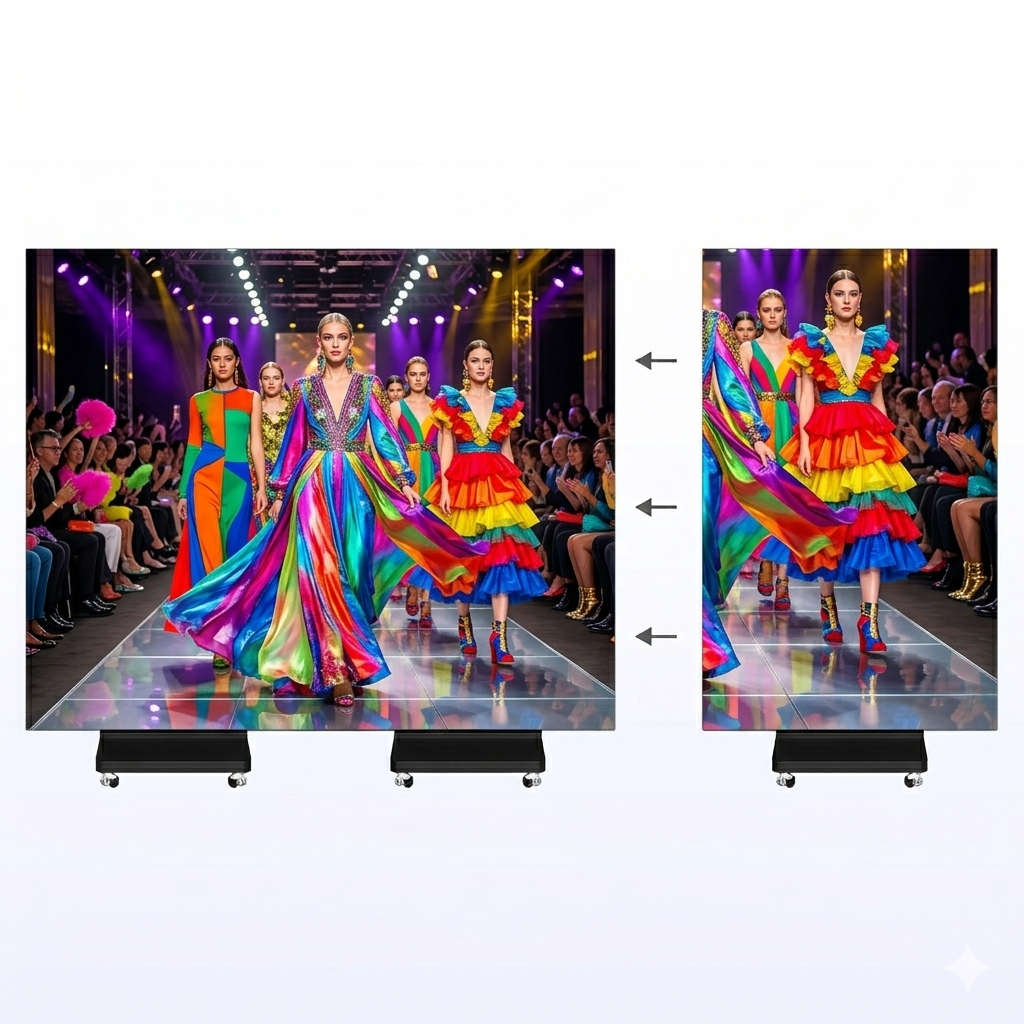

led poster display as a display device in the exhibition, it supports the rapid splicing of multiple devices, and the screen splicing can be seamless, which can meet the display needs of various sizes and shapes.

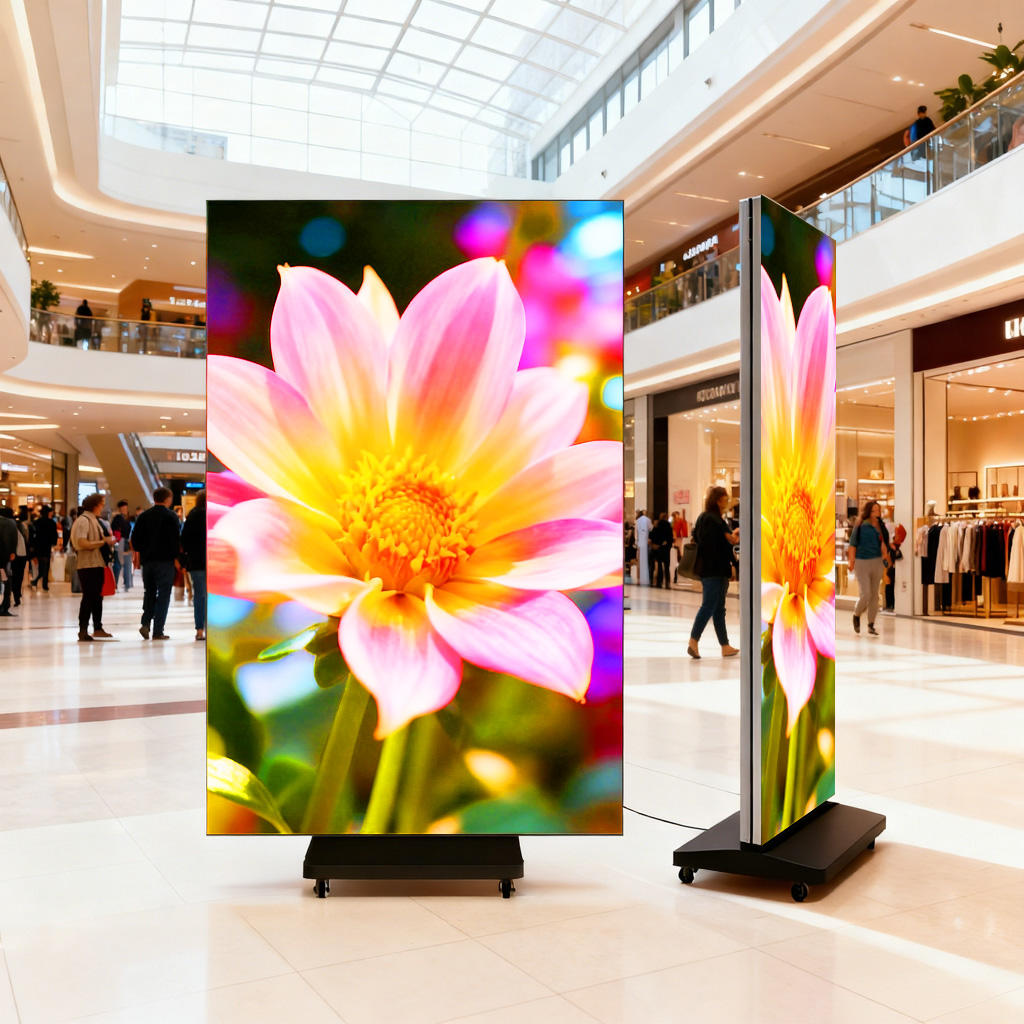

LED mirror screen for Commercial advertising promotion,can be used in shopping malls, retail stores and other places to promote new products, promotional activities, brand image display, etc.Suitable for public places such as subway stations, airports, hotels, etc.Exhibition booths and trade shows.Corporate events and presentations.Hospitality venues and entertainment spaces.Educational institutions and conference facilities.
GOB Panel Advertising Double Sided Tri Three Foldable Electronic Folding Poster Led Display Screen
1. COB design adapts to P1.86, P2.0, P2.5.SMD design adapts to P1.25, P1.53, P1.86, P2.0, P2.5, P3.076 pixle.
2. High definition and high refresh rate
3. Super slim just 1.5inch thickness.
4. Popular base with wheels for easy move.
5. Support WIFI,4G,USB,Network cable.
6. Separate working or multiple screens seamless splicing working.
7. CE, ROHS,KC,FCC certified.

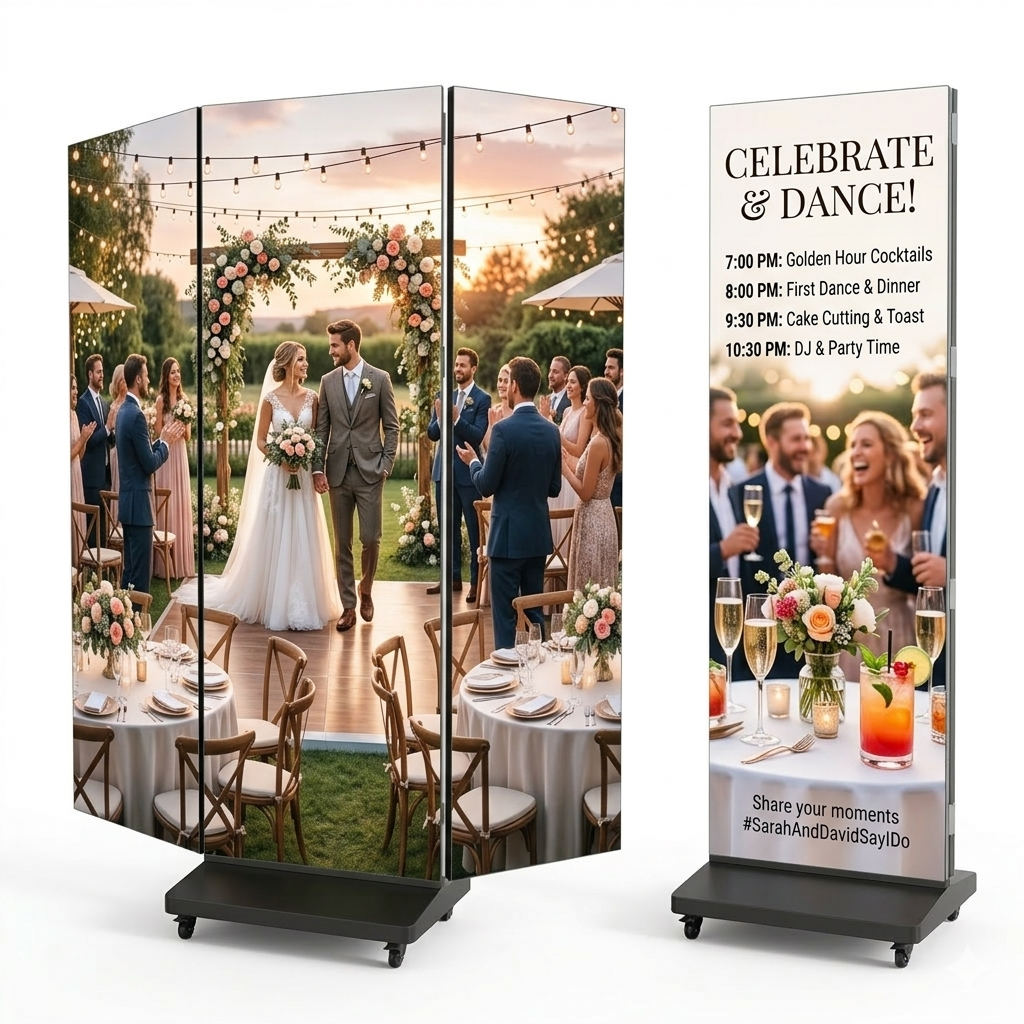

“One screen, two displays”, unfolded to form a large screen, folded to instantly become a double-sided screen.
exquisite appearance, aircraft aluminum material body, good heat dissipation effect, 50mm ultra-thin body, double-sided only 110mm．78KG ultra light body.
No need for professional technicians to install, can be used with power on.
The APP wirelessly publishes content, with convenient operation and one piece transmission of content.
Quick lock design, easy for beginners to control, supports seamless splicing of multiple devices quickly.
Supports synchronization and asynchrony, can be used for high-definition electronic posters, as well as synchronously displaying high-definition promotional videos, conference PPTs, live streaming backgrounds, etc., with a wide range of applications.

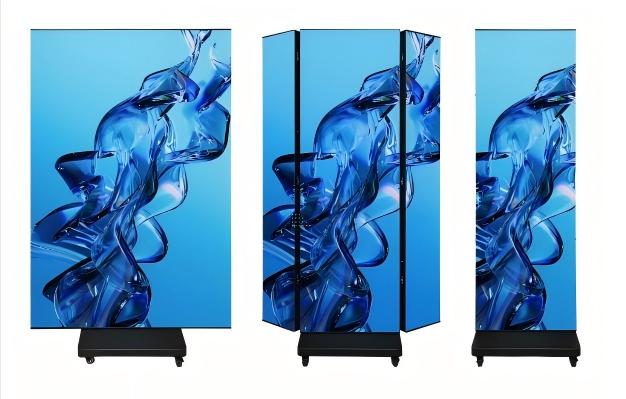

The Tri-fold foldable mobile LED poster screen can be used for two purposes. When unfolded, it is a large screen 4.2ft by 6.3ft (1280mmx1920mm). After folding the two sides back, it becomes a double-sided poster screen with a single-sided display area of 640mmx1920mm.
Portable & Plug-and-Play:Lightweight with casters for easy movement; instant setup.
Easy Content Management:Update promotions quickly via app, USB, WiFi, or optional 4G.
Brilliant & Durable:Stunning HD visuals with GOB tech for robust, long-lasting performance.
Adopting GOB Laminat Technology
Surface splash proof and anti-collision; Scratch resistant, high transparency, good stability, and better safety
