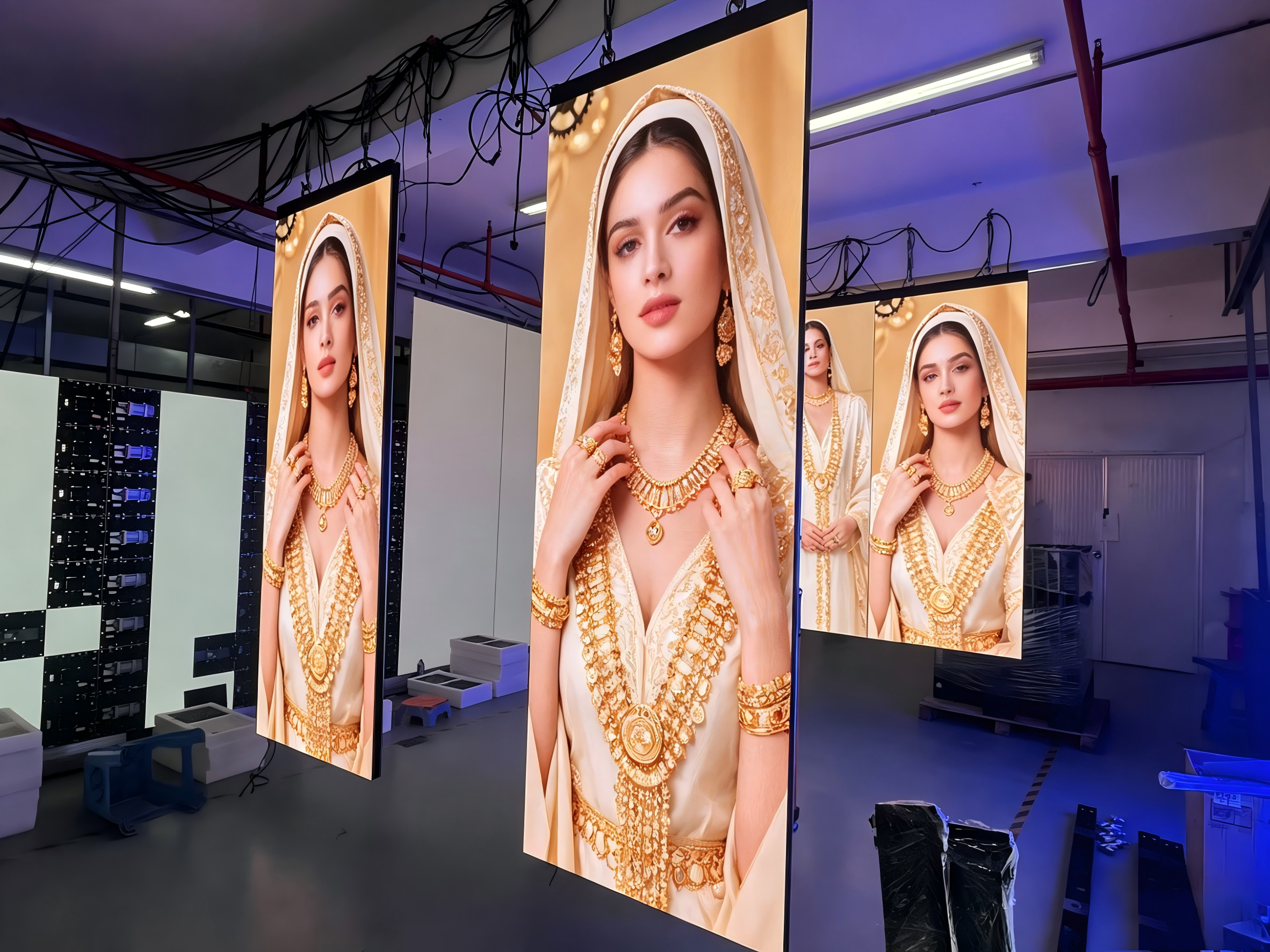

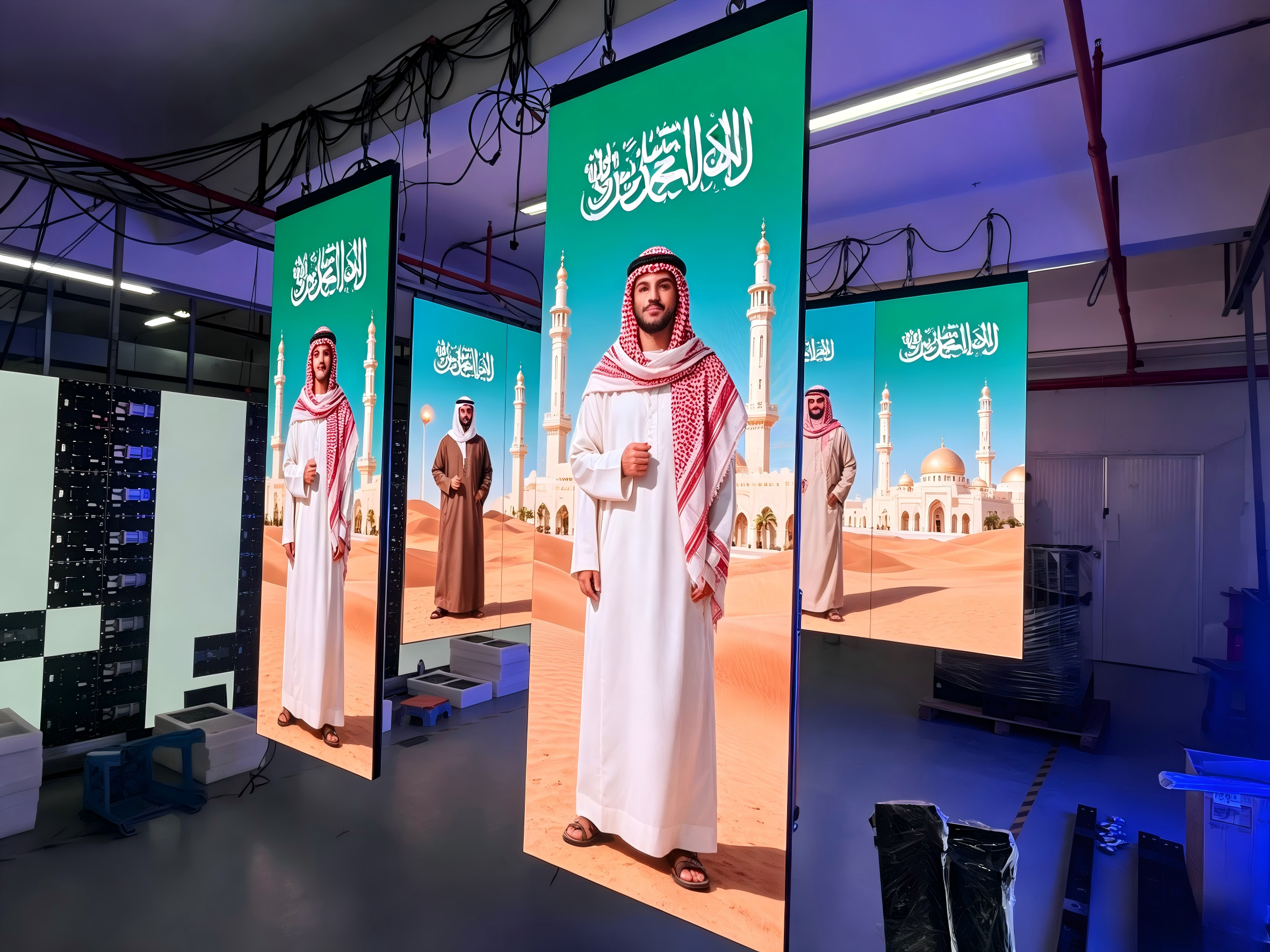

Indoor Double-Sided LED Display

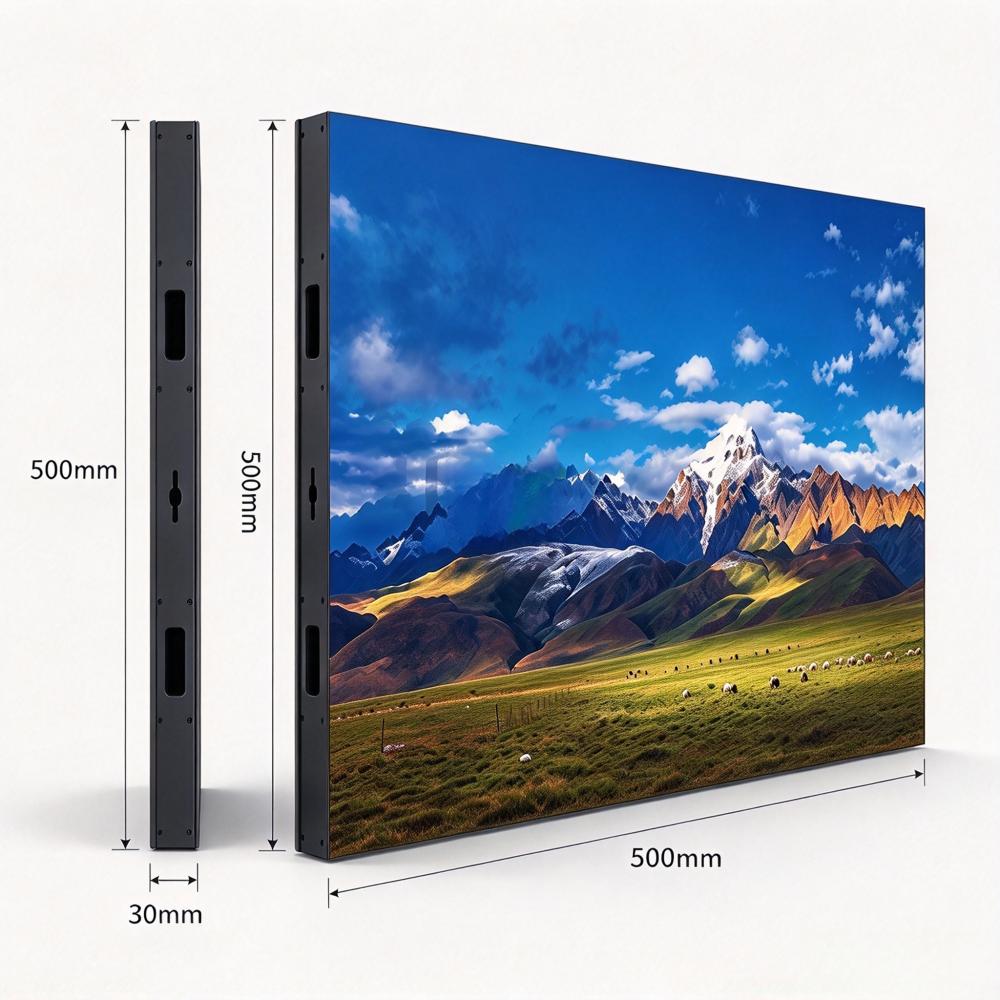

cabinet：500×500mm
Slim and Thin aluminum cabinet, 30mm thickness
Magnetic screw front service
Module wireless connection, Pin to Pin module
Ultra-lightweight and space-saving
Integrated power signal quick plug interface
Double-Side display available

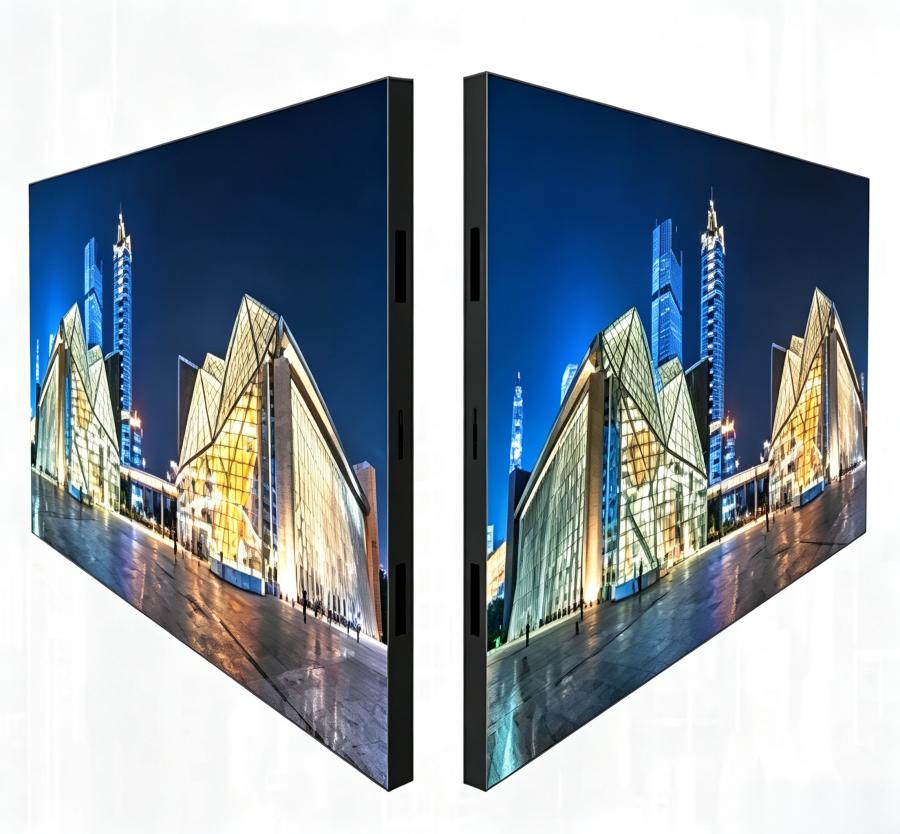

Right angle installation available
High gray high fresh rate
P1.56, P1.95,P2.604, P3.125 available

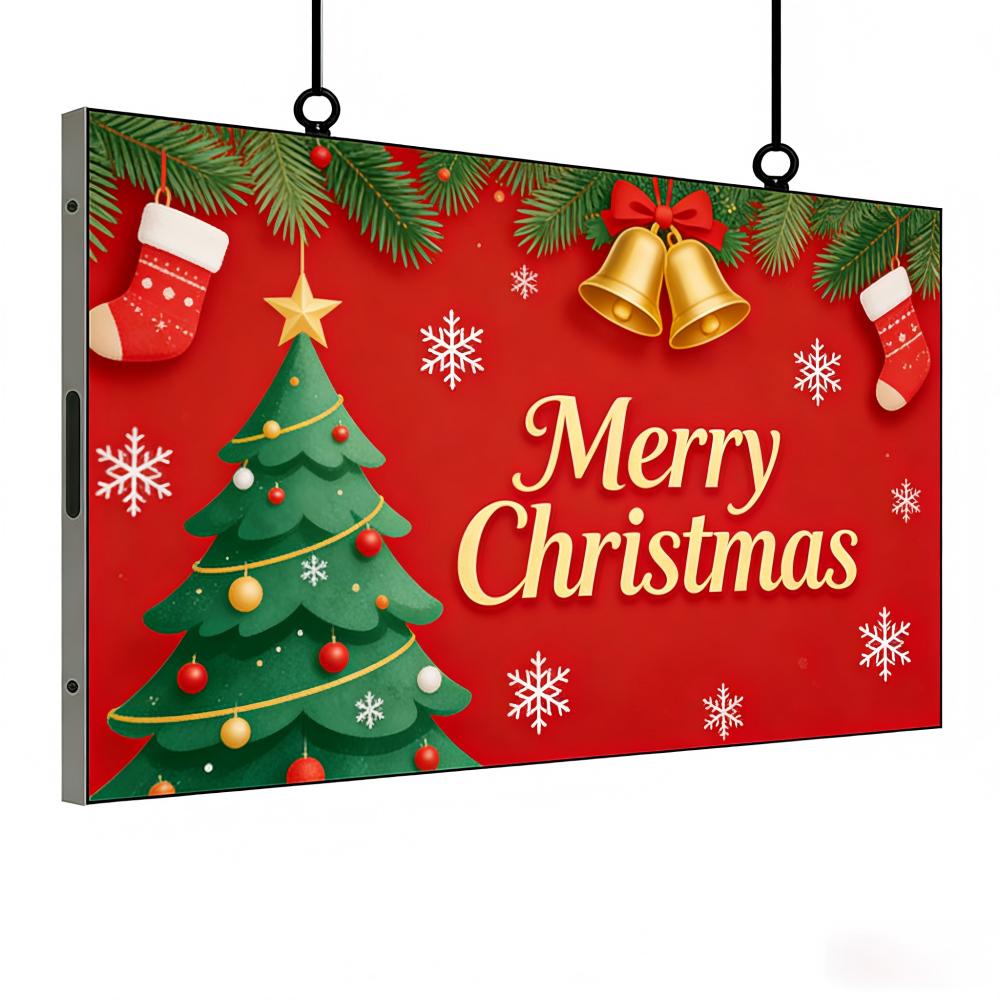

Ultra-Slim & Lightweight Design The Ultra light aluminum profiles cabinet ensures the unit is incredibly lightweight yet durable. Its "poster" like profile allows for easy Hanging LED Display installations or freestanding setups. |  |
 | High Refresh Rate (7680Hz) Enjoy flicker-free visuals even when video with a camera. This High Refresh Rate LED technology guarantees smooth motion rendering, crucial for high-end retail and live events. |
Fine Pixel Pitch Options (P1.56 - P3.1) Available in various resolutions including P1.56, P1.95, P2.6,P2.9 and P3.125, our Fine Pitch LED Display delivers crisp, high-definition content that captivates viewers from close range. |  |
 | GOB technology The indoor ultra-thin LED double-sided display screen adopts advanced module GOB technology, and the module surface is waterproof, dustproof, and anti-collision, adapting to complex environments. |
Smart Wireless Control with Wi-Fi & 4G Connectivity Ultra-Thin Double-Sided LED Display Embrace the freedom of wireless technology. The integrated Wi-Fi and 4G control system allows you to manage, schedule, and update content on your displays remotely and in real-time. This plug-and-play connectivity simplifies operations and reduces wiring costs, making large-scale or multi-screen network management effortless |  |
 | Front Service Maintenance All components are accessible from the front, simplifying installation and maintenance without needing rear access—a critical feature for tight spaces. |

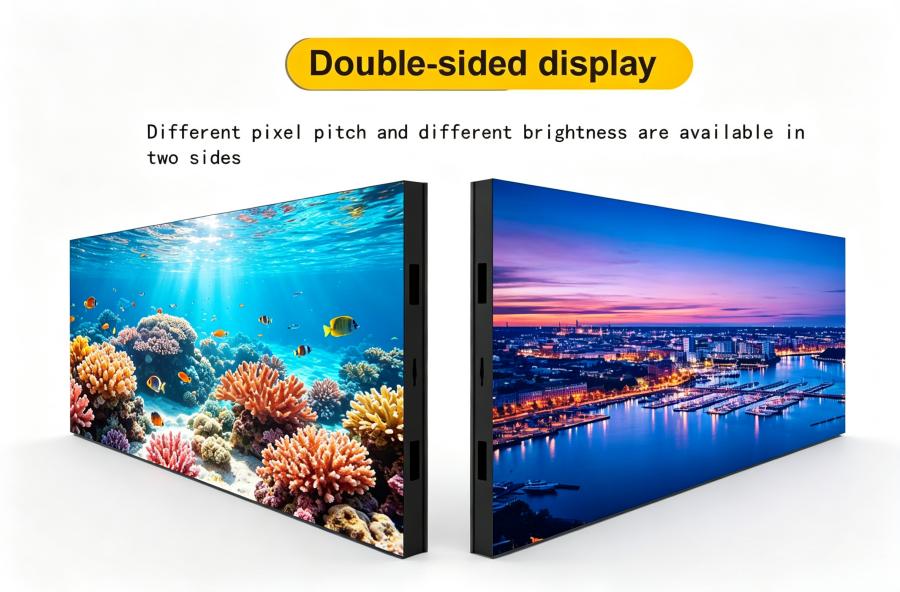

Single sided and double-sided customizable | |

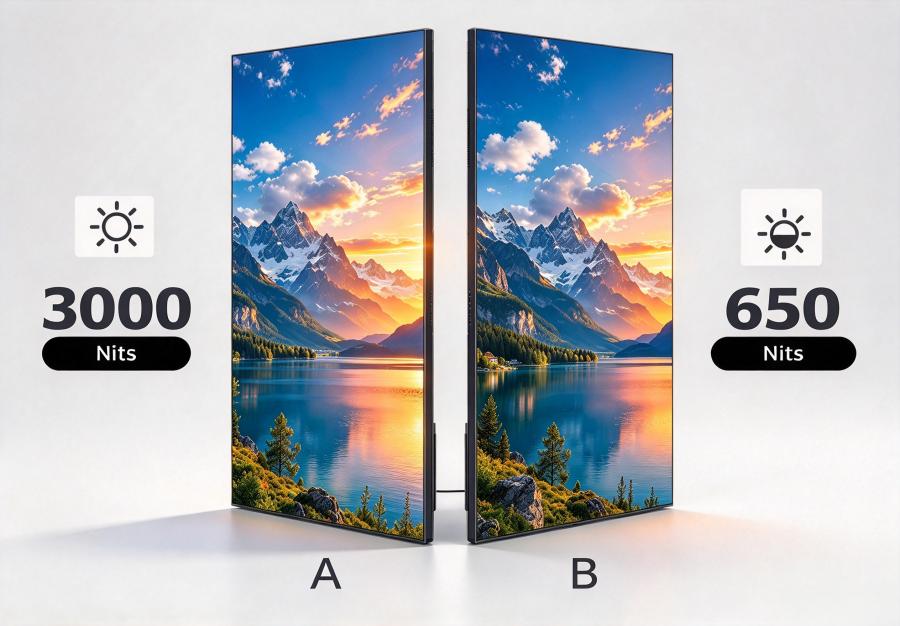

 | Adjustable brightness Our ultra-thin LED display screen supports brightness adjustment and can be customized with different brightness levels on both sides. |

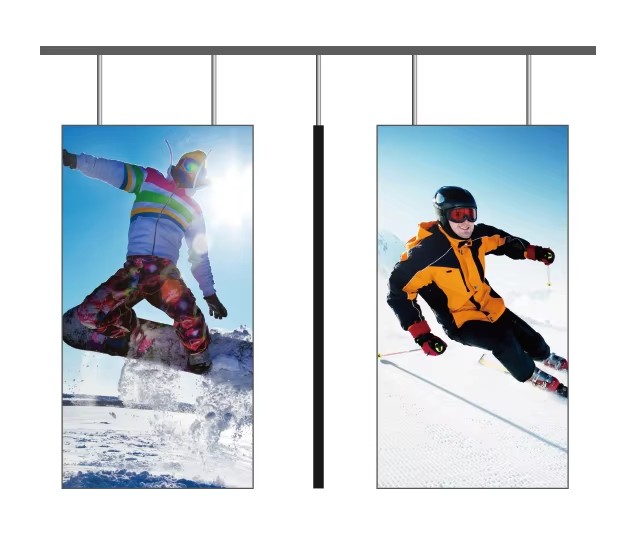

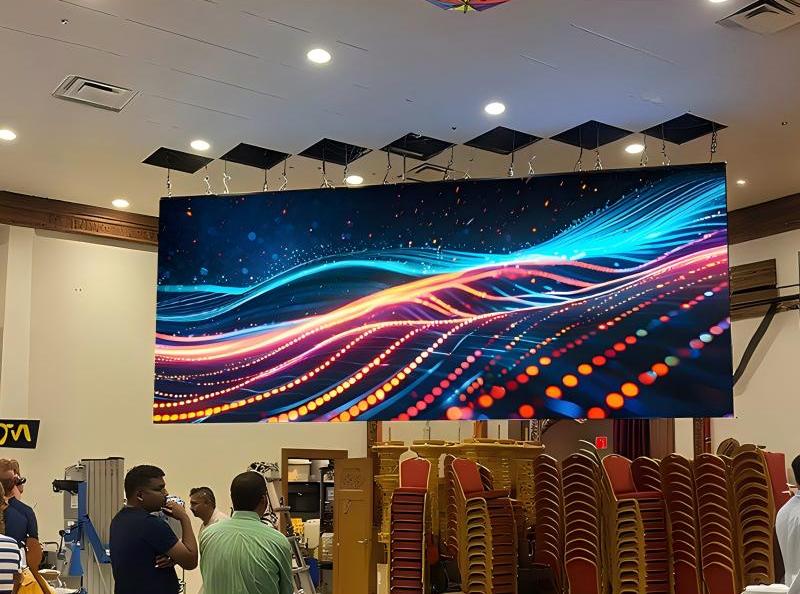

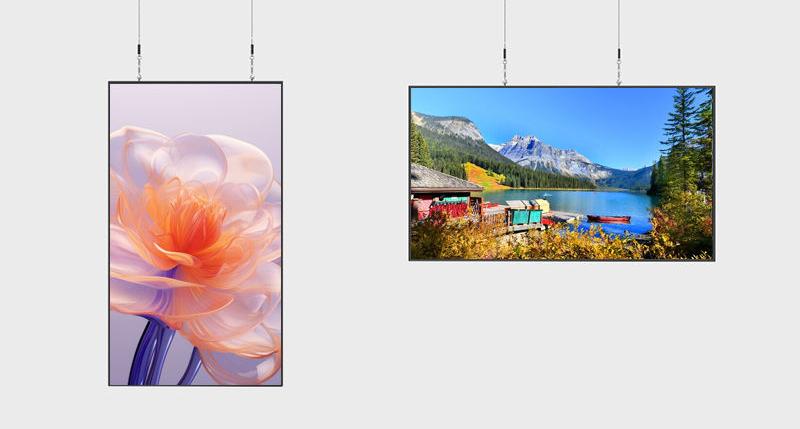

Flexible and convenient installation Ultra thin LED display support multiple installation methods: Lifting LED screen, Poster fixed screen, side installation, custom installation, etc. The LED display screen is modular, easy to install, and one person can easily complete the installation of the large screen. |  |

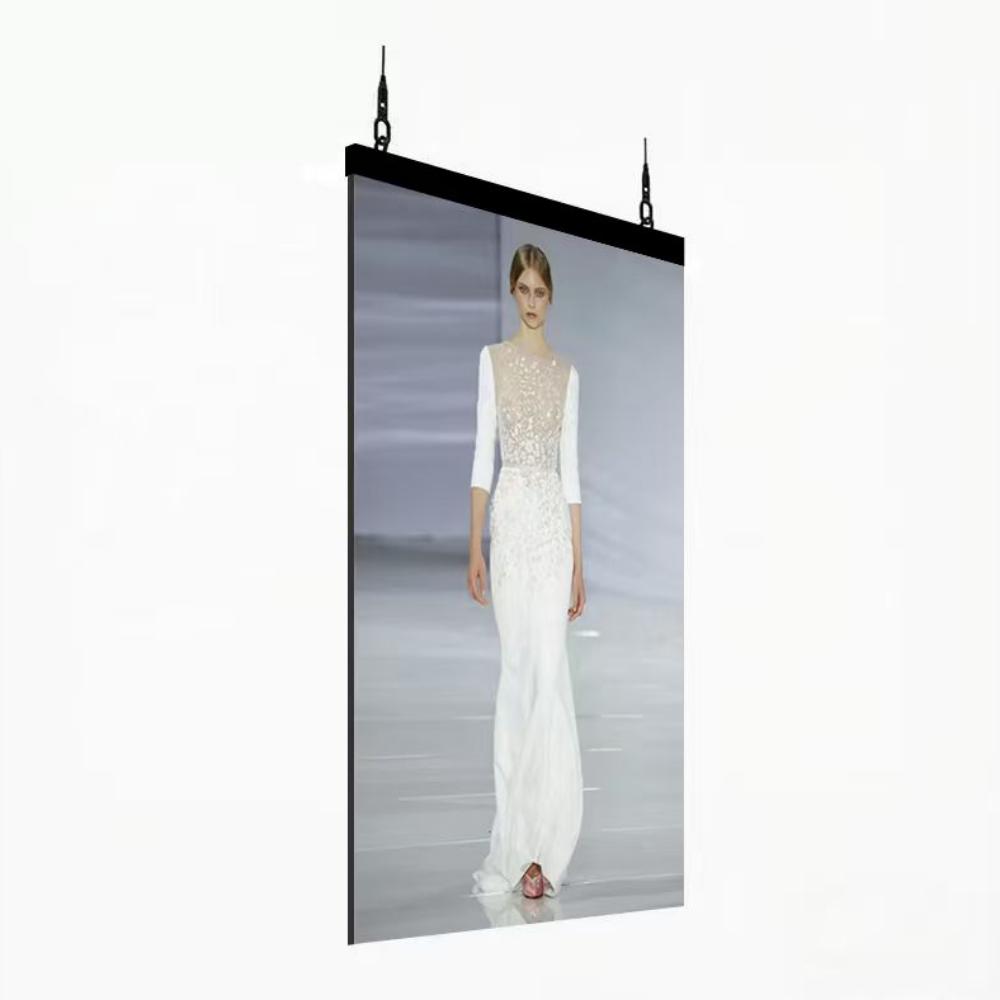

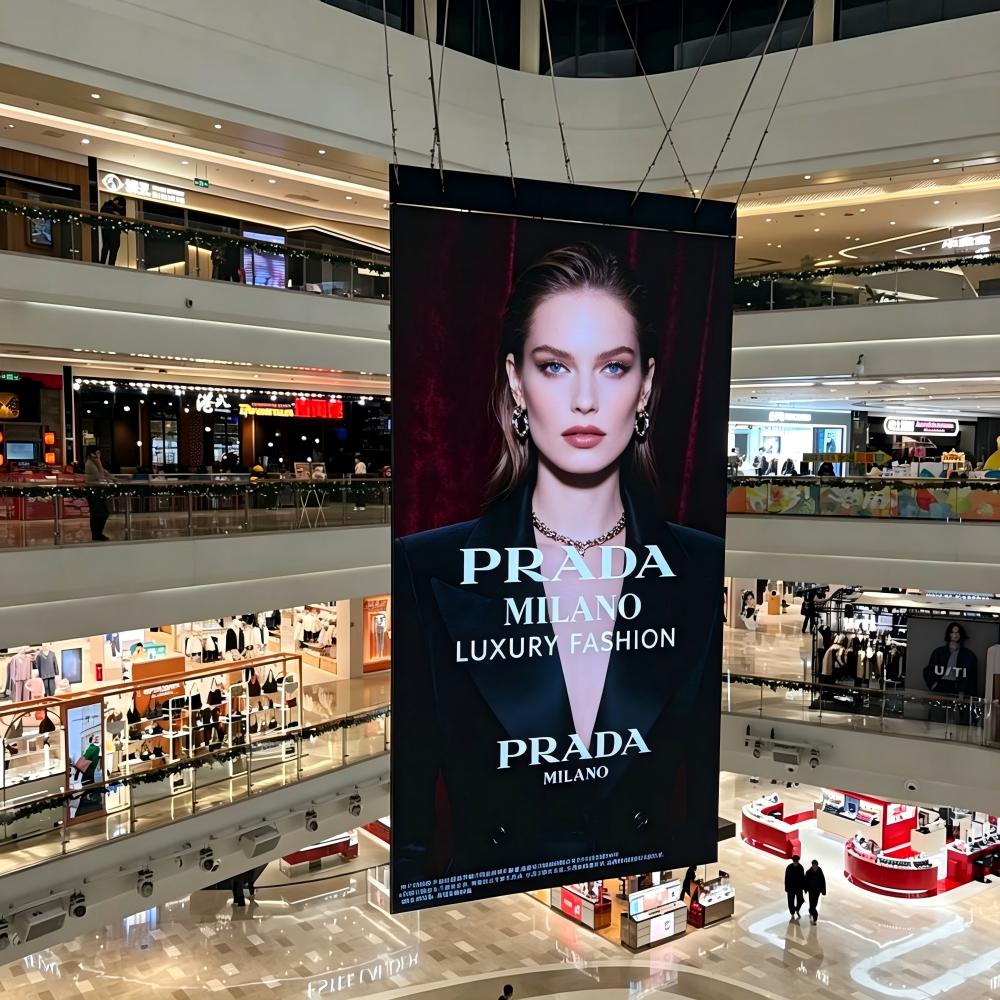

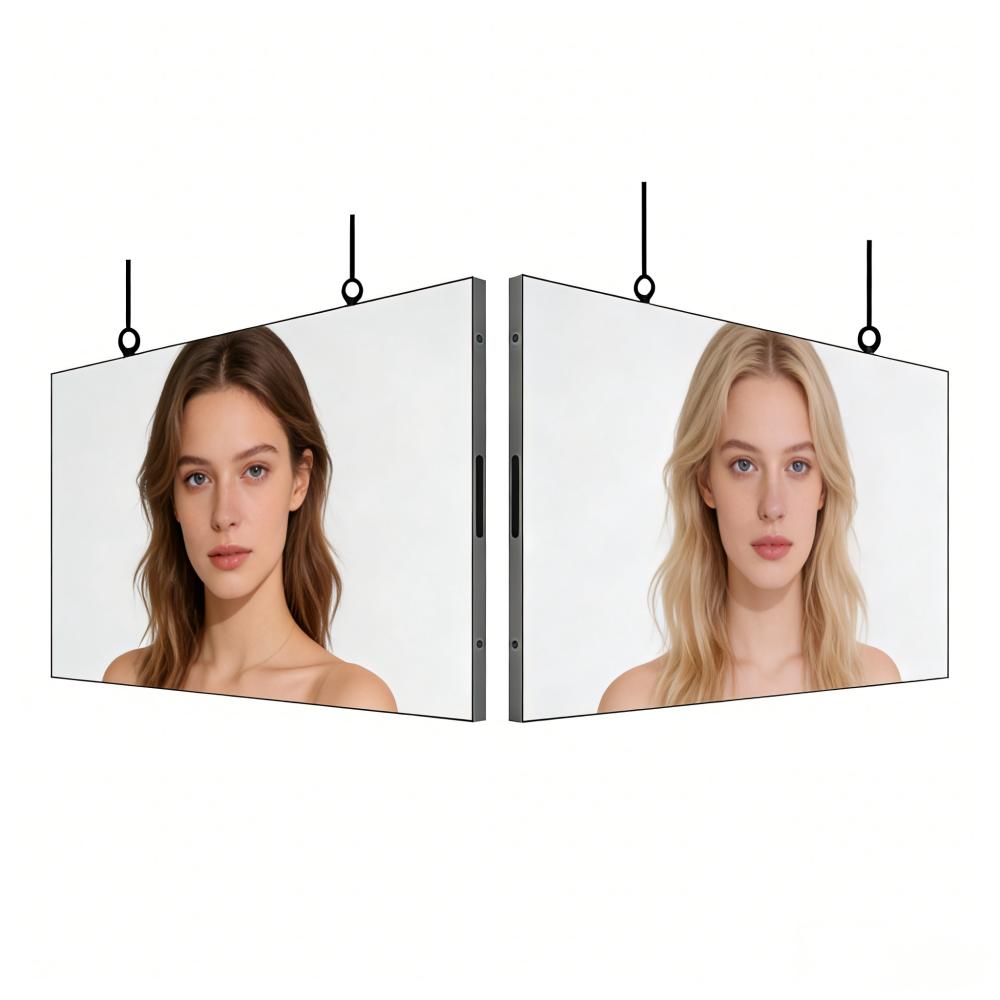

 | Multiple installation methods the Double-Sided indoor LED Display supports multiple installation types:Pillar / Column Wrap Installation ;Hanging Installation (suspended from ceilings in malls or stations);Wall Flush Mounting (for narrow corridors or elevator lobbies);Free-standing Totem / Kiosk Integration (with optional base enclosure) |
energy-saving and low-consumption Indoor ultra-thin LED display screens adopt advanced common cathode circuit and other technologies, which save more than 30% energy compared to traditional screens, have low heat generation, natural heat dissipation, and do not require additional heat dissipation systems.The ultra-thin LED display screen supports 24-hour continuous stable operation and can meet the needs of different scenarios. |  |

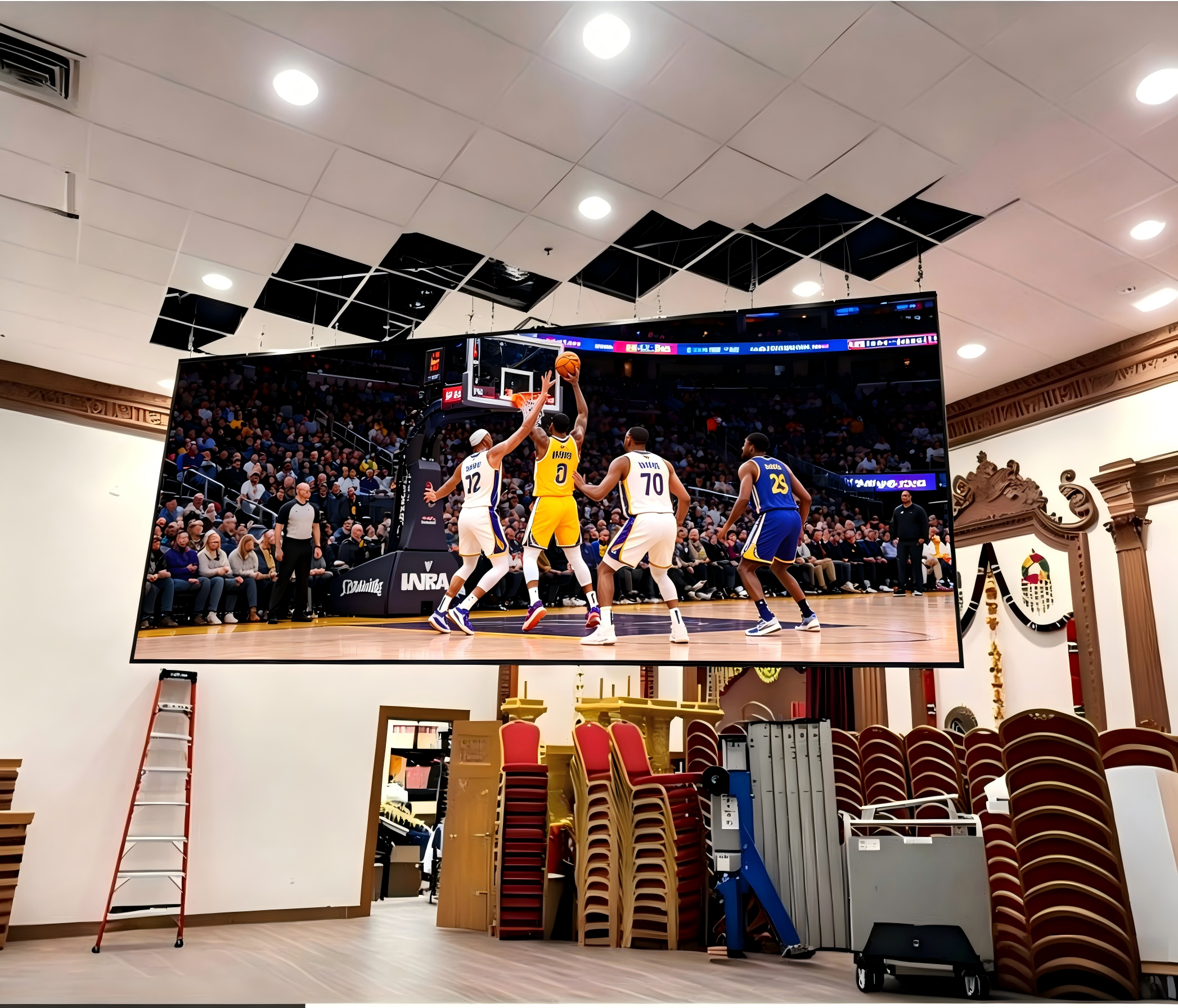

 | Super Thin Double-Side LED Screen Application Double-sided LED display screen can be used for varies environment, specially developed for sport even live steaming, railway or airport station boarding, exhibition hall, shopping mall commercial advertising and other public places. Except these place, the Ultra thin indoor double sided LED display screen also can be used for the superstore and glass curtain wall. As it is convenient for multi-angle viewing, improving the audience rate of advertising promotion, so it has a widen application extensive use. |
| HSCXLED-Ultra-Thin Double-Sided LED Display | ||||
| Model |
P1.56 | P1.95 | P2.6 | P2.9 |
| Pixel pitch | 1.56mm | 1.95mm | 2.6mm | 2.976mm |
| LED configuration | SMD 1212 | SMD 1515 | SMD 2020 | SMD 2020 |
| Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Cabinet size | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm |
| Scan mode | 1/40 scan | 1/32 scan | 1/32 scan | 1/21 scan |
| Pixel matrix per Module | 160*160 dots | 128*128 dots | 96*96 dots | 84*84 dots |
| Pixel density | 409600(dots/sqm) | 262144(dots/sqm) | 147456(dots/sqm) | 112896(dots/sqm) |
| Cabinet Resolution | 320*320dots | 256*256 dots | 192*192 dots | 168*168dots |
| Thickness of LED display | (24mm/30mm) (Single-sided/Double-sided) | |||
| Cabinet Material | Aluminum profile cabinet, lightweight and thin | |||
| Display size | Splicing any size according to the cabinet size | |||
| Maintenance Method | Pre-maintenance | |||
| Refresh rate | ≥7680HZ | |||
| Brightness | 650nit-3000nit (adjustable) LED display screen supports adjustable brightness on both sides | |||
| Ingress Protection | IP40 | |||
| view angle(h/v) | ≥ 160°/140° | |||
| AC Input Voltage | AC 110V/220V±10%,50Hz/60Hz | |||
| Gray Level | 14-16bit | |||
| Working Temperature | -40 -50(℃) | |||
| Operating Humidity | 10%~95% non-condensing | |||
| Media available | Datasheet, EDA/CAD Models, Other, Photo ,video,3D,and other formats | |||
| Mounting options | Lifting/Side Installation/Fixed Installation/ Ceiling Mount,/Custom Mount/Floor Stand/Wall Mount | |||
| Life Time | ≥ 100000(Hours) | |||
This versatile Dual Sided LED Screen is more than just a display; it’s a strategic tool for communication and marketing.

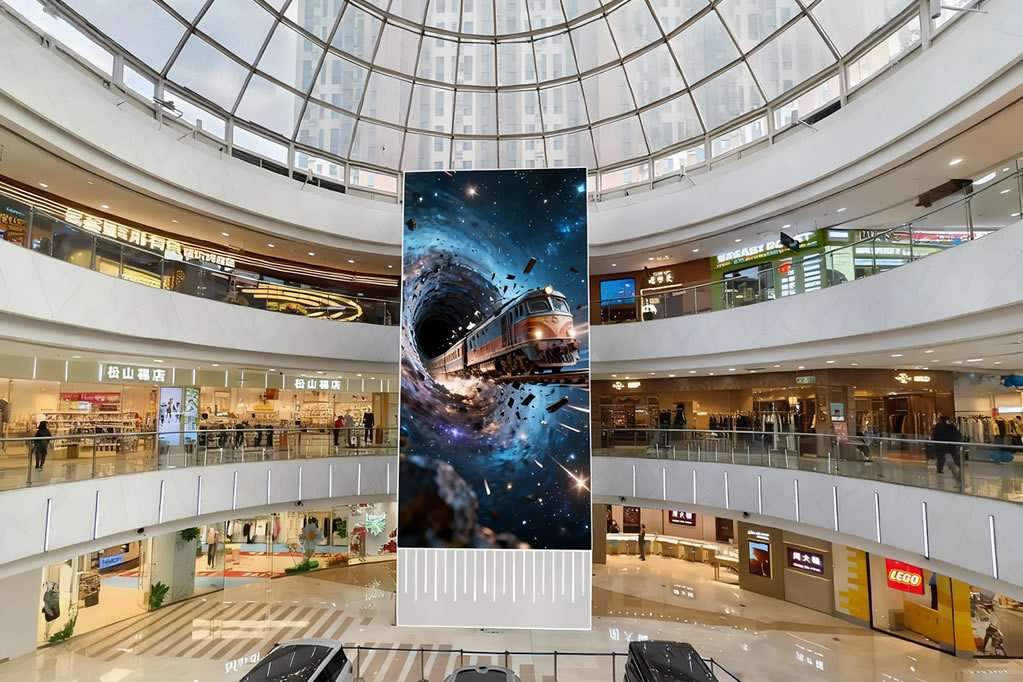

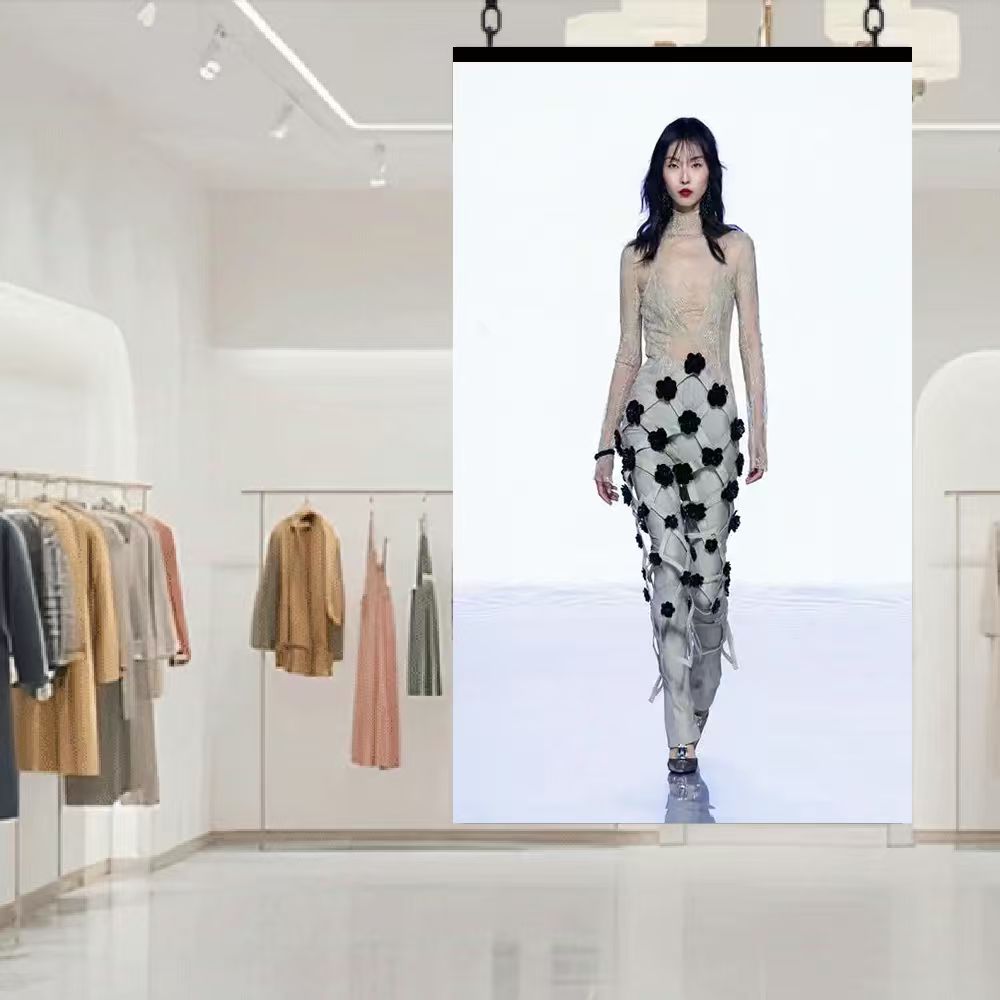

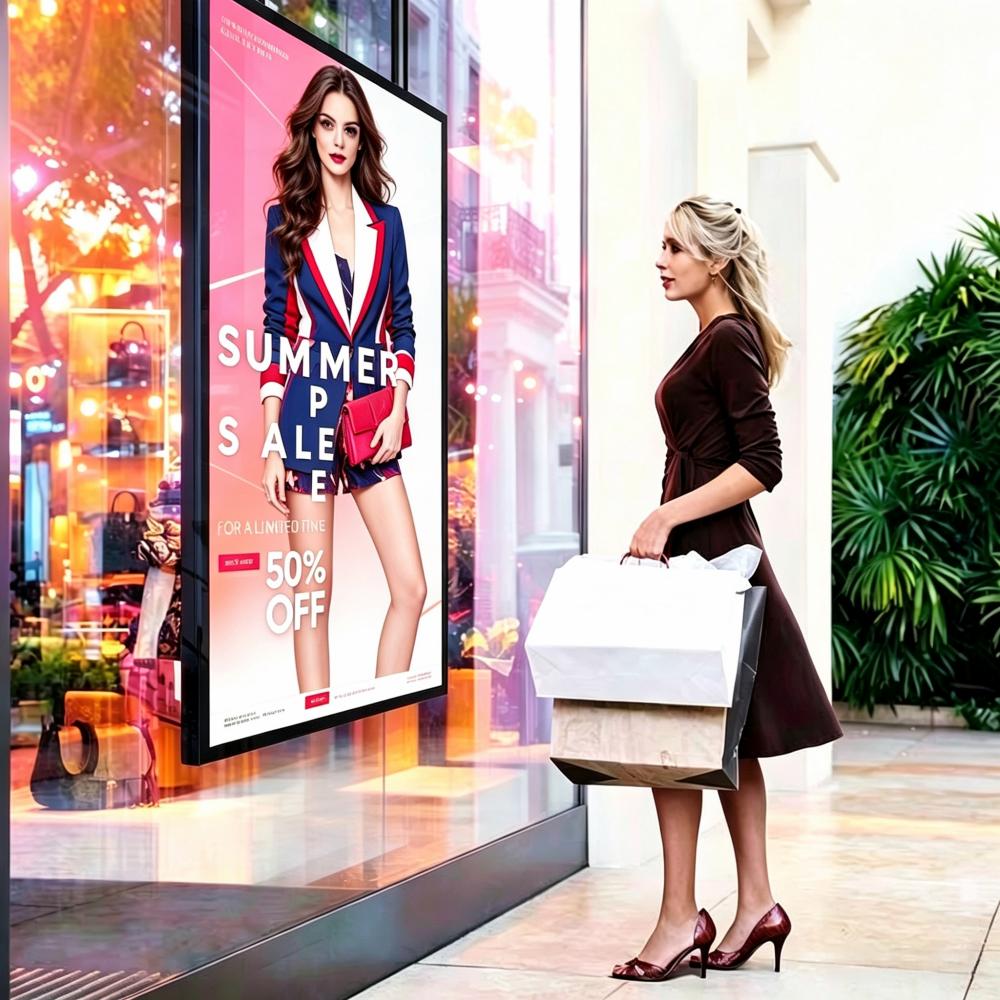

Retail Stores & Shopping Malls: Place our LED Poster Display in store windows or aisles to showcase promotions on both sides simultaneously, doubling your advertising exposure without blocking pathways.
Airports & Metro Stations: Ideal for Wayfinding and advertisement in transit hubs. The slim profile fits perfectly in narrow pillars or walkways, guiding passengers while generating revenue from ads.
Corporate Lobbies & Hotels: Create a stunning first impression in reception areas. The elegant design of the Slim LED Screen complements modern architecture while displaying company news or welcome messages.
Exhibition Booths & Museums: Stand out at trade shows with a lightweight, easy-to-transport display that offers 360-degree visibility.
At its core, this product is a high-performance Digital Signage solution designed for maximum impact in minimal space. Unlike standard single-face screens, HSCXLED- Double Sided LED Display Screen features two independent viewing surfaces within a single, ultra-slim cabinet. With a thickness of just 24mm to 30mm, it is one of the slimmest options available on the market, making it the perfect Indoor LED Screen for areas where depth is limited.
The Double-Sided LED Display is ideally suited for locations where space is limited but visual impact is essential:

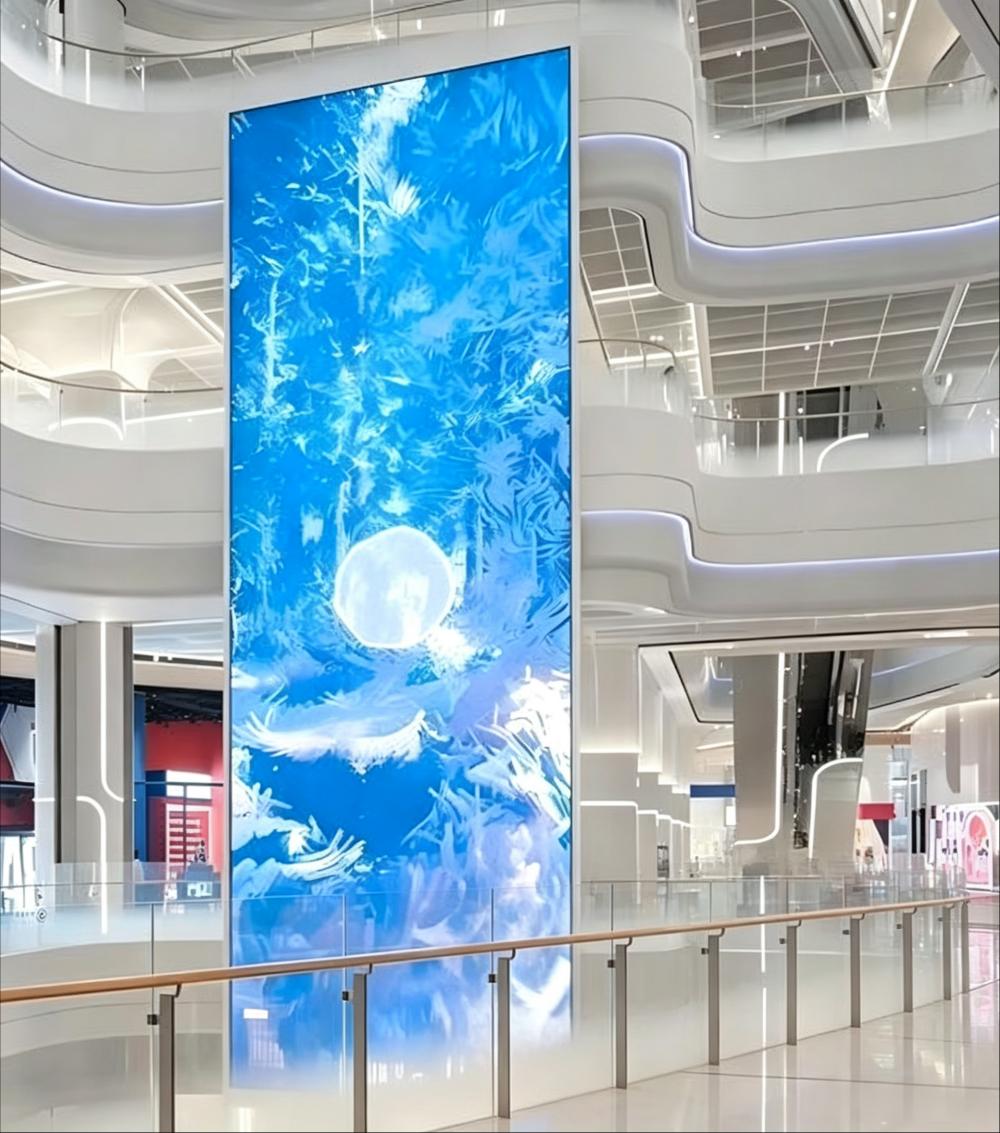

Shopping Mall & Department Store Pillars – Wrap columns with eye-catching brand ads, promotions, and wayfinding info on both sides.
Hotel Lobbies & Casino Columns – Elegant, slim-profile digital décor that blends with luxury interiors.
Airport & Railway Station Information Poles – Double-sided departure/arrival info plus advertising.
Metro Station Platform Pillars – Maximize ad revenue on otherwise unused structural surfaces.
Corporate Office Atriums – Display company values, KPIs, or welcome messages on wrapped cores.
Exhibition Booth Columns – Create immersive brand environments at trade shows.
Indoor Light Pole / Totem Retrofits – Where a narrow, double-facing
