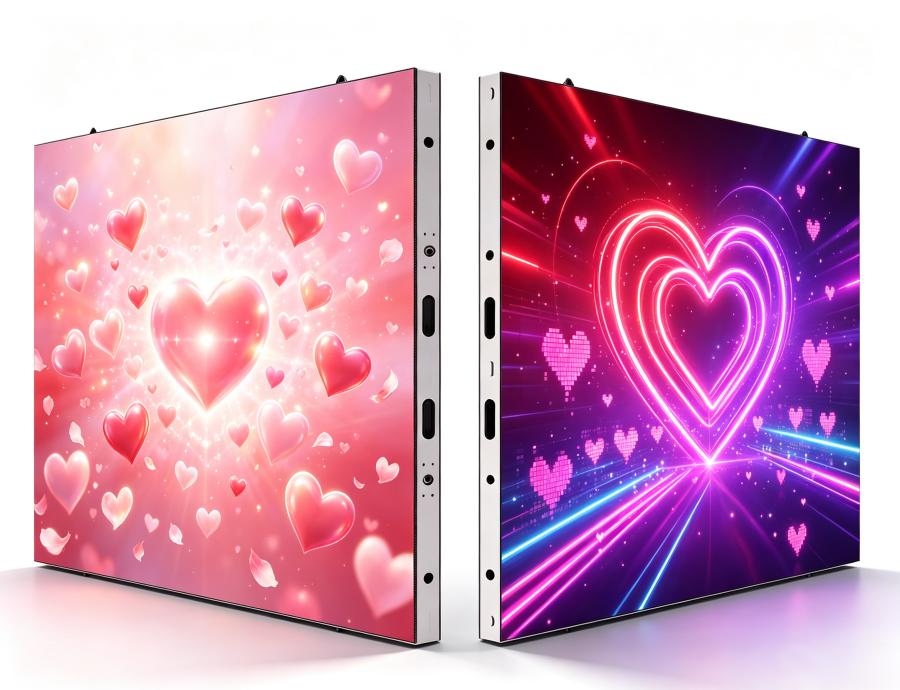

Built with a precision one-piece die-cast aluminum cabinet, this indoor double-sided LED display combines a slim profile, lightweight structure and seamless installation.

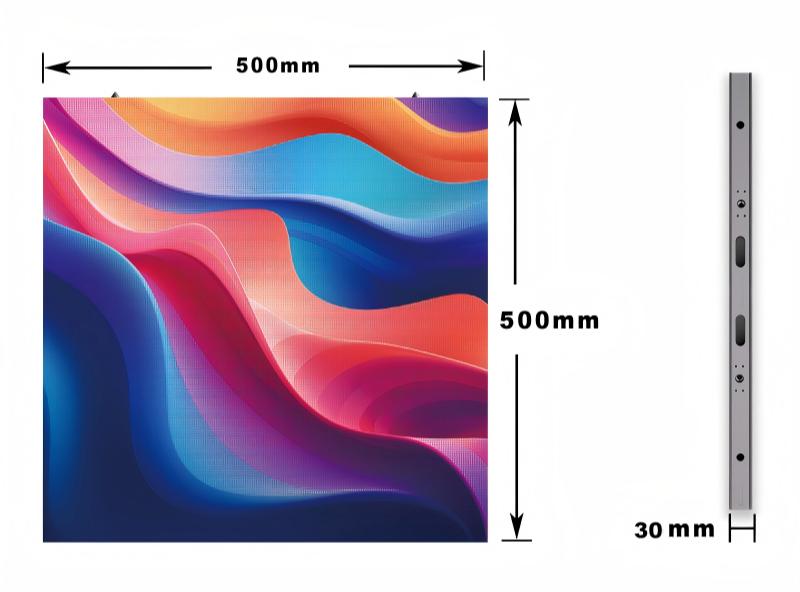

✔ 500 × 500 mm standard cabinet
✔ Only 30mm overall thickness
✔ 24 mm single-sided LED panel
✔ Wireless hard-connection design
✔ Seamless cabinet connection
✔ Easy installation and maintenance
✔ Ideal for retail stores, shopping malls, airports and showrooms

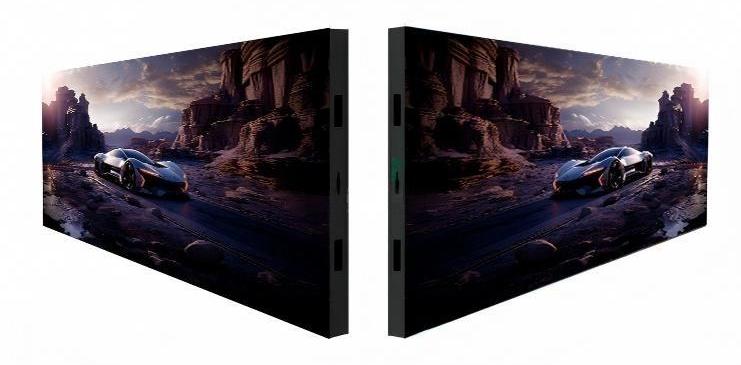

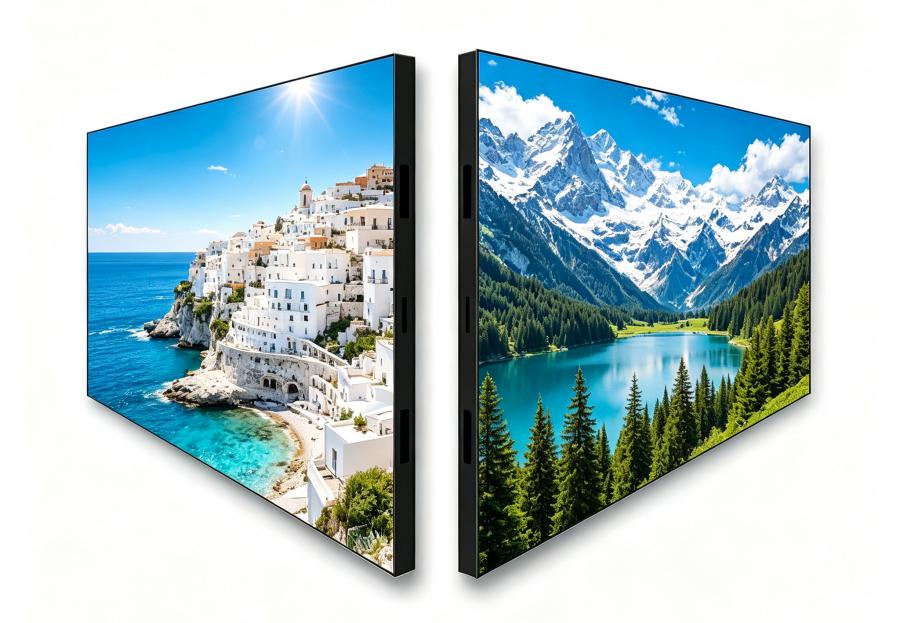

True Dual-Sided Independent Display Control Supports displaying identical content on both sides, running different advertisements targeting separate audiences, or synchronizing content across both faces—giving you full flexibility in campaign management. |  |
 | Ultra-Slim & Lightweight Cabinet Design Cabinet thickness ≈ 30mm with lightweight aluminum structure. Minimal visual obstruction, perfectly suited for glass window and storefront installations. |

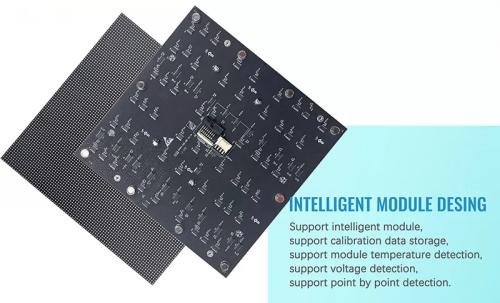

Full Front Access Maintenance Magnetic module attachment enables tool-free front service on both sides. Modules can be hot-swapped without shutting down the system—reducing downtime and maintenance costs. |  |

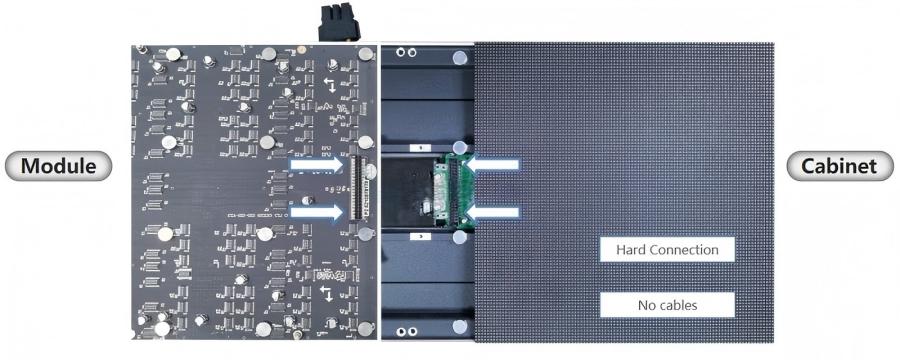

 | Wireless Module Connection & Hard Connection Structure Innovative wireless module linking combined with a hard-connection design eliminates complex internal cabling, enhances signal stability, and improves long-term reliability. |

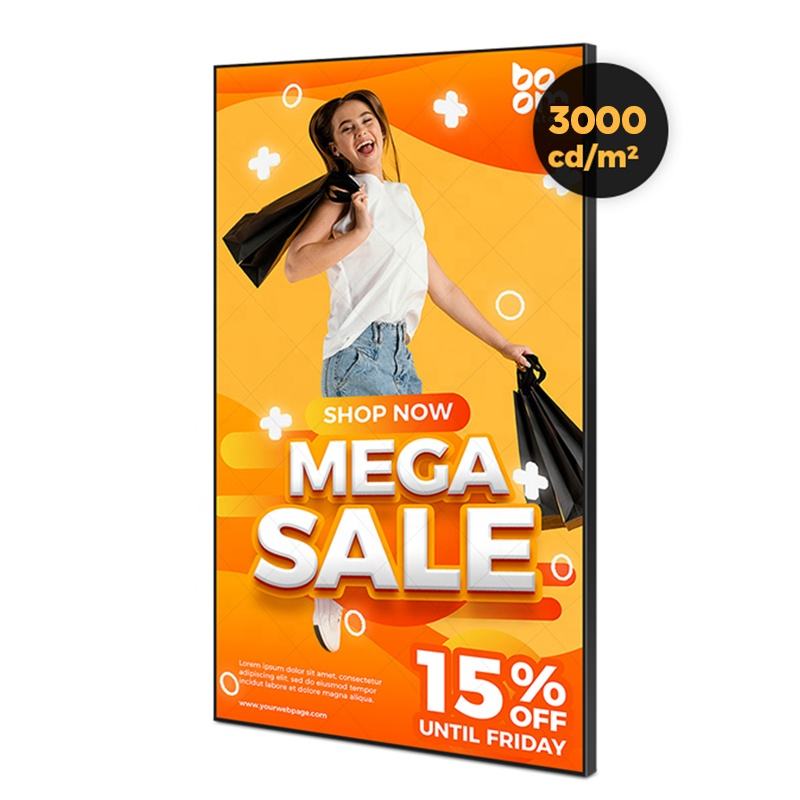

High Brightness, ≥7680Hz Refresh Rate & High Grayscale High brightness for clear visibility in well-lit environments; flicker-free video playback with ≥7680Hz refresh rate; high grayscale for accurate color reproduction—ideal for premium retail and advertising applications. |  |
 | 160° Ultra-Wide Viewing Angle Consistent image quality from multiple viewing perspectives, ensuring impactful messaging in wide-open spaces like malls and transit hubs. |

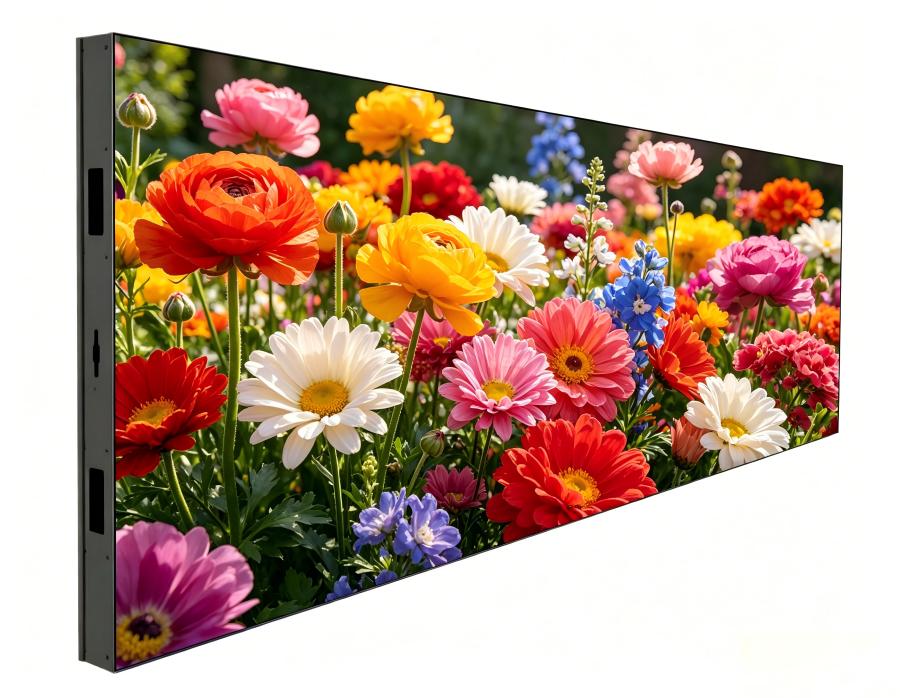

Seamless Splicing for Custom Large Formats Modular design supports seamless splicing to create large-format LED video walls with 2K / 4K / 8K / 16K ultra-high-definition resolutions. |  |

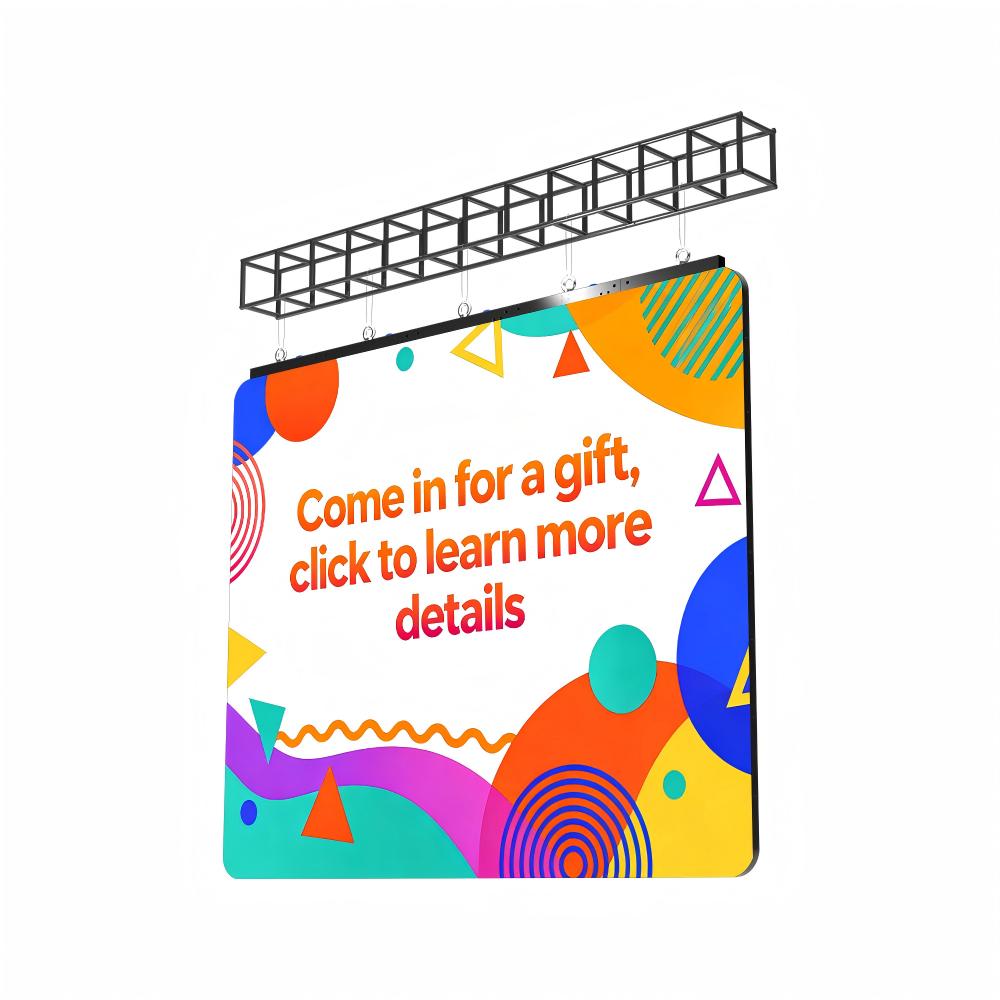

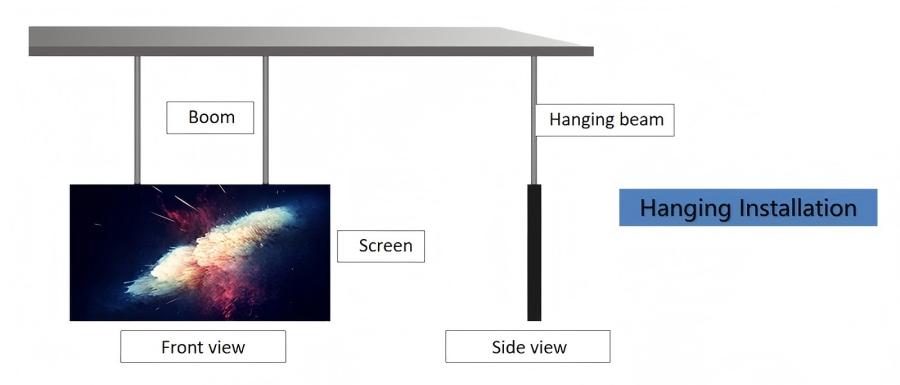

 | Installation Options of double side led display:
|
GOB TECH The LED display adopts advanced GOB(Glue on Board) protection technology,ensuring superior durability. the LED surface is fully sealed to provide Water-proof,Scratch-proof, waterproof protection making it resistant to dust,water splashes,and impacts.This robust design prevents LED drops or damage during accidental collisions,ensuring long-lasting performance even in challenging environments. |  |
 | SEAMLESS SPLICING, CUSTOMIZED SIZE The four sides of each screen are reserved for installation positions, and the screensare spliced through the installation direction screws.No gaps will be created duringsplicing, making the picture more vivid and natural. |
 | energy-saving and low-consumption Indoor ultra-thin LED display screens adopt advanced common cathode circuit and other technologies, which save more than 30% energy compared to traditional screens, have low heat generation, natural heat dissipation, and do not require additional heat dissipation systems.The ultra-thin LED display screen supports 24-hour continuous stable operation and can meet the needs of different scenarios. |

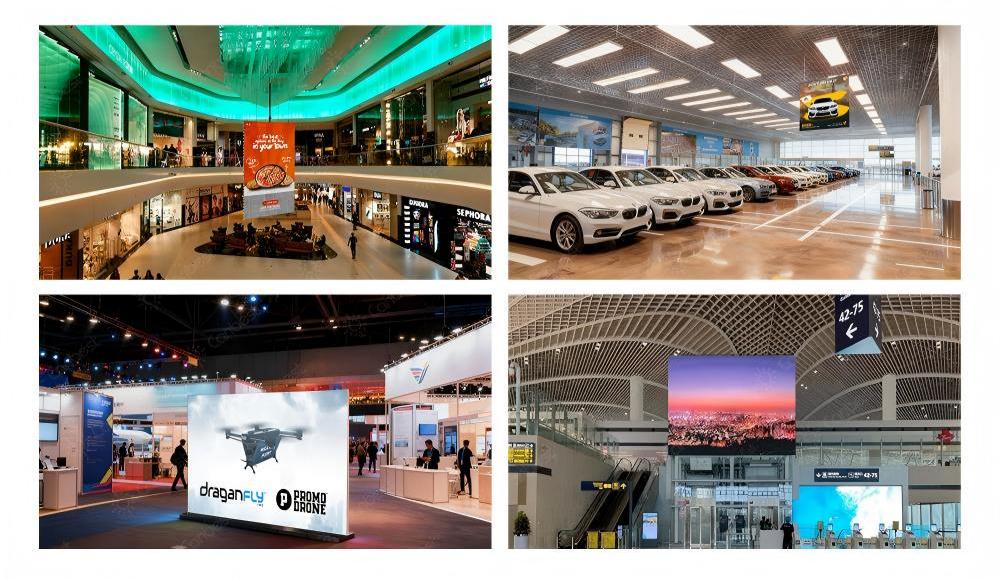

WIDELY APPLICABLE SCENARIOS HSCXLED - Indoor LED display screen, high-definition display screen, easy to install, lightweight box design of LED display screen saves customers installation costs. widely used advertising publish, shopping mall, retail store, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, Education, medical treatment...... |  |
| HSCXLED-Ultra-thin Indoor Double Sided LED Screen | |||||
| Model | P1.56 | P1.953 | P2.604 | P2.976 | P3.125 |
| Pixel Pitch | 1.5625(mm) | 1.953(mm) | 2.604(mm) | 2.976(mm) | 3.125(mm) |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD1415 |
| Pixel Density | 410881(dot/m²) | 262144(dot/m²) | 147456(dot/m²) | 112896(dot/m²) | 102400(dot/m²) |
| Module Size | 250*250(mm) | ||||
| Cabinet Size | 500*500 *40(mm) | ||||
| Display size | Splicing any size according to the cabinet size | ||||
| Cabinet Thickness | (24mm/30mm) (Single-sided/Double-sided) | ||||
| Cabinet Material | aluminum profile | ||||
| Maintenance Type | Full Front | ||||
| Cabinet Weight | 4.8(kg) | ||||
| Grey Scale | 14-16bit | ||||
| Refresh Rate | 7680(hz) | ||||
| Brightness | 600-3500(nits) | ||||
| View Angle | 160°/160° | ||||
| Input Power | 100-240(V) | ||||
| IP Rating | IP45/IP45 | ||||

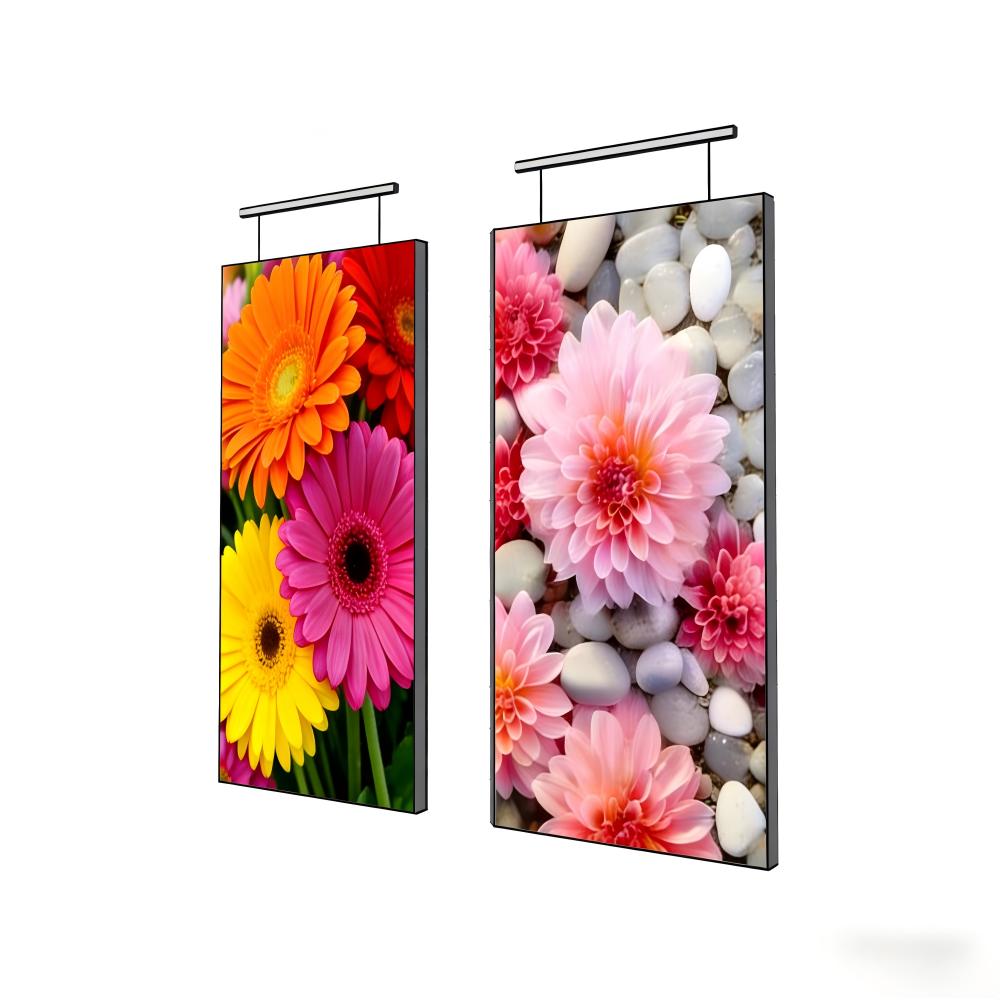

| Installation Type | Fixed Installation, Rounded Corner Installation, Suspended Installation, Canopy Installation | ||||
| Media available | Datasheet, EDA/CAD Models, Other, Photo ,video,3D,and other formats | ||||
| Life Time | ≥ 100000(Hours) | ||||
Highlight: Ultra-Thin Led Display, LED Double-sided Display, Ultra Thin Dual Side led Screen
Custom sizes, GOB/SMD options, and brightness configurations available upon request.
Shenzhen H&S Innovation Technology Co., Ltd is a professional LED display manufacturer specializing in innovative commercial signage solutions—includingultra-thin double-sided LED LED displays, Outdoor Advertising LED Display, COB LED display,Light Pole LED Display,LED Poster Display, and fine-pitch LED screens. Backed by strict quality control, global service support, and customizable OEM/ODM options, we help your digital signage projects stand out worldwide.
HSCXLED ultra-slim double sided LED display features a 30 mm thin cabinet & true dual-face independent control, perfect for retail windows & mall advertising. With ≥7680Hz refresh rate, full front maintenance, and wireless module connection, this digital signage maximizes 360° visibility and ROI. Custom pixel pitch (P1.56-P3.1) available. Leading LED display manufacturer with global service.
The HSCXLED Double-Sided LED Display is a next-generation digital signage solution engineered for high-traffic commercial environments. With two independent LED panels integrated into a single ultra-slim aluminum cabinet (approx. 30mm thickness), it delivers 360° visibility—engaging audiences on both sides simultaneously without doubling your installation footprint. Ideal for retail storefront windows, shopping mall corridors, airports, banks, and exhibition halls, this dual-sided LED screen maximizes advertising exposure and ROI for your business.
