P8 Outdoor LED Video Wall Screen Installation in Malaysia

Outdoor LED Video Wall Screen Market Background:

As a key economic hub in Southeast Asia, Malaysia—particularly high-traffic zones in Kuala Lumpur and along major federal highways—is witnessing a surge in demand for high-brightness, weather-resistant LED video walls. Advertisers and property developers are increasingly investing in Outdoor advertising LED display to capture the attention of commuters and pedestrians with vivid, real-time content. However, the market also faces the challenge of sourcing displays that can withstand Malaysia’s equatorial climate, characterized by intense UV exposure, heavy monsoon rains, and high ambient humidity, while still delivering a compelling return on investment through energy efficiency and minimal downtime.

Customer Pain Points:

Prior to engaging our solution, the client in Malaysia faced several critical operational and technical challenges with their existing or planned outdoor advertising setup:

Climate Vulnerability;Insufficient Brightness and Visibility;High Power Consumption & Operational Costs;Structural and Aesthetic Integration;Content Playback Smoothness......

Our Solution:

After understanding the customer's needs and pain points, the sales and engineering teams of HSCXLED selected our outdoor P8 LED display screen for the customer based on the installation site and display requirements, and added frame beautification to the appearance of the box to make the entire LED display project more perfect. Our solution was recognized by the customer. The outdoor P8 LED display screen is particularly suitable for large outdoor signs and is also the choice of many outdoor advertising large screen customers.

Shenzhen H&S Innovation Technology Co., Ltd. delivered a comprehensive, tailor-made P8 Outdoor LED Video Wall solution designed to conquer the Malaysian outdoor environment.

Climate-Resilient Hardware: We supplied P8 outdoor cabinets built with high-quality, rust-resistant steel or aluminum, featuring precise sealing techniques (silicone gaskets and drainage systems) to achieve IP65/IP66 ratings. This ensured the internal PCBs and power units remained dry and functional through the wettest monsoon seasons.

High-Performance Optical Components: We utilized top-tier SMD LEDs (e.g., Nationstar/San'an SMD3535) known for high lumen output and color consistency, paired with anti-UV masks to prevent yellowing under the strong equatorial sun, maintaining picture quality for years.

Structural Engineering & Installation: Depending on the site (wall-mounted or ground-supported), we provided heavy-duty mounting brackets or steel truss structures engineered to local wind load standards. Our technical team oversaw the precise calibration of the large video wall, ensuring seamless module alignment and uniform color calibration across the entire surface.

Advanced Control & Power System: The display was equipped with a robust NovaStar sending/receiving card system, supporting remote cloud-based control for content scheduling and real-time monitoring. The power distribution units were configured with industrial-grade power supplies  to handle voltage fluctuations common in outdoor settings.

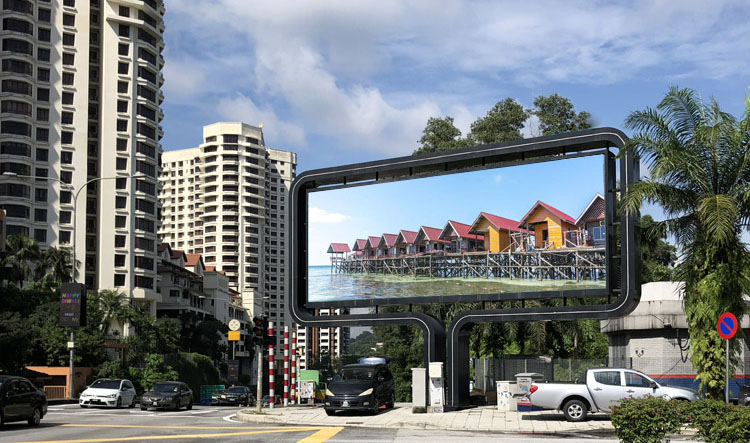

Malaysia- Outdoor P8 led display Led Video Wall Screen

This project successfully deployed a high-impact P8 Outdoor LED Video Wall that has become a staple advertising landmark in its respective Malaysian locale. The implementation proved that the P8 pixel pitch remains a highly cost-effective and visually superior choice for large-format outdoor advertising, balancing resolution with economy.

Key Technical Parameters:

•


  Product Model: P8 Outdoor LED Display / LED Video Wall Screen




•


  Installation Region: Malaysia




•


  Pixel Pitch: 8 mm (P8)




•


  LED Configuration: SMD3535




•


  Pixel Density: 15,625 dots/m²




•


  Brightness: ≥ 6500 - 7500 cd/m² (Nits)




•


  Refresh Rate: ≥ 3840Hz (Adjustable up to 3840 Hz)




•


  Gray Scale: 14-bit / 16-bit (16,384 levels per color)




•


  Viewing Angle: Horizontal 120° - 140°, Vertical 70° - 120°




•


  IP Rating: Front IP65




•


  Working Voltage: AC 220V/110V ± 15%, 50/60Hz




•


  Operating Temperature: -20℃ to 60℃




•


  Avg. Power Consumption: Approx. 260 W/m² (Max 700-800 W/m²)




•


  Control Mode: Synchronous PC control / Asynchronous 4G Cloud Control




•


  Cabinet Material: Die-cast Aluminum or Steel with Anti-corrosion Paint

Product Highlights:

The P8 Outdoor LED Display (LED Video Wall Screen) was selected as the ideal solution, offering a perfect equilibrium between pixel density, brightness, and cost-efficiency for medium-to-long viewing distances typical of outdoor advertising and public spaces.

1,Optimized Pixel Pitch (P8 / 8mm): The 8mm pixel pitch is an industry sweet spot for outdoor video walls viewed from 8 to 100+ meters. It provides excellent image clarity for HD video and crisp text rendering without the inflated cost of finer pitches (like P6 or P4) when viewing distances are greater.

2,High Brightness Output: Engineered to deliver a brightness of 6500 to 7500+ nits (cd/m²), ensuring advertisements remain vibrant, saturated, and clearly visible even under direct, blinding tropical sunlight.

3,Robust Weatherproofing (IP65/IP66): The display units feature a high ingress protection rating. The front side is completely sealed against dust and powerful water jets (rain), while the cabinetry utilizes anti-corrosion materials and gaskets to protect internal electronics from humidity.

4,High Refresh Rate Performance: With a refresh rate of ≥3840Hz, the P8 screen guarantees smooth, flicker-free video playback and excellent grayscale performance, making it camera-ready for broadcasts.

5,Energy Efficiency: Utilizing high-efficiency SMD3535LED lamps and optimized power supplies, the P8 screen balances extreme brightness with a competitive average power consumption (approx. 260-350W/m²), reducing long-term OPEX.

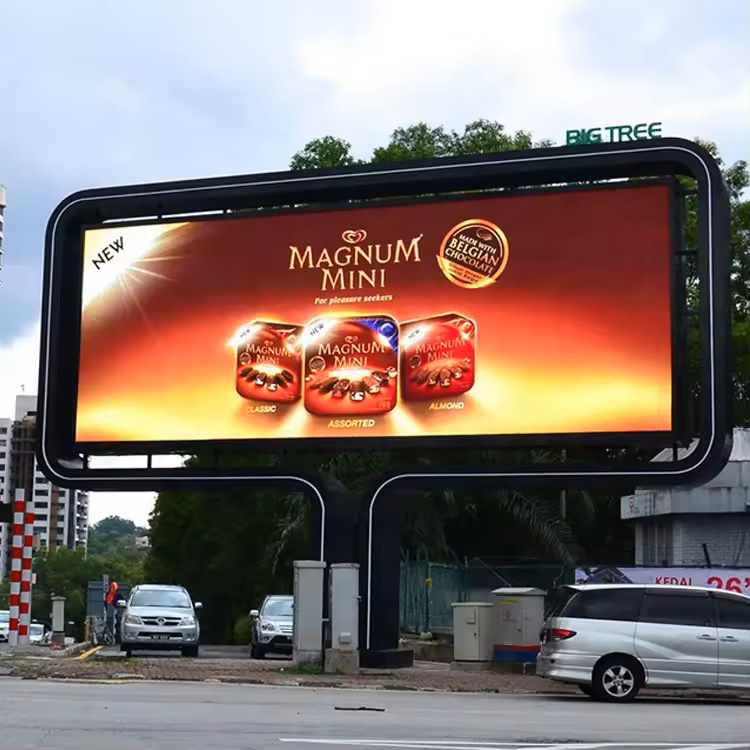

The specific application for this P8 Outdoor LED Video Wall Screen in Malaysia was as a prime commercial advertising display and digital billboard.

Customer Feedback

The client reported overwhelming satisfaction with the performance and durability of the P8 Outdoor LED Video Wall.

The outdoor advertising LED display IP65/IP66 weatherproofing has been put to the test through multiple heavy rain seasons, with zero moisture-related failures, drastically cutting their maintenance overhead. They specifically praised the high brightness levels, noting that brand clients have commented positively on how their colorful creative assets "pop" against the sky, even during the brightest parts of the day.

Additionally, the client emphasized the value of the high refresh rate, stating that the videos play back smoothly without any flickering, which has allowed them to attract higher-paying advertisers who demand broadcast-quality visuals. The energy efficiency of the screen was also a noted benefit, as the intelligent brightness dimming feature automatically reduces power usage during overcast weather and nighttime, leading to measurable savings on their electricity invoices. Overall, the reliability and visual punch of the H&S Innovation P8 screen have directly contributed to higher occupancy rates for their advertising slots.

The successful installation of the P8 Outdoor LED Screen in Malaysia underscores Shenzhen H&S Innovation Technology Co., Ltd.'s expertise in delivering durable, high-visual-impact LED solutions tailored for challenging tropical environments. By directly addressing the pain points of weather resilience, sunlight visibility, power consumption, and playback quality, we provided a digital billboard that serves as a reliable revenue generator and a vibrant communication hub for the client.
