Application: Outdoor
Model: Outdoor:P5/P6.67/P8/P10
LED Screen Cabinet size :960X960mm/1280X960mm
Waterproof rating: Outdoor IP65
Refresh rate: 3840Hz-7680Hz
Brightness:Outdoor5000-7500cd/㎡
Low energy consumption: separate power supply mode technology.
Lower temperature :energy-saving ,Sports LED screens have a long lifespan
Perfect vision: large viewing Angle
Certificate: KC FCC CCC CA ROHS CE-LVD CE-EMC ISO9001
Application: Stadium Perimeter Advertising | Speed Toll Station | Light Pole | Building Facade | Outdoor Advertising

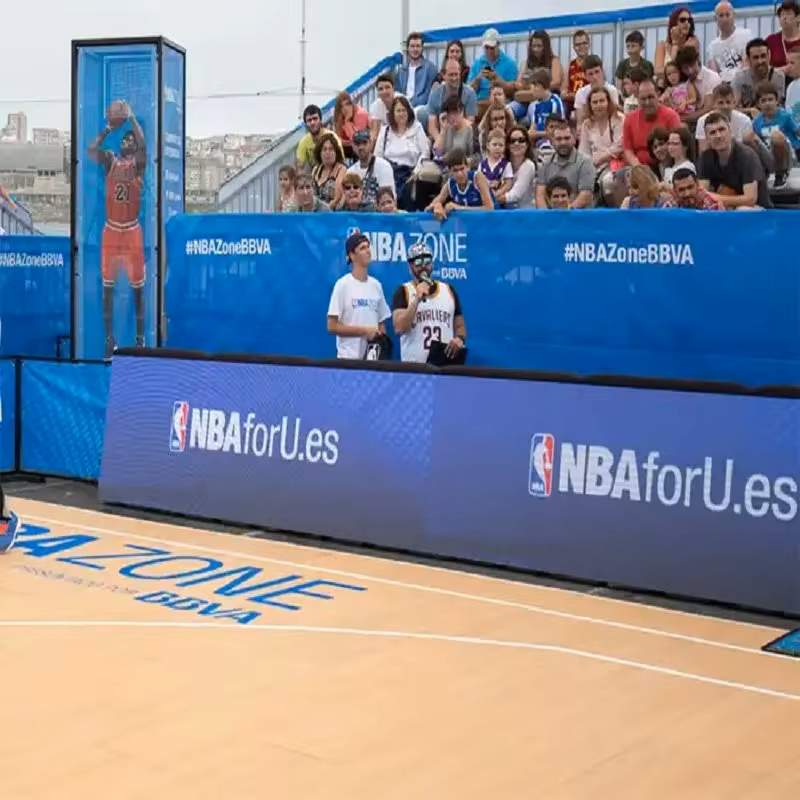

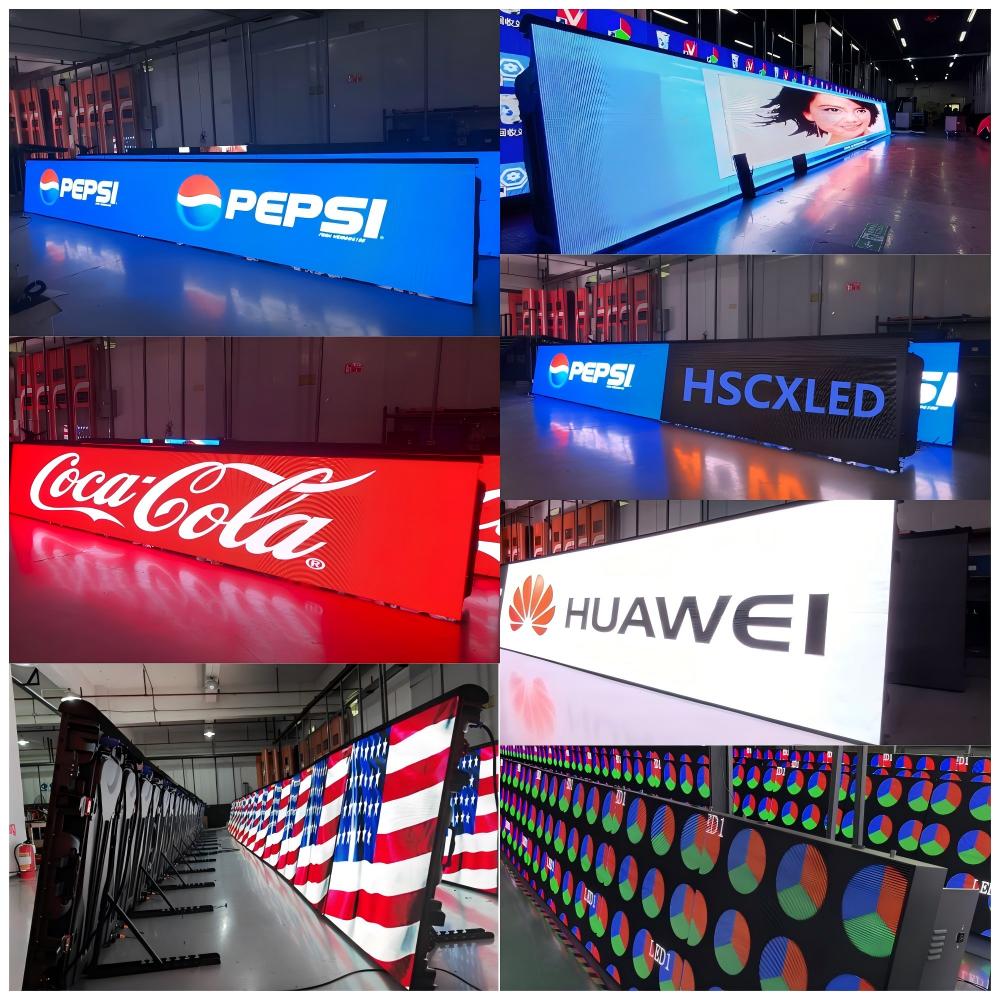

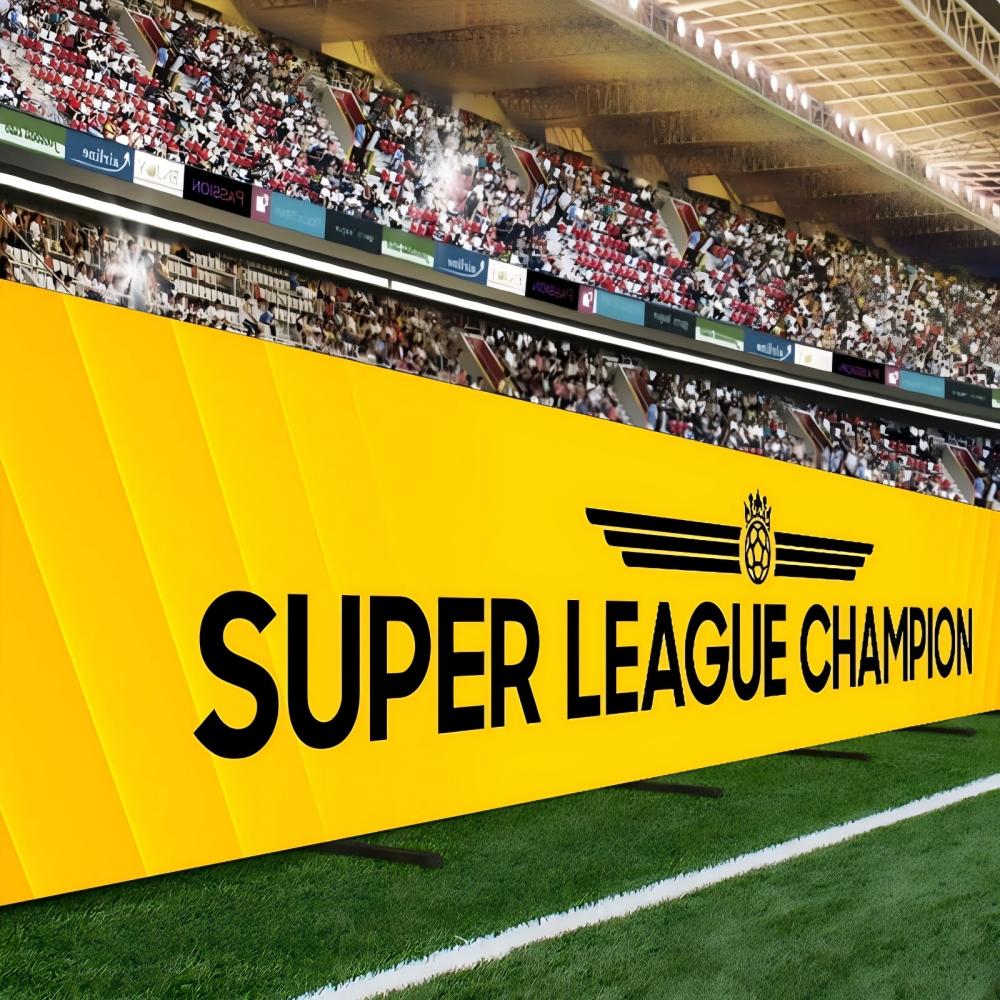

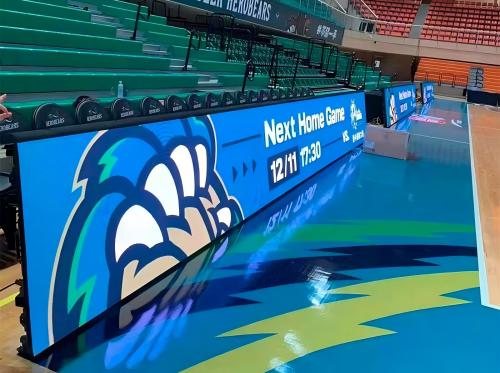

Led Video Wall Display Screen For Stadium Perimeter Advertising Stadium led display is perfect for sports event advertising, such as football field, basketball court, ice hockey ground etc. It's a great benefits for brand recognition with perimeter led display. Designed for indoor and outdoor applications, perimeter led board can bring the biggest exposure with grand sports show. Excellent manufacturing and fast delivery capability of HSCXLED's stadium perimeter led displays. |  |
 | Ultra-High Resolution&Vivid Color With pixel-perfect clarity, these led displays offer resolutions that rival the sharpest television screens, allowing for detailed close-ups and intricate visual effects. The color accuracy and vibrancy of stadium LED displays bring the on-field action to life, with hues that pop and draw the audience into the spectacle. HSCXLED's stadium LED display screen provides clear and vivid images and videos with its high resolution and excellent color reproduction ability, ensuring that audiences can see the content on the screen clearly from any position in the stadium, whether it's day or night. |

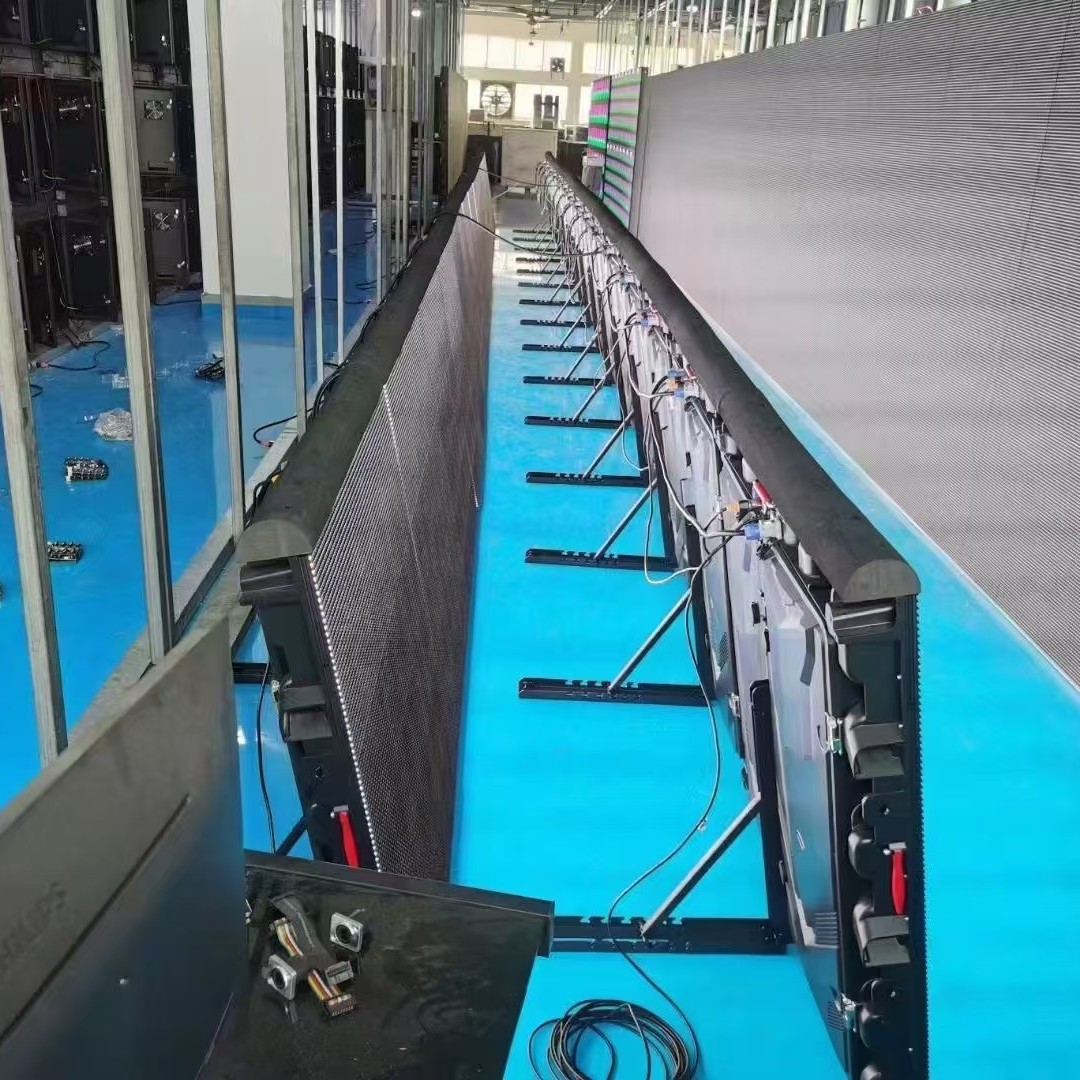

Stadium Perimeter Led Display Football Stadium Led Screen Cabinet size:960x960mm 1280x960mm/Custom Size Cabinet material: aluminum,waterproof iron Stadium LED displays boast an expansive screen size that spans across vast areas, ensuring every spectator, regardless of their seating position, has a clear view of the action. |  |

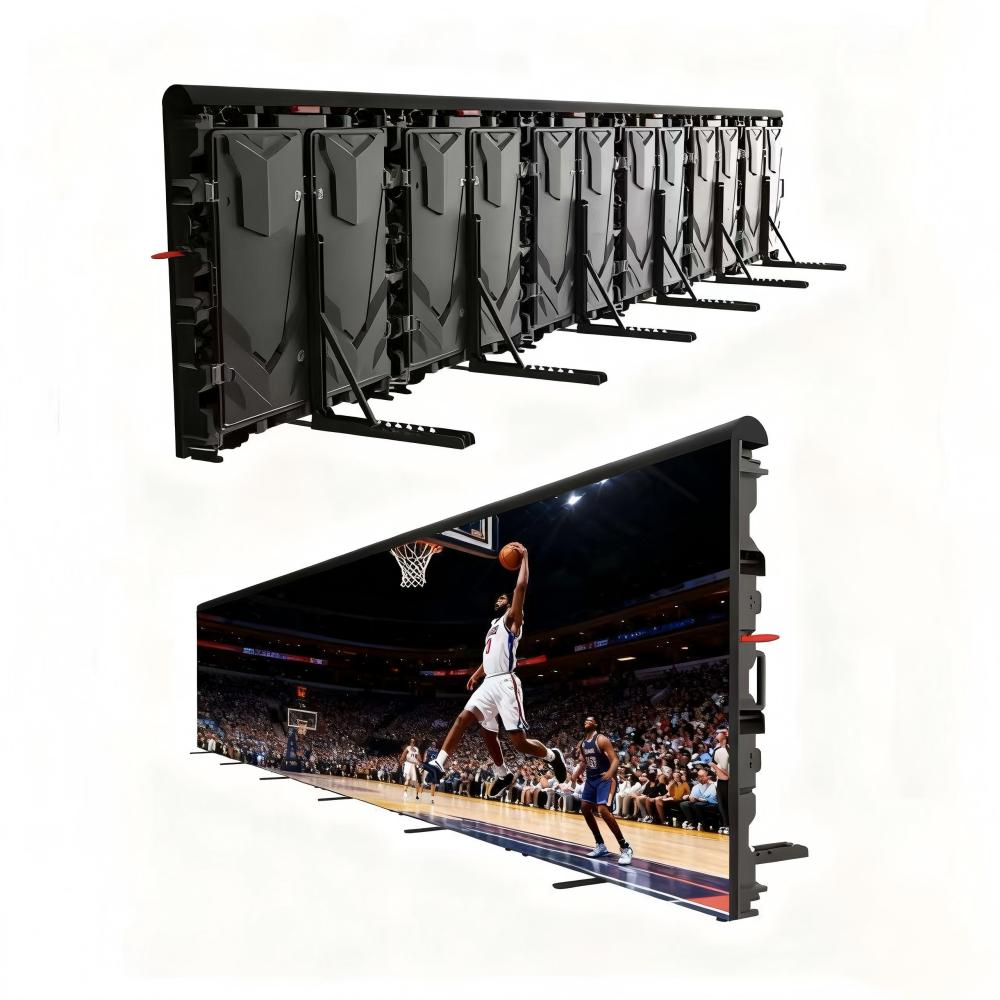

 | Light-Weight & Slim Cabinet Stadium led display panel is equipped with magnesium alloy cabinet with 30kg/pc only. It is 30% lighter than traditional waterproof cabinet. The thickness is assembled with only 120mm. It can be fixed, hanging and rental applications for such multifunctional cabinet. Cost and time-saving for installation and transportation. |
Outdoor high brightness/IP65 waterproof HSCXLED's perimeter LED display offering apowerful 6000nits of brighthness,and it for outdoor application with high waterproof level and dust-proof level. |  |
 | Ultra wide viewing angle The viewing angle is wide and the line of sight is not blocked,you can see the clear picture whatever angle you stand at it.Super Wide Viewing Angle.The display features a wide viewing angle of 160° horizontal and 160° in vertical. |

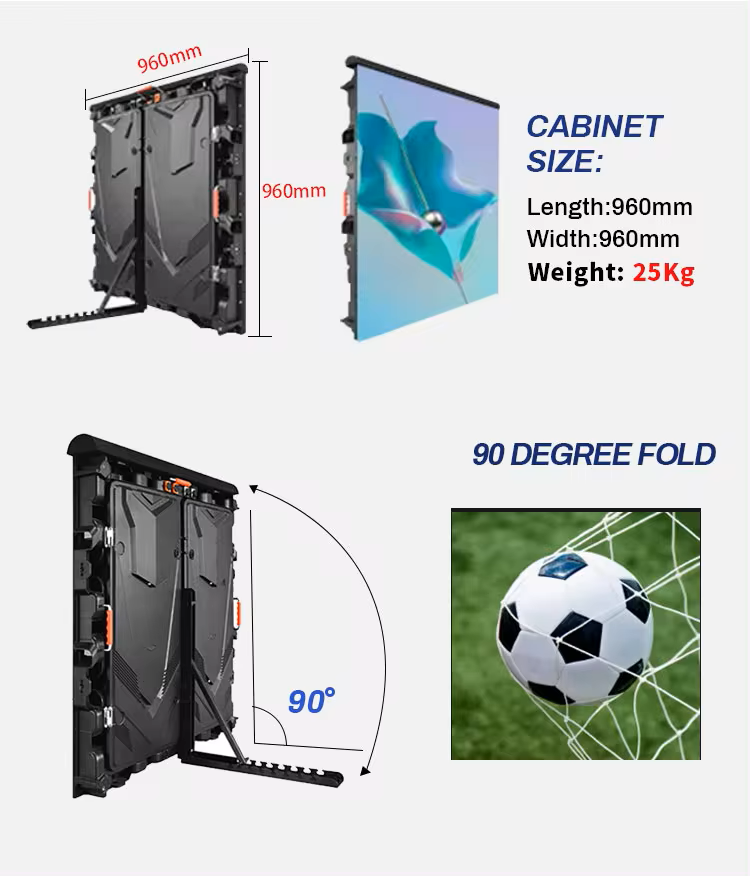

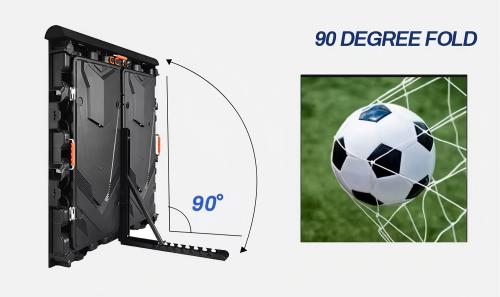

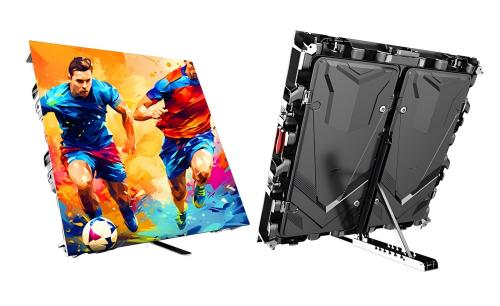

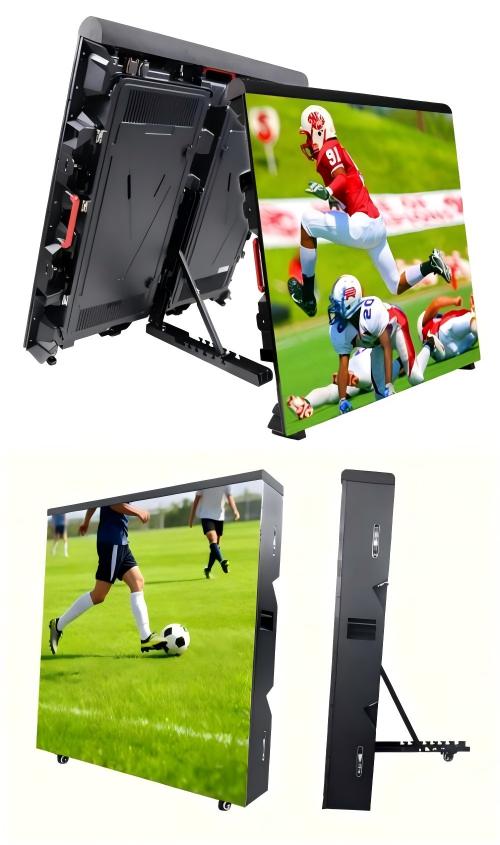

Adjustable angle cabinet 0-90° Adjustable Supporting Bracket. Perimeter led display can be adjusted according to best viewing effect to enhance viewer's visibility.The cabinet is an independent supporting structure, and the angle can be adjusted between 60° and 90° to ensure a good viewing angle. |  |

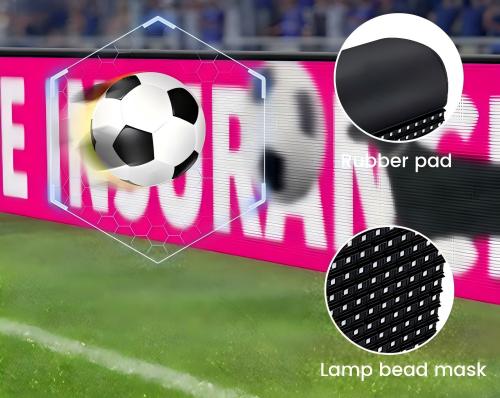

 | Rubber Module Mask and Protective Top Cover Soft face mask protection design,LED could be well protected from ball hitting with such design,HSCXLED Stadium LED display screen all have Soft mask can protect the lamp beads, but also to prevent the athletes from being hurt twice. |
Durability and stability The stadium LED display screen uses high-quality materials and structural design, which can withstand harsh weather conditions and high-intensity use, ensuring long-term stability and durability. |  |

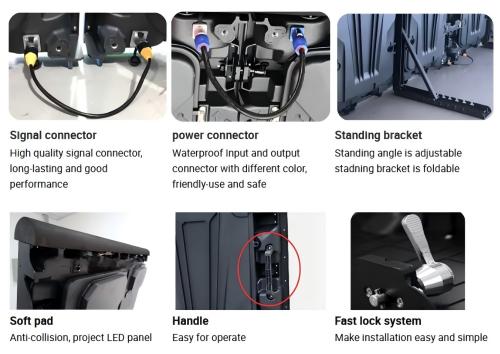

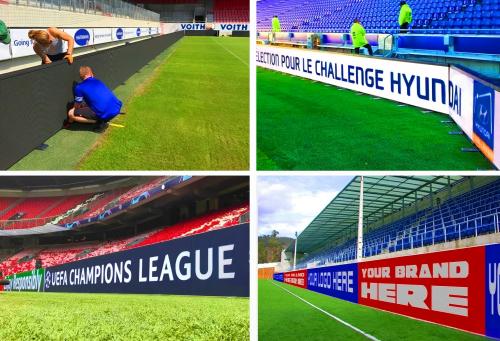

 | Fast and Easy Installation Each cabinet have 4 fast locks,2 locks on top of cabinet,2 locks on left side of cabinet.locks help to fast installation.High precision stadium led display cabinet could be fast assembly and connection with 12 seconds. No need for professional technicans and devices. Quick setup and easy maintenance with such cabinet design.Wheeled design:there are 3 wheels at the bottom. Can reach convenient moving. the wheels are with foot brakes,can make the panels stay steadily. |
Energy-saving and environmentally friendly The stadium LED display screen adopts energy-saving technology, which can reduce energy consumption while maintaining high brightness, saving energy, meeting environmental requirements, and also saving operating costs. |  |

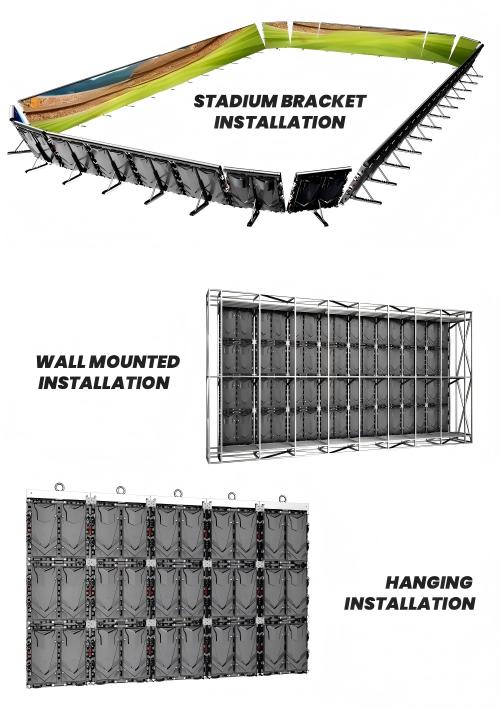

 | Flexible and versatile installation Our stadium LED display screen supports multiple installation methods, and the LED display screen can be spliced and used according to activity needs, with a wide range of usage scenarios. |
Outdoor Stadium Led Screen | ||||
| Pixel Pitch | P5 | P6.67 | P8 | P10 |
| LED Configuration | SMD 3 IN 1 | SMD 3 IN 1 | SMD 3 IN 1 | SMD 3 IN 1 |
| Pixel Density | 40000 pixel/㎡ | 22500pixel/㎡ | 15625pixel/㎡ | 10000pixel/㎡ |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module Resolution | 64*32 dots | 48*24 dots | 40*20 dots | 32*16 dots |
| Screen Size | Customize | Customize | Customize | Customize |
| Best viewing distance | ≥5m | ≥7m | ≥8m | ≥10m |
| Cabinet Size | 960*960*110 mm | 960*960*110 mm | 960*960*110 mm | 960*960*110 mm |
| Cabinet Resolution | 192*192 dots | 144*144 dots | 120*120 dots | 96*96 dots |
| Cabinet Weight | 25kg | |||
| Cabinet material | Die-casting aluminum cabinet | |||
| IP Rating | IP65 | |||
| Brightness | ≥5500nits | |||
| Refresh Frequency | 3840Hz | |||
| Gray Scale | 16 bit | |||
| Display Scale | 16.7M | |||
| Max.Power Consumption | 700w/panel | |||
| Ave.Power Consumption | 200w/panel | |||
| Operating Power | AC110~240V | |||
| Operating temperature | -30℃---60℃ | |||
| Operating Humidity | 10~90%RH | |||
| Operating Life | 100,000Hours | |||
Highlight: Perimeter led screen, sports LED display, Football LED Screen，Stadium led display
 |  |  |

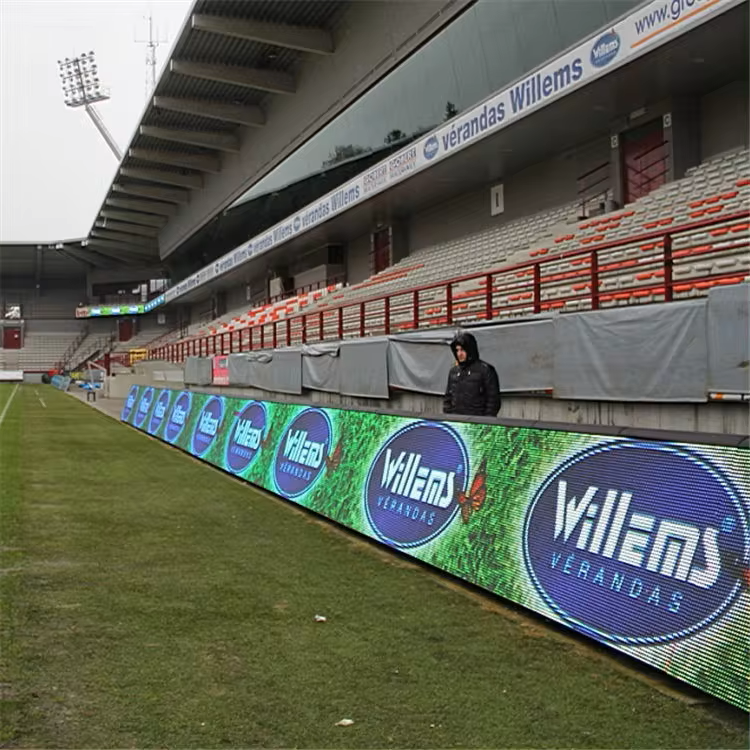

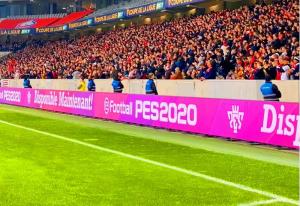

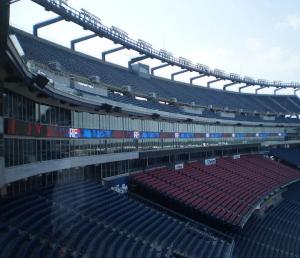

Perimeter LED Screen LED perimeter screen’ modernity and dynamism successfully help enhance your club image and unlock advertising revenue. It significantly showcased the sponsors’ brand. | LED Scoreboard LED scoreboard offers you the precious opportunity to deploy dynamic and effective display scores, broadcast ads, and various broadcast multimedia content. | LED Ribbon Board LED ribbon board allows vivid & exceptionally bright moving images and videos as pitch-side advertising. It successfully generates a new income stream for your club. |
 |  |  |

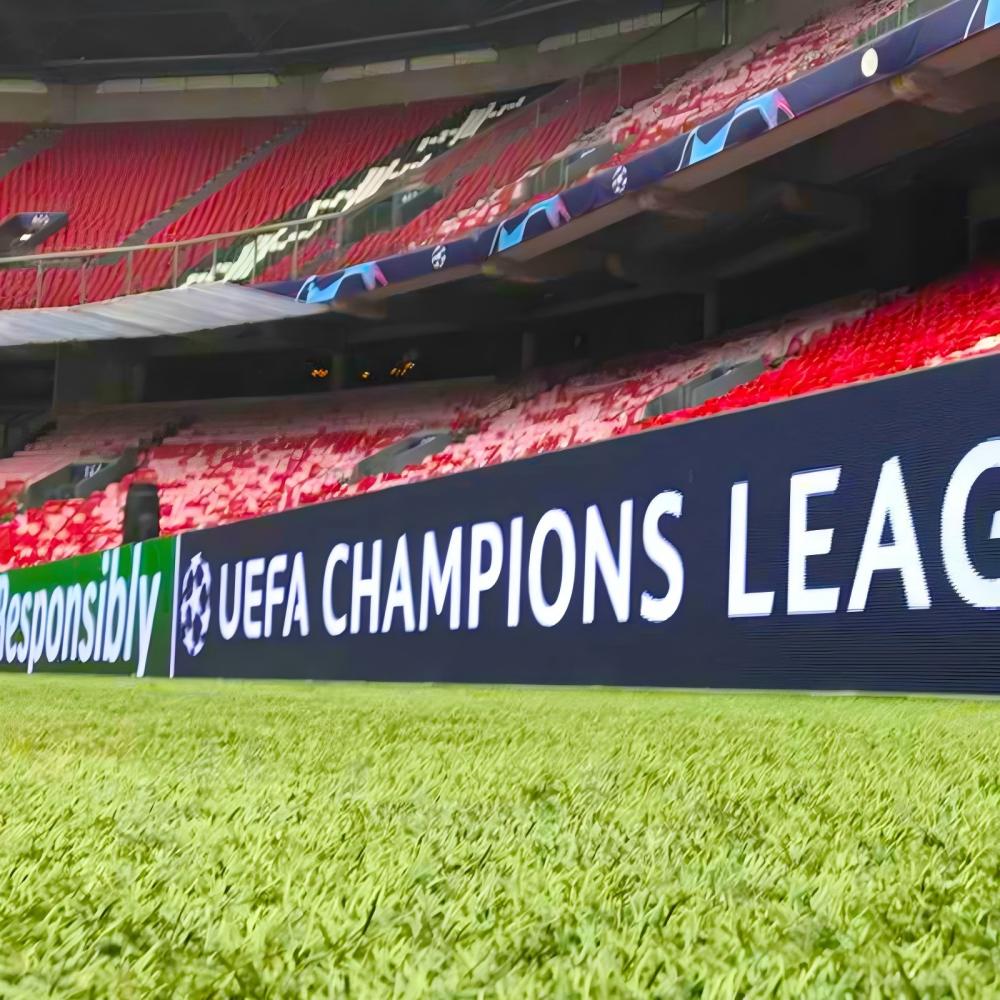

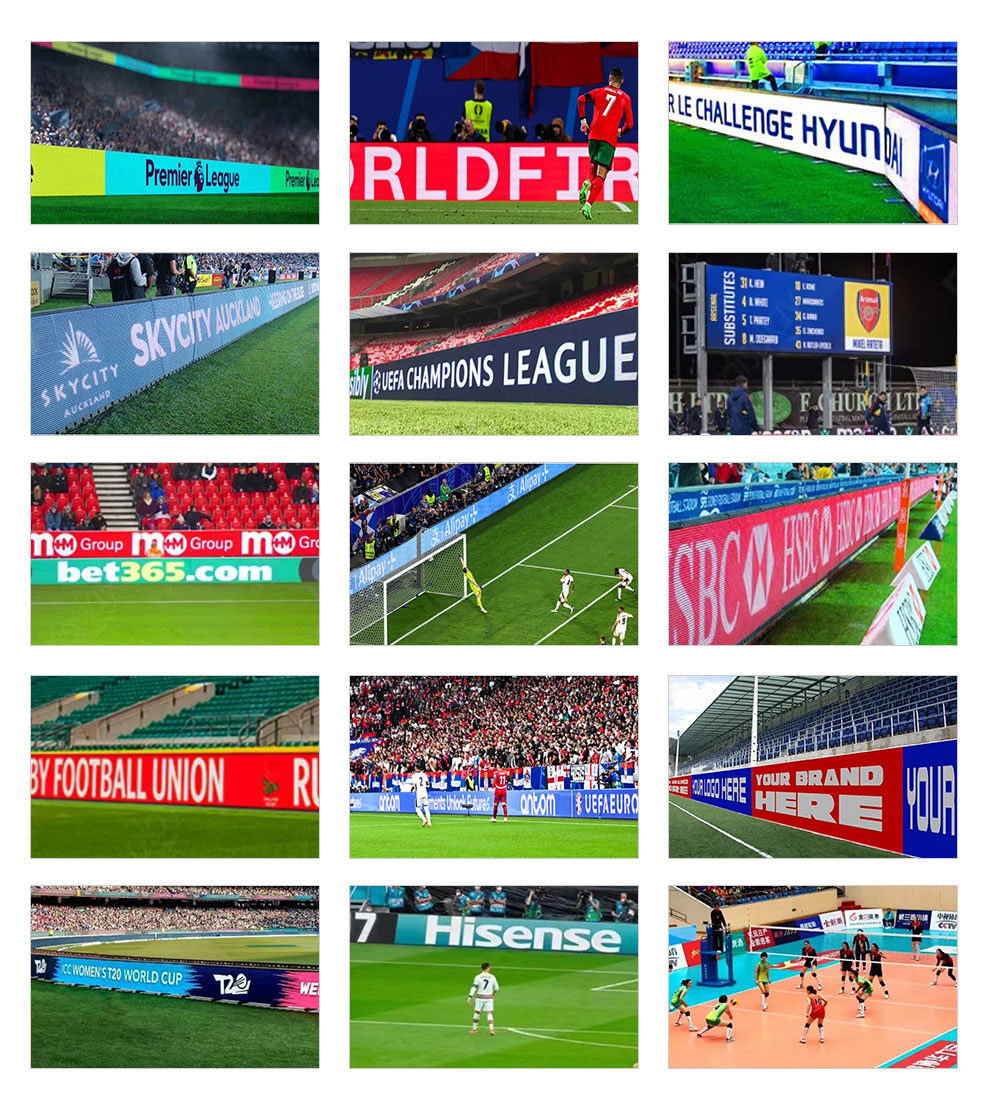

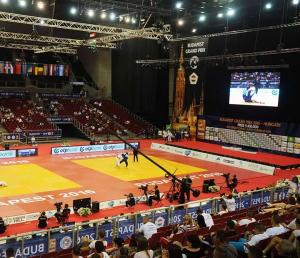

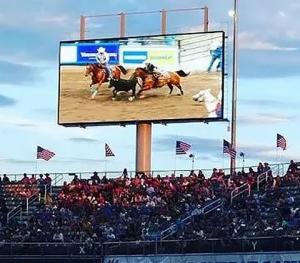

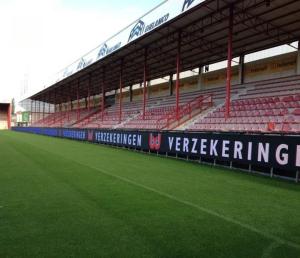

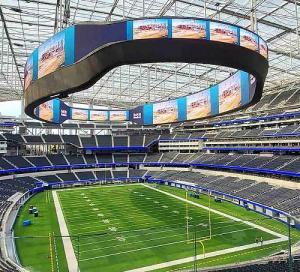

Large Fixed Stadium LED Screens Large LED fixed display screens are usually fixed at the top of the seats or in the middle of the seats, allowing spectators who are slightly farther away to have a glimpse of the stadium. | Stadium circular LED display Customized LED display screens can be made into circular LED displays,and hung above the stadium, which not only reflects the artistic shape, but also increases the viewing angle so that audiences from all directions can see a clear picture. | Pitch Side LED Advertising The pitch side LED advertising displays surround the entire venue and is usually placed under the seats, making it an indispensable and optimal exposure location for advertisers. |
We know-how engineers work closely with customers to design and offer industry-leading LED perimeter boards. We creatively created LED perimeter boards that have significant advantages compared to traditional sport screen signage.
Soft module mask and soft pillow unique designs protect your players from being hurt when players crash into LED perimeter board;
Adjustable back brackets structure realize wider viewing angle and reach more audience that brings more sports enjoyment and advertising revenue;
A high refresh rate frequency and dual computer control system ensures you a flickering-free and interruption-free sports event broadcast and LED advertising.At HSCXLED,Customize Your Own Stadium LED Screen we can customize both outdoor and indoor stadium LED display screens to your desire.We can customize stadium LED displays in different viewing distances and resolutions (from P2.5 to P10) to maximize your advertising revenues within a budget.
1. What Is A Stadium LED Screen?
Stadium LED screens are highly advanced technology that delivers bright, vivid images and interactive audiovisual displays during sports events.
Stadium LED screen display is a multi-function digital display ideal for presenting the game score, players’ profile and live performance, game clock, and other game-related information and happenings. They produced vibrant colors and imaginative effects which give the users, players, and game spectators a better viewing experience.
Stadium perimeter LED screens, which are helpful during concerts as well, are a must in all stadiums. LED stadium display is a go-to solution if you want to give any stadium an enhanced professional image that adds value to the place.
2. What Are The Main Features Of The Stadium LED Screen?
High Refresh Rate.
Screens for stadium displays have a high refresh rate to achieve a flicker-free image and video broadcast video. This feature is essential if you want to deliver a good viewing experience to your audience.
Soft Masks and Pillows Protection.
Stadium pitch sided LED screens have a soothing module mask and pillow on top of each LED display cabinet. The coverings help ensure that no players will be hurt if they accidentally bump into or hit the LED displays. Once the game is over, you may opt to remove the mask of modules and pillow on the LED cabinets and use your stadium pitch LED display as a rental or regular LED display.
Fast Lock Mechanism.
Stadium arena LED screens have secured lockers on every side for a quick and easy assembly or installation. This kind of locking system requires less time and staff.
Flight Case/Container Packaging.
This returnable packaging system makes it easy to transport the LED screens from one place to another. The cases and containers secure and protect your LED screens during transport.
Weather Resistant.
Stadium arena LED displays are resistant to all weather conditions. So, no matter the weather (as long as it is bearable), the game is still on.
Easy and Dual Control System.
The computers (one as backup) usually serve as controllers for your stadium display boards. The computer control system ensures that there will be no unnecessary interruptions with your stadium video screens.
3. Are Stadium LED Displays Customizable?
Yes, stadium LED displays are customizable according to your event’s requirements and needs.
Large stadium LED display screens are modular. They achieved those huge sizes by combining multiple LED screen panels. The numerous panels are connected seamlessly and programmed to function as one big led display in a sports event. So, whether you want to have a LED video scoreboard or pitch side stadium LED, you can order it in any size you prefer.
