Product Details
Place of Origin: Shenzhen China
Brand Name: HSCXLED
Certification: KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001
Model Number: P1.56/P1.9/P2.6/P2.9/P3.1
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Fight case/Wooden case/Honeycomb Box
Delivery Time: 10-15 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000set/30day
Highlight: Ultra-Thin Double-Sided LED Display, Slim Indoor LED Advertising Display, High-Definition Slim Digital Signage
Product Name: | Ultra-Thin Led Display | Usage: | Indoor Adverting Display |
Model: | P1.56/P1.95/P2.6/P2.9/P3.1 | Type: | LED Full Color |
Module Size: | 250*250mm | Cabinet Size: | 500*500mm |
Refresh Rate: | 7680HZ | Brightness: | 600nit-3500nit (adjustable) |
Power Supply: | 110V~240V AC | Display Function: | Video/Text/Picture/Time/3D Text/Office/SWF |

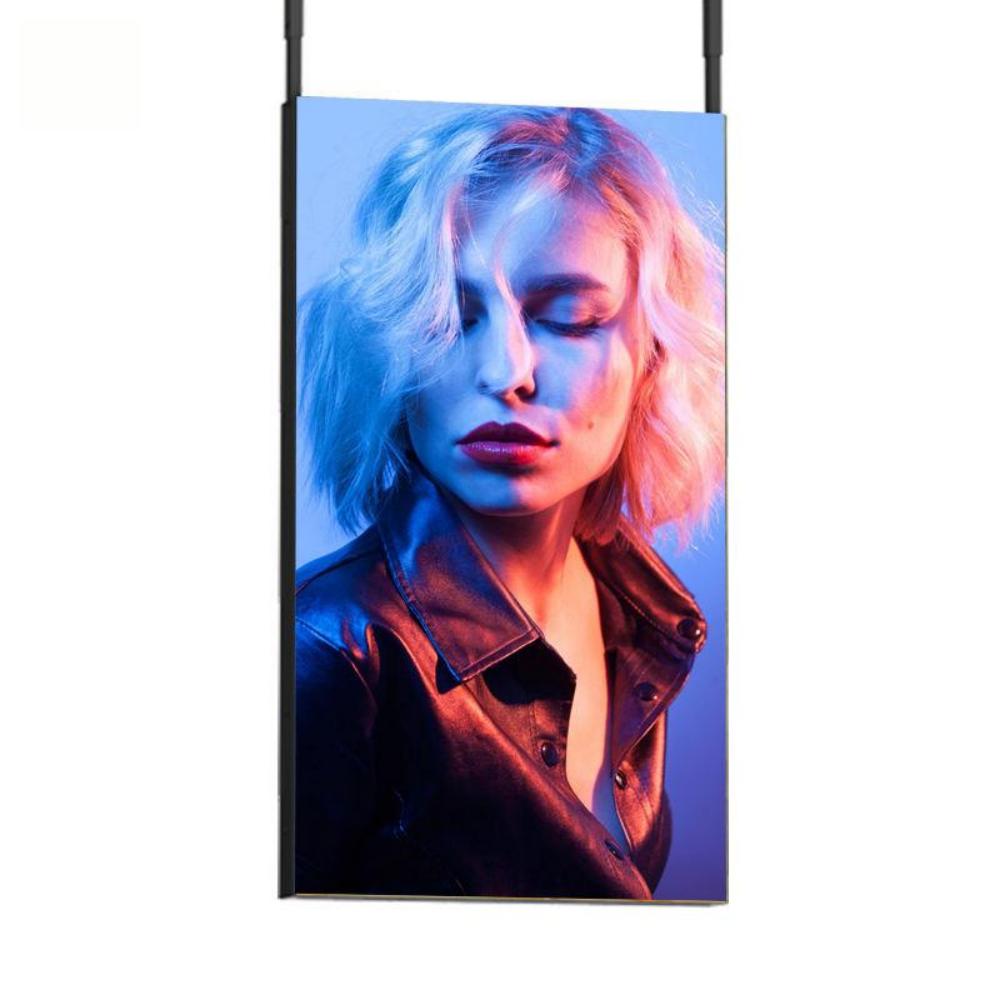

HSCXLED Indoor Ultra-Thin Double-Sided LED Display – High-Definition Slim Digital Signage
Looking for space-saving indoor signage? The HSCXLED Ultra-Thin Double-Sided LED Display offers 7680Hz refresh rate, 30mm thick cabinet, and dual-side synchronous/asynchronous playback. Ideal for malls, airports, and retail windows.
The Future of Space-Saving Indoor Advertising
Are you struggling to maximize advertising impact in narrow spaces like mall atriums, airport corridors, or retail windows? The HSCXLED Indoor Ultra-Thin Double-Sided LED Display is the ultimate solution. With a revolutionary thickness of only 30mm (double-sided) and a high-definition, this display breaks the limitations of traditional single-sided screens. It allows you to present content to two directions simultaneously without occupying extra floor space, making it a cost-effective and visually stunning choice for modern indoor environments.
Ultra-Thin Double-Sided LED Display Paramenters:
| HSCXLED-Ultra-Thin Double-Sided LED Display | ||||
| Model | P1.56 | P1.95 | P2.6 | P2.9 |
| Pixel pitch | 1.56mm | 1.95mm | 2.6mm | 2.976mm |
| LED configuration | SMD 1212 | SMD 1515 | SMD 2020 | SMD 2020 |
| Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Cabinet size | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm |
| Scan mode | 1/40 scan | 1/32 scan | 1/32 scan | 1/21 scan |
| Pixel matrix per Module | 160*160 dots | 128*128 dots | 96*96 dots | 84*84 dots |
| Pixel density | 409600(dots/sqm) | 262144(dots/sqm) | 147456(dots/sqm) | 112896(dots/sqm) |
| Cabinet Resolution | 320*320dots | 256*256 dots | 192*192 dots | 168*168dots |
| Thickness of LED display | (24mm/30mm) (Single-sided/Double-sided) | |||
| Cabinet Material | Aluminum profile cabinet, lightweight and thin | |||
| Display size | Splicing any size according to the cabinet size | |||
| Maintenance Method | Pre-maintenance | |||
| Refresh rate | ≥7680HZ | |||
| Brightness | 650nit-3000nit (adjustable) LED display screen supports adjustable brightness on both sides | |||
| Ingress Protection | IP40 | |||
| view angle(h/v) | ≥ 160°/140° | |||
| AC Input Voltage | AC 110V/220V±10%,50Hz/60Hz | |||
| Gray Level | 14-16bit | |||
| Working Temperature | -40 -50(℃) | |||
| Operating Humidity | 10%~95% non-condensing | |||
| Media available | Datasheet, EDA/CAD Models, Other, Photo ,video,3D,and other formats | |||

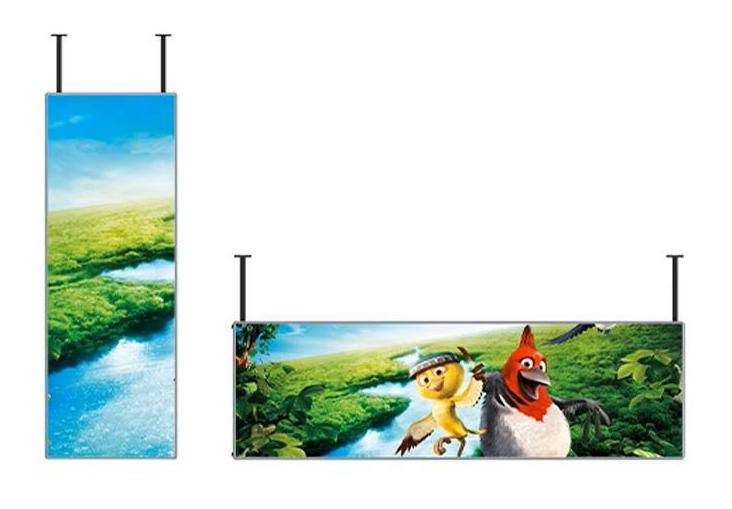

| Mounting options | Lifting/Side Installation/Fixed Installation/ Ceiling Mount,/Custom Mount/Floor Stand/Wall Mount | |||
| Life Time | ≥ 100000(Hours) | |||
Ultra-Thin LED Display,
Ultra Slim Led Display,
Ultra-Thin Double-Sided LED Display
Top 4 Reasons to Choose HSCXLED Ultra-Thin Double-Sided Display

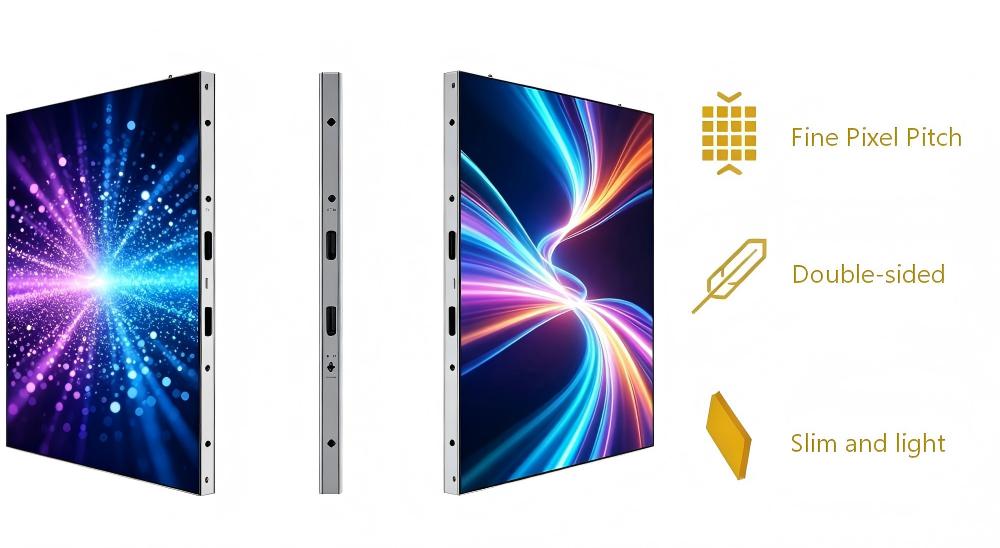

1. Truly Ultra-Thin & Lightweight Structure

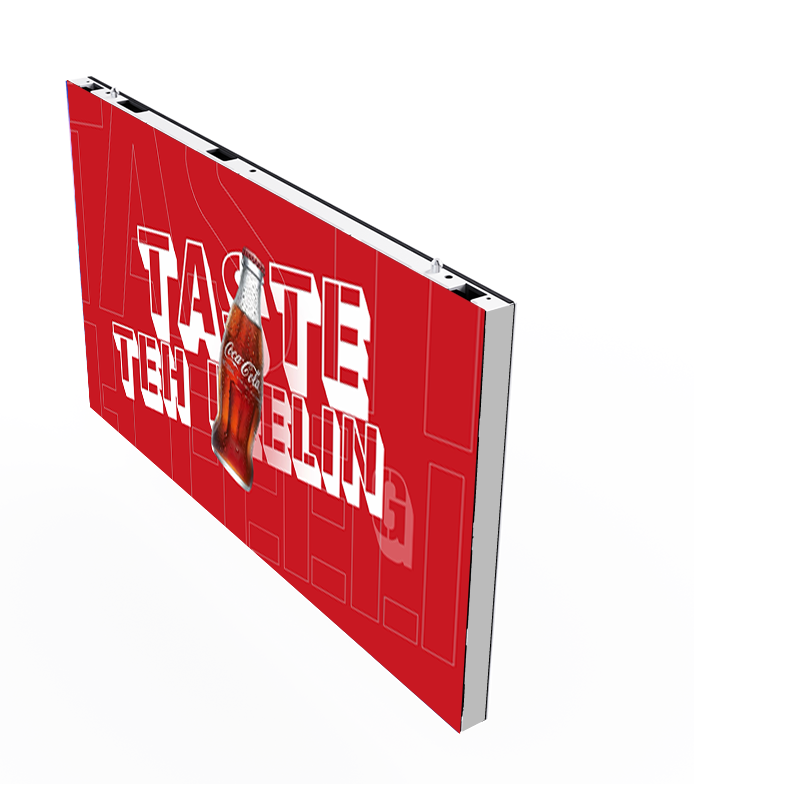

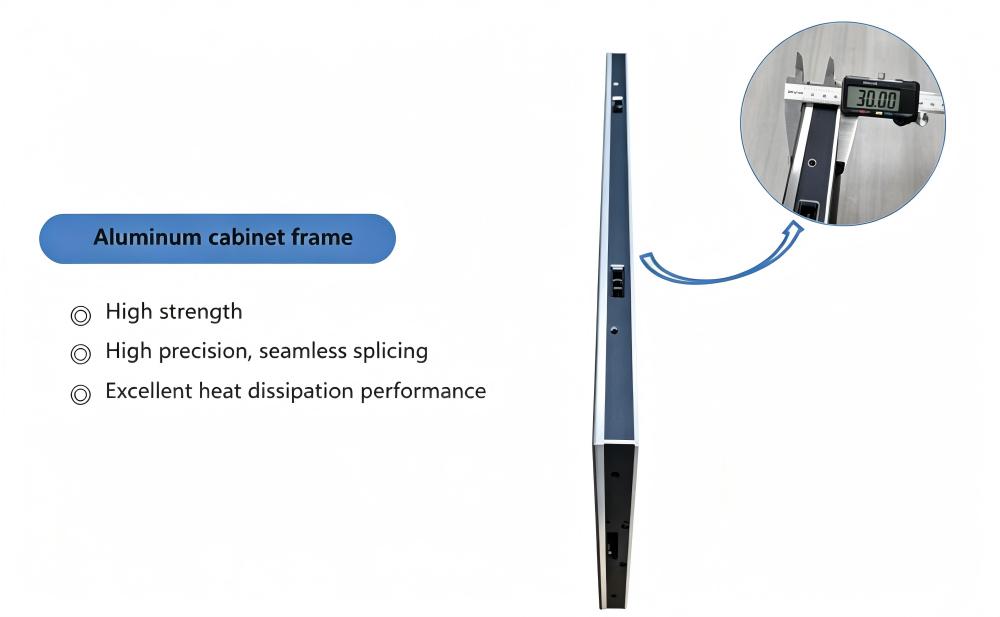

Space is premium in indoor settings. Our die-cast aluminum cabinet is only 30mm thick for the double-sided version. It significantly reduces the load-bearing pressure on walls or ceilings and can be installed in narrow columns, aisles, and window displays where traditional bulky screens cannot fit .

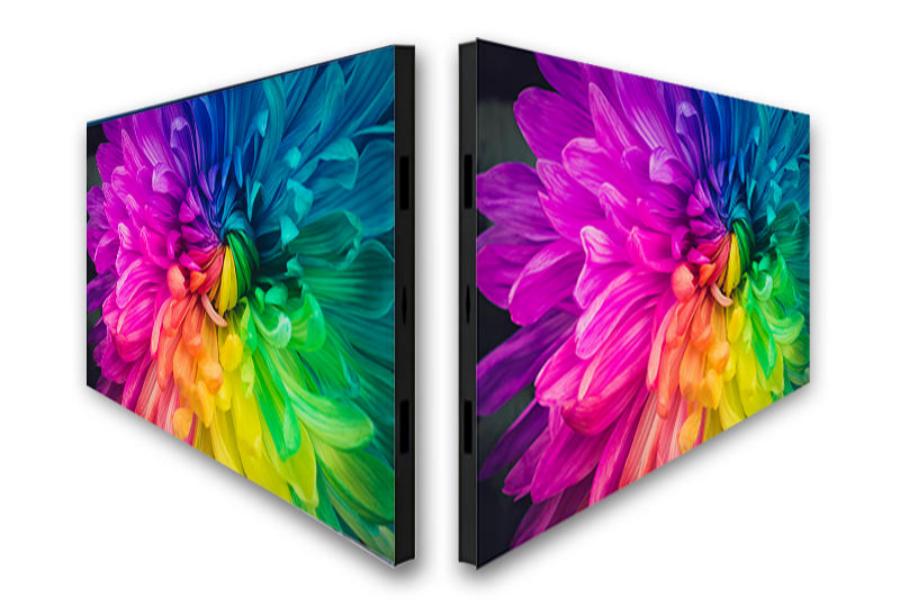

2. Dual-Sided Display Flexibility (Sync & Async)
Why buy two screens when one works better? This display supports both synchronous and asynchronous playback. You can show the same promotional video on both sides to amplify the message, or display different content (e.g., a product ad on the front, and a QR code/price list on the back) to target different audiences simultaneously. This doubles your information release efficiency.
3. Cinema-Grade Visual Performance
Equipped with high-quality LED lamps and a 7680Hz refresh rate, the Ultra-Thin display delivers crisp, vivid, and delicate images with high contrast and a wide color gamut. Whether it is bright retail lighting or a dimly lit lounge, the adjustable brightness (650-3000 nits) ensures your content is always clear and eye-catching .
4. Easy Front Maintenance & Smart Control
Time is money. The Ultra-Thin display modular design allows for front maintenance—you can replace a single module quickly without needing rear access. Coupled with an intelligent control system (NovaStar/Colorlight compatible), you can manage content, adjust brightness, and diagnose faults remotely via WiFi, LAN, or cloud, reducing operational costs.

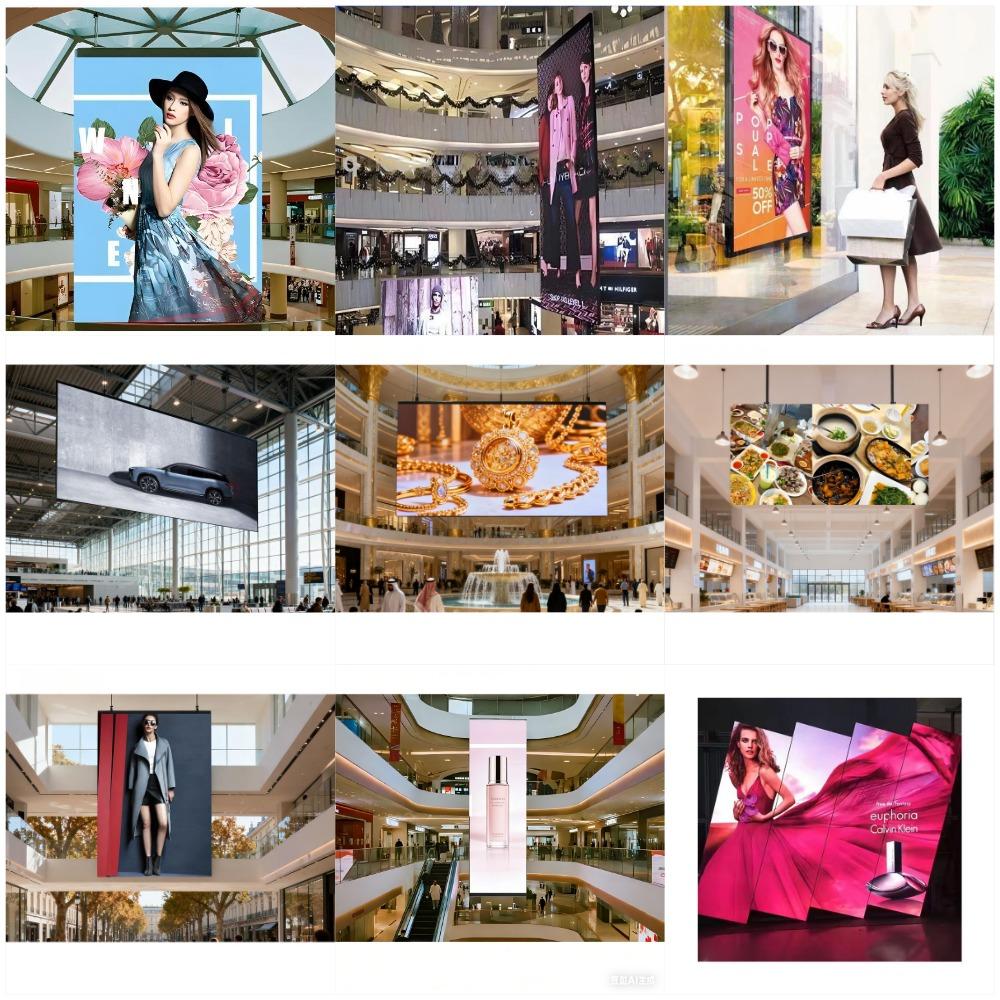

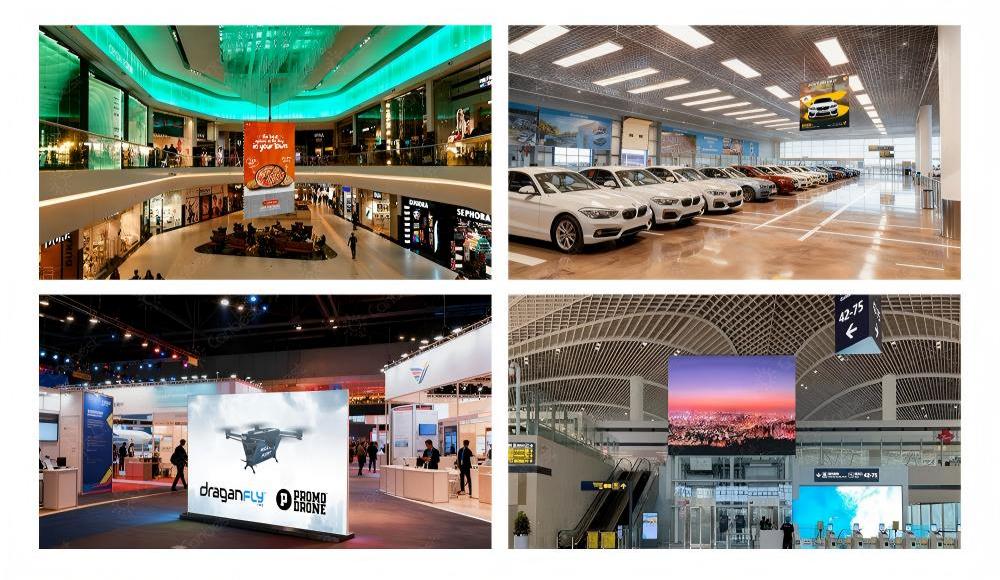

Ideal Application Scenarios
Where can this ultra-thin double-sided screen be used?

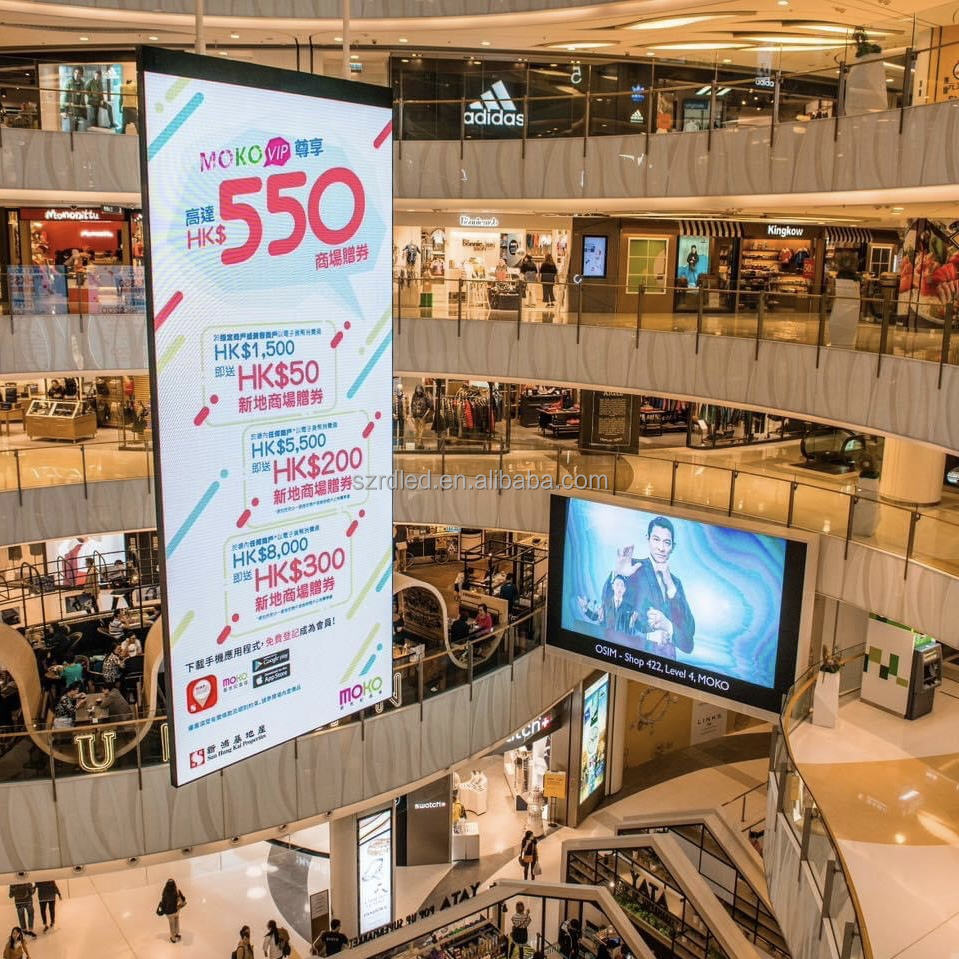

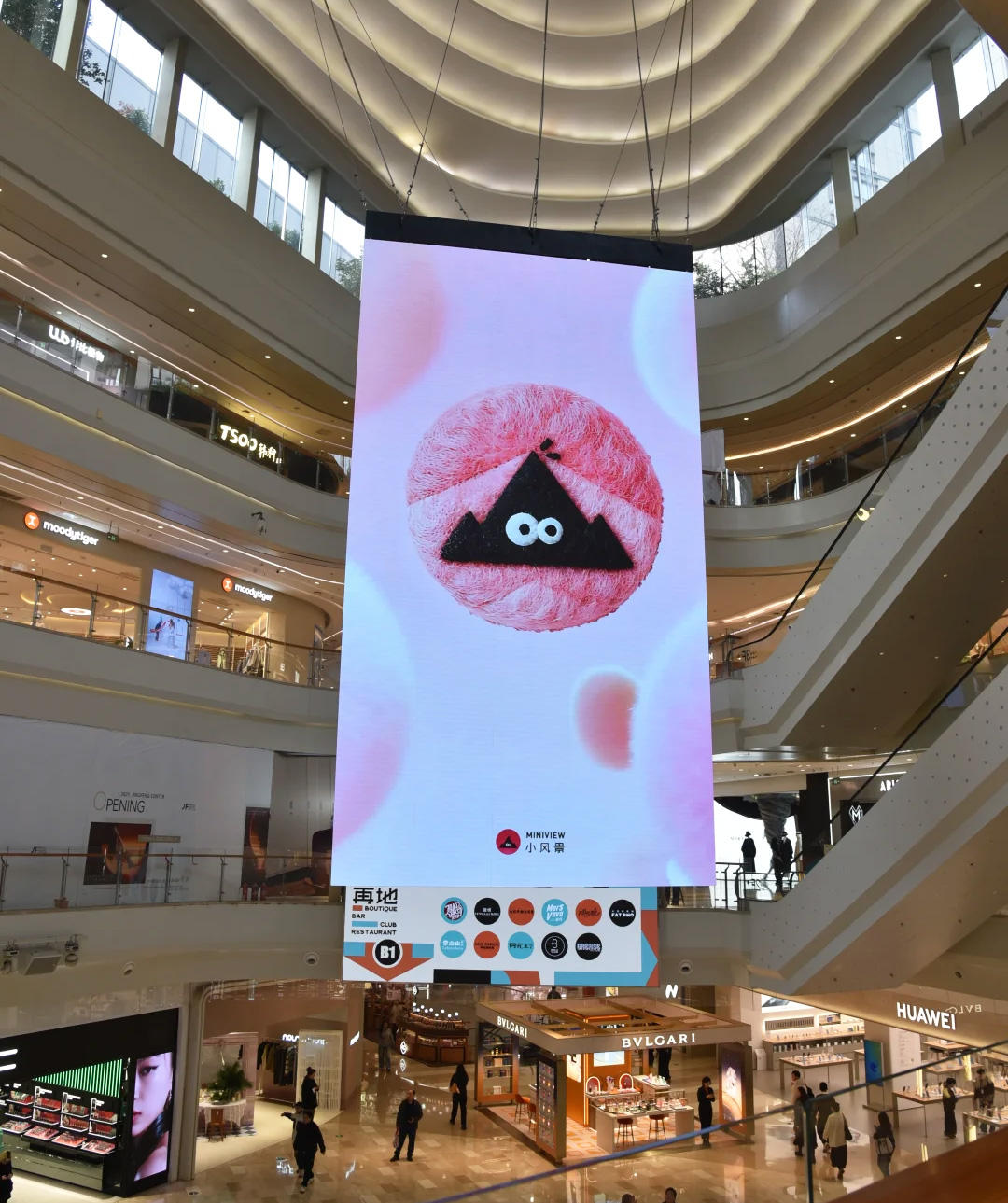

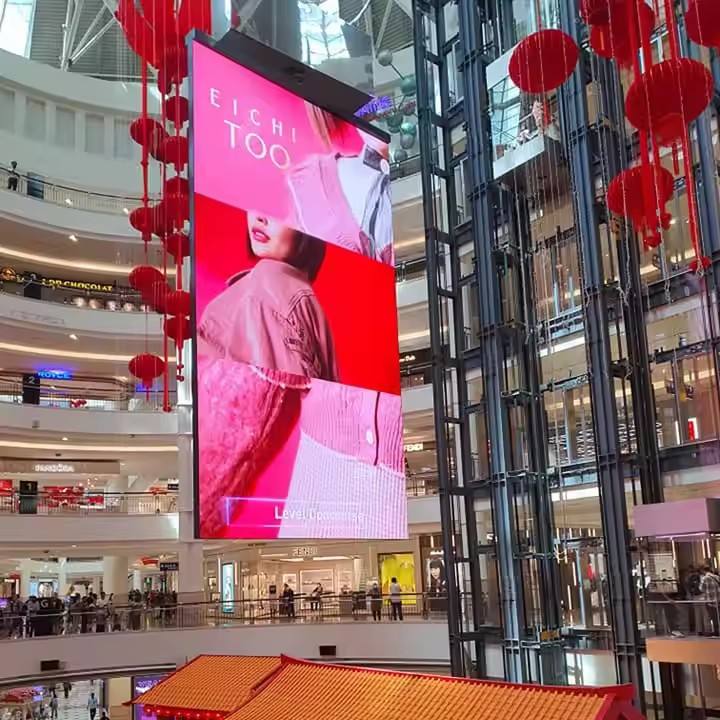

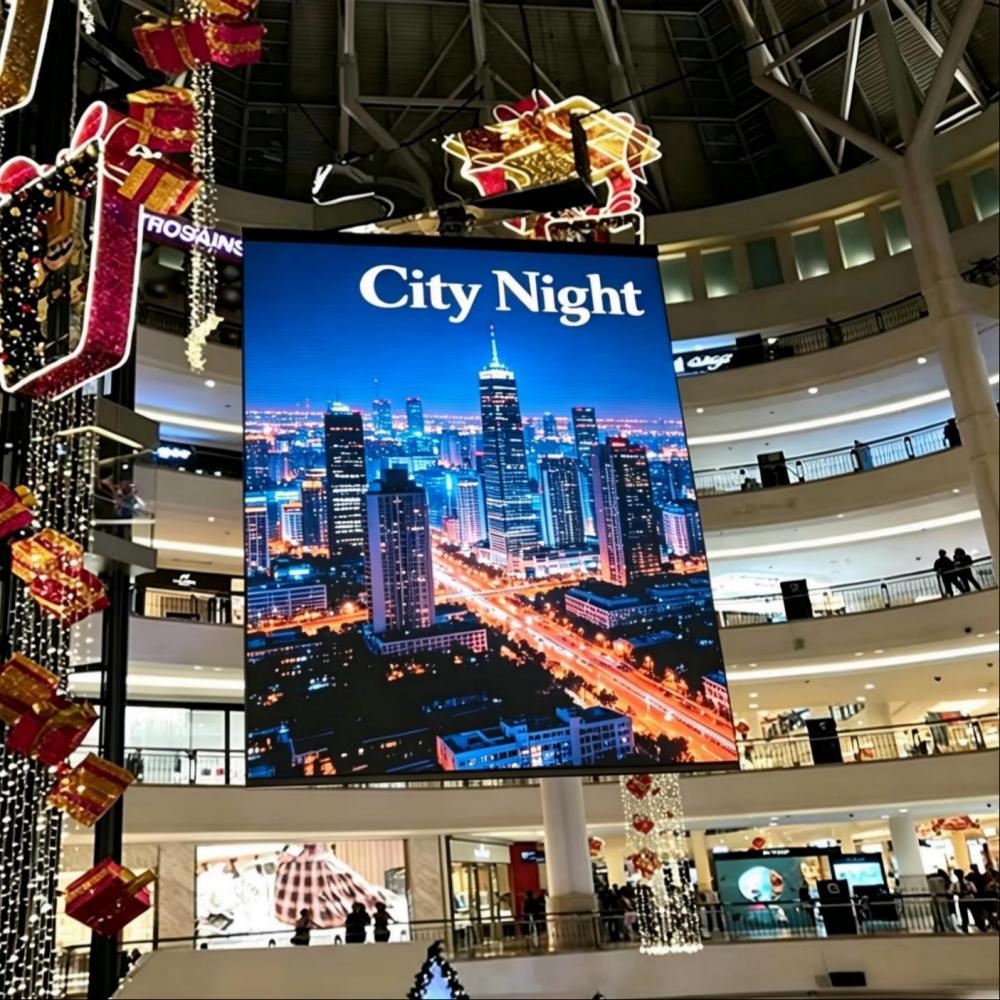

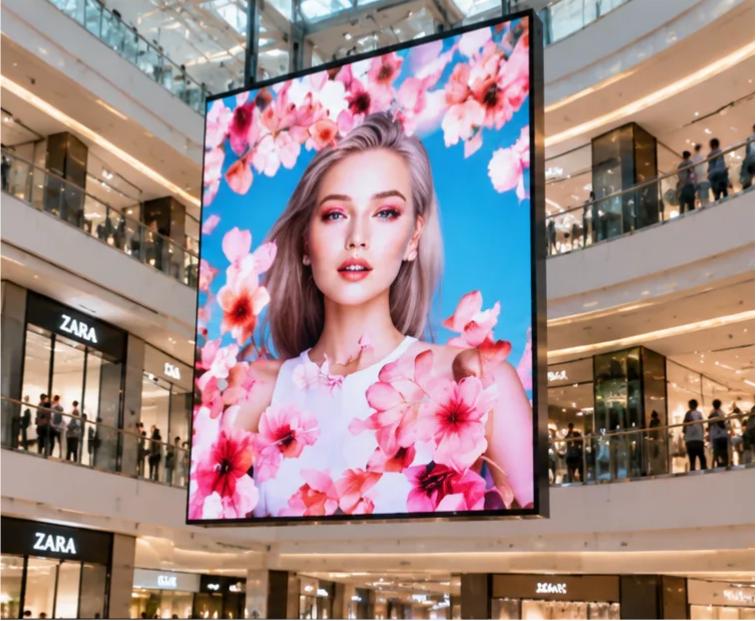

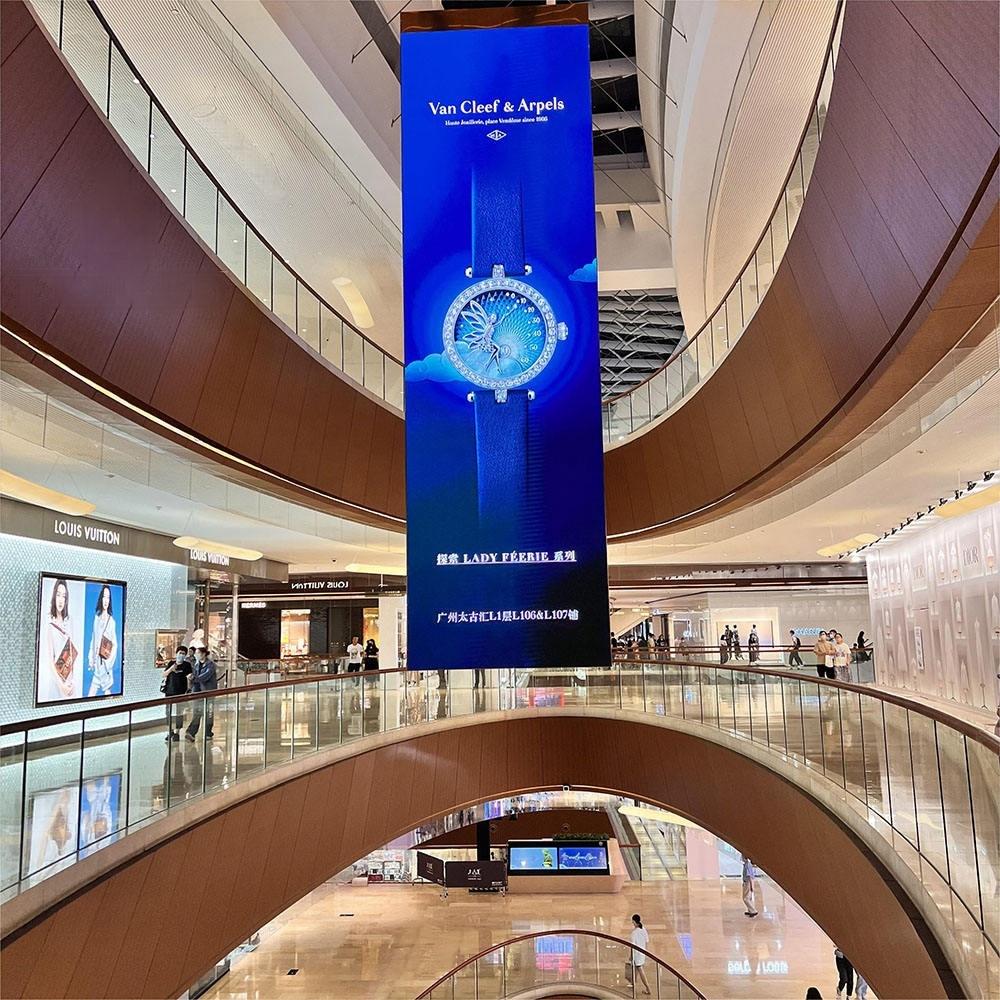

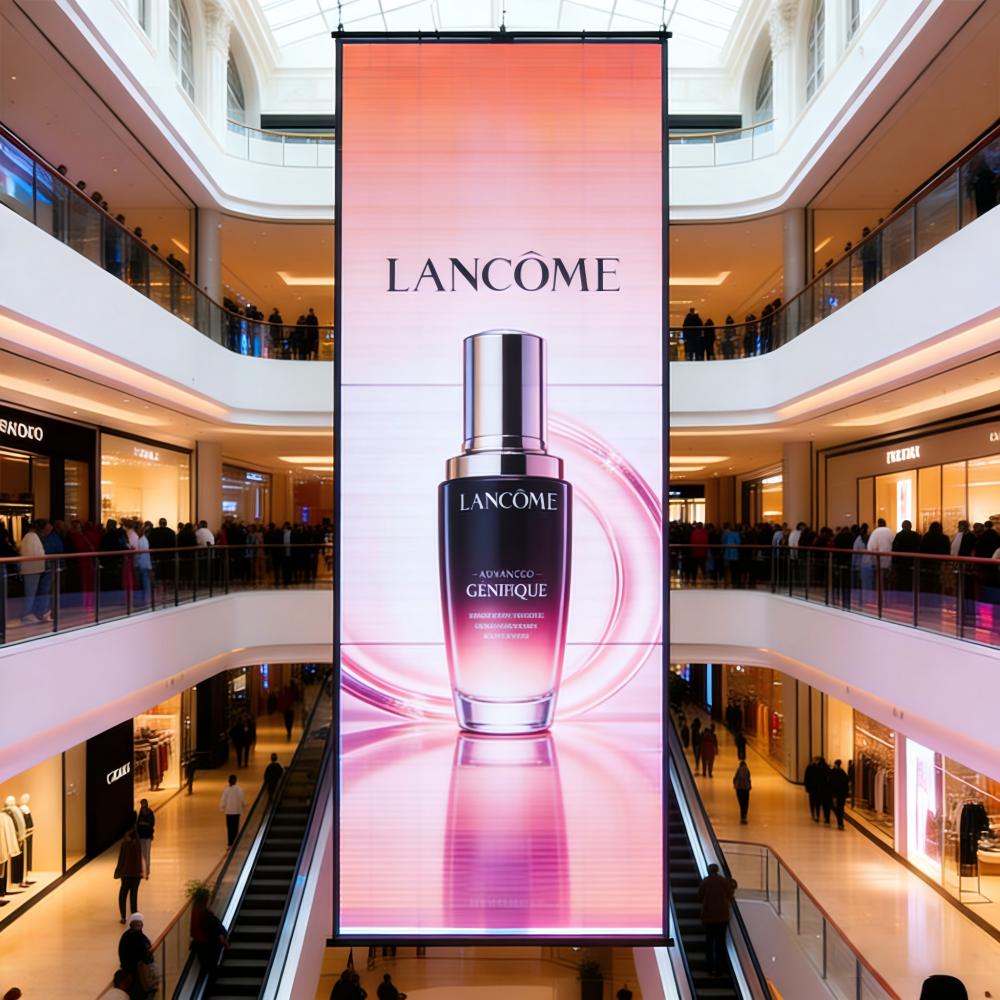

Shopping Malls & Retail Stores: Hang in atriums or place in windows to attract customers from both inside and outside.

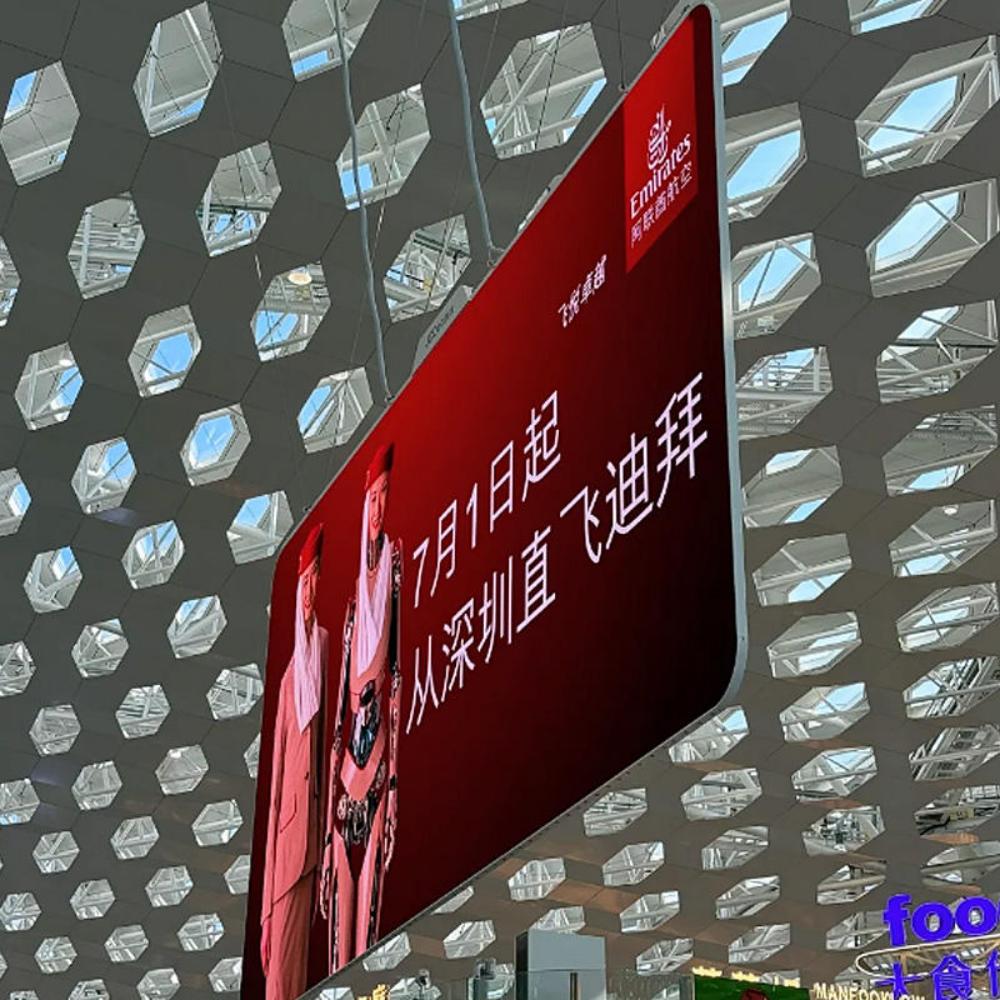

Airports & Transportation Hubs: Display flight info on one side and ads/public service info on the other.
Exhibition Halls & Museums: Show exhibit details on both sides for visitors walking in either direction.
Corporate Lobbies: Display company culture on one side and visitor guidelines on the other.
Quality Assurance & Certifications
As a professional manufacturer based in Shenzhen, China, HSCXLED ensures strict quality control. This product is certified with KC, CE, ROHS, FCC, CCC, and ISO9001, guaranteeing safety, durability, and compliance with international standards.
Frequently Asked Questions (FAQ)
Q: Can I customize the size of the display?

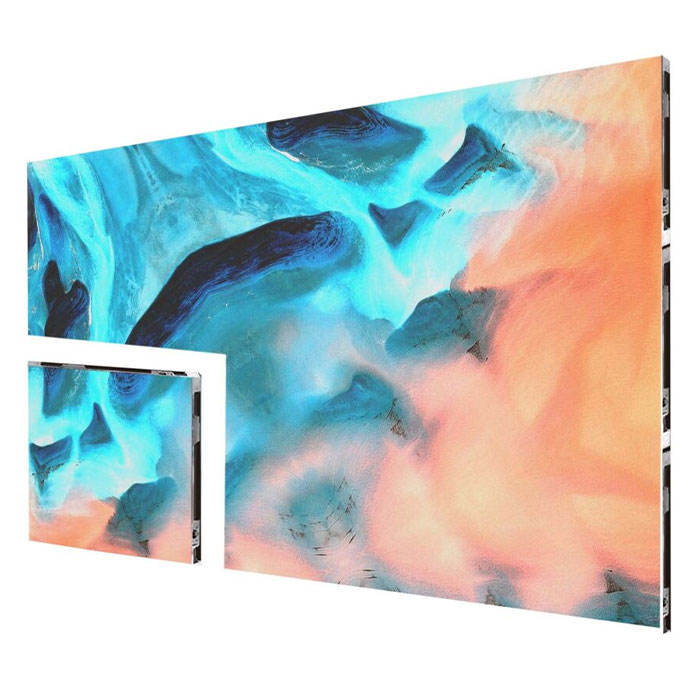

A: Yes, the display supports seamless splicing. You can customize any size you need based on the 500x500mm cabinet unit .
Q: What control systems does it support?
A: It is compatible with leading systems like NovaStar and Colorlight, supporting HDMI, WiFi, and asynchronous cloud control .
Q: Is the brightness adjustable on both sides independently?
A: Yes, the LED display screen supports adjustable brightness on both sides, allowing for different brightness levels depending on the ambient light of each side.
